PUBLIC HEALTH ASSESSMENT
HORSESHOE ROAD
SAYREVILLE, MIDDLESEX COUNTY, NEW JERSEY


APPENDICES


Appendix A - Figures

Figure 1. Horseshoe Road Site
Figure 1. Horseshoe Road Site

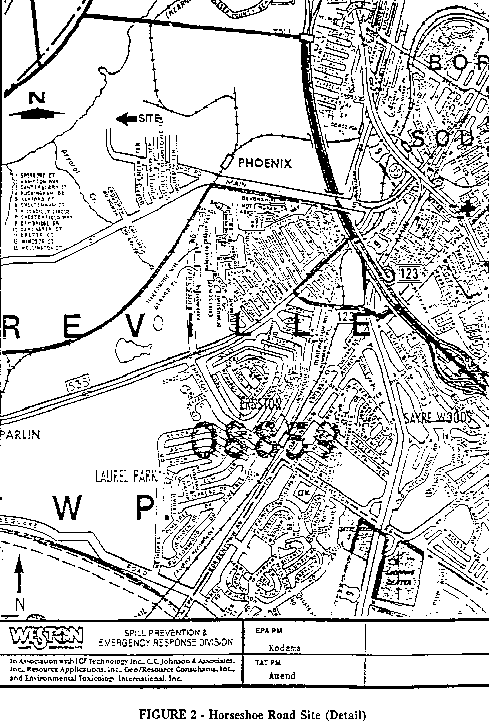

Figure 2. Horseshoe Road Site (Detail)
Figure 2. Horseshoe Road Site (Detail)

Figure 3. Atlantic Resources
Figure 3. Atlantic Resources

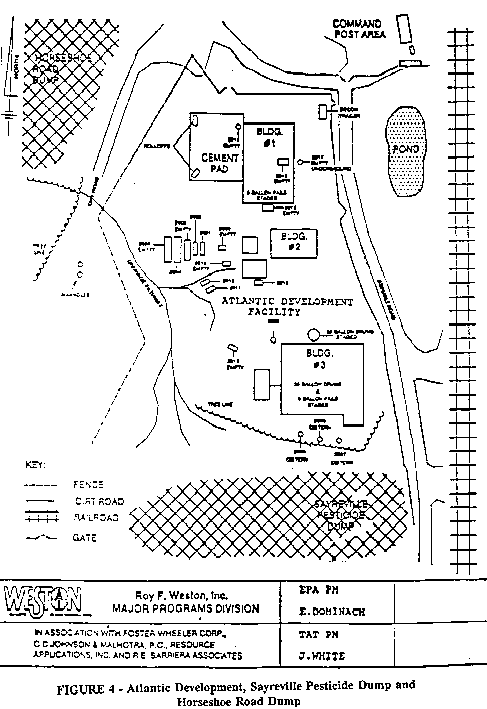

Figure 4. Atlantic Development, Sayreville Pesticide Dump and Horseshoe Road Dump
Figure 4. Atlantic Development, Sayreville Pesticide Dump and Horseshoe Road Dump

Figure 5. Soil Sampling Grid
Figure 5. Soil Sampling Grid




Appendix B - Tables

Table 1. Maximum Contaminant Concentrations, VOC's and Phenols, in on-site surface soil(0-12"), Horseshoe Road Site, September 23, 1993.

ContaminantMaximum
Concentration
(ppm)
Ref.Comparison Value
(ppm)Source
Benzene1,800 E120CREG
Chloroform3001100CREG
1,2-Dichloroethane6618CREG
Tetrachloroethene830110CREG
Toluene68,000110000child RMEG
Trichloroethene2,000 E160CREG
Vinyl Chloride12 J11child EMEG
2,3,4,6-Tetrachlorophenol3,20012000child RMEG
2,4,-Dinitrophenol830 J1200child RMEG
2,4,6-Trichlorophenol170160CREG
2,4-Dichlorophenol4,0001200child RMEG
Nitrophenols3,2001NANA
4,6,-Dinitro-2-methylphenol1,4001NANA
4-Chloro-3-methylphenol8501NANA
O-Cresol600 J1NANA
Pentachlorophenol3,40016CREG

KEY:
NA- Not Available
E- Exceeds calibration range of the GC instrument for the specific analysis. The compound can beconsidered to be present in significant concentrations.
J- Estimated concentration; the identity or associated numerical value may not accurately reflect the identity or amount present in the environmental sample.

Table 2. Maximum Contaminant Concentrations, PAH's, in on-site surface soil (0-12"),Horseshoe Road Site, September 23, 1993.

ContaminantMaximum
Concentration
(ppm)
Ref.Comparison Value
(ppm)Source
Acenapthene21,00013000child RMEG
Anthracene41,000 E12000child RMEG
Benzo(a)anthracene30,000 E1NANA
Benzo(a)pyrene8,10010.1CREG
Benzo(b)/(k)fluoranthene24,000 E1NANA
Benzo(g,h,i)perylene3,6001NANA
Chrysene12,0001NANA
Dibenz(a,h)anthracene4,1001NANA
Fluoranthene21,000 E12000child RMEG
Fluorene30,00012000child RMEG
Indeno (1,2,3-cd) pyrene5,2001NANA
Naphthalene2,1001NANA
Phenanthrene26,000 E1NANA
Pyrene37,000 E12000child RMEG

KEY:
NA- Not Available
E- Exceeds calibration range of the GC instrument for the specific analysis. The compound can beconsidered to be present in significant concentrations.
J- Estimated concentration; the identity or associated numerical value may not accurately reflectthe identity or amount present in the environmental sample.

Table 3. Maximum Contaminant Concentrations, Pesticides, in on-site surface soil (0-12"),Horseshoe Road Site, September 23, 1993.

ContaminantMaximum
Concentration
(ppm)
Ref.Comparison Value
(ppm)Source
4,4'-DDD210 E13CREG
4,4'-DDE/Dieldrin110 E12CREG
4,4'-DDT450 E12CREG
Aldrin200 E10.04CREG
Alpha-BHC420 E10.1CREG
Alpha/Gamma-Chlordane290 E10.5CREG
Beta-BHC3.110.4CREG
Delta-BHC580 E1NANA
Endosulfan I/II740 E1100child EMEG
Endosulfan Sulfate1,100 E1NANA
Endrin260 E120child EMEG
Endrin Aldehyde440 E1NANA
Endrin Ketone370 E1NANA
Gamma-BHC (Lindane)970 E120child RMEG
Heptachlor270010.2CREG
Heptachlor Epoxide160 E
0.08CREG
Methoxychlor1,600,000 E
300child RMEG

KEY:
NA- Not Available
E- Exceeds calibration range of the GC instrument for the specific analysis. The compound can beconsidered to be present in significant concentrations.
J- Estimated concentration; the identity or associated numerical value may not accurately reflectthe identity or amount present in the environmental sample.

Table 4. Maximum Contaminant Concentrations, PCB's, in on-site surface soil (0-12"), HorseshoeRoad Site, September 23, 1993.

ContaminantMaximum
Concentration
(ppm)
Ref.Comparison Value
(ppm)Source
Aroclor-10161,200 E14child RMEG
Aroclor-122116,00010.09CREG
Aroclor-12488,80010.09CREG
Aroclor-12542,000 E10.09CREG
Aroclor-126089,65010.09CREG

Table 5. Maximum Contaminant Concentrations, Metals, in on-site surface soil (0-12"), Horseshoe Road Site, August 28, 1993.

ContaminantMaximum
Concentration
(ppm)
Ref.Comparison Value
(ppm)Source
Arsenic1,97120.4CREG
Cadmium601240child EMEG
Chromium-total6,5612300a-50,000bchild RMEG
Copper16,2552NANA
Lead11,1002NANA
Mercury1,4402NANA
Nickel6,89221000child RMEG
Selenium1442100child EMEG
Silver2,2952300child RMEG

KEY:
NA- Not Available
a - RMEG for Chromium +6
b - RMEG for Chromium +3

Table 6. Maximum Contaminant Concentrations, VOC's, PAH'S, PCB'S AND PESTICIDES,on-site Sediment samples, Horseshoe Road Site (Sayreville Pesticide Dump) 1991.

ContaminantMaximum
Concentration
(ppm)
Ref.Comparison Value
(ppm)Source
Aroclor-12543.0 E
0.09CREG
Benzo(b)fluoranthene1.2
NANA
Benzo(a)pyrene1.2
0.1CREG
Bis(2-ethylhexyl)phthalate3.3 E
NANA
Chloroform2.1
100CREG
Methoxychlor18,000 E
300child RMEG
Phenanthrene30.0 E
NANA

KEY:
NA- Not Available
E- Exceeds calibration range of the GC instrument for the specific analysis. The compound can beconsidered to be present in significant concentrations.
J- Estimated concentration; the identity or associated numerical value may not accurately reflectthe identity or amount present in the environmental sample.


Appendix C - ATSDR Health Consultation

The following section was not available in electronic format for conversion to HTML at the time of preparation of this document. To obtain a hard copy of the document, please contact:

Agency for Toxic Substances and Disease Registry
Division of Health Assessment and Consultation
Attn: Chief, Program Evaluation, Records, and Information Services
Branch E-56
1600 Clifton Road NE, Atlanta, Georgia 30333
