PUBLIC HEALTH ASSESSMENT

EASTERN SURPLUS COMPANY SITE
MEDDYBEMPS, WASHINGTON COUNTY, MAINE

APPENDICES

APPENDIX A: FIGURES

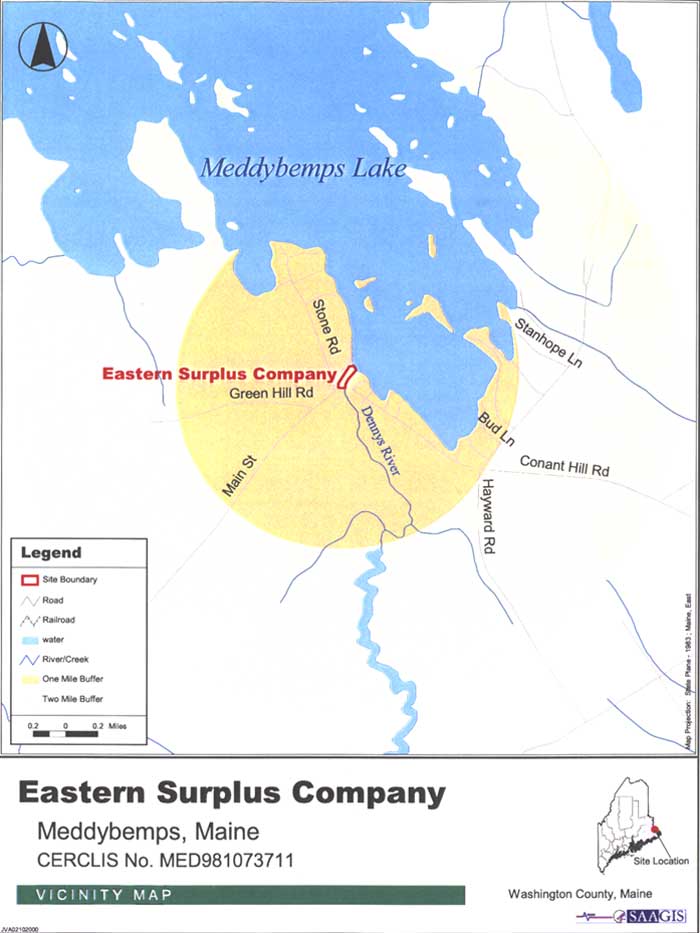

Figure 1. Eastern Surplus Vicinity Map

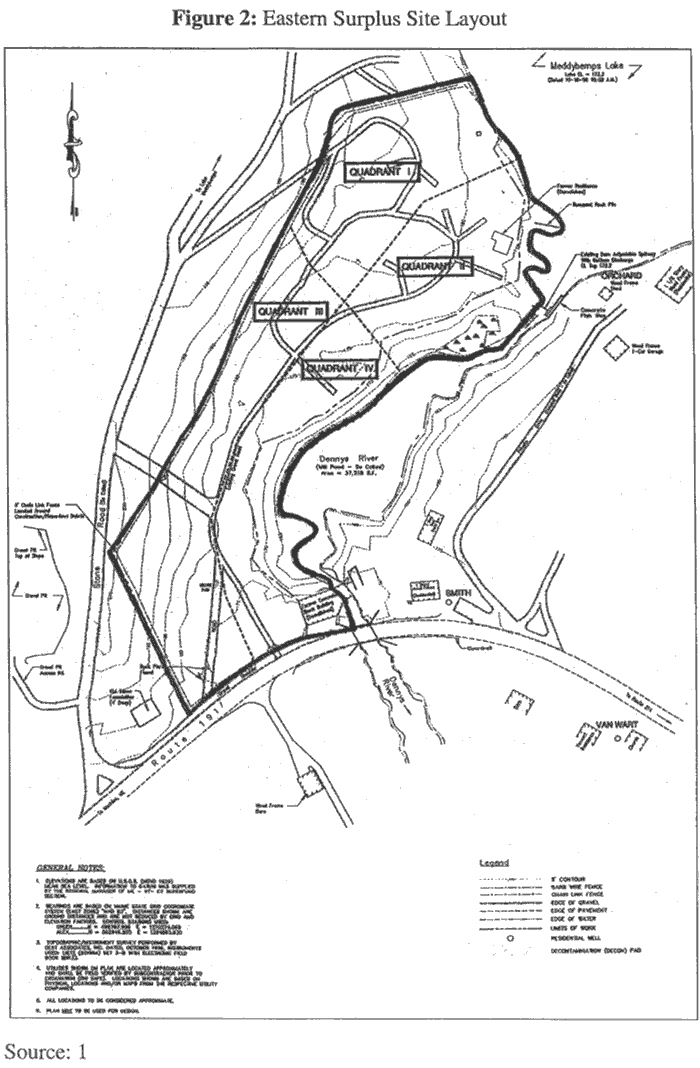

Figure 2. Eastern Surplus Site Layout

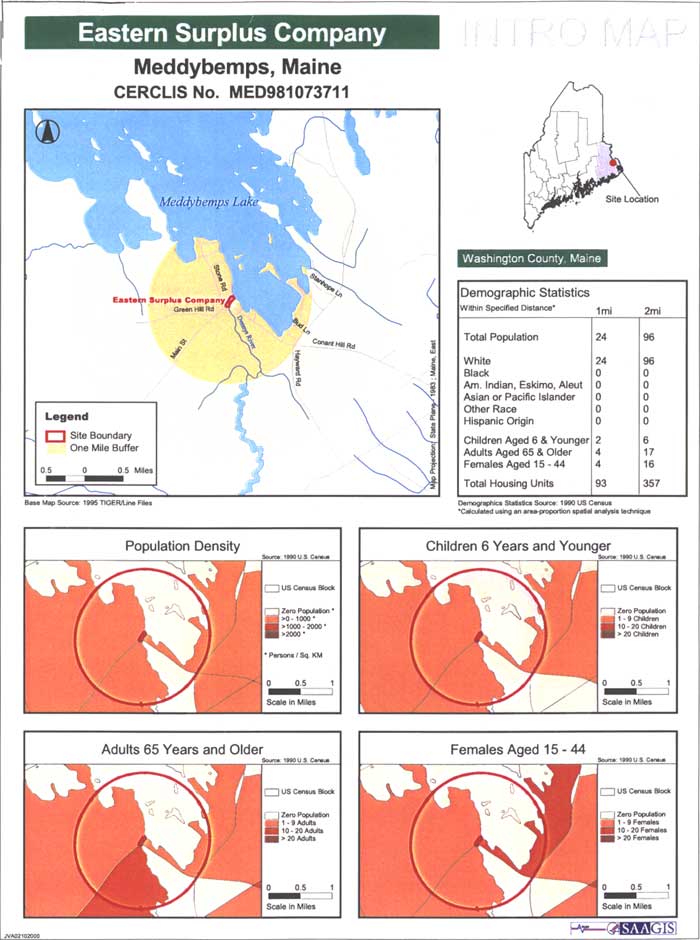

Figure 3. Eastern Surplus Demographics Information

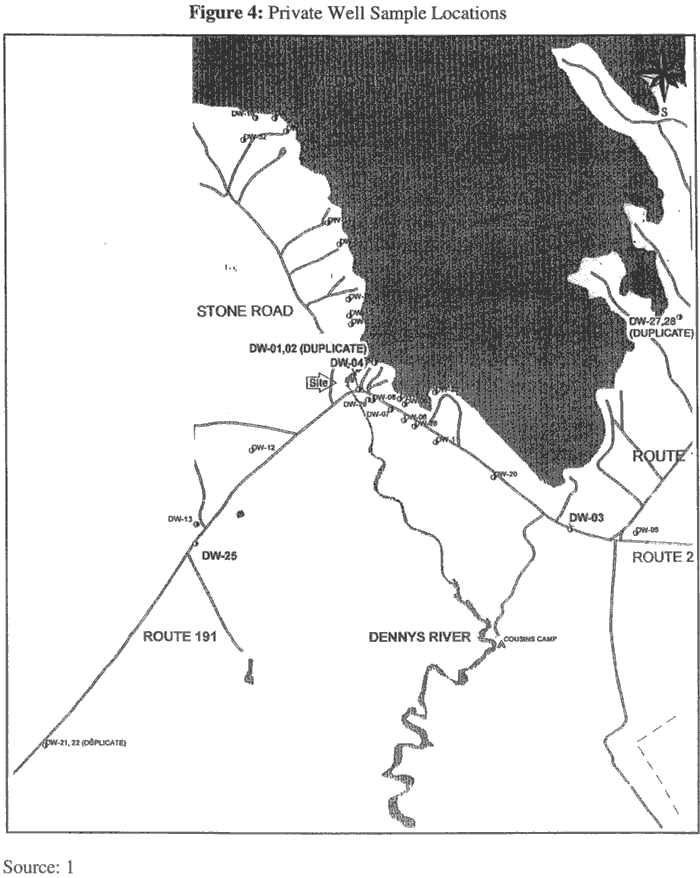

Figure 4. Private Well Sample Locations

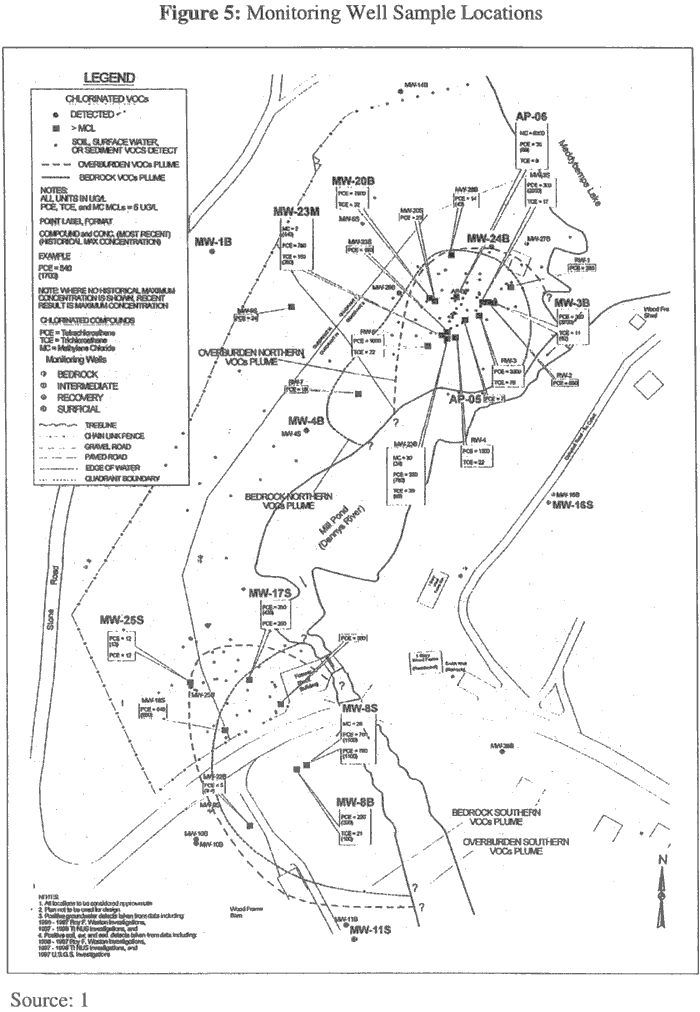

Figure 5. Monitoring Well Sample Locations

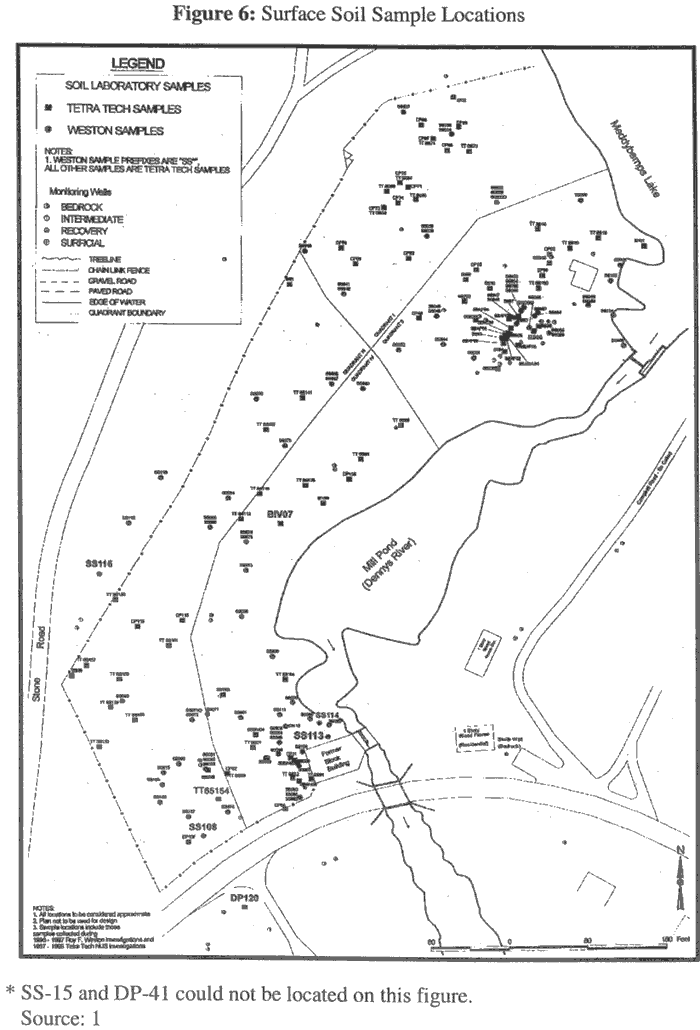

Figure 6. Surface Soil Sample Locations

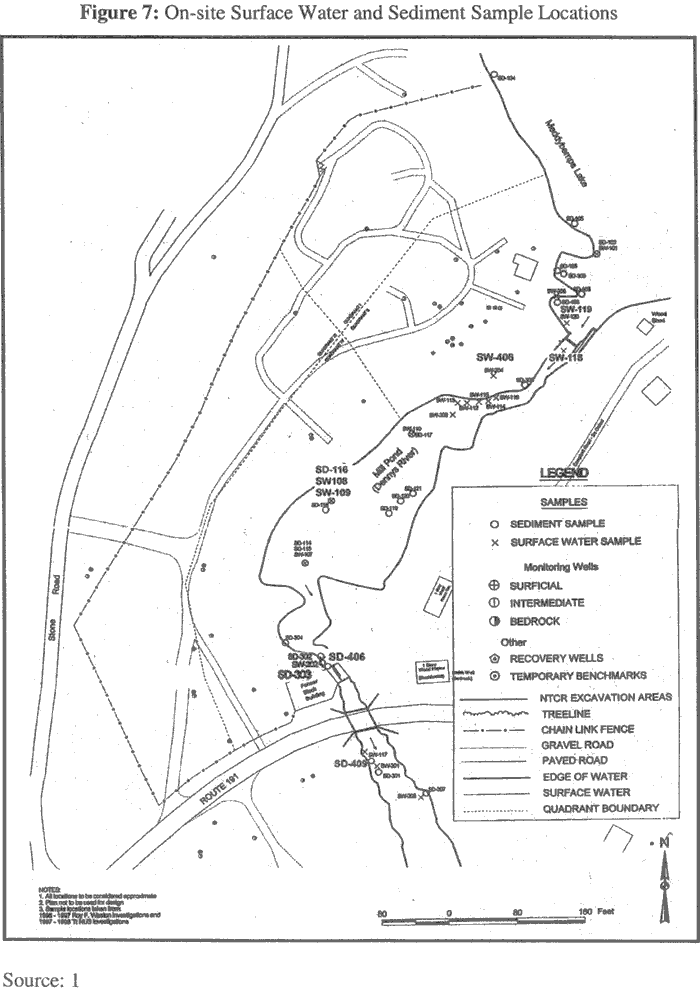

Figure 7. On-site Surface Water and Sediment Sample Locations

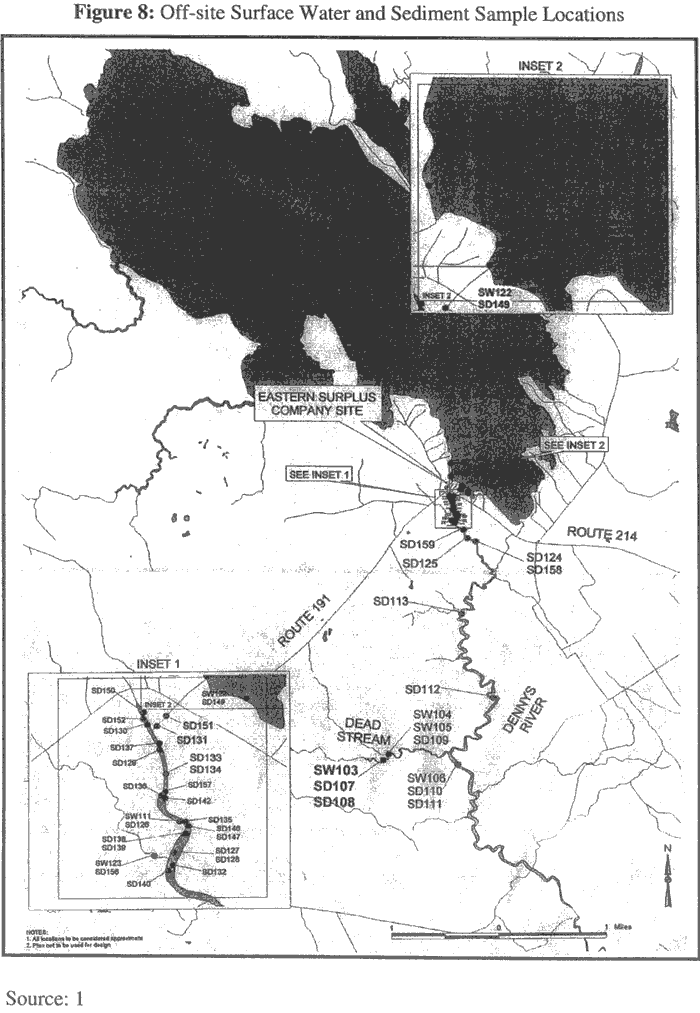

Figure 8. Off-site Surface Water and Sediment Sample Locations

APPENDIX B: TABLES

Table 1.
Demographics for 1-mile radius of Eastern Surplus Site, Meddybemps, Maine
	Site area		ZIP code 04567		Washington County
Total population	24*	-	62*	-	35,308	--
White	24	100%	62	100%	33,704	95.5%
Black	0	0%	0	0%	54	0.2%
American Indian, Eskimo, Aleut	0	0%	0	0%	1,442	4.1%
Asian or Pacific Islander	0	0%	0	0%	88	0.2%
Other	0	0%	0	0%	20	0.1%
Hispanic Origin	0	0%	0	0%	164	0.5%
Less than 18 Years of Age	--	--	7	11.3%	9,040	25.6%
18 Years of Age or Greater	--	--	55	88.7%	26,268	74.4%
Children Aged 6and Younger	2	8.3%	0	0%	2,250†	5.3%
Females Aged 15-44	4	16.7%	8	12.9%	7,382	20.4%
Adults Aged 65 and Older	4	16.7%	15	24.2%	5,694	17.3%
Total Housing Units	93	--	207	--	19,124	--
Occupied	--	--	24	11.6%	13,418	70.2%
Owner Occupied	--	--	24	11.6%	10,568	55.3%
Median Housing Value	--	--	125,000	--	53,100	--

Source: 1, 5

Notes:
* the town of Meddybemps has a population of 142 which is said to approximately triple in the summer (1)
† under 5 years
Site area statistics from 1990 census
ZIP code from 1990 census
County statistics from 1990 census

Table 2.
Exposure pathways, Eastern Surplus Site, Meddybemps, Maine
Pathway Name	Exposure Pathway Elements					Time	Comments
Pathway Name	Source	Media	Point of Exposure	Route of Exposure	Exposed Population	Time	Comments
Ground-water as Drinking Water	Eastern Surplus	Groundwater	Private Wells	Ingestion, Dermal contact	Year-round residents with private wells (approximately 142 in Meddybemps, Maine)	Past, Current, Future	No past, current, or future public health hazards are likely because contaminants were detected below levels likely to result in adverse health effects and groundwater remediation is underway at the site. No on-site use of groundwater has been identified, therefore contact with on-site groundwater is an incomplete exposure pathway.
Surface Soil	Eastern Surplus	Surface Soil	Contaminated on-site areas , including VOC and PCB hot spots	Incidental ingestion, Dermal contact	Trespassers, Past on-site residents and workers	Past, Current, Future	The site is fenced to prevent site access; therefore, no exposures are expected. Remedial actions have removed areas of soil contamination and no adverse health effects are expected from exposures to surface soil. Past exposures to on-site residents, workers, or trespassers cannot be evaluated because data to characterize surface soil contamination before MEDEP, EPA, and DOD conducted remedial actions in the 1980s and 1990s are unavailable.
Surface water and sediment in Meddy-bemps Lake and Dennys River	Eastern Surplus	Surface water, Sediment	Meddybemps Lake, Dennys River (including Mill Pond)	Incidental ingestion, Dermal contact	Recreational users	Past, Current, Future	Contact with contaminants in surface water and sediment in Meddybemps Lake and Dennys River (including Mill Pond) is unlikely to result in adverse health effects. Contaminants are present below levels likely to result in health effects, exposures are infrequent, and remedial actions have been conducted to prevent contaminant migration.
Surface water from Meddy-bemps Lake as drinking water	Eastern Surplus	Surface water	Meddybemps Lake	Ingestion, Dermal Contact	Summer residents	Past, Current, Future	Some summer residents are reported to use surface water from Meddybemps Lake as a drinking water source. Only antimony was found slightly above comparison values in a background sample from Meddybemps Lake. Ingestion of antimony at the maximum detected concentration for 3 to 4 months a year is unlikely to result in adverse health effects. Ongoing remediation at the site will further prevent site impacts to the lake. No past, current, of future use of lake water for drinking water by summer residents is likely to result in adverse health effects.
Air	Eastern Surplus	Air	Site vicinity	Inhalation	Nearby residents, Trespassers	Past, Current, Future	No air contaminants were detected off site, even during remedial activities. No data, however, are available to assess past airborne contamination when the site was active.
Biota	Eastern Surplus	Plants, Animals, Fish, Shellfish	Plants and animals from the site, Fish and shellfish from Meddybemps Lake and Dennys River	Ingestion	Recreational users, including the Passamaquoddy Tribe	Past, Current, Future	Current and future use of biota from Meddybemps Lake and Denny's River is unlikely to result in adverse health effects when following the state-wide fish consumption advisory. EPA and the Passamaquoddy tribe plan to meet to identify any plants they may use for medicinal or other purposes on the site. Remedial actions were implemented to reduce site contamination and prevent contaminant migration. Potential health hazards from former (prior to 1970) tribal subsistence gathering, hunting, and fishing are unknown because no data were collected to characterize site conditions before remediation in the 1980s and 1990s.
Physical hazards	Eastern Surplus	Physical hazard	Former hydroelectric power unit	Physical hazard	Trespassers	Past, Current, Future	A dilapidated hydroelectric unit spans Dennys River along the southern site shoreline. Access from the west is restricted by a fence surround the site, but access from the east is unrestricted.

Table 3.
Groundwater contaminants detected above ATSDR comparison values for the Eastern Surplus site, Meddybemps, Maine
Chemical	Max. Conc. In parts per billion (ppb)	Date	CV	Type	Exceedences / Detections / Samples	Location of maximum
Benzene	2	12/11/96	0.6	CREG	3 / 3 / 279	MW-1B, MW-16S
Chloromethane	55	6/17/98	2.1	RBC-C	2 / 6 / 277	AP-06
1,1-Dichloroethene	3	6/14/98	0.06 90	CREG C-EMEG-child	6 / 6 / 279 0 / 6 / 279	MW-8B
1,2-Dichloroethene (total)	440	11/6/98	55	RBC-N	4 / 15 / 137	MW-23M
Methylene chloride	6,300	11/6/98	5 600	CREG RMEG-child	12 / 61 / 279 2 / 61 / 279	AP-06
Tetrachloroethylene (PCE)	7,900	11/5/98	5 100	MCL RMEG-child	68 / 132 / 279	MW-20B
Toluene	650	12/4/97	200	I-EMEG-child	2 / 42 / 279	MW-8B
1,1,2-Trichloroethane	11	12/4/97	0.6 40	CREG RMEG-child	1 / 1 / 278 0 / 1 / 278	MW-3B
Trichloroethylene (TCE)	380	11/19/97	5	MCL	51 / 61 / 279	MW-23M
Vinyl chloride	0.9	11/5/98	0.02 0.2	CREG C-EMEG-child	1 / 1 / 279 1 / 1 / 279	MW-23M
Xylenes, total	2,700	11/6/98	2,000	I-EMEG-child	1 / 12 / 246	AP-06
Bis(2-ethylhexyl)phthalate	330	12/12/96	3 200	CREG RMEG-child	8 / 21 / 134 1 / 21 / 134	MW-4B
Carbazole	5	9/4/96	3.3	RBC-C	1 / 1 / 134	MW-1B
Naphthalene	32	9/4/96	20	LTHA	1 / 2 / 166	MW-1B
PAHs, total	33	6/4/96	--	No CV	-- / 2 / 110	MW-1B
Aldrin	0.0024	11/18/97	0.002 0.3	CREG C-EMEG-child	1 / 2 / 37 0 / 2 / 37	MW-24B
PCBs, total	4,120.6	6/8/99	20	CREG	12 / 18 / 49	MW-17S
Aluminum	20,100	11/20/97	20,000	I-EMEG-child	1 / 140 / 227	MW-25S
Antimony	30	11/19/97	4	RMEG-child	7 / 15 / 222	MW-23M
Arsenic	65	6/11/99	0.02 3	CREG C-EMEG-child	62 / 62 / 227 54 / 62 / 227	AP-06
Cadmium	15.6	6/14/98	2	C-EMEG-child	4 / 28 / 226	MW-8S
Chromium	713	6/7/97	30	RMEG-child	21 / 120 / 225	AP-05
Iron	51,600	12/11/96	11,000	RBC-N	13 / 185 / 227	AP-06
Lead	90	6/14/98	15	MCL Action Level	12 / 103 / 227	MW-8S
Manganese	26,800	11/19/97	500	RMEG-child	29 / 103 / 227	AP-06
Nickel	576	6/7/97	200	I-EMEG-child	3 / 146 / 225	AP-05
Silver	83.7	6/14/98	50	RMEG-child	1 / 15 / 222	MW-TB-08
Thallium	53.2	11/5/98	2.6	RBC-N	6 / 6 / 222	MW-8B
Vanadium	36.3	12/11/96	30	I-EMEG-child	1 / 69 / 225	MW-11S
Zinc	7,680	6/14/98	3,000	C-EMEG-child	3 / 153 / 227	MW-8S

Key:
C-EMEG-child = Environmental Media Evaluation Guide for chronic exposure to a child (ATSDR)
CREG = Cancer Risk Evaluation Guide (ATSDR)
CV = Comparison Value
Max. Conc. = maximum concentration
MCL = Maximum Contaminant Level
PCBs = polychlorinated biphenyls
ppb = parts per billion
RBC-C = Risk-Based Concentration for cancer effects (EPA)
RBC-N = Risk-Based Concentration for non-cancer effects (EPA)
RMEG-child = Reference Dose Media Evaluation Guide for a child (ATSDR)

Source: 1

Table 4.
Groundwater contaminants detected above ATSDR comparison values in private wells in the vicinity of the Eastern Surplus Site, Meddybemps, Maine
Chemical	Max. Conc.	Date	CV	Type	Exceedences / Detections / Samples	Drinking well (DW-) numbers with exceedences (number of exceedences)
Tetrachloroethylene (PCE)	8.6	6/5/97	5	MCL	1 / 3 / 55	38*
Bis(2-ethylhexyl)phthalate	6	9/30/96	3 200	CREG RMEG-child	1 / 4 / 46 0 / 4 / 46	27* --
Arsenic	40.8	9/5/96	0.02 3	CREG C-EMEG-child	30 / 30 / 55 27 / 30 / 55	01 (4), 06, 11, 13, 17 (6), 20, 21 (2), 24, 25, 26, 27, 28, 29 (9) 01, 06, 11, 13, 17 (6), 20, 21 (2), 24, 25, 26, 27, 28, 29 (9)
Manganese	836	9/4/96	500	RMEG-child	4 / 37 / 55	01 (4)*
Thallium	6.2	9/4/96	2.6	RBC-N	2 / 2 / 55	02, 03
Zinc	3,600	9/4/96	3,000	C-EMEG-child	1 / 17 / 55	03*

All units are ppb

Key:
C-EMEG-child = Environmental Media Evaluation Guide for Chronic exposure to a child (ATSDR)
CREG = Cancer Risk Evaluation Guide (ATSDR)
CV = Comparison Value
Max. Conc. = Maximum concentration
MCL = Maximum Contaminant Level
ppb = parts per billion
RBC-C = Risk-Based Concentration for Cancer effects (EPA)
* = maximum detection occurred at this location.

Source: 1

Table 5.
On-site surface soil contaminants detected above ATSDR comparison values at the Eastern Surplus Site, Meddybemps, Maine
Chemical	Max. Conc.	Date	CV	Type	Exceedences / Detections / Samples	Location of maximum
Methylene chloride	40,000	10/21/96	90 10,000	CREG C-EMEG-child	4 / 12 / 419	SS096
4-Methyl-2-pentanone	23	10/21/96	--	none	-- / 6 / 40	SS096
Benzo(a)pyrene	0.4	10/8/97	0.1	CREG	2 / 4 / 26	SS108
Benzo(g,h,i)perylene	0.19	10/8/97	--	none	-- / 4 / 26	SS108
Bis(2-ethylhexyl)phthalate	60	11/8/97	50 1,000	CREG RMEG-child	1 / 10 / 26 0 / 10 / 26	ES-GS-BII07-0001
Dibenzo(a,h)anthracene	0.18	10/8/97	0.087	RBC-C	3 / 3 / 26	SS108
PAHs, total	7.068	10/8/97	--	none	-- / 8 / 26	SS108
Phenanthrene	0.21	10/8/97	--	none	-- / 5 / 26	SS108
Dieldrin	0.061	11/8/97	0.04 3	CREG C-EMEG-child	1 / 7 / 37 0 / 7 /37	ES-GS-BII06-0001
Endosulfan sulfate	0.0041	11/11/97	--	none	-- / 1 / 37	ES-GS-BIV07-0001
Aroclor-1248	6.4	9/23/98	0.32	RBC-C	1 / 1 / 412	ES-SS-15-0001
Aroclor-1254	8	9/23/98	1	RMEG-child	6 / 18 / 412	ES-SS-15-0001
Aroclor-1260	560	10/8/97	0.32	RBC-C	78 / 111 / 412	SS114
PCBs, total	560	10/8/97	0.4	CREG	90 / 120 / 412	SS114
Antimony	64.5	10/21/96	20	RMEG-child	4 / 45 / 102	SS096
Arsenic	105	10/21/98	0.5 20	CREG C-EMEG-child	114 / 114 / 477 34 / 114 / 477	ES-SS-154-0001
Cadmium	270	9/23/98	10	C-EMEG-child	11 / 47 / 478	ES-DP-41-0002
Chromium	13,800	10/21/96	200	RMEG-child	51 / 143 / 477	SS096
Iron	180,000	10/8/97	23,000	RBC-N	56 / 102 / 102	SS108
Lead	1,500	10/13/98	400	EPA SSL	10 / 170 / 477	ES-SS-113-0001

All units are ppm.

Key:
C-EMEG-child = Environmental Media Evaluation Guide for Chronic exposure to a child (ATSDR)
CREG = Cancer Risk Evaluation Guide (ATSDR)
CV = Comparison Value
Max. Conc. = Maximum Concentration
PAHs = Polynuclear aromatic hydrocarbons
PCBs = Polychlorinated biphenyls
ppm = parts per million
RBC-C = Risk-Based Concentration for Cancer effects (EPA)
RMEG-child = Reference Dose Media Evaluation Guide for a child (ATSDR)
SSL = Soil Screening Level (EPA)

Source: 1

Table 6.
Off-site surface soil contaminants detected above ATSDR comparison values in the vicinity of Eastern Surplus Site, Meddybemps, Maine
Chemical	Max. Conc.	Date	CV	Type	Exceedences / Detections / Samples	Location of maximum
Arsenic	63	10/22/98	0.5 20	CREG C-EMEG-child	5 / 5 / 5 1 / 5 / 5	DP-120 (south of site)
Aroclor-1260	0.46	10/8/97	0.32	RBC-C	1 / 2 / 4	SS116 (west of site)
PCBs, total	0.46	10/8/97	0.4	CREG	1 / 2 / 4	SS116 (west of site)

All units are ppm.

Key:
C-EMEG-child = Environmental Media Evaluation Guide for Chronic exposure to a child (ATSDR)
CV = Comparison Value
Max. Conc. = Maximum Concentration
PAHs = Polynuclear aromatic hydrocarbons
PCBs = Polychlorinated biphenyls
ppm = part per million
RBC-C = Risk-Based Concentration for Cancer effects (EPA)

Source: 1

Table 7.
Surface water contaminants detected above ATSDR comparison values in the vicinity of the Eastern Surplus Site, Meddybemps, Maine
Chemical	Max. Conc.	Date	CV	Type	Exceedences / Detections / Samples	Location of maximum
Tetrachloroethylene (PCE)	270	6/17/99	5 100	MCL RMEG-child	5 / 5 / 37 2 / 5 / 37	SW-406
Trichloroethylene (TCE)	76	6/17/99	5	MCL	6 / 6 / 37	SW-406
Bis(2-ethylhexyl)phthalate	480	10/6/97	3 200	CREG RMEG-child	2 / 5 / 38 1 / 5 / 38	SW-118
Antimony	7.4	10/6/97	4	RMEG-child	3 / 4 / 44	SW-122
Arsenic	3.8	10/6/97	0.02 3	CREG C-EMEG-child	2 / 2 / 44 1 / 2 / 44	SW-119
Manganese	1,410	6/17/99	500	RMEG-child	1 / 43 / 44	SW-406
Thallium	5.7	10/2/96	2.6	RBC-N	1 / 1 / 44	SW-108

All units are ppb.

Key:
C-EMEG-child = Environmental Media Evaluation Guide for Chronic exposure to a child (ATSDR)
CREG = Cancer Risk Evaluation Guide (ATSDR)
CV = Comparison Value
Max. Conc. = Maximum Concentration
ppb = parts per billion
RBC-C = Risk-Based Concentration for Cancer effects (EPA)
RBC-N = Risk-Based Concentration for Non-cancer effects (EPA)
RMEG-child = Reference Dose Media Evaluation Guide for a child (ATSDR)

Source: 1

Table 8.
Sediment contaminants detected above ATSDR comparison values in the vicinity of the Eastern Surplus Site, Meddybemps, Maine
Chemical	Max. Conc.	Date	CV	Type	Exceedences / Detections / Samples	Location of maximum
Benzo(a)anthracene	5.8	10/3/96	0.87	RBC-C	1 / 19 / 73	SD-131
Benzo(b)fluoranthene	6.6	10/3/96	0.87	RBC-C	1 / 23 / 73	SD-131
Benzo(g,h,i)perylene	3.5	10/3/96	--	none	-- / 7 / 73	SD-131
Benzo(a)pyrene	5.6	10/3/96	0.1	CREG	18 / 19 / 73	SD-131
Dibenzo(a,h)anthracene	1	10/3/96	0.087	RBC-C	1 / 1 / 73	SD-131
Indeno(1,2,3-cd)pyrene	3.7	10/3/96	0.87	RBC-C	1 / 10 / 73	SD-131
Phenanthrene	5.2	10/3/96	--	none	-- / 16 / 73	SD-131
Endosulfan sulfate	0.0031	6/16/99	--	none	-- / 1 / 81	ES-SD-409-03
Endrin aldehyde	0.0034	6/16/99	--	none	-- / 4 / 81	ES-SD-406-03
Aroclor-1260	1.6	6/16/99	0.32	RBC-C	6 / 16 / 38	ES-SD-406-03
Total PCBs	7.89	6/17/98	0.4	CREG	9 / 74 / 81	ES-SD-303-01
Arsenic	31.9	10/7/97	0.5 20	CREG C-EMEG-child	76 / 76 / 81 6 / 76 / 81	SD-151
Iron	43,900	10/1/96	23,000	RBC-N	16 / 79 / 81	SD-107

All units are ppm.

Key:
C-EMEG-child = Environmental Media Evaluation Guide for Chronic exposure to a child (ATSDR)
CREG = Cancer Risk Evaluation Guide (ATSDR)
CV = Comparison Value
Max. Conc. = Maximum Concentration
PCBs = Polychlorinated biphenyls
ppm = parts per million
RBC-C = Risk-Based Concentration for Cancer effects (EPA)
RBC-N = Risk-Based Concentration for Non-cancer effects (EPA)
RMEG-child = Reference Dose Media Evaluation Guide for a child (ATSDR)

Source: 1

Table 9.
Fish fillet contaminants detected above EPA's risk-based concentrations in the vicinity of the Eastern Surplus Site, Meddybemps, Maine
Chemical	Max. Conc.	RBC	Type	Exceedences / Detections / Samples	Location of maximum
4,4'-DDE	0.0119	0.0093	C	2 / 13 / 36	DS02BT
Dieldrin	0.00381	0.0002	C	2 / 2 / 36	DS01BT
PCBs, total	0.062	0.0016	C	36 / 36 / 36	ES02SM
Arsenic	4.13	0.0021	C	30 / 30 / 36	MS04SM
Chromium	12.2	4.1	N	1 / 16 / 36	ES01SM
Lead	1.01	--		2 / 2 / 36	SC05SM
Mercury	3.94	0.14	N*	35 / 35 / 36	DW01SM

All units are ppm.

Notes:

All samples were taken on September 22 and 27, 1997.
Five fish samples, representing different ages and sizes, were collected from each of seven different sampling locations. The fillets from each fish were analyzed individually. The maximum concentrations, therefore, represents the concentration found in an individual fish.
Analysis results were normalized for lipid and moisture content using statistical models to allow for data comparisons across results.
Smallmouth bass were collected from each sampling location, except DS01BT and DS02BT, where brook trout were collected.

Key:
Max. Conc. = Maximum Concentration
PCBs = Polychlorinated biphenyls
ppm = parts per million
RBC-C = Risk-Based Concentration for Cancer effects (EPA)
RBC-N = Risk-Based Concentration for Non-cancer effects (EPA)
* for methylmercury

Source: 1

Table 10.
Whole body fish contaminants detected above EPA's risk-based concentrations in the vicinity of the Eastern Surplus Site, Meddybemps, Maine
Chemical	Max. Conc.	RBC	Type	Exceedences / Detections / Samples	Location of maximum
4,4'-DDE	0.021	0.0093	C	8 / 64 / 71	DS02BT
Dieldrin	0.00711	0.0002	C	11 / 11 / 71	DS02BT
PCBs, total	0.330	0.0016	C	71 / 71 / 71	DW05SM
Arsenic	3.05	0.0021	C	34 / 34 / 71	MS06PS
Chromium	16.5	4.1	N	3 / 70 / 71	FP04SM
Lead	0.65	--		-- / 7 / 71	ES08WS
Mercury	1.91	0.14	N*	65 / 65 / 71	EM06SM

All units are ppm.

Notes:

All samples were taken on September 22 and 27, 1997.
Whole body results were generated either through analysis of the whole body fish sample or the combined results from separate analyses of the fish fillet and carcass samples.
Ten fish samples, representing different ages and sizes, were collected from each of seven different sampling locations and analyzed individually. Of the ten samples collected from each location, five samples were analyzed as whole body and five samples were analyzed separately as a fillet (see Table 9) and carcass. The maximum concentrations represents the concentration found in an individual fish.
Analysis results were normalized for lipid and moisture content using statistical models to allow for data comparisons across results.
Four fish species were collected for analysis: smallmouth bass (fillet and carcass), brook trout (fillet and carcass), pumpkinseed (whole body), and white sucker (whole body). Maximum concentrations of PCBs, chromium, and mercury were found in smallmouth bass; 4,4'-DDE and dieldrin in brown trout; arsenic in pumpkinseed; and lead in white sucker.

Source: 1

Table 11.
Mussels contaminants detected above EPA's risk-based concentrations in the vicinity of the Eastern Surplus Site, Meddybemps, Maine
Chemical	Max. Conc.	RBC	Type	Exceedences / Detections / Samples	Location of maximum
PCBs, total	0.0099	0.0016	C	5 / 6 / 6	ES02AF
Arsenic	8.41	0.0021	C	6 / 6 / 6	FP01EC
Barium	452	95	N	6 / 6 / 6	EM01EC
Cadmium	5.8	1.4	N	6 / 6 / 6	ES01AF
Chromium	6.43	4.1	N	1 / 6 / 6	ES02AF
Iron	2,758	410	N	6 / 6 / 6	EM01EC
Lead	5.91	--		-- / 6 / 6	EM01EC
Manganese	4,262	190	N	6 / 6 / 6	EM01EC
Mercury	0.78	0.14	N*	3 / 3 / 6	EM01EC

All units are ppm.

Notes:

All samples were taken on September 22 and 27, 1997.
Each sample represents a composite of five mussels of similar size and species collected from one sampling location.
Analysis results were normalized for lipid and moisture content using statistical models to allow for data comparisons across results.
Two mussel species were collected for analysis: eastern elliptio and alewife floater. Maximum concentrations of arsenic, barium, iron, lead, manganese, and mercury were found in eastern elliptio; and maximum concentrations of PCBs, cadmium, and chromium were found in alewife floater.

Source: 1

Next Section Table of Contents
