PUBLIC HEALTH ASSESSMENT

SHARON STEEL CORPORATION (FAIRMONT COKE WORKS)
FAIRMONT, MARION COUNTY, WEST VIRGINIA


APPENDIX A -- SITE MAP

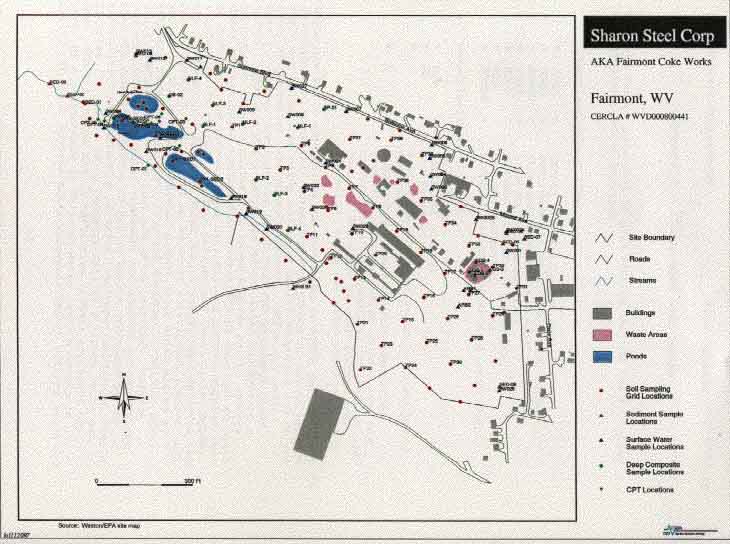

Figure 1. Site Map



APPENDIX B -- CONTAMINANT DATA TABLES

The data tables presented in this section include the following abbreviations and/or acronyms:

Comparison Values (CVs)

  • CREG
  • EMEG
  • RMEG
  • LTHA
  • MCLG
  • MCL
  • PMCLG
  • =
    =
    =
    =
    =
    =
    =
    Cancer Risk Evaluation Guide
    Environmental Media Evaluation Guide
    Reference Dose Media Evaluation Guide
    Lifetime Health Advisory
    Maximum Contaminant Level Goal
    Maximum Contaminant Level
    Proposed Maximum Contaminant Level Goal


    Data Clarifiers

  • ppb
  • ND
  • J
  • M
  • =
    =
    =
    =
    parts per billion
    not detected
    associated numerical value is an estimated quantity
    compound was qualitatively identified; however, numerical value is less than the contract-required quantitation limit or less than the EPA limit of quantitation and, therefore, is an estimated value

    EMEGs are media-specific values developed by ATSDR for use in selecting environmental contaminants of potential health concern. EMEGs are calculated using noncancer health endpoints and do not consider potential carcinogenic effects. RMEGs are media-specific values developed by ATSDR from EPA Reference Doses (RfDs). RfDs are EPA's estimates of the daily exposure to a contaminant that is unlikely to cause adverse health effects. CREGs are estimated contaminant concentrations expected to cause no more than one excess cancer in a million persons exposed over a lifetime (70 years). Maximum Contaminant Level Goals (MCLGs) are EPA-developed drinking water health goals. EPA believes that MCLGs represent levels that no known or anticipated adverse effect on the health of persons should occur which allows an adequate margin of safety. Proposed Maximum Contaminant Level Goals (PMCLGs) are MCLGs that are being proposed. Maximum Contaminant Levels (MCLs) represent contaminant concentrations that EPA deems protective of public health (considering the availability and economics of water treatment technology) over a lifetime (70 years) at an exposure rate of 2 liters water per day. EPA's Lifetime Health Advisories (LTHAs) represent the level of a contaminant in drinking water (with a margin of safety) at which adverse noncarcinogenic health effects would not be anticipated during a lifetime (70 years) exposure. While MCLs are regulatory concentrations, PMCLGs, MCLGs, and LTHAs are not.

    Table 1 Surface Soil, On Site1

    Contaminant

    Concentration Range (ppm)

    #Detects/
    #Samples

    Comparison Value

    Reference/

    Year

    pica/child/adult (ppm)

    Source

    Oxidation Pond 1

    Benzo[b]fluoranthene

    0.059 - 1

    2/3

    NA



    NA

    Weston, 1994

    Indeno[1,2,3-cd]pyrene

    0.027 - 0.84

    2/3

    NA

    NA

    Weston, 1994

    Oxidation Pond 2

    Benzo[a]anthracene

    0.014 - 0.1

    2/2

    NA

    NA

    Weston, 1994

    Benzo[b]fluoranthene

    0.026 - 0.13

    2/2

    NA

    NA

    Weston, 1994

    Chrysene

    0.016 - 0.11

    2/2

    NA

    NA

    Weston, 1994

    North Landfill

    Benzo[b]fluoranthene

    81

    1/2

    NA

    NA

    Weston, 1994

    Benzo[k]fluoranthene

    61

    1/2

    NA

    NA

    Weston, 1994

    Chrysene

    0.052 - 120

    2/2

    NA

    NA

    Weston, 1994

    Fluoranthene

    0.05 - 240

    2/2

    80/2,000/30,000

    RMEG

    Weston, 1994

    Indeno[1,2,3-cd]pyrene

    54

    1/2

    NA

    NA

    Weston, 1994

    Naphthalene

    78

    1/2

    40/1,000/10,000

    EMEG (Intermediate)

    Weston, 1994

    South Landfill

    Benzo[a]pyrene

    0.34

    1/1

    0.1

    CREG

    Weston, 1994

    Benzo[b]fluoranthene

    0.49

    1/1

    NA

    NA

    Weston, 1994

    Indeno[1,2,3-cd]pyrene

    0.22

    1/1

    NA

    NA

    Weston, 1994

    Sludge Pit 1/Sludge Pond 1

    Benzo[a]anthracene

    0.1 - 0.13

    2/2

    NA

    NA

    Weston, 1994

    Benzo[b]fluoranthene

    0.11 - 0.11

    2/2

    NA

    NA

    Weston, 1994

    Breeze Pile

    Benzo[a]anthracene

    14

    1/1

    NA

    NA

    Weston, 1994

    Benzo[b]fluoranthene

    13

    1/1

    NA

    NA

    Weston, 1994

    Benzo[k]fluoranthene

    6.3

    1/1

    NA

    NA

    Weston, 1994

    Chrysene

    16

    1/1

    NA

    NA

    Weston, 1994

    Dibenzo[a,h]anthracene

    3.5

    1/1

    NA

    NA

    Weston, 1994

    Indeno[1,2,3-cd]pyrene

    8.4

    1/1

    NA

    NA

    Weston, 1994

    On-site Soils North of Central Plant Building

    Benzo[a]anthracene

    0.023 - 2.7

    3/3

    NA

    NA

    Weston, 1994

    Benzo[a]pyrene

    0.019 - 3

    3/3

    0.1

    CREG

    Weston, 1994

    Benzo[b]fluoranthene

    2.4 - 3.8

    2/3

    NA

    NA

    Weston, 1994

    Benzo[k]fluoranthene

    0.039 - 2.5

    3/3

    NA

    NA

    Weston, 1994

    Chrysene

    0.024 - 3

    3/3

    NA

    NA

    Weston, 1994

    Indeno[1,2,3-cd]pyrene

    1.1 - 1.4

    2/3

    NA

    NA

    Weston, 1994

    On-site Soils South of Central Plant

    Benzo[a]anthracene

    0.21 - 10

    3/4

    NA

    NA

    Weston, 1994

    Benzo[a]pyrene

    0.012 - 7.1

    4/4

    0.1

    CREG

    Weston, 1994

    Benzo[b]fluoranthene

    0.032 - 8.7

    4/4

    NA

    NA

    Weston, 1994

    Benzo[k]fluoranthene

    0.18 - 7.2

    3/4

    NA

    NA

    Weston, 1994

    Chrysene

    0.028 - 8.7

    4/4

    NA

    NA

    Weston, 1994

    Dibenzo[a,h]anthracene

    0.026 - 1.3

    3/4

    NA

    NA

    Weston, 1994

    Indeno[1,2,3-cd]pyrene

    0.083 - 3.1

    3/4

    NA

    NA

    Weston, 1994

    On-site Soils East of Central Plant Building

    Benzo[a]anthracene

    0.087 - 0.2

    4/4

    NA

    NA

    Weston, 1994

    Chrysene

    0.11 - 1

    3/4

    NA

    NA

    Weston, 1994

    Naphthalene

    0.14 - 160

    4/4

    40/1,000/10,000

    EMEG (Intermediate)

    Weston, 1994

    On-site Soils West of Central Plant Building

    Benzo[a]anthracene

    0.025 - 120

    14/17

    NA

    NA

    Weston, 1994

    Benzo[a]pyrene

    0.02 - 92

    14/17

    0.1

    CREG

    Weston, 1994

    Benzo[b]fluoranthene

    0.037 - 1,000

    14/17

    NA

    NA

    Weston, 1994

    Benzo[k]fluoranthene

    0.014 - 75

    14/17

    NA

    NA

    Weston, 1994

    Chrysene

    0.033 - 110

    14/17

    NA

    NA

    Weston, 1994

    Dibenzo[a,h]anthracene

    0.028 - 16

    10/17

    NA

    NA

    Weston, 1994

    Fluoranthene

    0.008 - 220

    16/17

    80/2,000/30,000

    RMEG

    Weston, 1994

    Indeno[1,2,3-cd]pyrene

    0.058 - 54

    11/16

    NA

    NA

    Weston, 1994

    Pyrene

    0.035 - 200

    15/18

    60/2,000/20,000

    RMEG

    Weston, 1994




    Table 2 Subsurface Soil, On site and Off Site



    Contaminant

    Concentration Range (ppm)

    #Detects/
    #Samples

    Comparison Value

    Reference/
    Year

    pica/child/adult (ppm)

    Source

    Oxidation Pond 1

    Benzo[a]pyrene

    0.044 - 0.9

    3/5

    0.1

    CREG

    Weston, 1994

    Benzo[g,h,i]perylene

    0.16 - 0.74

    3/5

    NA

    NA

    Weston, 1994

    Chrysene

    0.018 - 0.83

    4/5

    NA

    NA

    Weston, 1994

    Phenanthrene

    0.035 - 1.6

    3/5

    NA

    NA

    Weston, 1994

    Oxidation Pond 2

    Benzo[a]anthracene

    0.014 - 0.1

    3/4

    NA

    NA

    Weston, 1994

    Chrysene

    0.016 - 0.11

    3/4

    NA

    NA

    Weston, 1994

    Aluminum

    4,060 - 14,100

    4/4

    NA

    NA

    Weston, 1994

    Arsenic

    1.2 - 6.6

    4/4

    0.5
    0.6/20/200

    CREG
    EMEG (Chronic)

    Weston, 1994

    North Landfill

    Acenaphthylene

    0.73 - 7.7

    2/7

    NA

    NA

    Weston, 1994

    Benzo[a]anthracene

    0.022 - 61

    5/7

    NA

    NA

    Weston, 1994

    Benzo[a]pyrene

    0.031 - 61

    3/7

    0.1

    CREG

    Weston, 1994

    Benzo[b]fluoranthene

    0.024 - 56

    4/7

    NA

    NA

    Weston, 1994

    Benzo[k]fluoranthene

    0.02 - 56

    4/7

    NA

    NA

    Weston, 1994

    Chrysene

    0.022 - 61

    5/7

    NA

    NA

    Weston, 1994

    Fluoranthene

    0.045 - 110

    5/7

    80/2,000/30,000

    RMEG

    Weston, 1994

    Indeno[1,2,3-cd]pyrene

    0.36 - 33

    4/7

    NA

    NA

    Weston, 1994

    Phenanthrene

    0.024 - 40

    6/7

    NA

    NA

    Weston, 1994

    Pyrene

    0.029 - 130

    5/7

    60/2,000/20,000

    EMEG

    Weston, 1994

    Aluminum

    0.1 - 9,750

    11/11

    NA

    NA

    Weston, 1994

    Antimony

    0.0061 - 6.1

    3/11

    0.8/20/300

    CREG

    Weston, 1994

    South Landfill

    Benzene

    0.004 - 98

    5/10

    20

    CREG

    Weston, 1994

    Toluene

    0.03 - 100

    4/10

    40/1,000/10,000

    EMEG (Intermediate)

    Weston, 1994

    Acenaphthylene

    0.023 - 59

    8/11

    NA

    NA

    Weston, 1994

    Benzo[a]anthracene

    0.13 - 670

    10/11

    NA

    NA

    Weston, 1994

    Benzo[a]pyrene

    0.079 - 160

    10/11

    0.1

    CREG

    Weston, 1994

    Benzo[b]fluoranthene

    0.14 - 160

    10/11

    NA

    NA

    Weston, 1994

    Benzo[g,h,i]perylene

    0.071 - 84

    8/11

    NA

    NA

    Weston, 1994

    Benzo[k]fluoranthene

    0.059 - 180

    10/11

    NA

    NA

    Weston, 1994

    Carbazole

    0.071 - 210

    8/11

    NA

    NA

    Weston, 1994

    Chrysene

    0.13 - 320

    10/11

    NA

    NA

    Weston, 1994

    Dibenzo[a,h]anthracene

    0.054 - 31

    8/11

    NA

    NA

    Weston, 1994

    Dibenzofuran

    0.052 - 94

    9/11

    NA

    NA

    Weston, 1994

    2,4-Dimethylphenol

    0.04 - 77

    2/10

    40/1,000/10,000

    RMEG

    Weston, 1994

    Fluoranthene

    0.32 - 770

    10/11

    80/2,000/30,000

    RMEG

    Weston, 1994

    Fluorene

    0.049 - 120

    9/11

    80/2,000/30,000

    RMEG

    Weston, 1994

    Indeno[1,2,3-cd]pyrene

    0.085 - 86

    9/11

    NA

    NA

    Weston, 1994

    2-Methylnaphthalene

    0.02 - 330

    9/11

    NA

    NA

    Weston, 1994

    2-Methylphenol

    0.02 - 22

    2/10

    NA

    NA

    Weston, 1994

    Naphthalene

    0.43 - 18,000

    9/10

    40/1,000/10,000

    EMEG (Intermediate)

    Weston, 1994

    Phenanthrene

    0.3 - 730

    10/11

    NA

    NA

    Weston, 1994

    Pyrene

    0.23 - 690

    10/11

    60/2,000/20,000

    EMEG

    Weston, 1994

    Benzo[a]pyrene

    0.026 - 3.2

    3/9

    0.1

    CREG

    Weston, 1994

    2-Methylnaphthalene

    0.058 - 72

    6/8

    NA

    NA

    Weston, 1994

    Naphthalene

    1.2 - 450

    7/9

    40/1,000/10,000

    EMEG (Intermediate)

    Weston, 1994

    Aluminum

    1.6 - 14,000

    13/13

    NA

    NA

    Weston, 1994

    Arsenic

    0.001 - 42.7

    13/13

    0.5
    0.6/20/200

    CREG
    EMEG (Chronic)

    Weston, 1994

    Barium

    0.015 - 109

    13/13

    100/4,000/50,000

    RMEG

    Weston, 1994

    Beryllium

    0.00031 - 1.2

    6/13

    0.2

    CREG

    Weston, 1994

    Cadmium

    0.0028 - 12

    4/13

    1/40/500

    EMEG (Chronic)

    Weston, 1994

    Chromium

    0.0036 - 13.2

    13/13

    10/300/4,000

    RMEG

    Weston, 1994

    Lead

    0.0054 - 1,890

    13/13

    NA

    NA

    Weston, 1994

    Sludge Pit 1/Sludge Pond 1

    Acenaphthylene

    0.008 - 36

    4/9

    NA

    NA

    Weston, 1994

    Benzo[a]anthracene

    0.044 - 61

    6/9

    NA

    NA

    Weston, 1994

    Benzo[a]pyrene

    0.039 - 42

    6/9

    0.1

    CREG

    Weston, 1994

    Benzo[b]fluoranthene

    0.056 - 57

    6/9

    NA

    NA

    Weston, 1994

    Benzo[g,h,i]perylene

    0.03- 23

    6/9

    NA

    NA

    Weston, 1994

    Benzo[k]fluoranthene

    0.025 - 18

    6/9

    NA

    NA

    Weston, 1994

    Chrysene

    0.051 - 47

    6/9

    NA

    NA

    Weston, 1994

    Dibenzo[a,h]anthracene

    0.013 - 12

    4/9

    NA

    NA

    Weston, 1994

    Dibenzofuran

    0.94 - 46

    3/9

    NA

    NA

    Weston, 1994

    Indeno[1,2,3-cd]pyrene

    0.034 - 25

    6/9

    NA

    NA

    Weston, 1994

    2-Methylnaphthalene

    0.014 - 32

    3/9

    NA

    NA

    Weston, 1994

    Phenanthrene

    0.032 - 51

    5/9

    NA

    NA

    Weston, 1994

    Aluminum

    6.7 - 11,500

    12/12

    NA

    NA

    Weston, 1994

    Arsenic

    0.001 - 6.2

    12/12

    0.5
    0.6/20/200

    CREG
    EMEG (Chronic)

    Weston, 1994

    Sludge Pit 2/Sludge Pond 2

    Acenaphthylene

    7.7

    1/3

    NA

    NA

    Weston, 1994

    Benzo[a]anthracene

    15 - 110

    2/3

    NA

    NA

    Weston, 1994

    Benzo[a]pyrene

    14 - 67

    2/3

    0.1

    CREG

    Weston, 1994

    Benzo[b]fluoranthene

    23

    1/3

    NA

    NA

    Weston, 1994

    Benzo[g,h,i]perylene

    12 - 21

    2/3

    NA

    NA

    Weston, 1994

    Benzo[k]fluoranthene

    5.8 - 70

    2/3

    NA

    NA

    Weston, 1994

    Chrysene

    16 - 70

    2/3

    NA

    NA

    Weston, 1994

    Dibenzo[a,h]anthracene

    4.5 - 12

    2/3

    NA

    NA

    Weston, 1994

    Dibenzofuran

    40

    1/3

    NA

    NA

    Weston, 1994

    Fluoranthene

    23 - 170

    2/3

    80/2,000/30,000

    RMEG

    Weston, 1994

    Indeno[1,2,3-cd]pyrene

    11 - 28

    2/3

    NA

    NA

    Weston, 1994

    2-Methylnaphthalene

    15

    1/3

    NA

    NA

    Weston, 1994

    Phenanthrene

    7.7 - 120

    2/3

    NA

    NA

    Weston, 1994

    Pyrene

    19 - 160

    2/3

    60/2,000/20,000

    EMEG

    Weston, 1994

    Aluminum

    1.4 - 3,800

    6/6

    NA

    NA

    Weston, 1994

    Arsenic

    0.0022 - 3.9

    6/6

    0.5
    0.6/20/200

    CREG
    EMEG (Chronic)

    Weston, 1994

    Chromium

    0.0065 - 12

    6/6

    10/300/4,000

    RMEG

    Weston, 1994

    Lead

    0.015 - 35

    6/6

    NA

    NA

    Weston, 1994

    Breeze Pile

    Acenaphthylene

    6 - 51

    2/4

    NA

    NA

    Weston, 1994

    Benzo[a]anthracene

    14 - 99

    2/4

    NA

    NA

    Weston, 1994

    Benzo[a]pyrene

    11 - 86

    2/4

    0.1

    CREG

    Weston, 1994

    Benzo[b]fluoranthene

    13 - 81

    2/4

    NA

    NA

    Weston, 1994

    Benzo[g,h,i]perylene

    9.2 - 54

    2/4

    NA

    NA

    Weston, 1994

    Benzo[k]fluoranthene

    6.3 - 61

    2/4

    NA

    NA

    Weston, 1994

    Chrysene

    16 - 120

    2/4

    NA

    NA

    Weston, 1994

    Dibenzofuran

    5.2 - 57

    2/4

    NA

    NA

    Weston, 1994

    Fluoranthene

    0.47 - 240

    4/4

    80/2,000/30,000

    RMEG

    Weston, 1994

    Indeno[1,2,3-cd]pyrene

    8.4 - 54

    2/4

    NA

    NA

    Weston, 1994

    Naphthalene

    0.89 - 78

    3/4

    40/1,000/10,000

    EMEG (Intermediate)

    Weston, 1994

    Phenanthrene

    0.56 - 270

    4/4

    NA

    NA

    Weston, 1994

    Pyrene

    0.43 - 170

    3/4

    60/2,000/20,000

    EMEG

    Weston, 1994

    Aluminum

    670 - 11,000

    4/4

    NA

    NA

    Weston, 1994

    Lead

    16 - 48

    4/4

    NA

    NA

    Weston, 1994

    On-Site Soils North of Central Plant Building

    Acenaphthylene

    0.055 - 50

    10/23

    NA

    NA

    Weston, 1994

    Benzo[a]anthracene

    0.007 - 160

    15/23

    NA

    NA

    Weston, 1994

    Benzo[a]pyrene

    0.019 - 130

    14/23

    0.1

    CREG

    Weston, 1994

    Benzo[b]fluoranthene

    0.12 - 110

    13/23

    NA

    NA

    Weston, 1994

    Benzo[g,h,i]perylene

    0.15 - 55

    12/24

    NA

    NA

    Weston, 1994

    Benzo[k]fluoranthene

    0.039 - 120

    14/23

    NA

    NA

    Weston, 1994

    Chrysene

    0.006 - 130

    15/23

    NA

    NA

    Weston, 1994

    Dibenzo[a,h]anthracene

    0.04 - 23

    10/23

    NA

    NA

    Weston, 1994

    Dibenzofuran

    0.005 - 57

    12/23

    NA

    NA

    Weston, 1994

    Fluoranthene

    0.034 - 460

    14/23

    80/2,000/30,000

    RMEG

    Weston, 1994

    Indeno[1,2,3-cd]pyrene

    0.15 - 62

    12/22

    NA

    NA

    Weston, 1994

    2-Methylnaphthalene

    0.008 - 97

    13/23

    NA

    NA

    Weston, 1994

    Naphthalene

    0.014 - 700

    17/23

    40/1,000/10,000

    EMEG (Intermediate)

    Weston, 1994

    Phenanthrene

    0.014 - 280

    16/23

    NA

    NA

    Weston, 1994

    Pyrene

    0.027 - 330

    14/23

    60/2,000/20,000

    EMEG

    Weston, 1994

    Aldrin

    0.00051 - 0.24

    6/16

    0.04

    0.06/2/20

    CREG
    EMEG (Chronic)

    Weston, 1994

    Dieldrin

    0.0017 - 0.063

    4/16

    0.04

    0.1/3/40

    CREG
    EMEG (Chronic)

    Weston, 1994

    Aluminum

    1,700 - 34,000

    20/20

    NA

    NA

    Weston, 1994

    Arsenic

    3.4 - 22

    20/20

    0.5

    0.6/20/200

    CREG
    EMEG (Chronic)

    Weston, 1994

    Barium

    26.5 - 420

    20/20

    100/4,000/50,000

    RMEG

    Weston, 1994

    Beryllium

    0.25 - 4.5

    16/20

    0.2

    CREG

    Weston, 1994

    Chromium

    6.1 - 134

    20/20

    10/300/4,000

    RMEG

    Weston, 1994

    Cyanide

    0.76 - 360

    11/20

    40/1,000/10,000

    RMEG

    Weston, 1994

    Lead

    10.4 - 261

    20/20

    NA

    NA

    Weston, 1994

    On-site Soils South of Central Plant Building

    Acenaphthylene

    0.01 - 5

    5/7

    NA

    NA

    Weston, 1994

    Benzo[a]anthracene

    0.21 - 25

    5/7

    NA

    NA

    Weston, 1994

    Benzo[a]pyrene

    0.012 - 21

    6/7

    0.1

    CREG

    Weston, 1994

    Benzo[b]fluoranthene

    0.26 - 21

    5/7

    NA

    NA

    Weston, 1994

    Benzo[g,h,i]perylene

    0.056 - 8.7

    5/7

    NA

    NA

    Weston, 1994

    Benzo[k]fluoranthene

    0.18 - 19

    5/7

    NA

    NA

    Weston, 1994

    Carbazole

    0.024 - 3.2

    5/7

    NA

    NA

    Weston, 1994

    Chrysene

    0.028 - 23

    6/7

    NA

    NA

    Weston, 1994

    Dibenzo[a,h]anthracene

    0.026 - 4.2

    5/7

    NA

    NA

    Weston, 1994

    Dibenzofuran

    0.028 - 3.9

    6/7

    NA

    NA

    Weston, 1994

    Indeno[1,2,3-cd]pyrene

    0.083 - 11

    5/7

    NA

    NA

    Weston, 1994

    2-Methylnaphthalene

    0.11 - 6.8

    6/7

    NA

    NA

    Weston, 1994

    Phenanthrene

    0.051 - 37

    6/7

    NA

    NA

    Weston, 1994

    Aluminum

    440 - 15,000

    8/8

    NA

    NA

    Weston, 1994

    Antimony

    5.7 - 6.4

    2/8

    0.8/20/300

    CREG

    Weston, 1994

    Arsenic

    3.3 - 36

    8/8

    0.5

    0.6/20/200

    CREG
    EMEG (Chronic)

    Weston, 1994

    Cyanide

    0.74 - 130

    5/8

    40/1,000/10,000

    RMEG

    Weston, 1994

    Lead

    20.6 - 1,010

    8/8

    NA

    NA

    Weston, 1994

    On-site Soils East of Central Plant Building

    Benzo[a]anthracene

    0.087 - 7.2

    9/17

    NA

    NA

    Weston, 1994

    Benzo[a]pyrene

    0.068 - 7

    11/17

    0.1

    CREG

    Weston, 1994

    Benzo[b]fluoranthene

    0.041 - 20

    11/17

    NA

    NA

    Weston, 1994

    Benzo[g,h,i]perylene

    0.054 - 3.6

    9/17

    NA

    NA

    Weston, 1994

    Benzo[k]fluoranthene

    0.042 - 9.9

    8/17

    NA

    NA

    Weston, 1994

    Chrysene

    0.01 - 11

    11/17

    NA

    NA

    Weston, 1994

    Dibenzofuran

    0.005 - 5.1

    13/17

    NA

    NA

    Weston, 1994

    Indeno[1,2,3-cd]pyrene

    0.063 - 5

    9/17

    NA

    NA

    Weston, 1994

    2-Methylnaphthalene

    0.009 - 31

    13/17

    NA

    NA

    Weston, 1994

    4-Methylphenol

    0.08 - 1.2

    2/17

    NA

    NA

    Weston, 1994

    Naphthalene

    0.029 - 160

    15/17

    40/1,000/10,000

    EMEG (Intermediate)

    Weston, 1994

    Phenanthrene

    0.011 - 9.2

    13/17

    NA

    NA

    Weston, 1994

    Aluminum

    4,610 - 21,500

    17/17

    NA

    NA

    Weston, 1994

    Antimony

    3.4 - 3.8

    2/17

    0.8/20/300

    CREG

    Weston, 1994

    Lead

    8.8 - 3,820

    17/17

    NA

    NA

    Weston, 1994

    On-site Soils West of Central Plant Building

    Acenaphthylene

    0.018 - 39

    9/21

    NA

    NA

    Weston, 1994

    Benzo[a]anthracene

    0.025 - 120

    17/21

    NA

    NA

    Weston, 1994

    Benzo[a]pyrene

    0.02 - 92

    17/21

    0.1

    CREG

    Weston, 1994

    Benzo[b]fluoranthene

    0.066 - 100

    16/21

    NA

    NA

    Weston, 1994

    Benzo[g,h,i]perylene

    0.04 - 21

    14/21

    NA

    NA

    Weston, 1994

    Benzo[k]fluoranthene

    0.014 - 75

    16/21

    NA

    NA

    Weston, 1994

    Carbazole

    0.012 - 25

    10/21

    NA

    NA

    Weston, 1994

    Chrysene

    0.033 - 110

    16/21

    NA

    NA

    Weston, 1994

    Dibenzo[a,h]anthracene

    0.028 - 16

    10/21

    NA

    NA

    Weston, 1994

    Dibenzofuran

    0.015 - 31

    11/21

    NA

    NA

    Weston, 1994

    Fluoranthene

    0.025 - 220

    18/21

    80/2,000/30,000

    RMEG

    Weston, 1994

    Indeno[1,2,3-cd]pyrene

    0.035 - 54

    15/21

    NA

    NA

    Weston, 1994

    2-Methylnaphthalene

    0.005 - 11

    15/21

    NA

    NA

    Weston, 1994

    Phenanthrene

    0.03 - 200

    17/21

    NA

    NA

    Weston, 1994

    Pyrene

    0.035 - 200

    17/21

    60/2,000/20,000

    EMEG

    Weston, 1994

    Aluminum

    2,680 - 16,900

    22/22

    NA

    NA

    Weston, 1994

    Antimony

    3.5 - 3.6

    2/22

    0.8/20/300

    CREG

    Weston, 1994

    Off-site Subsurface Soil

    Benzo[a]pyrene

    0.75

    1/1

    0.1

    CREG

    Weston, 1994

    Benzo[b]fluoranthene

    1.2

    1/1

    NA

    NA

    Weston, 1994

    Aluminum

    9,750

    1/1

    NA

    NA

    Weston, 1994

    Lead

    43.4

    1/1

    NA

    NA

    Weston, 1994




    Table 3 Surface Water, On and Off Site

    Contaminant

    Concentration Range (ppb)

    #Detects/ #Samples

    Comparison Value

    Reference/Year

    pica/child/adult (ppb)

    Source

    North Landfill

    Aluminum, total

    87,300

    1/1

    NA

    NA

    W.Virginia, 1996

    Manganese, total

    25,200

    1/1

    NA

    NA

    W.Virginia,1996

    South Landfill

    Chromium, total

    1,640

    1/1

    100

    LTHA

    W.Virginia, 1993

    Outfall (NPDES-001)

    Benzene

    28 - 925

    2/2

    1

    CREG

    W. Virginia, 1996

    Aluminum, total

    960 - 24,800

    2/2

    NA

    NA

    W.Virginia, 1996

    Cadmium, total

    10 - 13

    2/2

    7/20

    EMEG (Chronic)

    W.Virginia, 1996

    Iron, total

    77,200 - 94,000

    3/3

    NA

    NA

    W.Virginia,1996

    Unnamed Tributary into which NPDES-001 Discharges

    Benzene

    9

    1/1

    1

    CREG

    W.Virginia, 1996

    Aluminum, total

    6200

    1/1

    NA

    NA

    W. Virginia, 1996

    Iron, total

    22300

    1/1

    NA

    NA

    W. Virginia, 1996

    West Channel

    Aluminum

    1,500 - 4,500

    4/4

    NA

    NA

    Weston, 1994

    Manganese

    190 - 590

    4/4

    NA

    NA

    Weston, 1994

    On-site Surface Water

    Benzene

    28 - 16,000

    9/16

    1

    CREG

    W.Virginia, 1996

    Toluene

    10 - 3,900

    5/13

    200/700

    EMEG (Intermediate)

    Weston,1994

    Xylenes(total)

    19 - 2,300

    4/12

    2,000/7,000

    EMEG (Intermediate)

    Weston, 1994

    Dibenzofuran

    10

    1/1

    NA

    NA

    Weston,1994

    2-Methylnaphthalene

    17

    1/10

    NA

    NA

    Weston, 1994

    2-Methylphenol

    10 - 54

    5/13

    NA

    NA

    Weston, 1994

    4-Methylphenol

    13 - 85

    4/13

    NA

    NA

    Weston, 1994

    Naphthalene

    14 - 310

    8/16

    20

    LTHA

    Weston, 1994

    Phenanthrene

    10 - 26

    1/11

    NA

    NA

    W. Virginia, 1996

    Aluminum

    180 - 91,000

    33/33

    NA

    NA

    Weston, 1994

    Beryllium

    6 - 22

    4/14

    0.008

    CREG

    Weston, 1994

    Lead

    490

    1/1

    15

    EPA Action Level

    Weston, 1994

    Off-site Surface Water

    Naphthalene

    35

    1/1

    20

    LTHA

    Weston, 1994

    Phenanthrene

    26

    1/1

    NA

    NA

    W.Virginia, 1996




    Table 4 Residential Surface Soil

    Contaminant

    Concentration Range (ppm)

    # Detects /

    # Samples

    Comparison Value

    Reference/
    Year

    pica/child/adult
    (ppm)

    Source

    Semi-Volatile Organic Compounds

    Benzo[a]anthracene

    0.095 - 6.8

    3 / 3

    NA

    NA

    Weston, 1994

    Benzo[b]fluoranthene

    0.11 - 12

    3 / 3

    NA

    NA

    Weston, 1994

    Benzo[g,h,i]perylene

    0.06 - 2.8

    3 / 3

    NA

    NA

    Weston, 1994

    Benzo[k]fluoranthene

    0.049 - 1.9

    3 / 3

    NA

    NA

    Weston, 1994

    Chrysene

    0.12 - 6.2

    3 / 3

    NA

    NA

    Weston, 1994

    Pesticides

    Aldrin

    3.8

    1 / 3

    0.04

    0.06/2/20

    CREG
    EMEG (Chronic)

    Weston, 1994

    4,4'-DDE

    0.017

    1 / 3

    2

    CREG

    Weston, 1994

    Inorganics

    Aluminum

    8,360 - 12,600

    3 / 3

    NA

    NA

    Weston, 1994

    Beryllium

    0.33 - 0.61

    3 / 3

    0.1

    CREG

    Weston, 1994

    Cyanide

    0.51

    1 / 3

    40/1,000/10,000

    RMEG

    Weston, 1994

    Lead

    28.6 - 74.7

    3 / 3

    NA

    NA

    Weston, 1994

    Manganese

    256 - 527

    3 / 3

    NA

    NA

    Weston, 1994




    Table 5 Sediments On Site and Off Site

    Contaminant

    Concentration Range (ppm)

    #Detects/

    #Samples

    Comparison Value

    Reference/

    Year

    pica/child/adult

    (ppm)

    Source

    Oxidation Pond 1

    Benzo[a]anthracene

    31

    1/1

    NA

    NA

    Weston, 1994

    Benzo[a]pyrene

    32

    1/1

    0.1

    CREG

    Weston, 1994

    Benzo[b]fluoranthene

    29

    1/1

    NA

    NA

    Weston, 1994

    Benzo[g,h,i]perylene

    23

    1/1

    NA

    NA

    Weston, 1994

    Benzo[k]fluoranthene

    29

    1/1

    NA

    NA

    Weston, 1994

    Chrysene

    32

    1/1

    NA

    NA

    Weston, 1994

    Indeno[1,2,3-cd]pyrene

    21

    1/1

    NA

    NA

    Weston, 1994

    Phenanthrene

    42

    1/1

    NA

    NA

    Weston, 1994

    Aluminum

    4.3 - 4,600

    4/4

    NA

    NA

    Weston, 1994

    Chromium

    0.029 - 41

    4/4

    10/300/4,000

    RMEG

    Weston, 1994

    Lead

    0.0076 - 7.7

    4/4

    NA

    NA

    Weston, 1994

    Oxidation Pond 2

    BTEX (TOTAL)1

    32.9

    1/2

    NA

    NA

    Weston, 1994

    Aluminum

    4.1 - 7,100

    4/4

    NA

    NA

    Weston, 1994

    Chromium

    0.023 - 29

    4/4

    10/300/4,000

    RMEG

    Weston, 1994

    Lead

    0.01 - 26

    4/4

    NA

    NA

    Weston, 1994

    On-site Sediments - West Channel

    Benzo[a]anthracene

    0.28 - 5.9

    3/3

    NA

    NA

    Weston, 1994

    Benzo[a]pyrene

    0.39 - 3.5

    2/3

    0.1

    CREG

    Weston, 1994

    Benzo[b]fluoranthene

    0.26 - 5.7

    3/3

    NA

    NA

    Weston, 1994

    Benzo[k]fluoranthene

    0.089 - 1.4

    3/3

    NA

    NA

    Weston, 1994

    Chrysene

    0.28 - 5.3

    3/3

    NA

    NA

    Weston, 1994

    Dibenzofuran

    0.17 - 1.8

    3/3

    NA

    NA

    Weston, 1994

    Indeno[1,2,3-cd]pyrene

    0.13 - 2.5

    3/3

    NA

    NA

    Weston, 1994

    Phenanthrene

    0.73 - 8.6

    3/3

    NA

    NA

    Weston, 1994

    Aluminum

    2,640 - 3,640

    3/3

    NA

    NA

    Weston, 1994

    Chromium

    13.8 - 23.4

    3/3

    10/300/4,000

    RMEG

    Weston, 1994

    Cobalt

    1.8 - 3.2

    3/3

    NA

    NA

    Weston, 1994

    Lead

    7.3 - 14.8

    3/3

    NA

    NA

    Weston, 1994

    Vanadium

    28.1 - 75.2

    3/3

    6/200/2,000

    EMEG (Intermediate)

    Weston, 1994

    On-site Sediments South of Central Plant Building

    Benzo[a]pyrene

    0.3

    1/1

    0.1

    CREG

    Weston, 1994

    Aluminum

    9,670

    1/1

    NA

    NA

    Weston, 1994

    Cobalt

    28.2

    1/1

    NA

    NA

    Weston, 1994

    Lead

    46.4

    1/1

    NA

    NA

    Weston, 1994

    Magnesium

    1,180

    1/1

    NA

    NA

    Weston, 1994

    Manganese

    957

    1/1

    NA

    NA

    Weston, 1994

    Nickel

    51.1

    1/1

    40/1,000/10,000

    RMEG

    Weston, 1994

    On-site Sediments East of Central Plant Building

    Benzo[a]pyrene

    0.23

    1/1

    0.1

    CREG

    Weston, 1994

    2-Methylnaphthalene

    2.2

    1/1

    NA

    NA

    Weston, 1994

    Phenanthrene

    0.91

    1/1

    NA

    NA

    Weston, 1994

    Aluminum

    1,810

    1/1

    NA

    NA

    Weston, 1994

    Lead

    40.6

    1/1

    NA

    NA

    Weston, 1994

    Silver

    15.3

    1/1

    10/300/4,000

    RMEG

    Weston, 1994

    Vanadium

    28.9

    1/1

    6/200/2,000

    EMEG (Intermediate)

    Weston, 1994

    On-site Sediments West of Central Plant Building

    Benzo[a]anthracene

    7.4

    1/1

    NA

    NA

    Weston, 1994

    Benzo[a]pyrene

    4.1

    1/1

    0.1

    CREG

    Weston, 1994

    Benzo[b]fluoranthene

    7.4

    1/1

    NA

    NA

    Weston, 1994

    Benzo[g,h,i]perylene

    2.8

    1/1

    NA

    NA

    Weston, 1994

    Benzo[k]fluoranthene

    2.9

    1/1

    NA

    NA

    Weston, 1994

    Chrysene

    8.2

    1/1

    NA

    NA

    Weston, 1994

    Indeno[1,2,3-cd]pyrene

    3.6

    1/1

    NA

    NA

    Weston, 1994

    Phenanthrene

    8.2

    1/1

    NA

    NA

    Weston, 1994

    Lead

    31.6

    1/1

    NA

    NA

    Weston, 1994

    Off-site Sediments

    Benzo[a]anthracene

    0.38 - 4.6

    2/2

    NA

    NA

    Weston, 1994

    Benzo[a]pyrene

    0.38 - 4.6

    2/2

    0.1

    CREG

    Weston, 1994

    Benzo[b]fluoranthene

    0.44 - 5.2

    2/2

    NA

    NA

    Weston, 1994

    Benzo[g,h,i]perylene

    0.32 - 4.3

    2/2

    NA

    NA

    Weston, 1994

    Benzo[k]fluoranthene

    0.13 - 2.5

    2/2

    NA

    NA

    Weston, 1994

    Chrysene

    0.4 - 4.1

    2/2

    NA

    NA

    Weston, 1994

    Dibenzo[a,h]anthracene

    1.4

    1/2

    NA

    NA

    Weston, 1994

    Indeno[1,2,3-cd] pyrene

    0.34 - 4.9

    2/2

    NA

    NA

    Weston, 1994

    Phenanthrene

    0.5 - 3.4

    2/2

    NA

    NA

    Weston, 1994

    Aluminum

    5,170 - 9,720

    2/2

    NA

    NA

    Weston, 1994

    Antimony

    5.2

    1/2

    0.8/20/300

    RMEG

    Weston, 1994

    Arsenic

    11.5 - 13.4

    2/2

    0.5

    0.6/20/200

    CREGEMEG (Chronic)

    Weston, 1994

    Cadmium

    0.65 - 1.9

    2/2

    1/40/500

    EMEG (Chronic)

    Weston, 1994

    Chromium

    12 - 113

    2/2

    10/300/4,000

    RMEG

    Weston, 1994

    Lead

    81 - 132

    2/2

    NA

    NA

    Weston, 1994

    Manganese

    603 - 1,510

    2/2

    NA

    NA

    Weston, 1994




    Table 6 Tar/Soil Mixture, On Site and Off Site



    Contaminant

    Concentration Range (ppm)

    Comparison Value

    #Detects/

    #Samples

    Reference/Year

    pica/child/adult
    (ppm)

    Source

    On-siteTar/Soil Mixture

    Xylenes(total)

    71 - 310

    400/10,000/100,000

    EMEG (Intermediate)

    2/3

    Weston, 1994

    BTEX (TOTAL)

    191 - 1,984

    NA1

    NA1

    2/2

    Weston, 1994

    Acenaphthylene*2

    1,700 - 9,606

    NA

    NA

    3/4

    W.Virginia,1993

    Acenaphthene*2

    500 - 21,035

    100/3,000/40,000

    EMEG (Intermediate)

    2/4

    W.Virginia,1993

    Anthracene*2

    10,000 - 49,741

    600/20,000/200,000

    RMEG

    2/4

    W.Virginia,1993

    Benzo[a]anthracene2

    5,200 - 53,504

    NA

    NA

    2/4

    W. Virginia,1993

    Benzo[a]pyrene

    1,300 - 4,000

    0.1

    CREG

    2/4

    Weston, 1994

    Benzo[b]fluoranthene

    1,900 - 3,000

    NA

    NA

    2/4

    Weston, 1994

    Benzo[g,h,i] perylene

    1,500

    NA

    NA

    1/3

    Weston, 1994

    Benzo[k]fluoranthene

    950 - 3,500

    NA

    NA

    2/4

    Weston, 1994

    Dibenzofuran

    1,600 - 6,300

    NA

    NA

    2/3

    Weston, 1994

    Fluoranthene2

    11 - 38,730

    80/2,000/30,000

    RMEG

    3/4

    W. Virginia, 1993

    Fluorene2

    1,800 - 160,801

    80/2,000/30,000

    RMEG

    3/4

    W. Virginia, 1993

    Indeno [1,2,3-cd] pyrene2

    1,400 - 1,700

    NA

    NA

    2/4

    W.Virginia,1993

    2-Methylnaphthalene

    2,600

    NA

    NA

    1/3

    Weston, 1994

    4-Methylphenol

    170 - 370

    NA

    NA

    2/3

    Weston, 1994

    Naphthalene*

    12,000

    40/1,000/10,000

    EMEG (Intermediate)

    1/4

    W.Virginia, 1993

    Phenanthrene*2

    27,000 - 49,741

    NA

    NA

    2/4

    W.Virginia,1993

    Pyrene

    11,000 - 53,504

    60/2,000/20,000

    RMEG

    2/3

    Weston, 1994

    Aldrin

    0.076

    0.04

    0.06/2/20

    CREG
    EMEG (Chronic)

    1/1

    Weston, 1994

    4,4'-DDT

    0.15

    2

    CREG

    1/1

    Weston, 1994

    Beryllium

    0.27 - 0.81

    0.2

    10/300/4,000

    CREG

    RMEG

    2/2

    Weston, 1994

    Chromium

    13 - 57.8

    10/300/4,000

    RMEG

    2/2

    Weston, 1994

    Lead

    150 - 161

    NA

    NA

    2/2

    Weston, 1994

    Off-site Tar/Soil Mixture

    Phenanthrene

    1.01

    NA

    NA

    1/1

    Weston, 1994




    Table 7. Completed Exposure Pathways

    PATHWAY NAME

    EXPOSURE PATHWAY ELEMENTS

    TIME

    Source

    Medium

    Point of
    Exposure

    Route of
    Exposure

    Exposed
    Population

    Surface soil

    Plant operations and waste treatment and disposal

    Soil

    on site

    Ingestion
    Skin Contact

    Former Workers

    Past

    Tar/surface soil

    Plant operations and waste treatment and disposal

    Tar/soil mixture

    on site

    Ingestion
    Skin contact

    Former workers

    Past

    Surface soil

    Plant operations and waste treatment and disposal

    Surface soil

    Residential yards off site

    Ingestion

    Skin contact

    Residents

    Past
    Future




    Table 8. Potential Exposure Pathways

    PATHWAY
    NAME

    EXPOSURE PATHWAY ELEMENTS

    TIME

    Source

    Medium

    Point of
    Exposure

    Route of
    Exposure

    Exposed
    Population

    Subsurface
    soil

    Plant operations and waste treatment and disposal

    Soil

    On site

    Ingestion
    Skin contact
    Inhalation

    Former
    workers
    Utility
    workers

    Past
    Future

    Sediments

    Plant operations and waste treatment and disposal

    sediments

    On site

    Ingestion
    Skin contact

    Former
    workers

    Past
    Future

    Surface
    water

    Plant operations and waste disposal and treatment

    Surface
    water

    On site and
    off site

    Ingestion
    Skin contact

    former workers
    Utility workers

    Past
    Future




    Table 9 Estimated Populations for Completed and Potential Exposure Pathways

    Estimated Exposed and Potentially Exposed Populations

    Contaminants and Media:

    Description

    Number

    PAHs

    PAHs

    PAHs

    PAHs

    Former workers

    unknown

    Surface soil around the plant

    Surface soil in landfill areas

    Tar/soil mixture in loading areas

    Tar/soil mixture in tar pit and light oil area

    Residents

    200

    Surface soil




    Former workers

    unknown

    Subsurface soil

    Sediments

    Surface water


    Future residents (when land use changes)

    unknown

    Subsurface soil might become surface soil




    Utility, maintenance and construction workers (excavation, etc.)

    unknown

    Subsurface soil

    Sediments

    Surface water




    Table of Contents



    USA.gov: The U.S. Government's Official Web PortalDepartment of Health and Human Services
    Agency for Toxic Substances and Disease Registry, 4770 Buford Hwy NE, Atlanta, GA 30341
    Contact CDC: 800-232-4636 / TTY: 888-232-6348

    A-Z Index

    1. A
    2. B
    3. C
    4. D
    5. E
    6. F
    7. G
    8. H
    9. I
    10. J
    11. K
    12. L
    13. M
    14. N
    15. O
    16. P
    17. Q
    18. R
    19. S
    20. T
    21. U
    22. V
    23. W
    24. X
    25. Y
    26. Z
    27. #
