PUBLIC HEALTH ASSESSMENT
C&J DISPOSAL
TOWN OF EATON, MADISON COUNTY, NEW YORK


APPENDICES

Appendix A - FIGURES.

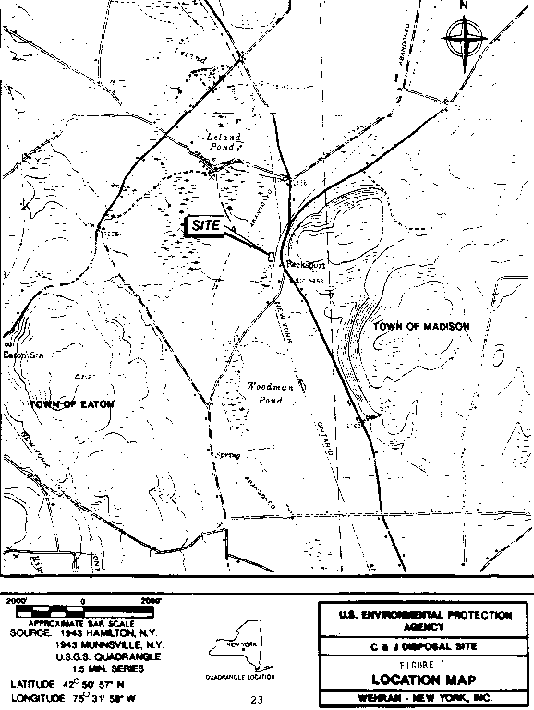

Figure 1
Figure 1.

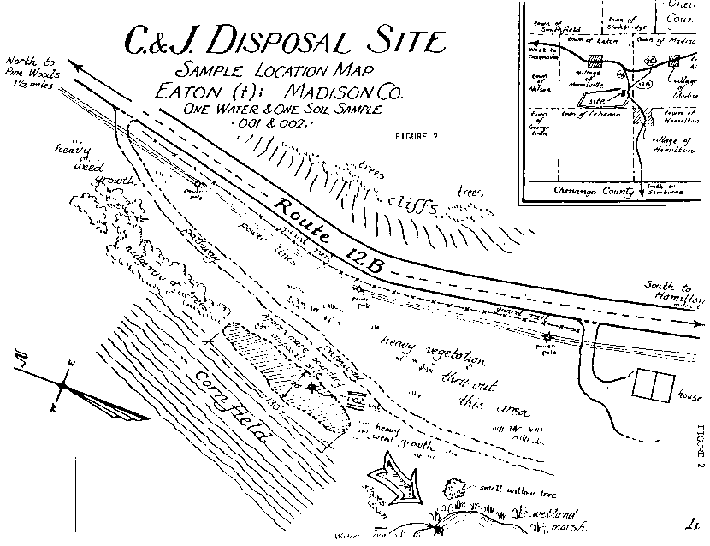

Figure 2
Figure 2.

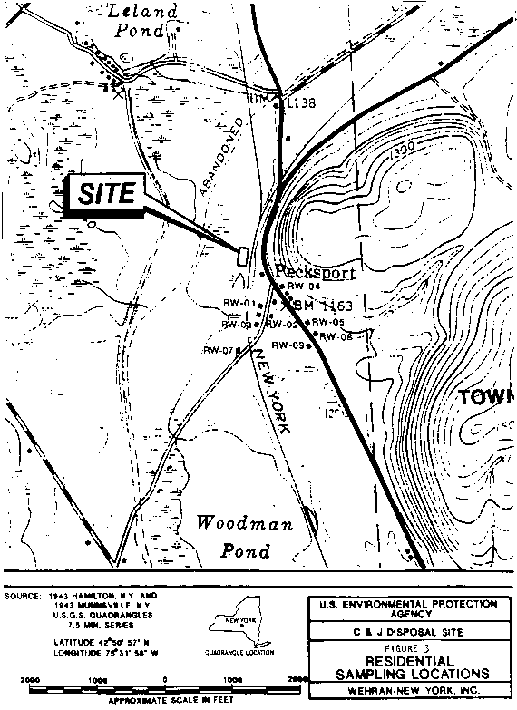

Figure 3
Figure 3.

Figure 4
Figure 4.

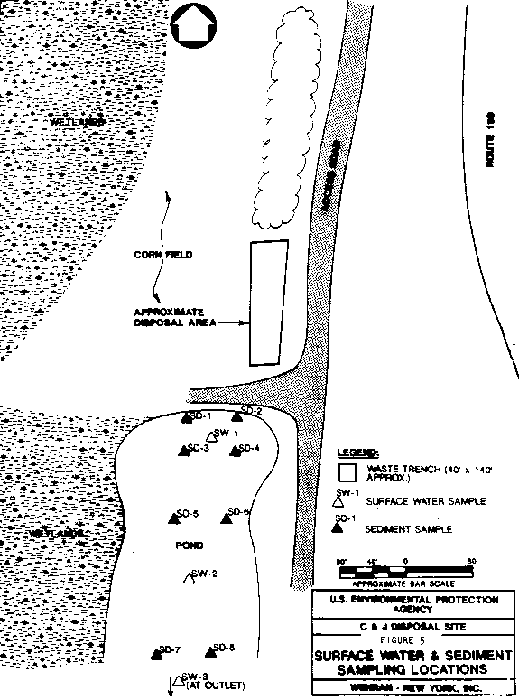

Figure 5
Figure 5.


Appendix B - TABLES.

Table 1.

C&J Disposal Site - Summary of Contaminants Detected On-Site
Town of Eaton, Madison County, NY
[All concentrations in milligrams per kilogram (mg/kg) unless otherwise noted]
(see Tables 3 and 4 for comparison values)


Contaminant Concentration
Range
Waste Materials
Maximum
Concentration
Surface Soils (1)
Concentration
Range
Groundwater (mcg/L)

acetone ND - 58 0.009 ND
1,2-dichloroethane ND - 8.4 ND ND
2-butanone ND - 250 ND ND
trichloroethene ND - 3.0 ND ND
benzene ND - 5.9 ND ND
4-methyl-2-pentanone ND - 1,100 ND ND
toluene ND - 650 ND ND
ethylbenzene ND - 190 ND ND
total xylenes ND - 560 ND ND
4-methylphenol ND - 17 ND ND
2,4-dimethylphenol ND - 0.21 ND ND
di-n-butylphthalate ND - 110 0.12 ND
butylbenzylphthalate ND - 19 ND ND
*bis(2-ethylhexyl) phthalate ND - 29,000 D 150 D ND - 8.0
arsenic

ND - 26.6
*lead

ND - 165

Source: Ebasco Services, Inc. Remedial Investigation Report, Janauary 1991.

(1) Does not include samples SS01 and SS02, which are upgradient of the site.

Data Qualifiers: D - Compound identified at a secondary dilution factor
ND - Compound was not detected

*Contaminant selected for further evaluation (see Table 3 for comparison values)

Table 2.
C&J Disposal Site - Summary of Contaminants Detected Off-site
Town of Eaton, Madison County, NY
[All concentrations in milligrams per kilogram (mg/kg) unless otherwise noted]
(see Tables 3 and 4 for comparison values)


Contaminant Concentration Ranges

Sediments Surface Water
(mcg/L)
Soils
(Upgradient)
Residential
Wells (mcg/L)

bis(2-ethylhexyl) phthalate ND - 0.55 ND ND ND
arsenic 0.00045-0.002B ND 0.0054-0.008 ND
lead ND - 225 ND 104 ND - 2.8
cyanide ND - 0.015 ND ND ND

beta-BHC ND ND 0.021 ND

chloroform ND ND ND ND - 1.5

2-methyl-naphthalene ND ND 0.19 ND
acenaphthylene ND ND 0.28 ND
acenaphthene ND ND 0.19 ND
fluorene ND ND 0.23 ND
phenanthrene ND ND 3.1 ND
anthracene ND ND 0.36 ND
di-n-butylphthalate ND ND ND ND
fluoranthene ND ND 4.1 ND
pyrene ND ND 2.7 ND
benzo(a)pyrene ND ND 1.1 ND


Source: Ebasco Services, Inc., Remedial Investigation Report, January 1991.

B - Analyte found in blank as well as sample.
ND - Compound was not detected.

Table 3.

New York State and Federal Standards/Guidelines and
Public Health Assessment Comparison Values for Contaminants Found in Sources
of Drinking Water at and Near the C&J Disposal Site
Town of Eaton, Madison County, NY
[all values in micrograms per liter (mcg/L)]


Chemical Water Quality Standards/Guidelines

Comparison Value

NEW YORK STATE

U.S. EPA

Ground
Water
Surface
Water
Drinking
Water
Drinking
Water
Cancer** Source*** Noncancer** Source***

arsenic 25 50 50 50 -- -- 11 EPA RfD
bis(2-ethylhexyl)phthalate 50 4 g 50 6 2.5 EPA CPF 140 EPA RfD
chloroform 7 7 100d 100d 6 EPA CPF 70 EPA RfD
lead 25 50 15* 15* -- -- -- --

d = Drinking Water standard for total trihalomethanes produced as a result of disinfection with chlorine. This standard is inappropriate for evaluating environmental contamination not associated with disinfection practices.

g = guidance value

*Maximum contaminant level goal (MCLG) of zero for lead and an action level of 15 mcg/L at the tap.

**Comparison value based on a 70 kilogram adult drinking 2 liters of water per day.

***EPA CPF = EPA Cancer Potency Factor
    EPA RfD = EPA Reference Dose
    NYS CREG = NYS Cancer Risk Evaluation Guideline

Table 4.
Public Health Assessment Comparison Values for Soil Contaminants On-Site
and Off-Site; C&J Disposal Site, Town of Eaton, Madison County, NY
(All values in milligrams per kilogram; mg/kg)


Contaminant Typical Background*Comparison Value

Cancer** Source*** Noncancer** Source***

acenaphthylene **** -- -- -- --
acenaphthene **** -- -- 235 EPA RfD
acetonea ND -- -- 147,000 EPA RfD
anthracene **** -- -- 7,470 EPA RfD
arsenic 10-20 -- -- 15 EPA RfD
benzo(a)pyrene **** 0.005 NYS CPF -- EPA HEAST
beta-BHC ND 0.02 NYS CPF -- --
bis(2-ethylhexyl) phthalatea ND 700 EPA CPF 29,400 EPA RFD
butylbenzyl phthalate ND -- -- 3,200 EPA RFD
cyanide ND -- -- 1,000 EPA RfD
di-n-butyl phthalatea ND -- -- 147,000 EPA RFD
fluoranthene **** -- -- 746 EPA RFD
fluorene **** -- -- 328 EPA RFD
lead 10-300 -- -- -- --
2-methyl naphthalene ND -- -- -- --
phenanthrene **** -- -- -- --
pyrene **** -- -- 67 EPA RFD


ND - not determined

aOn-site soil contaminant.

*References: Clarke et al. (1985); Frank et al. (1976); McGovern (1988) and Shacklette and Boerngen (1984)
**Noncancer and cancer comparison values for off-site organic contaminants are based on ingestion of soil and homegrown vegetables; noncancer and cancer comparison values for off-site inorganic contaminants are based on ingestion of soil.
Noncancer comparison values for on-site contaminants are determined for a 21 kilogram child who ingests 200 milligrams of soil per day, 2 days per week for 3 months per year. Cancer comparison values for on-site contaminants are determined for a 70 kilogram adult who ingests 100 milligrams of soil per day, 2 days per week for 3 months per year.
***EPA CPF = EPA Cancer Potency Factor
    NYS CPF = New York State Cancer Potency Factor
    EPA RfD = EPA Reference Dose
    EPA HEAST = EPA Health Effects Assessment Summary Table
****Reported background levels for total polycyclic aromatic hydrocarbons of <1 to 13 mg/kg in soil (Edwards, 1983).
