PUBLIC HEALTH ASSESSMENT

ROBINTECH, INC./NATIONAL PIPE CO.
VESTAL, BROOME COUNTY, NEW YORK

APPENDIX 1

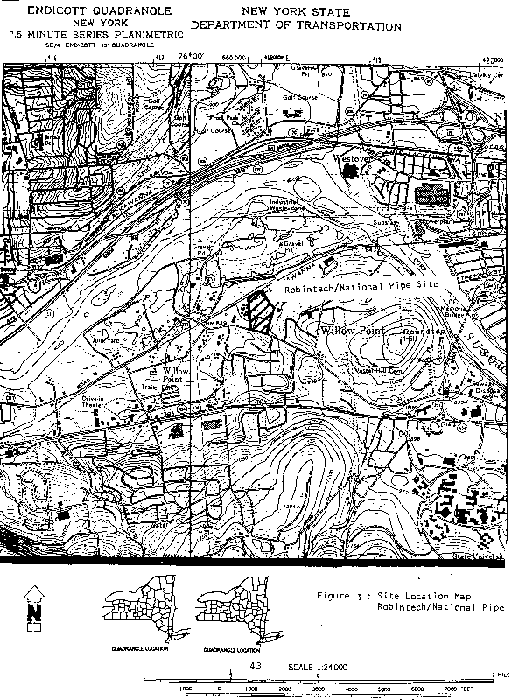

Figure 1. Site Location Map


Figure 2. Site Layout


Figure 3. Surface Soil Sampling Locations

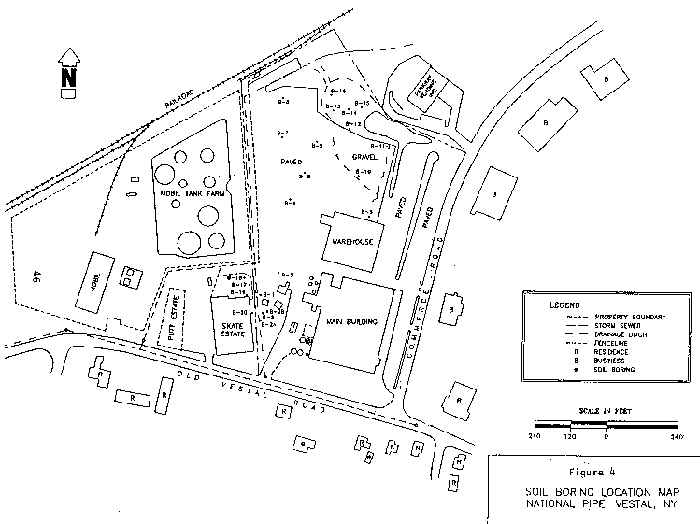

Figure 4. Soil Boring Location Map

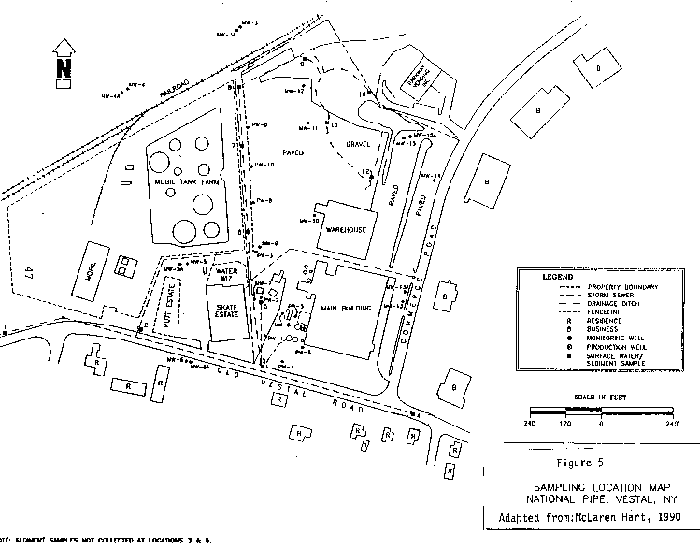

Figure 5. Sampling Location Map

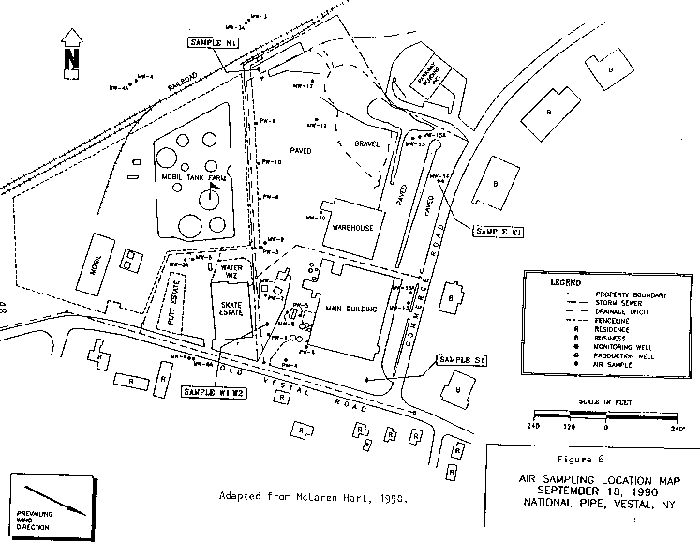

Figure 6. Air Sampling Location Map


Figure 7. Site Map

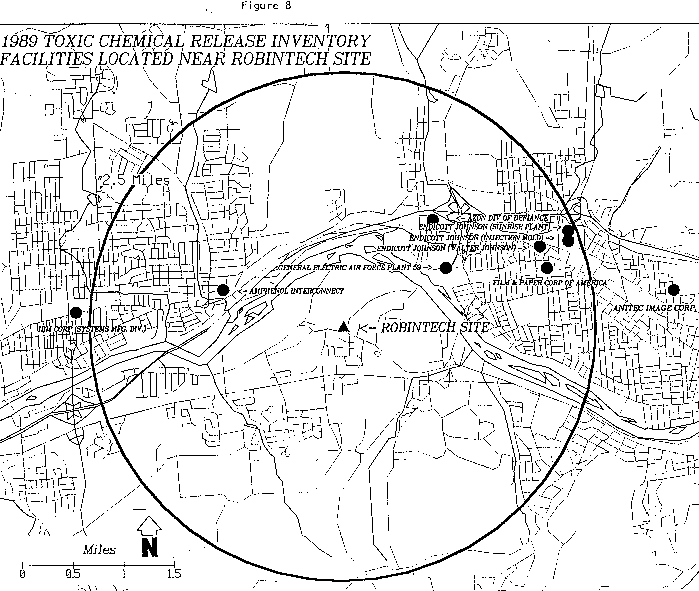

Figure 8. 1989 Toxic Chemical Release Inventory Facilities Located Near Robintech Site



APPENDIX 2

Table 1.

Summary of Organic Chemicals in On-Site Groundwater at the Robintech, Inc./National Pipe Co. site,
Vestal, Broome County.
(All units in micrograms per liter, mcg/L)


Chemical Name Range of Reported
Concentrations
Drinking Water Standards Comparison Values
Monitor Wells Pumping Wells New York
State
US EPA

Cancer

Source** Noncancer Source**

acetone ND ***-ND 50 - - - 700 EPA RfD

*benzene

ND-23 ***-11 5 5 1.2 EPA CPF 5 EPA RfD

bis(2-ethylhexyl)phthalate

NA ***-ND 50 6 2.5 EPA CPF 140 EPA RfD

*2-butanone

NA 200-510 50 - - - 200 EPA LTHA

*chloroethane

23-43 ***-ND 5 - - - - -

di-n-butylphthalate

NA NA 50 - - - 700 EPA RfD

*1,1-dichloroethane

23-370 8-920 5 - - - 700 EPA RfD

*1,1-dichloroethene

52-110 23-210 5 7 0.06 ATSDR CREG 7 EPA LTHA

*1,2-dichloroethene (total)

40-230 140-580 5 70 - - 70 EPA LTHA

*ethylbenzene

NA 6-73 5 700;30ps - - 700 EPA LTHA

*styrene

NA ND-8 5 100;10ps 1.2 EPA CPF 100 EPA LTHA

*toluene

ND 7-2,700 5 1,000;40ps - - 1,000 EPA LTHA

*tetrachloroethene

ND-17 ***-ND 5 5 0.7 EPA CPF 70 EPA RfD

*1,1,1-trichloroethane

150-1,100 9-8,800 5 200 - - 200 EPA LTHA

*trichloroethene

12-1,000 210-1,500 5 5 3 EPA CPF 52 EPA RfD

*vinyl chloride

17-36 ***-ND 2 2 0.02 EPA CPF 0.7 ATSDR MRL

*xylene

NA 17-480 5 10,000;20ps - - 10,000 EPA LTHA

Adapted from McLaren Hart, 1990.
ND = not detected
NA = not analyzed
p = proposed maximum contaminant level (MCL)
ps = proposed secondary MCL

* = contaminant selected for further evaluation

**ATSDR CREG = ATSDR Cancer Risk Evaluation Guide
ATSDR MRL = ATSDR Minimal Risk Level
EPA RfD = EPA Reference Dose (adjusted by 20%, which is assumed to be the relative contribution from ingestion of water)
EPA CPF = EPA Cancer Potency Factor
EPA LTHA = EPA Drinking Water Lifetime Health Advisory

*** = indicates other reported values were estimated concentrations


Table 2.

Summary of Metals in On-Site Groundwater at the Robintech, Inc./National Pipe Co. site,
Vestal, Broome County.
(All units in micrograms per liter, mcg/L)


Chemical Name Range of Reported
Concentrations
Drinking Water Standards Comparison Values
Monitor Wells Pumping Wells

New York
State

US EPA

Cancer

Source** Noncancer Source**

*aluminum 230-52,500 390-1,290 - 50 to 200s - - - -

*arsenic

ND 18-32 50 50 0.02 EPA CPF 11 EPA RfD

barium

220-300 219-560 2,000 2,000 - - 2,000 EPA LTHA

beryllium

ND ND - 4 0.0081 EPA CPF 200 EPA RfD

cadmium

ND-5.0 ND 5 5 - - 5 EPA LTHA

calcium

50,600-207,000 68,430-83,100 - - - - - -

*chromium

8.8-770 ND 100 100 - - 100 EPA LTHA

cobalt

***-ND ***-ND - - - - - -

copper

31-320 ND 1,000 1,300 - - - -

*iron

56-101,000 332-42,400 300 - - - - -

*lead

5.39-29.2 ND 15**** 15**** - - - -

magnesium

7,250-41,000 13,300-19,300 - - - - 35,000 NYS RfG

*manganese

40-7,480 230-1,440 300 50s - - 175 EPA RfD

mercury

ND ND 2 2 - - 2 EPA LTHA

*nickel

42-230 ND-*** - 100 - - 100 EPA LTHA

potassium

*** ND-*** - - - - - -

*sodium

7,590-99,100 24,600-64,900 ***** - - - - -

thallium

ND ND - 2 - - 0.4 EPA LTHA

zinc

22-276 530-1,180 5,000 5,000s - - 2,000 EPA LTHA

cyanide

ND ND 100 200 - - 200 EPA LTHA

Adapted from McLaren Hart, 1990.

NOTE: Samples of groundwater obtained from borings in the northern fill area were not filtered prior to analysis of inorganic compounds.

ND = not detected
NA = not analyzed
p = proposed maximum contaminant level (MCL)
s = secondary MCL

* = contaminant selected for further evaluation

**ATSDR CREG = ATSDR Cancer Risk Evaluation Guide
EPA CPF = EPA Cancer Potency Factor
EPA RfD = EPA Reference Dose
EPA LTHA = EPA Drinking Water Lifetime Health Advisory
NYS RfG = NYS Reference Guideline

*** = indicates other reported values were estimated concentrations

****The maximum contaminant level goal (MCLG) for lead is zero and the action level is 15 mcg/L at the tap.

*****Water containing more than 20,000 mcg/L should not be used for drinking by people on severely restricted sodium diets; water containing more than 270,000 mcg/L

should not be used for drinking by persons on moderately restricted sodium diets.


Table 3.

Summary of Organic Compounds Detected in On-site Subsurface
Soils in Soil Borings and Monitor Well Borings
at the Robintech, Inc./National Pipe Co. site,
Vestal, Broome County.


Chemical Name

Range of Reported
Concentrations (mg/kg)

Soil Borings Monitor Well Borings

Volatile Organics




acetone

ND-0.051 ND-0.081

chloroethane

ND-0.19 ND

chloroform

ND-0.007 ND

1,1-dichloroethane

ND-0.013 ND-0.049

1,2-dichloroethene (total)

*-ND ND-0.022

1,1,1-trichloroethane

ND-0.04 ND-0.63

trichloroethene

ND-0.016 *-ND

xylene

ND-0.007 *-ND


Semi-Volatile Organics



benzo(a)anthracene *-ND ND-0.84

bis(2-ethylhexyl)phthalate

ND-8.6 ND

chrysene

*-ND ND-0.95

di-n-butylphthalate

ND-2.1 ND

fluoranthene

*-ND ND-0.95

phenanthrene

ND-18 ND-1.8

pyrene

ND-11 ND-2.2

Adapted from McLaren Hart, 1990.

mg/kg = milligram per kilogram
ND = not detected

* = indicates other reported values were estimated concentrations


Table 4.

Summary of Metals Detected in On-Site
Subsurface Soils from Monitor Well Borings and Soil Borings
at the Robintech, Inc./National Pipe Co. site,
Vestal, Broome County.


Chemical Name

Range of Reported
Concentrations (mg/kg)

Soil Borings

Monitor Well Borings

aluminum

6,336-31,034 4,650-10,000

arsenic

2-13 **-12.7

barium

42-138 **-44

*cadmium

ND-205 ND

calcium

148-54,500 1,540-9,030

cobalt

ND-27 ND

copper

12-77 ND-43

iron

10,869-35,700 10,300-19,200

lead

(19-10,700)+ (10-20)+

magnesium

1,276-5,680 1,730-4,250

manganese

18-882 200-437

mercury

ND-1 2-6
nickel 11-66 **-ND

potassium

156-1,252 **

silver

2-5 ND-1

sodium

*-39 **-158

vanadium

18-39 ND-16

zinc

25-121 39-66

cyanide

ND **-ND

Adapted from McLaren Hart, 1990.
mg/kg = milligrams per kilogram
ND = not detected
* = contaminant selected for further evaluation (see Table 15 for public health assessment comparison values)
** = indicates other reported values were estimated concentrations

+NOTE: Reported concentrations of lead in soil and sediment samples collected during the remedial investigation (RI) were considered suspect. Supplemental sampling of lead in soils and sediment at the site and the adjacent Skate Estate Facility was conducted in February and September of 1992. Of the 194 supplemental soil and sediment samples collected, analytical results indicated that lead ranged from "not detected" to 344 mg/kg. Only one sample contained lead at 344 mg/kg which is only slightly above the general background range (0-300 mg/kg); 157 of the samples contained lead at levels below 50 mg/kg, 28 samples contained lead within 50 mg/kg-100 mg/kg, 4 samples contained lead within 100 mg/kg to 150 mg/kg and 3 samples contained lead within 200 mg/kg-250 mg/kg. Background soil samples were collected during the February 1992 supplemental sampling from three locations unassociated with the site. Results of the background samples reported lead at 52 mg/kg and 93 mg/kg; one background soil sample reportedly contained lead at 2,550 mg/kg and is considered anomalous as it was collected from a location characterized by "historical disposal of household debris and automotive waste materials, including oil cans and used oil filters." Based on the results of the supplemental investigations of lead in soils and sediment, lead is not being considered as a contaminant selected for further evaluation.

Table 5.

Summary of Compounds Detected in On-site
Surface Water Drainage and Sediment in Drainage Ditches
at the Robintech, Inc./National Pipe Co. site, Vestal, Broome County.


potassium

Chemical Name

Range of Reported Concentrations

Sediment
(mg/kg)

Surface Water
(mcg/L)

Organic



1,1-dichlorethane

ND-0.01 9-35

1,1,1-trichloroethane

0.014-0.028 9-350

bis(2-ethylhexyl)phthalate

2-45 ND-19

Inorganic



aluminum

4,141-19,207 525-2,300

barium

66-41 *-14

beryllium

*-1 ND-6

cadmium

*-1 ND

calcium

1,822-32,503 44,200-73,000

chromium

ND-1 ND-*

cobalt

ND-4



copper

13-28 ND

iron

11,690-34,750 331-2,960

lead

(5,659-55,983)+ ND-*

magnesium

2,693-5,359 6,000-11,800

manganese

491-1,703 34-1,070

nickel

10-21 ND-*
*-910 752-2,930

silver

4-5 ND-46

sodium

75-390 9,600-265,000

zinc

71-544 40-479

Adapted from McLaren Hart, 1990. mg/kg = milligrams per kilogram
ND = not detected mcg/L = micrograms per liter

* = indicates other reported values were estimated concentrations
Blank space indicates no data reported for this chemical.
NOTE: No sediment sample was obtained from sample locations SD5/SW5
+NOTE: Reported concentrations of lead in soil and sediment samples collected during the remedial investigation (RI) were considered suspect. Supplemental sampling of lead in soils and sediment at the site and the adjacent Skate Estate Facility was conducted in February and September of 1992. Of the 194 supplemental soil and sediment samples collected, analytical results indicated that lead ranged from "not detected" to 344 mg/kg. Only one sample contained lead at 344 mg/kg which is only slightly above the general background range (0-300 mg/kg); 157 of the samples contained lead at levels below 50 mg/kg, 28 samples contained lead within 50 mg/kg-100 mg/kg, 4 samples contained lead within 100 mg/kg to 150 mg/kg and 3 samples contained lead within 200 mg/kg-250 mg/kg. Background soil samples were collected during the February 1992 supplemental sampling from three locations unassociated with the site. Results of the background samples reported lead at 52 mg/kg and 93 mg/kg; one background soil sample reportedly contained lead at 2,550 mg/kg and is considered anomalous as it was collected from a location characterized by "historical disposal of household debris and automotive waste materials, including oil cans and used oil filters." Based on the results of the supplemental investigations of lead in soils and sediment, lead is not being considered as a contaminant selected for further evaluation.

Table 6.

Summary of Volatile Organic Analysis for On-Site
Ambient Air Samples Collected in September 1990
at the Robintech, Inc./National Pipe Co. site,
in Vestal, Broome County.
(All results reported in micrograms per cubic meter [mcg/m3])


Chemical
Name
Sample Location

S1

E1 W1 W2(+) N1

ethylbenzene

** ** 18 ** ND

*methylene chloride

33 26 67 ** **

*tetrachloroethene

** ND 25 ND ND

*toluene

1,300 5,000 ND 47 23

1,1,1-trichloroethane

270 ** ND ** **

o-xylene

** ** 24 ** **

m,p-xylenes

17 ** 60 ** **

Adapted from McLaren-Hart, 1990.

ND = not detected
(+) duplicate sample

* = contaminant selected for further evaluation (see Table 14 for public health assessment comparison values for contaminants in ambient air)

** = estimated value or below detection limit

Table 7.

Summary of Metals in Off-Site Groundwater
Near the Robintech, Inc./National Pipe Co. site,
Vestal, Broome County.


Chemical Name Reported Concentrations (mcg/L)**

MW3

MW4 MW5 MW6

*aluminum

15,400 4,610 486 3,370

*arsenic

ND 36.7 ND ND

barium

ND ND 713 1,360

*cadmium

ND ND 6.0 5.0

calcium

103,000 52,000 168,000 171,000

*iron

27,300 7,920 3,750 3,220

lead

ND ND 5.5 ND

magnesium

17,300 8,900 27,200 21,000

*manganese

1,870 424 1,020 540

potassium

39,400 * 18,800 14,600

*sodium

57,200 ND 51,200 68,800

zinc

61 44 57 22

Adapted from McLaren Hart, 1990.

mcg/L = micrograms per liter
ND = not detected

* = contaminant selected for further evaluation (see Table 2 for public health assessment comparison values)

** = only the highest concentration for each monitor well cluster is reported


Table 8.

Summary of Organic Compounds Detected in
Sediment and Surface Water Drainage in Off-Site Storm Sewers
Near the Robintech, Inc./National Pipe Co. site,
Vestal, Broome County.


Chemical Name Sediment*
(mg/kg)
Surface Water*
(mcg/L)

acetone - 140

1,1-dichloroethane

ND ND

toluene

2.9 41

1,1,1-trichloroethane

0.012 (+) 29

trichloroethene

- 6

xylene

0.012 -

**bis(2-ethylhexyl)phthalate

4.6(+) NA

Adapted from McLaren Hart, 1990.

mcg/L = micrograms per liter
mg/kg = milligrams per kilogram
ND = not detected
NA = parameter not analyzed
- = indicates no data reported for this chemical

* = Data representative of sample location SW4/SD4, upgradient of the site, unless otherwise indicated.
No sediment samples were collected at location SD3.

** = contaminant selected for further evaluation (see Tables 1 and 15 for public health assessment comparison values)

(+) = Indicates data representative of sample location SD2/SW2, downgradient of the site.

NOTE: Only highest concentrations of reported data are listed.


Table 9.

Summary of Metals Detected in Off-Site Surface Water Drainage
in Storm Sewers Near the Robintech, Inc./National Pipe Co. site,
Vestal, Broome County.


Chemical Name Reported Concentrations (mcg/L)

Upgradient Location

Downgradient Locations

SW4

SW1 SW1
(duplicate)
SW2 SW3

aluminum

111,000 ** ND 1,081 664

barium

1,097 ** ND ** **

*beryllium

12 ND ND ND ND

*cadmium

40 ND ND ND ND

calcium

** 47,900 44,200 ** **

*copper

704 ND ND ND 59

*iron

299,000 140 331 1,083 1,460

lead

1,860 ND ND ND ND

magnesium

116,000 8,240 8,490 ** 9,780

*manganese

9,920 100 34 ND 92

mercury

1 ND ** ND ND

nickel

300 ND ND ND ND

potassium

17,300 ** 878 ** 7,890

*sodium

54,600 12,400 11,200 ** 24,200

vanadium

459 ND ND ND ND

*zinc

9,100 ND ND ND ND

cyanide

27 ND ND ND ND

Adapted from McLaren Hart, 1990.

mcg/L = micrograms per liter
ND = not detected

* = contaminant selected for further evaluation (see Table 2 for public health assessment comparison values)

** = indicates value reported as an estimated concentration


Table 10.

Summary of Metals Detected in Off-Site Sediment
from Storm Sewers Near the Robintech, Inc./National Pipe Co. site,
Vestal, Broome County.

Chemical Name Reported Concentrations (mg/kg)

Upgradient
Location (SD4)

Downgradient Locations

SD1

SD1
(duplicate)
SD2

aluminum

3,890 5,015 4,141 5,178

barium

** 45 ** **

cadmium

2 ND ND ND

calcium

** 44,709 32,503 **

copper

20 18 ND 20

iron

14,582 11,208 13,356 17,196

lead

(29,563)+ (10,600)+ (41,100)+ (10,100)+

magnesium

4,232 4,266 3,276 **

manganese

299 347 491 199

sodium

** 86 75 **

zinc

139 109 83 329

Adapted from McLaren Hart, 1990.

mg/kg = milligrams per kilogram
ND = not detected

** = indicates value reported as an estimated concentration

NOTE: Sediment samples were not collected from off-site location SD3.

+NOTE: Reported concentrations of lead in soil and sediment samples collected during the remedial investigation (RI) were considered suspect. Supplemental sampling of lead in soils and sediment at the site and the adjacent Skate Estate Facility was conducted in February and September of 1992. Of the 194 supplemental soil and sediment samples collected, analytical results indicated that lead ranged from "not detected" to 344 mg/kg. Only one sample contained lead at 344 mg/kg which is only slightly above the general background range (0-300 mg/kg); 157 of the samples contained lead at levels below 50 mg/kg, 28 samples contained lead within 50 mg/kg-100 mg/kg, 4 samples contained lead within 100 mg/kg to 150 mg/kg and 3 samples contained lead within 200 mg/kg-250 mg/kg. Background soil samples were collected during the February 1992 supplemental sampling from three locations unassociated with the site. Results of the background samples reported lead at 52 mg/kg and 93 mg/kg; one background soil sample reportedly contained lead at 2,550 mg/kg and is considered anomalous as it was collected from a location characterized by "historical disposal of household debris and automotive waste materials, including oil cans and used oil filters." Based on the results of the supplemental investigations of lead in soils and sediment, lead is not being considered as a contaminant selected for further evaluation.


Table 11.

Summary of Metals Detected in Off-Site Subsurface
Soils from Soil Borings and Monitor Well Borings
at the Skate Estate Property West of the Robintech, Inc./National Pipe Co. site,
Vestal, Broome County.


Chemical Name Range of Reported Concentrations (mg/kg)

aluminum 12,377-142,000

barium

30-78

cadmium

ND-1

calcium

1,430-8,299

copper

12-26
iron 21,200-41,068

lead

(2,220-26,100)+

magnesium

2,432-4,948

manganese

604-1,001

mercury

ND-1

nickel

20-24

potassium

267-677

silver

*-0.82

sodium

*-117

zinc

64.9-90

Adapted from McLaren Hart, 1990.

mg/kg = milligram per kilogram
ND - not detected

* = indicates value reported as an estimated concentration

+NOTE: Reported concentrations of lead in soil and sediment samples collected during the remedial investigation (RI) were considered suspect. Supplemental sampling of lead in soils and sediment at the site and the adjacent Skate Estate Facility was conducted in February and September of 1992. Of the 194 supplemental soil and sediment samples collected, analytical results indicated that lead ranged from "not detected" to 344 mg/kg. Only one sample contained lead at 344 mg/kg which is only slightly above the general background range (0-300 mg/kg); 157 of the samples contained lead at levels below 50 mg/kg, 28 samples contained lead within 50 mg/kg-100 mg/kg, 4 samples contained lead within 100 mg/kg to 150 mg/kg and 3 samples contained lead within 200 mg/kg-250 mg/kg. Background soil samples were collected during the February 1992 supplemental sampling from three locations unassociated with the site. Results of the background samples reported lead at 52 mg/kg and 93 mg/kg; one background soil sample reportedly contained lead at 2,550 mg/kg and is considered anomalous as it was collected from a location characterized by "historical disposal of household debris and automotive waste materials, including oil cans and used oil filters." Based on the results of the supplemental investigations of lead in soils and sediment, lead is not being considered as a contaminant selected for further evaluation.


Next Section       Table of Contents



USA.gov: The U.S. Government's Official Web PortalDepartment of Health and Human Services
Agency for Toxic Substances and Disease Registry, 4770 Buford Hwy NE, Atlanta, GA 30341
Contact CDC: 800-232-4636 / TTY: 888-232-6348

A-Z Index

  1. A
  2. B
  3. C
  4. D
  5. E
  6. F
  7. G
  8. H
  9. I
  10. J
  11. K
  12. L
  13. M
  14. N
  15. O
  16. P
  17. Q
  18. R
  19. S
  20. T
  21. U
  22. V
  23. W
  24. X
  25. Y
  26. Z
  27. #
