PUBLIC HEALTH ASSESSMENT

ADAMS COUNTY QUINCY LANDFILL 2 & 3
QUINCY, ADAMS COUNTY, ILLINOIS


TABLES

Table 1.

1997-1998 On-site Groundwater Quarterly Samples for Manganese [4](comparison value for manganese - RMEG: child 50 ppb, adult 200 ppb)1
Well Spring
(ppb)
Summer
(ppb)
Fall
(ppb)
Winter
(ppb)
Depth
(feet)
1D <10 <10 430 <5 89.5'
2D 4,800 2,700 2,700 2,000 18'
3D 1,100 1,100 7,100 880 26.5'
4D 3,800 3,800 3,300 4,500 33'
Q1S <10 <10 130 <5 133'
Q2S 42 49 670 41 29.9'
Q2D 32 55 34 51 86.8'
Q3D 4,300 3,800 3,500 3,600 46'
Q4D 1,800 1,400 670 1,500 87.9'
2U <10 <10 720 5 21'

1RMEG -- reference dose media evaluation guide (see Attachment 3).
ppb = parts per billion
Bold results indicate monitoring wells in areas of leachate runoff.


Table 2.

1997-1998 On-site Groundwater Quarterly Samples for Arsenic [4](comparison values for arsenic -- EMEG: child 3 ppb, adult 10 ppb; CREG: 0.02 ppb MCL: 50 ppb)1
Well Spring
(ppb)
Summer
(ppb)
Fall
(ppb)
Winter
(ppb)
Depth
(feet)
Q2D <1 <1 4 <1 86.8'
Q3D 5 <1 3 <1 46'
Q4D 5 4 3 1 87.9'
Q4S <1 <1 3 <1 33'
2D 110 100 89 70 18'
3D <1 2 4 4 26.5'
4D 3 <1 3 4 33'

1EMEG -- environmental dose media evaluation guide; CREG - cancer risk evaluation guide
MCL -- maximum contaminant level (see Attachment 3).
ppb = parts per billion
Bold results indicate monitoring wells in areas of leachate runoff.


Table 3.

1997-1998 On-site Groundwater Quarterly Samples for Thallium [4](comparison values for thallium -- LTHA: 0.4ppb MCL: 2 ppb)1
Well Spring
(ppb)
Summer
(ppb)
Fall
(ppb)
Winter
(ppb)
Depth
(feet)
Q3D <4 <4 10 <4 46'
Q7D <4 <4 8 <4 231.25'

1 LTHA -- lifetime health advisory; MCL -- maximum contaminant level (see Attachment 3).
ppb = parts per billion
Bold results indicate monitoring wells in areas of leachate runoff


Table 4.

1997-1998 On-site Groundwater Quarterly Samples for Methacrylonitrile [4](comparison value for methacrylonitrile -- RMEG: child 1 ppb, adult 4 ppb)1
Well Spring
(ppb)
Summer
(ppb)
Fall
(ppb)
Winter
(ppb)
Depth
(feet)
Q6S <5 <10 43 <10 141.94'
2D <5 <10 59 <10 18'

1RMEG -- reference dose media evaluation guide (see Attachment 3).
ppb = parts per billion
Bold results indicate monitoring wells in areas of leachate runoff.


Table 5.

1997-1998 On-site Groundwater Quarterly Samples for Vinyl Chloride [4](comparison values for vinyl chloride -- EMEG: child 0.2 ppb, adult 0.7 ppb; MCL: 2 ppb)1
Well Spring
(ppb)
Summer
(ppb)
Fall
(ppb)
Winter
(ppb)
Depth
(feet)
Q3D 4.9 est. 4.3 est. 2.8 est. 4.2 est. 46'
2D <10 <10 <10 1.2 est. 18'
4D 3.5 est. <10 2.3 est. 2.6 est. 33'

1EMEG -- environmental dose media evaluation guide; MCL -- maximum contaminant level (see Attachment 3).
ppb = parts per billion
est.- result represents estimated value that is below the Practical Quantitation Limit.
Bold results indicated monitoring wells in areas of leachate runoff.


Table 6.

October 1990 Subsurface Soil, Sediment, Groundwater On-site Monitoring and Residential Wells, and Surface Water (6)
Parameter Frequency of Detection Range of Sample Quantitation Limits Range of Detected Concentration Mean Background Levels Comparison Values
Child/Adult
MCL
On-Site Groundwater and Off-Site Residential Water (ppb) (ppb) (ppb) (ppb) Child/Adult (ppb) (ppb)
Vinyl Chloride 4/60 10 - 10 2 - 7 5 ND-0.066 0.2/0.7 EMEG 2
Surface Water (ppb) (ppb) (ppb) (ppb) Child/Adult (ppb) (ppb)
Manganese 3/4 15 - 15 42 - 2,300 777 <1,000 50/200 RMEG1 none
Sediments (ppm) (ppm) (ppm) (ppm) Pica/Child/Adult (ppm) (ppb)
Arsenic 6/7 6 - 6 1.5 - 7.4 4 1 - 40 0.6/20/200 EMEG2 n.a.
Barium 7/7 - - 15 - 140 70.5 100-3,500 100/4,000/700,000 RMEG2 n.a.
Cadmium 1/7 0.3 - 2.0 0.4 - 0.4 0.55 0.01 - 7 0.4/10/100 EMEG2 n.a.
Manganese 7/7 - - 220 - 2,020 803 100 - 4,000 300/7,000 RMEG2 n.a.
Vanadium 7/7 - - 6.0 - 29 18 20 - 500 6/200/2,000 EMEG2 n.a.
Subsurface Soil (ppm) (ppm) (ppm) (ppm) Pica/Child/Adult (ppm) (ppm)
Aroclor 1254 1/9 0.04 - 0.2 0.23 - 0.23 0.05 - - 0.04/1/10 EMEG 2 n.a.
Arsenic 5/9 0.1 - 1 1 - 3.6 1 1 - 40 0.6/20/200 EMEG 2 n.a.
Cadmium 6/9 0.5 - 0.5 0.87 - 3.3 1.3 0.01 - 7 0.4/10/100 EMEG 2 n.a.
Vanadium 8/9 4 - 4 9.2 - 16 11.5 20 - 500 6/200/2,000 EMEG 2 n.a.

Chart compiled using data from Phase I and Phase II Remedial Investigation and October 1990 sampling activities. No information was given regarding the sample source or representativeness of background levels illustrated on this table.
ppb = parts per billion
ppm = parts per million
n.a.- Not applicable
- - No data or comparison value
1 Drinking Water Comparison Values were used for surface water sample results.
2 Soil Comparison Values were used for sediment and subsurface soil results.


Table 7.

Completed Exposure Pathways
PathwayNameSourceMediumExposurePointExposureRouteReceptorPopulationTime ofExposureExposureActivitiesEstimatedNumberExposedChemicals
Off-siteGroundwaterLandfillGroundwaterResidentialWells Ingestion
Inhalation
Dermal
Residents usingprivate wellsnear site Past
Future?
Household useof groundwater25Tables 1 - 6
On-SiteSurface SoilLandfillSurface SoilSurfaceMaterial Ingestion
Inhalation
Dermal
Site workersTrespassersPastRemediationactivities,Trespassing40Tables 1 - 6
On-SiteLeachateLandfillLeachateSurfaceMaterial Ingestion
Inhalation
Dermal
Site workers
Trespassers
Past Remediation activities,
Trespassing
40Table 6
SurfaceWaterLandfillSurface WaterSurface Water Ingestion
Dermal
Hunters,Fishers,TrespassersPast Hunting, Fishing,
Trespassing
10Table 6



ATTACHMENTS

Location of Quincy Landfill 2 & 3

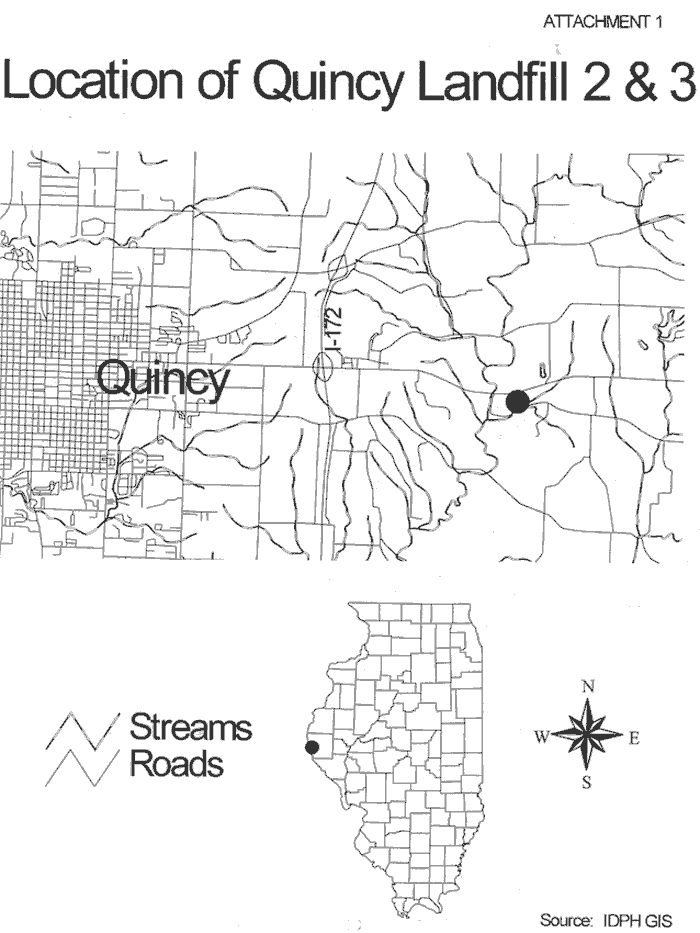

ATTACHMENT 1. Location of Quincy Landfill 2 & 3

Potentiometric Surface Limestone Aquifer

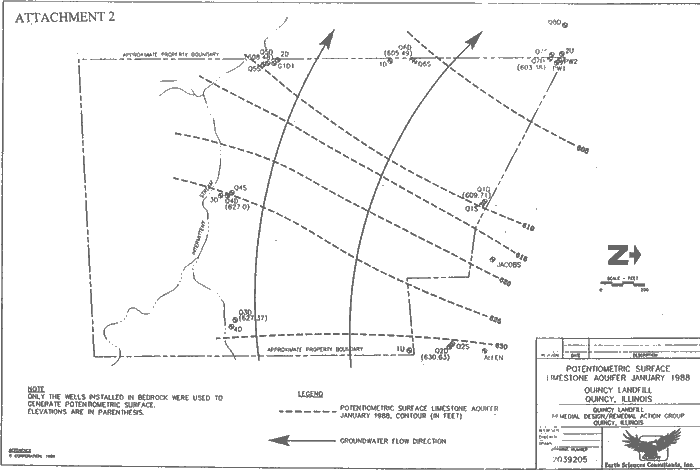

ATTACHMENT 2. Potentiometric Surface Limestone Aquifer


ATTACHMENT 3

Comparison Values Used In Screening Contaminants For Further Evaluation

Environmental Media Evaluation Guides (EMEGs) are developed for chemicals based on theirtoxicity, frequency of occurrence at National Priority List (NPL) sites, and potential for humanexposure. They are derived to protect the most sensitive populations and are not action levels, butrather comparison values. They do not consider carcinogenic effects, chemical interactions, multipleroute exposure, or other media-specific routes of exposure, and are very conservative concentrationvalues designed to protect sensitive members of the population.

Reference Dose Media Evaluation Guides (RMEGs) are another type of comparison value derivedto protect the most sensitive populations. They do not consider carcinogenic effects, chemicalinteractions, multiple route exposure, or other media-specific routes of exposure, and are veryconservative concentration values designed to protect sensitive members of the population.

Cancer Risk Evaluation Guides (CREGs) are estimated contaminant concentrations based on aprobability of one excess cancer in a million persons exposed to a chemical over a lifetime. Theseare also very conservative values designed to protect sensitive members of the population.

Maximum Contaminant Levels (MCLs) have been established by USEPA for public water suppliesto reduce the chances of adverse health effects from contaminated drinking water. These standardsare well below levels for which health effects have been observed and take into account the financialfeasibility of achieving specific contaminant levels. These are enforceable limits that public watersupplies must meet.

Lifetime Health Advisories for drinking water (LTHAs) have been established by USEPA fordrinking water and are the concentration of a chemical in drinking water that is not expected tocause any adverse non-carcinogenic effects over a lifetime of exposure. These are conservativevalues that incorporate a margin of safety.


CERTIFICATION

This Quincy Landfill 2 & 3 Public Health Assessment was prepared by the Illinois Department of Public Health under a cooperative agreement with the Agency for Toxic Substances and Disease Registry (ATSDR). It is in accordance with approved methodology and procedures existing at the time the public health assessment was begun.

Gail D. Godfrey
Technical Project Officer
Division of Health Assessment and Consultation
ATSDR

The Division of Health Assessment and Consultation, ATSDR, has reviewed this public health assessment and concurs with its findings.

Richard E. Gillig
Chief, State Programs Section
Division of Health Assessment and Consultation
ATSDR
