HEALTH CONSULTATION
A.P. GREEN REFRACTORIES MORRIS PLANT
MORRIS, GRUNDY COUNTY, ILLINOIS

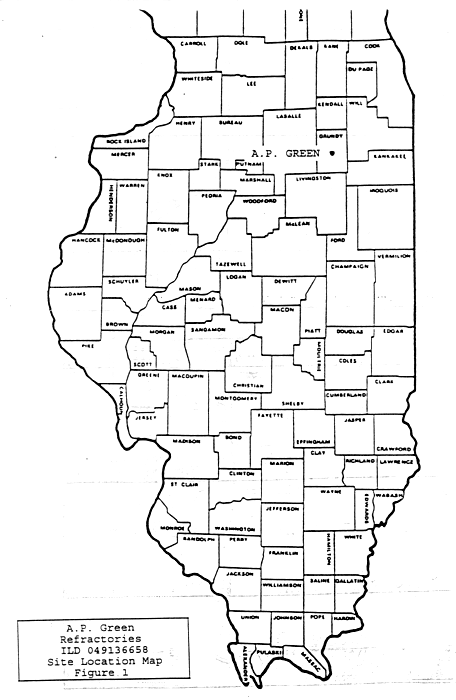

Figure 1. A.P. Green Refractories Site Location Map 1

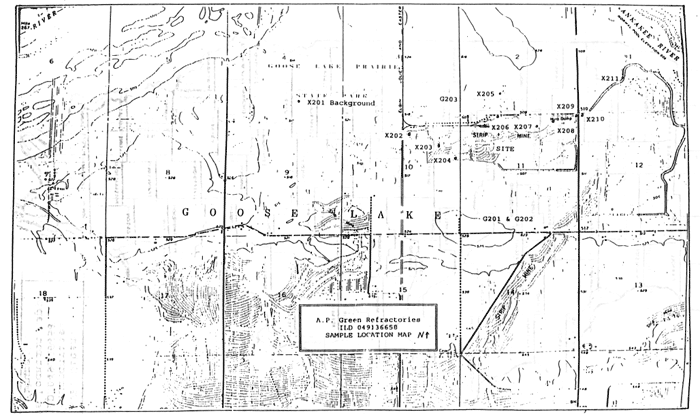

Figure 2. A.P. Green Refractories Sample Location Map
Cary Ware
Environmental Toxicologist
Illinois Department of Public Health
- Green A.P. Refractories Site Team Evaluation Prioritization CERCLA Report. IEPA, Springfield, Illinois, 1995.
- Mark Wagner, December 11, 1996. Telephone communication with Mark Wagner, IEPA, Springfield, Illinois, regarding the site's status.
- Gene Shostrom, March 14, 1997. Telephone communication with Gene Shostrom, Director of Environmental Health, Grundy County Health Department, Morris, Illinois, regarding public health concerns at the site.
This A. P. Green Refractories Site Health Consultation was prepared by the Illinois Department of Public Health under a cooperative agreement with the Agency for Toxic Substances and Disease Registry (ATSDR). It is in accordance with approved methodology and procedures existing at the time the health consultation was begun.
Gail D. Godfrey
Technical Project Officer
Division of Health Assessment and Consultation
ATSDR
The Division of Health Assessment and Consultation, ATSDR, has reviewed this health consultation and concurs with its findings.
Richard E. Gillig
Chief, State Programs Section
Division of Health Assessment and Consultation
ATSDR
| Sample # | Depth | Appearance | Location |
|---|---|---|---|
| X201 | 0 - 6 inches | dark brown clay | Goose Lake State Park |
| X202 | 0 - 6 inches | brown, silty clay | northwest end of site small pond, north side of pond |
| X203 | 0 - 6 inches | brown, silty clay | southwest corner of site, small pond west side of pond |
| X204 | 0 - 4 inches | gray clay ovar an organic layer, over brown clay | middle of southern portion of site, ditch that flood 2-3 acres then flows east |
| X205 | 0 - 6 inches | brown, gray clay | low land area north of buildings northwest of on-site house |
| X206 | 0 - 3 inches | black, organic clay X205 | southeast of buildings mixing point of mined areas & north area runoff |
| X207 | duplicate of X206 | ||
| X208 | 0 - 6 inches | black, organic clay light brown | 50' west of Dresden Road main drainage leading off-site |
| X209 | 4 - 5 inches | organic, gray clay | west side of drainage culvert leading off-site |
| X210 | 0 - 5 inches | gray clay with some organics | east side of drainage culvert runoff route to Kankakee River |
| X211 | 0 - 6 inches | sandy, silty clay | 3400' east of Dresden Road near a fence blocking access to the river |
| Contaminant | Maximum (µg/kg) | Location | Comparison Value (µg/kg) |
|---|---|---|---|
| Benzo(a)pyrene | 510.0J | X206 | 100 CREG |
µg/kg - micrograms per kilogram.
J - estimated value which is used when estimating a concentration for tentatively identified compounds.
CREG - Cancer Risk Evaluation Guide for 1 x 10-6 excess cancer risk.
Attachment 1: Comparison Values Used In Screening Contaminants For Further Evaluation
Environmental Media Evaluation Guides (EMEGs) are developed for chemicals based on their toxicity, frequency of occurance at National Priority List (NPL) sites, and potential for human exposure. They are derived to protect the most sensitive populations and are not cut-off levels, but rather comparison values. They do not consider carcinogenic effects, chemical interactions, multiple route exposure, or other media-specific routes of exposure, and are very conservative concentration values designed to protect sensitive members of the population.
Reference Dose Media Evaluation Guides (RMEGs) are another type of comparison value derived to protect the most sensitive populations. They do not consider carcinogenic effects, chemical interactions, multiple route exposure, or other media-specific routes of exposure, and are very conservative concentration values designed to protect sensitive members of the population.
Cancer Risk Evaluation Guides (CREGs) are estimated contaminant concentrations based on a one excess cancer in a million persons exposed to a chemical over a lifetime. These are also very conservative values designed to protect sensitive members of the population.
Maximum Contaminant Levels (MCLs) have been established by USEPA for public water supplies to reduce the chances of adverse health effects from contaminated drinking water. These standards are well below levels for which health effects have been observed and take into account the financial feasibility of achieving specific contaminant levels. These are enforceable limits that public water supplies must meet.
Lifetime Health Advisories for drinking water (LTHAs) have been established by USEPA for drinking water and are the concentration of a chemical in drinking water that is not expected to cause any adverse non-carcinogenic effects over a lifetime of exposure. These are conservative values that incorporate a margin of safety.
