PUBLIC HEALTH ASSESSMENT

KOPPERS WOOD TREATING COMPANY
(a/k/a KOPPERS COMPANY INCORPORATED FOREST PRODUCTION GROUP)
CARBONDALE, JACKSON COUNTY, ILLINOIS


CONCLUSIONS

From the information reviewed, IDPH concludes that current conditions at the former Kopperswood-treating facility do not threaten the health of nearby residents. Residents of two nearbyhomes were exposed in the past to site-related contaminants in their drinking water. Estimatedexposure doses to the contaminants did not exceed health guidelines. The homes were connectedto a municipal water supply in 1992 eliminating those exposures.

Nearby residents were most likely exposed to airborne contaminants during past wood-treatingoperations. IDPH cannot quantify past exposures because no environmental data exist. Areas ofgross groundwater and soil contamination remain on the site; however, the site is now secured,and access to the public is restricted. The portion of Glade Creek that traverses the site has areasof contamination because of contaminated groundwater discharge. The contaminated area of the creek is generally inaccessible to the public.


RECOMMENDATIONS AND PUBLIC HEALTH ACTION PLAN

IDPH recommends that IEPA continue, as planned, to regularly inspect the former Koppersfacility to ensure the site remains secure. IDPH will reevaluate the need for follow-up activitiesassociated with the Koppers site should data become available suggesting that human exposureto hazardous substances is occurring at levels that could cause adverse health effects.


PREPARERS OF REPORT

Preparer
Lynn M. Stone
Environmental Toxicologist
Illinois Department of Public Health

Reviewer
Ken Runkle
Environmental Toxicologist
Illinois Department of Public Health

ATSDR Regional Representative
Louise Fabinski
Regional Operations, Office of the Assistant Administrator

ATSDR Technical Project Officers
Gail Godfrey
Division of Health Assessment and Consultation

Steve Inserra
Division of Health Studies

Kris Larson
Division of Health Education and Promotion


CERTIFICATION

This Koppers Wood Treating Company Public Health Assessment was prepared by the IllinoisDepartment of Public Health under a cooperative agreement with the Agency for ToxicSubstances and Disease Registry (ATSDR). It is in accordance with approved methodology andprocedures existing at the time the public health assessment was begun.

Gail D. Godfrey
Technical Project Officer
Superfund Site Assessment Branch (SSAB)
Division of Health Assessment and Consultation (DHAC)
ATSDR

The Division of Health Assessment and Consultation, ATSDR, has reviewed this healthconsultation and concurs with its findings.

Richard E. Gillig
Chief, SPS, SSAB, DHAC, ATSDR


REFERENCES

  1. Illinois Department of Conservation. File Information. Confirmed by James Allen,Illinois Department of Conservation, Department of Fisheries. Springfield, IL; 1990.

  2. Woodward-Clyde Consultants, Inc. Preliminary Report for RemedialInvestigation/Feasibility Study for the Koppers Company Wood Treating Plant,Carbondale, IL; 1986.

  3. Woodward-Clyde Consultants, Inc. Work Plan for Remedial Investigation for theKoppers Company Wood Treating Plant. Carbondale, IL.; 1986 November.

  4. Illinois Environmental Protection Agency. Division of Air Pollution Control. FileInformation for Koppers Company, Carbondale, Illinois. Marion, Illinois; 1990.

  5. Environmental Science and Engineering, Inc. Final Remedial Investigation Report,Carbondale Wood Treating Site. Carbondale, IL. Vol. I & II; 1990 July.

  6. United States Census Bureau. Neighborhood Statistics Data for Carbondale, Illinois and Surrounding Area; 1990.

  7. Environmental Science and Engineering, Inc. Preliminary Public Health andEnvironmental Assessment for the Koppers Carbondale Site.; 1988 May.

  8. Environmental Science and Engineering, Inc. Data Evaluation Memorandum for Koppers Carbondale Site; 1988 May.

  9. Nisbet, Ian and Peter LaGoy. Toxic Equivalency Factors (TEFs) for Polycyclic Aromatic Hydrocarbons (PAHs). Regulatory Toxicology and Pharmacology 16. 290-300; 1992.

  10. Agency for Toxic Substances and Disease Registry. Draft Update Toxicological Profile for Polycyclic Aromatic Hydrocarbons. Atlanta, GA; 1993 October.

  11. Blasland, Bouck & Lee, Inc. Data Summary Report for Former Koppers Wood-Treating Site, Carbondale, Illinois. 1997 September.

  12. Agency for Toxic Substances and Disease Registry. Health Guidelines ComparisonValues; 2000 March.

TABLES

Table 1.

Maximum Contaminant Levels Detected in On-Site Groundwater - Koppers1
Contaminant Level (ppm)
A B C Comp.Value2
pentachlorophenol
6,000
0.18
0.02
0.0003 (CREG)
phenol
49
0.4
0.02
6.0 (child RMEG)
PAHs (TEFs)
8,488
0.02
0.0002
0.000005 (CREG)
benzene
0.44
ND
ND
0.001 (CREG)
2,4-dimethylphenol
7.5
ND
ND
0.2 (child RMEG)
arsenic
0.12
ND
ND
0.00002 (CREG)
lead
0.09
0.004
ND
NA
A = shallow groundwater unit
B = intermediate groundwater unit
C = deep (bedrock) groundwater unit
ND = Not Detected
NA = None Available
ppm = parts per million
TEFs = total toxic equivalency factors as benzo(a)pyrene
1 -Ref: 5 & 11
2 -Ref: 12


Table 2.

Maximum Contaminant Levels Detected in On-Site Soils [surface (0-6 inches) & subsurface)] - Koppers Site1
Contaminant Level (ppm)
Surface (0-6") Subsurface Comp.Value2
pentachlorophenol
0.01
170
6 (CREG)
PAHs (TEFs)
475.3
1,507
0.1 (CREG)
arsenic
109
26.2
0.5 (CREG)
lead
2110
110
400 (USEPA)
ppm = parts per million
TEFs = total toxic equivalency factors as benzo(a)pyrene
1 - Ref: 5 & 11
2 - Ref: 12


Table 3.

Site-related Contaminants Identified in Off-site Stream Samples
Contaminant Level (ppm)
Surface Water Sediment Aquatic Biota
pentachlorophenol
0.07
ND
ND
phenol
ND
ND
4.0
PAHs (TEFs)
0.003
220.6
0.0009
benzene
ND
0.94
ND
arsenic
0.01
34.0
0.4
lead
0.01
66
1.0
ND = not detected
ppm = parts per million
TEFs = total toxic equivalency factors as benzo(a)pyrene
Ref: 5 & 11


Table 4.

Table 4. Completed Exposure Pathways
Pathway
Name
Source Medium Exposure
Point
Exposure
Route
Receptor
Population
Time of Exposure Exposure
Activities
Estimated Number Exposed Chemicals
On-site product Creosote; Soil/Dust;
Waste
Product
Surface soil
Soil Dermal
Ingestion
Inhalation
On-site workers;
Trespassers
Past
Present
Future
Working ortrespassing on thesite1 PAHs
Creosote
PCP
lead
Ambient
Air
Wood-treatingoperationsAirEmissionsfrom wood-treatingoperationsInhalation On-site workers;
Nearby residents
PastWorking,breathingoutdoors1600 VOCs
PAHs
GroundwaterKopperssiteGroundwaterPrivateWells Dermal
Ingestion
Inhalation
NearbyResidents Past
Future
Drinking,Bathing, & Otheruses10PAHs


Table 5.

Potential Exposure Pathways
Pathway
Name
Source Medium Exposure
Point
Exposure Route Receptor Population Time of Exposure Exposure Activities Estimated Number Exposed Chemicals
GroundwaterKopperssiteGroundwaterNearbyyards,basements Dermal
Inhalation
NearbyresidentsFuture Activities in basement, Excavation in yard,
Gardening
1600 PAHs
VOCs
PCP
Creosote material in Glade CreekKopperssite Sediment
Biota
Creek bed
Eating fish
Dermal
Ingestion
Recreational users;
Fishers
Past
Present
Future
Wading, Swimming,
Eating contaminated fish
20 Creosote
PAHs
Waste material off the siteContaminated soil fromthe siteSoilNearbyyards Dermal
Inhalation
Ingestion
Nearbyresidents Past
Present
Future
Outdoorrecreation1600 PAHs
PCP



FIGURES

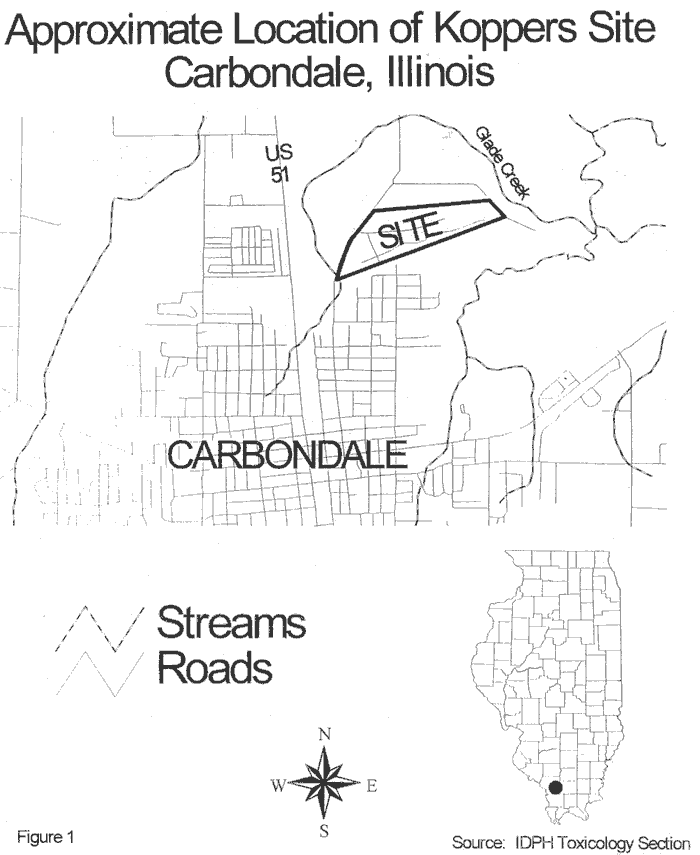

Approximate Location of Koppers Site
Figure 1. Approximate Location of Koppers Site

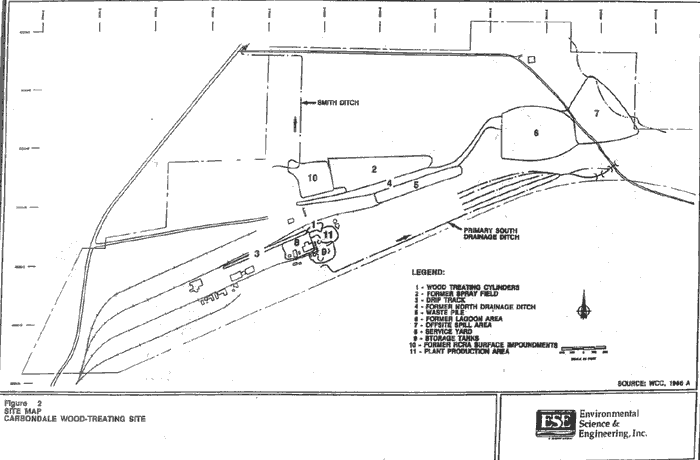

Site Map - Carbondale Wood-Treating Site
Figure 2. Site Map - Carbondale Wood-Treating Site


ATTACHMENTS

ATTACHMENT 1: COMPARISON VALUES USED IN SCREENING CONTAMINANTS FOR FURTHER EVALUATION

Environmental Media Evaluation Guides (EMEGs) are developed for chemicals based on theirtoxicity, frequency of occurrence at National Priority List (NPL) sites, and potential for humanexposure. They are derived to protect the most sensitive populations and are not action levels, butrather comparison values. They do not consider carcinogenic effects, chemical interactions,multiple route exposure, or other media-specific routes of exposure, and are very conservativeconcentration values designed to protect sensitive members of the population.

Reference Dose Media Evaluation Guides (RMEGs) are another type of comparison value derivedto protect the most sensitive populations. They do not consider carcinogenic effects, chemicalinteractions, multiple route exposure, or other media-specific routes of exposure, and are veryconservative concentration values designed to protect sensitive members of the population.

Cancer Risk Evaluation Guides (CREGs) are estimated contaminant concentrations based on aprobability of one excess cancer in a million persons exposed to a chemical over a lifetime. Theseare also very conservative values designed to protect sensitive members of the population.

Maximum Contaminant Levels (MCLs) have been established by USEPA for public watersupplies to reduce the chances of adverse health effects from contaminated drinking water. Thesestandards are well below levels for which health effects have been observed and take into accountthe financial feasibility of achieving specific contaminant levels. These are enforceable limits thatpublic water supplies must meet.

Lifetime Health Advisories for drinking water (LTHAs) have been established by USEPA fordrinking water and are the concentration of a chemical in drinking water that is not expected tocause any adverse non-carcinogenic effects over a lifetime of exposure. These are conservativevalues that incorporate a margin of safety.


ATTACHMENT 2: ATSDR PLAIN LANGUAGE GLOSSARY OF ENVIRONMENTAL HEALTH TERMS

Absorption:
How a chemical enters a person's blood after the chemical has been swallowed, has come into contact with the skin, or has been breathed in.


Acute Exposure:
Contact with a chemical that happens once or only for a limited period of time. ATSDR defines acute exposures as those that might last up to 14 days.


Additive Effect:
A response to a chemical mixture, or combination of substances, that might be expected if the known effects of individual chemicals, seen at specific doses, were added together.


Adverse Health Effect:
A change in body function or the structures of cells that can lead to disease or health problems.


Antagonistic Effect:
A response to a mixture of chemicals or combination of substances that is less than might be expected if the known effects of individual chemicals, seen at specific doses, were added together.


ATSDR:
The Agency for Toxic Substances and Disease Registry. ATSDR is a federal health agency in Atlanta, Georgia that deals with hazardous substance and waste site issues. ATSDR gives people information about harmful chemicals in their environment and tells people how to protect themselves from coming into contact with chemicals.


Background Level:
An average or expected amount of a chemical in a specific environment. Or, amounts of chemicals that occur naturally in a specific environment.


Biota:
Used in public health, things that humans would eat - including animals, fish and plants.


CAP:
See Community Assistance Panel.


Cancer:
A group of diseases which occur when cells in the body become abnormal and grow, or multiply, out of control


Carcinogen:
Any substance shown to cause tumors or cancer in experimental studies.


CERCLA:
See Comprehensive Environmental Response, Compensation, and Liability Act.


Chronic Exposure:
A contact with a substance or chemical that happens over a long period of time. ATSDR considers exposures of more than one year to be chronic.


Completed Exposure Pathway:
See Exposure Pathway.


Community Assistance Panel (CAP):
A group of people from the community and health and environmental agencies who work together on issues and problems at hazardous waste sites.


Comparison Value (CVs):
Concentrations or the amount of substances in air, water, food, and soil that are unlikely, upon exposure, to cause adverse health effects. Comparison values are used by health assessors to select which substances and environmental media (air, water, food and soil) need additional evaluation while health concerns or effects are investigated.


Comprehensive Environmental Response, Compensation, and Liability Act (CERCLA):
CERCLA was put into place in 1980. It is also known as Superfund. This act concerns releases of hazardous substances into the environment, and the cleanup of these substances and hazardous waste sites. ATSDR was created by this act and is responsible for looking into the health issues related to hazardous waste sites.


Concern:
A belief or worry that chemicals in the environment might cause harm to people.


Concentration:
How much or the amount of a substance present in a certain amount of soil, water, air, or food.


Contaminant:
See Environmental Contaminant.


Delayed Health Effect:
A disease or injury that happens as a result of exposures that may have occurred far in the past.


Dermal Contact:
A chemical getting onto your skin. (see Route of Exposure).


Dose:
The amount of a substance to which a person may be exposed, usually on a daily basis. Dose is often explained as "amount of substance(s) per body weight per day".


Dose / Response:
The relationship between the amount of exposure (dose) and the change in body function or health that result.


Duration:
The amount of time (days, months, years) that a person is exposed to a chemical.


Environmental Contaminant:
A substance (chemical) that gets into a system (person, animal, or the environment) in amounts higher than that found in Background Level, or what would be expected.


Environmental Media:
Usually refers to the air, water, and soil in which chemical of interest are found. Sometimes refers to the plants and animals that are eaten by humans. Environmental Media is the second part of an Exposure Pathway.


U.S. Environmental Protection Agency (EPA):
The federal agency that develops and enforces environmental laws to protect the environment and the public's health.


Epidemiology:
The study of the different factors that determine how often, in how many people, and in which people will disease occur.


Exposure:
Coming into contact with a chemical substance.(For the three ways people can come in contact with substances, see Route of Exposure.)


Exposure Assessment:
The process of finding the ways people come in contact with chemicals, how often and how long they come in contact with chemicals, and the amounts of chemicals with which they come in contact.


Exposure Pathway:
A description of the way that a chemical moves from its source (where it began) to where and how people can come into contact with (or get exposed to) the chemical.

ATSDR defines an exposure pathway as having 5 parts:
  • Source of Contamination,

  • Environmental Media and Transport Mechanism,

  • Point of Exposure,

  • Route of Exposure; and,

  • Receptor Population.

When all 5 parts of an exposure pathway are present, it is called a Completed Exposure Pathway. Each of these 5 terms is defined in this Glossary.


Frequency:
How often a person is exposed to a chemical over time; for example, every day, once a week, twice a month.


Hazardous Waste:
Substances that have been released or thrown away into the environment and, under certain conditions, could be harmful to people who come into contact with them.


Health Effect:
ATSDR deals only with Adverse Health Effects (see definition in this Glossary).


Indeterminate Public Health Hazard:
The category is used in Public Health Assessment documents for sites where important information is lacking (missing or has not yet been gathered) about site-related chemical exposures.


Ingestion:
Swallowing something, as in eating or drinking. It is a way a chemical can enter your body (See Route of Exposure).


Inhalation:
Breathing. It is a way a chemical can enter your body (See Route of Exposure).


LOAEL:
Lowest Observed Adverse Effect Level. The lowest dose of a chemical in a study, or group of studies, that has caused harmful health effects in people or animals.


Malignancy:
See Cancer.


MRL:
Minimal Risk Level. An estimate of daily human exposure - by a specified route and length of time -- to a dose of chemical that is likely to be without a measurable risk of adverse, noncancerous effects. An MRL should not be used as a predictor of adverse health effects.


NPL:
The National Priorities List. (Which is part of Superfund.) A list kept by the U.S. Environmental Protection Agency (EPA) of the most serious, uncontrolled or abandoned hazardous waste sites in the country. An NPL site needs to be cleaned up or is being looked at to see if people can be exposed to chemicals from the site.


NOAEL:
No Observed Adverse Effect Level. The highest dose of a chemical in a study, or group of studies, that did not cause harmful health effects in people or animals.


No Apparent Public Health Hazard:
The category is used in ATSDR's Public Health Assessment documents for sites where exposure to site-related chemicals may have occurred in the past or is still occurring but the exposures are not at levels expected to cause adverse health effects.


No Public Health Hazard:
The category is used in ATSDR's Public Health Assessment documents for sites where there is evidence of an absence of exposure to site-related chemicals.


PHA:
Public Health Assessment. A report or document that looks at chemicals at a hazardous waste site and tells if people could be harmed from coming into contact with those chemicals. The PHA also tells if possible further public health actions are needed.


Plume:
A line or column of air or water containing chemicals moving from the source to areas further away. A plume can be a column or clouds of smoke from a chimney or contaminated underground water sources or contaminated surface water (such as lakes, ponds and streams).


Point of Exposure:
The place where someone can come into contact with a contaminated environmental medium (air, water, food or soil). For examples:
the area of a playground that has contaminated dirt, a contaminated spring used for drinking water, the location where fruits or vegetables are grown in contaminated soil, or the backyard area where someone might breathe contaminated air.


Population:
A group of people living in a certain area; or the number of people in a certain area.


PRP:
Potentially Responsible Party. A company, government or person that is responsible for causing the pollution at a hazardous waste site. PRP's are expected to help pay for the clean up of a site.


Public Health Assessment(s):
See PHA.


Public Health Hazard:
The category is used in PHAs for sites that have certain physical features or evidence of chronic, site-related chemical exposure that could result in adverse health effects.


Public Health Hazard Criteria:
PHA categories given to a site which tell whether people could be harmed by conditions present at the site. Each are defined in the Glossary. The categories are:
  • Urgent Public Health Hazard

  • Public Health Hazard

  • Indeterminate Public Health Hazard

  • No Apparent Public Health Hazard

  • No Public Health Hazard

Receptor Population:
People who live or work in the path of one or more chemicals, and who could come into contact with them (See Exposure Pathway).


Reference Dose (RfD):
An estimate, with safety factors (see safety factor) built in, of the daily, life-time exposure of human populations to a possible hazard that is not likely to cause harm to the person.


Route of Exposure:
The way a chemical can get into a person's body. There are three exposure routes:
- breathing (also called inhalation),
- eating or drinking (also called ingestion), and
- or getting something on the skin (also called dermal contact).


Safety Factor:
Also called Uncertainty Factor. When scientists don't have enough information to decide if an exposure will cause harm to people, they use "safety factors" and formulas in place of the information that is not known. These factors and formulas can help determine the amount of a chemical that is not likely to cause harm to people.


SARA:
The Superfund Amendments and Reauthorization Act in 1986 amended CERCLA and expanded the health-related responsibilities of ATSDR. CERCLA and SARA direct ATSDR to look into the health effects from chemical exposures at hazardous waste sites.


Sample Size:
The number of people that are needed for a health study.


Sample:
A small number of people chosen from a larger population (See Population).


Source (of Contamination):
The place where a chemical comes from, such as a landfill, pond, creek, incinerator, tank, or drum. Contaminant source is the first part of an Exposure Pathway.


Special Populations:
People who may be more sensitive to chemical exposures because of certain factors such as age, a disease they already have, occupation, sex, or certain behaviors (like cigarette smoking). Children, pregnant women, and older people are often considered special populations.


Statistics:
A branch of the math process of collecting, looking at, and summarizing data or information.


Superfund Site:
See NPL.


Survey:
A way to collect information or data from a group of people (population). Surveys can be done by phone, mail, or in person. ATSDR cannot do surveys of more than nine people without approval from the U.S. Department of Health and Human Services.


Synergistic effect:
A health effect from an exposure to more than one chemical, where one of the chemicals worsens the effect of another chemical. The combined effect of the chemicals acting together are greater than the effects of the chemicals acting by themselves.


Toxic:
Harmful. Any substance or chemical can be toxic at a certain dose (amount). The dose is what determines the potential harm of a chemical and whether it would cause someone to get sick.


Toxicology:
The study of the harmful effects of chemicals on humans or animals.


Tumor:
Abnormal growth of tissue or cells that have formed a lump or mass.


Uncertainty Factor:
See Safety Factor.


Urgent Public Health Hazard:
This category is used in ATSDR's Public Health Assessment documents for sites that have certain physical features or evidence of short-term (less than 1 year), site-related chemical exposure that could result in adverse health effects and require quick intervention to stop people from being exposed.

Table of Contents



USA.gov: The U.S. Government's Official Web PortalDepartment of Health and Human Services
Agency for Toxic Substances and Disease Registry, 4770 Buford Hwy NE, Atlanta, GA 30341
Contact CDC: 800-232-4636 / TTY: 888-232-6348

A-Z Index

  1. A
  2. B
  3. C
  4. D
  5. E
  6. F
  7. G
  8. H
  9. I
  10. J
  11. K
  12. L
  13. M
  14. N
  15. O
  16. P
  17. Q
  18. R
  19. S
  20. T
  21. U
  22. V
  23. W
  24. X
  25. Y
  26. Z
  27. #
