PUBLIC HEALTH ASSESSMENT

PAGEL'S PIT
ROCKFORD, WINNEBAGO COUNTY, ILLINOIS


APPENDICES

APPENDIX A - FIGURES


Figure 1. Physiographic Divisions of Illinois

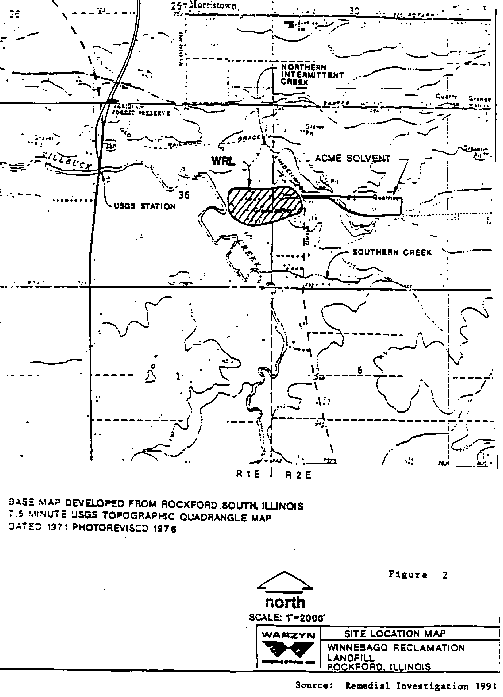

Figure 2. Site Location Map


Figure 3. Groundwater Sample Locations On
and Around the Acme Solvents Site


Figure 4. Leachate Sampling Locations


Figure 5. Cross-Section Location Map


Figure 6. Round 1 Chlorides (mg/l)


Figure 7. Round 2 Chlorides (mg/l)


Figure 8. Round 3 Chlorides (mg/l)


Figure 9. Round 4 Chlorides (mg/l)



APPENDIX B - TABLES

LEACHATE SAMPLES - 1981-84, 1988-89

all values in milligrams per kilogram (mg/kg)
COMPOUND RANGE - 1981 to 1984 RANGE - 1988 to 1989
ORGANIC COMPOUNDS
benzene0.0040.006
2-butanoneND0.022-22
chloroethaneND0.011
chloroformND0.016
chloromethaneND0.003
di(2-ethylhexyl)phthalate0.028ND
1,1-dichloroethane0.0070.06
1,2-dichloroethene0.0780.004-0.22
1,2-dichloropropaneND0.003
diethyl phthalate0.062ND
2,4-dimethylphenol3.7ND
ethylbenzene0.0160.77
2-hexanoneND0.065-0.3
isophorone0.098ND
4-methyl-2-pentanoneND1.6
methylene chloride0.009-0.044ND
phenol0.26ND
tetrachloroetheneND0.017
toluene0.005-0.260.02-0.32
1,1,1-trichloroethane0.001ND
trichloroethene0.002ND
vinyl chlorideND0.003-0.09
xylenes0.045-0.0760.08-0.3
INORGANIC COMPOUNDS
arsenicNA0.008-0.24
bariumNA0.078-4.7
cadmiumNA0.23
chlorideNA1,160-17,300
chromiumNA0.28-0.6
copperNA5.7
cyanideNA0.04-6
ironNA5.47-93.1
leadNA0.026-0.26
magnesiumNA29.9-241
mercuryNA0.0008
nickelNA0.32-0.78
potassiumNA710-1,750
sodiumNA968-10,200
zincNA0.27-6.7
ND - compounds not detected in samples
NA - compounds not analyzed for



TABLE 2

GROUNDWATER SAMPLES - ROUNDS 1 & 2

all values in micrograms per liter (ug/l
contaminant of concern frequency
of detection
range comparison
value
comparison
source
ORGANIC COMPOUNDS
benzene32/920.5-5.21CREG
carbon tetrachloride8/920.2-80.3CREG
chloroethane4/924-5NANA
chloroform2/920.37-11J6CREG
chloromethane37/920.29-1503LTHA
1,2-dichloroethane28/920.23-130.4CREG
1,1-dichloroethene14/920.21-6J0.06CREG
cis-1,2-dichloroethene68/920.2-120070LTHA
methylene chloride11/924.3-20J5CREG
1,1,2,2-tetrachloroethane7/920.28-18.90.2CREG
tetrachloroethene46/920.3-8100.7CREG
trichloroethene60/920.3J-380J3CREG
1,1,1-trichloroethane53/920.2-350200LTHA
1,1,2-trichloroethane2/920.78-4J0.6CREG
vinyl chloride33/920.2-980.7AdultEMEG
INORGANIC COMPOUNDS (METALS)
arsenic9/919-400.02CREG
nickel9/9144-224100LTHA
thallium10/912B-6B0.4LTHA
vanadium2/9150-6020LTHA
zinc13/9137-6,3402,000LTHA
NA - no health comparison values available
J,B - estimated values



TABLE 3

GROUNDWATER SAMPLES - ROUNDS 3 & 4

all values in micrograms per liter (ug/l)
contaminant of concern frequency of
detection
range comparison
value
comparison
source
benzene16/340.6J-171CREG
chloroethane9/342J-37NANA
di(2-ethyl-hexyl)phthalate4/347J-363CREG
1,1-dichloroethene1/342J0.06CREG
1,2-dichloroethane5/342J-4J0.4CREG
trichloroethene23/341J-283CREG
vinyl chloride14/341J-230.7AdultEMEG
NA - no health comparison values available
J - estimated value



Table 4.

Completed Exposure Pathway Elements
Pathway Name Completed Exposure Pathway Elements Time

SourceEnvironmental
Media
Point of ExposureRoute of
Exposure
Exposed
Population

AirWRLAirWRL SiteInhalationLocal Residents,
Site Workers,
Trespassers
Past
Future



Table 5.

Pathway Name Potential Exposure Pathway Elements Time

SourceEnvironmental
Media
Point of
Exposure
Route of
Exposure
Exposed
Population

Private WellsWRLGroundwaterResidenceIngestion,Inhalation,
Skin Contact
LocalResidentsFuture
SedimentWRLSedimentKillbuck CreekIngestion,
Inhalation
Skin Contact
LocalResidentsFuture
Surface WaterWRLSurface WaterKillbuck CreekInhalation,
Skin Contact
LocalResidentsFuture
Surface SoilsWRLSurface Soils,
Leachate
WRL SiteIngestion,
Inhalation,
Skin Contact
Site Workers,
Trespassers
Past
Present
Future
FishWRLFishResidenceIngestionLocalResidenceFuture



APPENDIX C - PUBLIC COMMENTS

PUBLIC COMMENTS

A copy of the Draft Public Health Assessment for Pagel's Pit Landfill was available forpublic review and comment at the Rockford Public Library at 215 North Wyman Street inRockford, Illinois, for the period December 1 through December 30, 1994. No comments werereceived from the public.
