PUBLIC HEALTH ASSESSMENT

PARSONS CASKET HARDWARE COMPANY
BELVIDERE, BOONE COUNTY, ILLINOIS


FIGURES

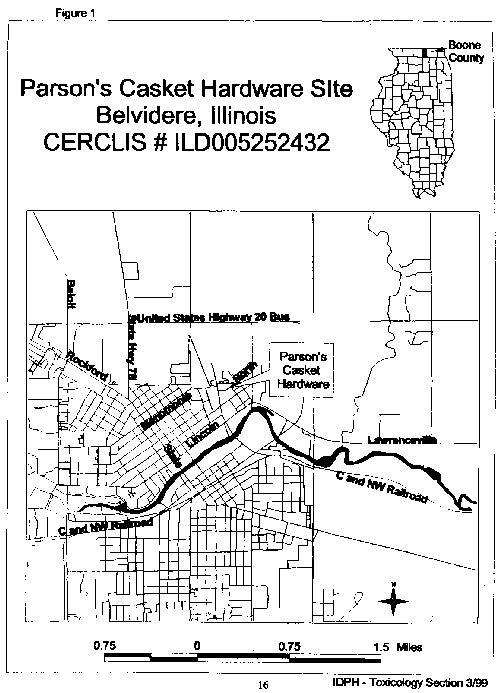

Figure 1. Parson's Casket Hardware Site

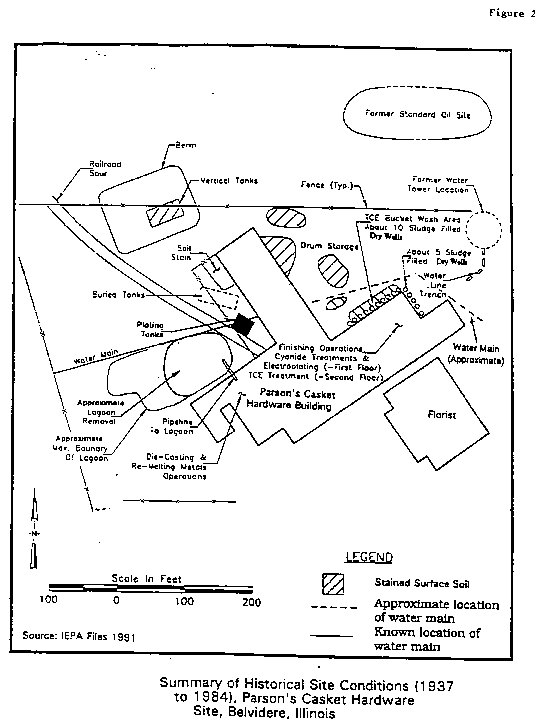

Figure 2. Summary of Historical Site Conditions

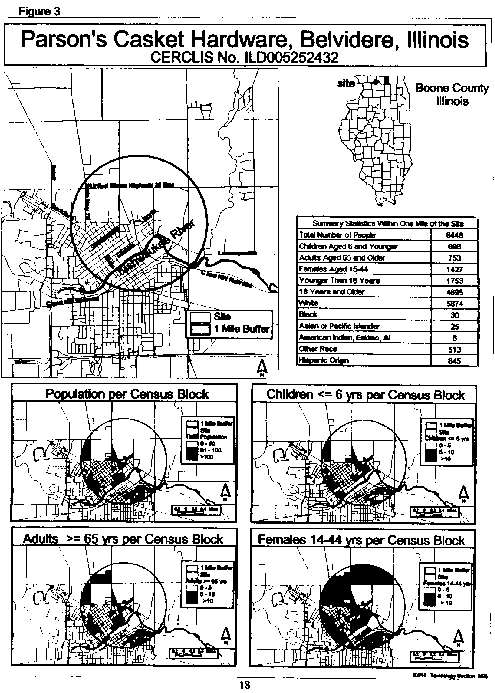

Figure 3. Parson's Casket Hardware


Figure 4.

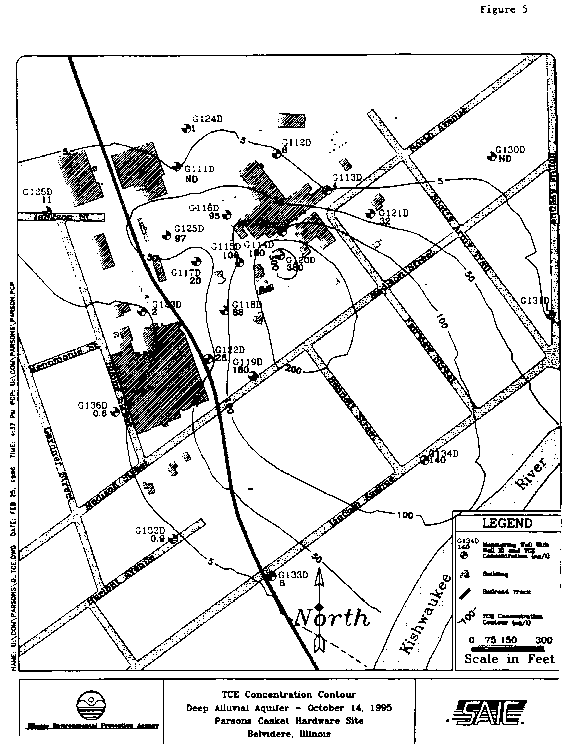

Figure 5. TCE Concentration Contour

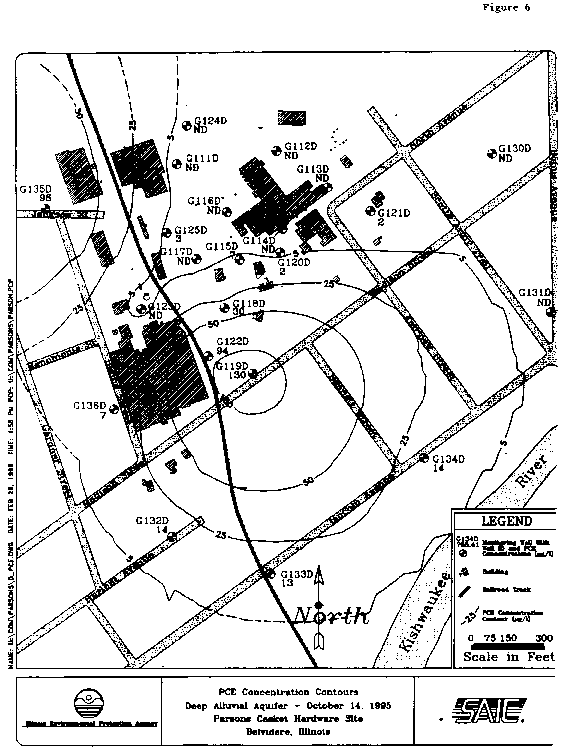

Figure 6. PCE Concentration Contours



TABLES

TABLE 1

CONTAMINANTS OF INTEREST IN GROUNDWATER ORGANIC CONTAMINANTS - 1995 SAMPLES

all values in micrograms per liter (ug/l)
ORGANIC COMPOUND FREQUENCY OF DETECTION RANGE COMPARISON VALUE COMPARISON SOURCE
benzene 11/55 0.07J-85 1.0 CREG
1,1-dichloroethane 34/55 0.1J-220D NA NA
1,2-dichloroethane 2/55 1J 0.4 CREG
1,1-dichloroethylene 24/55 0.06J-14 0.06 CREG
1,2-dichloroethylene (total) 36/55 0.1J-1,000D 70 MCL
chlorethane 3/55 4DJ-12 NA NA
chloromethane 3/55 0.3J-180 3 LTHA
tetrachloroethylene 31/55 0.1J-130 0.7 CREG
1,1,1-trichloroethane 45/55 0.07-370D 200 LTHA
1,1,2-trichloroethane 5/55 0.4DJ-34D 0.6 CREG
trichloroethylene 43/55 0.05J-740D 3 CREG
vinyl chloride 5/55 0.9J-100 0.7 EMEG
NA - comparison values not available
J - estimated value
D - value measured from diluted sample


CONTAMINANTS OF INTEREST IN GROUNDWATER INORGANIC CONTAMINANTS - RI SAMPLES

all values in micrograms per liter (ug/l)
ELEMENT FREQUENCY OF DETECTION RANGE COMPARISON VALUE COMPARISON SOURCE
aluminum 21/100 26.7-13,800 NA NA
arsenic 22/100 0.4J-38J 0.02 CREG
calcium 100/100 22,200-1,000,000 NA NA
cobalt 11/100 6.1-13.2J NA NA
cyanide 7/70 3.1-367 200 LTHA
iron 41/100 14.5-22,300 NA NA
lead 28/100 1.2J-60.7 7.5 ILGWS
magnesium 100/100 8,960-180,000 NA NA
manganese 83/100 2.5-2,060 200 RMEG
nickel 42/100 8J-736 100 LTHA
potassium 71/100 1,150-18,100 NA NA
sodium 100/100 2,670-219,000 NA NA
NA - comparison values not available
J - estimated value
D - value measured from diluted sample


TABLE 3


CONTAMINANTS OF INTEREST IN SOIL

all values in micrograms per kilogram (ug/kg ) unless otherwise noted
CHEMICAL FREQUENCY OF DETECTION RANGE COMPARISON VALUE COMPARISON SOURCE
acenaphthalene 6/19 53J-120J NA NA
arsenic 30/31 1.3J-11.9 mg/kg* 0.5* CREG
benz(g,h,i)perylene 10/19 80J-1,200 NA NA
benzo(a)anthracene 13/19 45J-2,300 NA NA
benzo(a)pyrene 13/19 52J-2,000 100 CREG
benzo(b)fluoranthene 14/19 62J-3,100E NA NA
benzo(k)fluoranthene 11/19 51J-1,100 NA NA
carbazole 4/19 82DJ-340J NA NA
chrysene 15/19 47J-2,700 NA NA
dibenzo(a,h)anthracene 4/19 120J-450 NA NA
dibenzofuran 5/19 39J-72J NA NA
indeno(1,2,3-cd)pyrene 12/19 22J-1,400 NA NA
lead 31/31 5J-1,520 mg/kg* NA NA
2-methyl naphthalene 5/19 49J-340J NA NA
phenanthrene 14/19 57J-1,600 NA NA
NA - no comparison values available
J - estimated value
E - estimated value, calibration range exceeded
* values in milligrams per kilogram (mg/kg) or parts per million (ppm)

Table 4.

Completed Exposure Pathways
Pathway Name Source Medium Exposure Point Exposure Route Receptor Population Time of Exposure Exposure Activities Estimated Number Exposed Chemicals
On-site Surface Soil Parson's Casket Surface Soil Surface Soil Ingestion
Inhalation
Workers
Trespassers
Past
Future
Contacting contaminated material 25 Table 3

Potential Exposure Pathways

Pathway Name Source Medium Exposure Point Exposure Route Receptor Population Time of Exposure Exposure Activities Estimated Number Exposed Chemicals
Off-site Surface Water Parson's Casket &
Unknown Source
Water & Sediments Kishwaukee River Inhalation
Ingestion
Dermal
Persons using the river Past
Present
Future
Wading
Swimming
Fishing
100 Tables 1 & 2
Off-site Ground- Water Parson's Casket &
Unknown Source
Groundwater Private Wells Inhalation
Ingestion
Dermal
Persons using private well water Future Bathing
Showering
Cooking, etc.
50 Tables 1 & 2



ATTACHMENT

ATTACHMENT 1

Comparison Values Used In Screening Contaminants For Further Evaluation

Environmental Media Evaluation Guides (EMEGs) are developed for chemicals based on theirtoxicity, frequency of occurrence at National Priority List (NPL) sites, and potential for humanexposure. They are derived to protect the most sensitive populations and are not action levels, butrather comparison values. They do not consider carcinogenic effects, chemical interactions,multiple route exposure, or other media-specific routes of exposure, and are very conservativeconcentration values designed to protect sensitive members of the population.

Reference Dose Media Evaluation Guides (RMEGs) are another type of comparison valuederived to protect the most sensitive populations. They do not consider carcinogenic effects,chemical interactions, multiple route exposure, or other media-specific routes of exposure, andare very conservative concentration values designed to protect sensitive members of thepopulation.

Cancer Risk Evaluation Guides (CREGs) are estimated contaminant concentrations based on aprobability of one excess cancer in a million persons exposed to a chemical over a lifetime.These are also very conservative values designed to protect sensitive members of the population.

Maximum Contaminant Levels (MCLs) have been established by USEPA for public watersupplies to reduce the chances of adverse health effects from contaminated drinking water. Thesestandards are well below levels for which health effects have been observed and take intoaccount the financial feasibility of achieving specific contaminant levels. These are enforceablelimits that public water supplies must meet.

Lifetime Health Advisories for drinking water (LTHAs) have been established by USEPA fordrinking water and are the concentration of a chemical in drinking water that is not expected tocause any adverse non-carcinogenic effects over a lifetime of exposure. These are conservativevalues that incorporate a margin of safety.
