PUBLIC HEALTH ASSESSMENT

ALLIED CHEMICAL AND IRONTON COKE
IRONTON, LAWRENCE COUNTY, OHIO


APPENDIX A: FIGURES

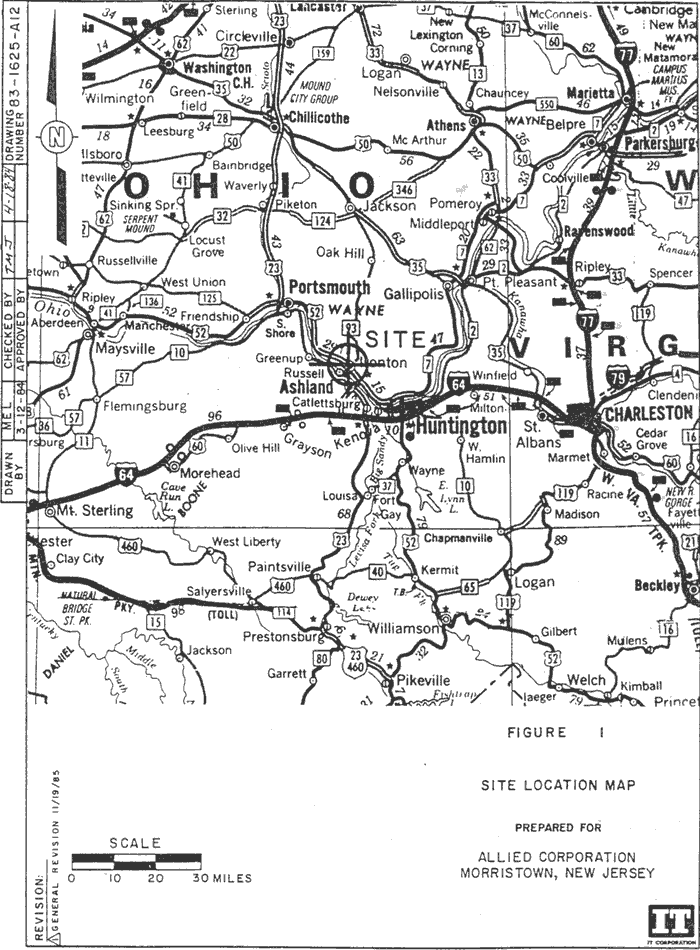

Site Location Map
Figure 1. Site Location Map

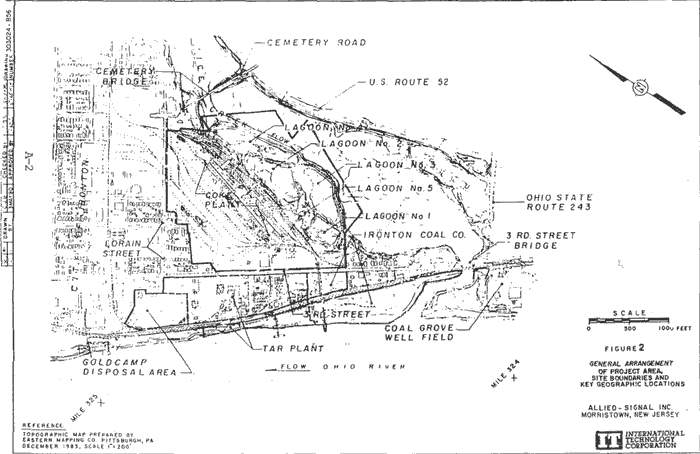

General Arrangement of Project Area, Site Boundaries and Key Geographic Locations
Figure 2. General Arrangement of Project Area, Site Boundaries and Key Geographic Locations

Remedial Investigation Data Collection Points (Soil Samples from Test Pits)
Figure 3. Remedial Investigation Data Collection Points (Soil Samples from Test Pits)

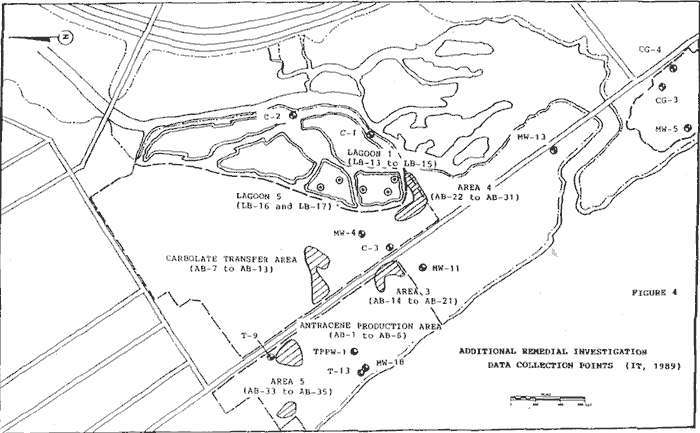

Additional Remedial Investigation Data Collection Points
Figure 4. Additional Remedial Investigation Data Collection Points

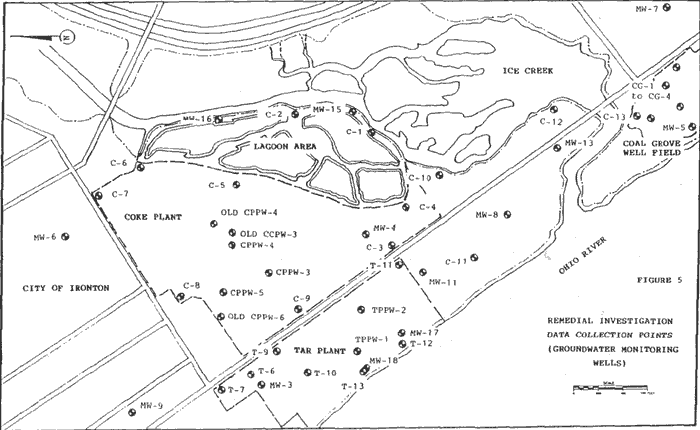

Remedial Investigation Data Collection Points (Groundwater Monitoring Wells)
Figure 5. Remedial Investigation Data Collection Points (Groundwater Monitoring Wells)


APPENDIX B: CALCULATIONS

Calculations for Chemicals that do not cause cancer:

Comparison Value equals U.S. EPA RfD times Body Weight divided by the Intake Rate --and-- Exposure Dose equals Contaminant Concentration times the Intake Rate times the Exposure Factor divided by the Body Weight

Contaminant Concentration = the concentration of the chemical in water or soil.

Intake Rate = The amount of water or soil a person would drink or ingest.

Exposure Factor = The amount of time in years that a person would be exposed to the specificchemical. No exposure factor is used if the exposure occurs daily.

Body Weight = The amount a person weighs. Generally 70 kilograms is used for an adult and 10-15 kilograms for a child.


Calculation of risk for those chemicals that may cause cancer:

Comparison Value equals (Risk divided by the Oral Slope Factor) times the (Body Weight divided by the Intake Rate)

Lifetime Excess Cancer Risk = Annual exposure dose x slope factor x exposure factor in years

Dose is in mg/kg/day

Slope factor = The U.S.EPA cancer slope factor, (mg/kg/day)-1

Exposure factor = The amount of time in years that a person would be exposed to the specific chemical. No exposure factor is used if the exposure occurs over a person's lifetime.


APPENDIX C: ENVIRONMENTAL MONITORING DATA TABLES

ON SITE

Table 1. Surface Soil Results (ppm)
Coke Plant and Tar Plant
Allied Chemical and Ironton Coke

Coke Plant

Tar Plant

  1984 1989 1984 1989 Comparison Value (ppm)
Cyanide ND-47 ND-140 ND-0.59 ND-16 1,4001
Phenolics ND-62 ND-8.4 0.1-1.2 ND-9.8 420,0001
Benzene ND-0.21 ND ND ND 2412
Naphthalene 0.17-3,090 ND-15 ND-16 ND-43 2,8001
Benzo (a)pyrene ---- ND-96 ---- ND-330 6.082

1 = Comparison Value Calculated
2 = Cancer Risk Evaluation Guide
ND = Not Detected
ppm = Parts Per Million
Reference = IT Corporation 1986


Table 2. Results of Chemical Analysis of Lagoon Waste
Allied Chemical and Ironton Coke

Chemical

Concentration (ppm)

1984

1989*

Benzene ND-940 ND - 0.64
Styrene ND-4.9 ----
Toluene ND-260 ----
Xylene ND-1.3 ----
Acenaphthene ND-850 ----
Acenaphthylene ND-2,500 ----
Anthracene ND-13,000 ----
Benzo(a)pyrene ND-8,800 ND - 450
Benzo(g,h,i)perylene ND-2,000 ----
Dibenzo(a,h)anthracene ND-600 ----
Fluoranthene ND-6,700 ----
Fluorene ND-3,900 ----
Indeno(1,2,3-c,d)pyrene ND-1,300 ----
2-methylnaphthalene ND-3,300 ----
Naphthalene ND-32,000 ND - 11,000
Phenanthrene ND-13,000 ----
Pyrene ND-3,500 ----
Dibenzofuran ND-3,400 ----
4-methylphenol ND-200 ----
Cyanide 76-3,300 ND - 470
Ammonia 20-190 3 - 210
Arsenic 4.1-56 2.6 - 26.1
Lead 0.32-19 ----
Mercury 0.15-6.6 ----
ND=Not Detected
ppm = Parts Per Million
Reference = IT Corporation 1986


Table 3. Results of Groundwater Investigation
Combined Coke Plant and Tar Plant Areas
Allied Chemical and Ironton Coke

Chemical (ppb) 1983 1984 1989 Comparison Value (ppm)
Benzene ND-4,310 ND-1,400 ND-63 51
Styrene ND-9,700 ND-38 ND 1001
Toluene ND-72 ND-39 11-19 2,0001
Xylene ND-23,000 ND-120 15-110 10,0001
Ethylbenzene ND-370 ND-35 15-54 7001
Acenaphthene ND-3,200 ND-2,300 280-7,000 2,1002
Aniline ND-290 ND ND 633
Benzo(a)pyrene ND-560 ND-47 ND 0.053
Benzo(g,h,i)perylene ND-160 ND ND 1402
Fluoranthene ND-2,000 ND-1,500 370-4,000 1,4002
Fluorene ND-1,800 ND-890 390-4,000 1,4002
2-Methylnaphthalene ND-7,700 ND 410-11,000 NA
4-Methylphenol ND ND-330 ND NA
Naphthalene ND-19,000 ND-3,400 1,600-29,000 1402
Phenanthrene ND-4,400 ND 850-8,500 1402
Phenol ND ND-110 ND 20,0004
Pyrene ND-1,700 ND 230-3,100 1,0004
Arsenic ND-57 ND-70 ---- 114
Lead ND-62 ND-50 ---- 155
Cyanide ND-22,000 ND-2,800 ND-40 2001
ND = Not Detected
Reference = IT Corporation, 1986
ppb = Parts Per Billion
1 = U.S.EPA Maximum Contaminant Level (MCL)
2 = Comparison Value Calculated by ODH
3 = Cancer Risk Evaluation Guide by ODH
4 = ATSDR EMEG
5 = U.S.EPA Action Level
NA = None Available


Table 4. Ice Creek Sediment Samples
Allied Chemical and Ironton Coke Site

CHEMICAL CONCENTRATION (ppm)
Ammonia0.22-390
CyanideND-8.7
Phenolics0.2-1.8
BenzeneND
NaphthaleneND-12
ND = Not Detected
ppm = Parts Per Million
Reference = IT Corporation, 1986

OFF SITE

Table 5. Off-Site Groundwater Data
Allied Chemical and Ironton Coke

Chemical (ppb) Coal Grove Wells Monitoring Wells Comparison Value ppb
Benzene ND ND-260 51
1,2-dichloroethane ND 42 70-1001
Toluene ND 67 2,0001
Xylene ND 27 10,0001
Phenolics ND ND-90 20,0002
Naphthalene ND ND 60-1403
Cyanide ND ND-830 2001
Lead 980 ---- 154
Arsenic BDL BDL 5-112

1 = U.S.EPA Maximum Contaminant Level (MCL)
2 = Comparison Value Calculated by ODH
3 = ATSDR EMEG
4 = U.S.EPA Action Level
ND = Not Detected
BDL = Below Detection Limit
ppb = parts per billion
Reference = IT Corporation, 1986


Table 6. Coal Grove Groundwater Data
1988-1990

CHEMICALCONCENTRATION(ppb) COMPARISON VALUE (ppb)
Raw Water from Wells #2 and #3

cis-1,2 Dichloroethene1.0-17.0 701
TrichloroetheneND-8.57 51
Finished Plant Water

cis-1,2 DichloroetheneND-0.96 701
Bromoform* ND-7.35 1001
Bromodichloromethane*ND-0.4 300-7002
Dibromochloromethane*ND-2.24 300-7002
ND = Not Detected
ppb = parts per billion
* = By-product of the chlorination process
1 = U.S.EPA Maximum Contaminant Level
2 = Comparison Value Calculated by ODH
Reference = IT Corporation, 1986


Table 7. Ice Creek and Ohio River Surface Water
Allied Chemical and Ironton Coke Site

Chemical Ice Creek Ohio River Comparison Value ppb
Cyanide ND ND-94 2001
Benzene ND ND-32 52
Naphthalene ND ND-12 1401
Ammonia 3-6,400 200-900 30,0003
Lead 4.5-11.6 13.8 154
Arsenic ND-4.0 2.1 112
ND = Not Detected
ppb = parts per billion
1 = U.S.EPA Maximum Contaminant Level (MCL)
2 = Comparison Value Calculated
3 = U.S.EPA Health Advisory
4 = U.S.EPA Action Level
Reference = IT Corporation, 1986


Table 8. Ice Creek and Ohio River Sediment
Allied Chemical and Ironton Coke Site

Chemical (ppm) Ice Creek Ohio River*
Carbon disulfide 0.012 - 0.1 ND
Acenaphthene 15.4 ND
Anthracene 9.26 ND
Benzo(a)anthracene 104 11.6
Benzo(a)pyrene 49.9 4.02
Benzo(b)fluoranthene 44.7 5.86
Benzo(g,h,i)perylene 39 3.85
Benzo(k)fluoranthene 43.6 ND
Chrysene 44.2 6
Dibenzo(a,h)anthracene 14.4 ND
Fluoranthene 57.1 8.75
Fluorene 9.66 ND
Indeno(1,2,3-c,d)pyrene 31.9 ND
Naphthalene 92.5 ND
Phenanthrene 38.7 5.6
Pyrene 43.5 7.01
Arsenic ND-0.049 0.002
Lead ND-0.53 0.014
Cyanide ND-0.11 ----
ppm = Parts Per Million
ND = Not Detected
Reference = IT Corporation, 1986
* Data were only available for one Ohio River station.


Table 9. Ice Creek Fish Data
Allied Chemical Ironton Coke Site

Chemical Concentration (ppm)
Bis-2-ethylhexyl phthalate ND-17.4
Di-n-butyl phthalate ND-6.8
Phenol ND-15.9
ND = Not Detected
ppm = Parts Per Million
Reference = IT Corporation, 1986
