PUBLIC HEALTH ASSESSMENT

BUCKEYE RECLAMATION LANDFILL
ST. CLAIRSVILLE, BELMONT COUNTY, OHIO


APPENDICES

APPENDIX A

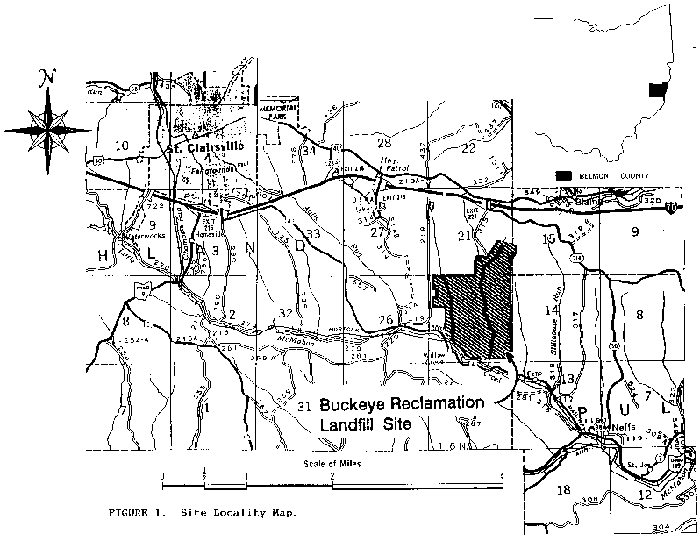

Figure 1. Site Locality Map

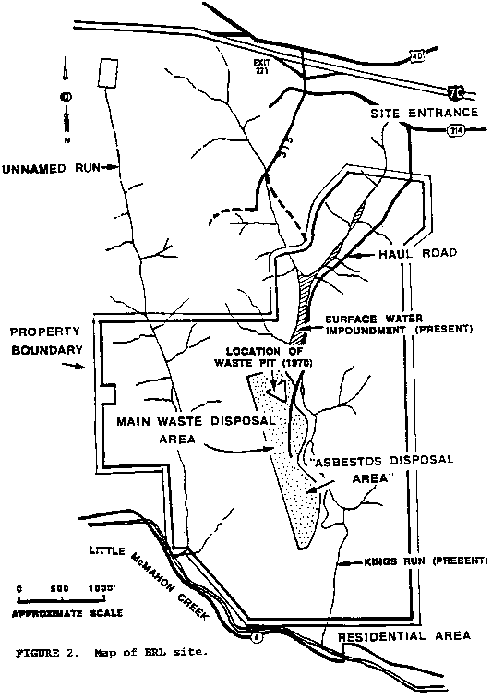

Figure 2. Map of BRL site

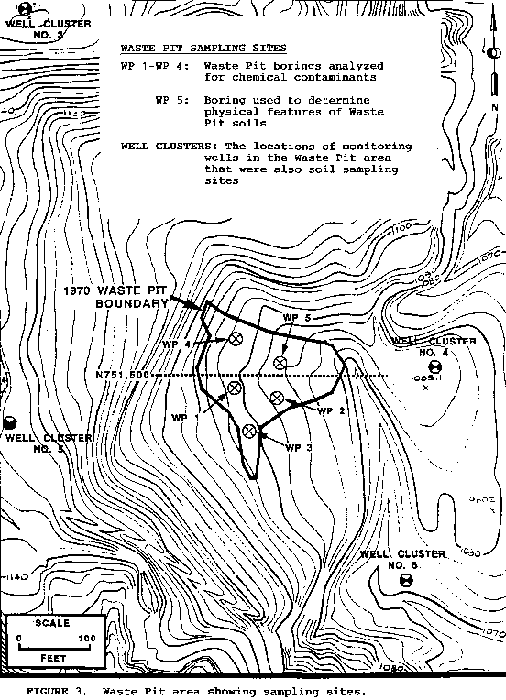

Figure 3. Waste Pit area showing sampling sites


Figure 4. Soil boring locations, BRL Site


Figure 5. Monitoring well locations, BRL Site

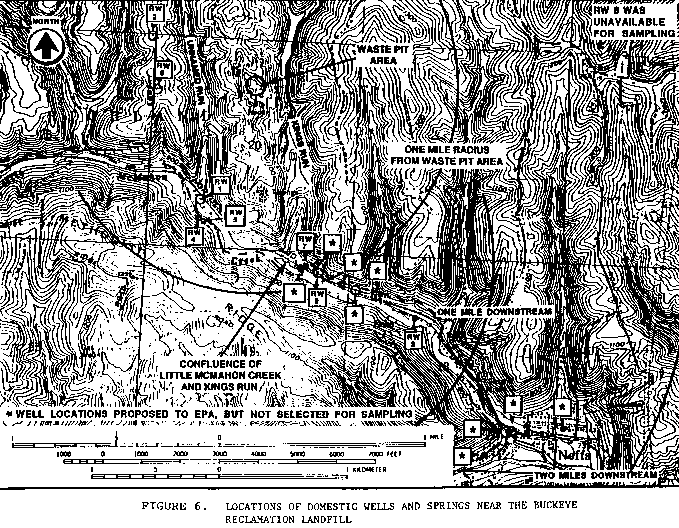

Figure 6. Locations of domestic wells and
springs near the Buckeye Reclamation Landfill

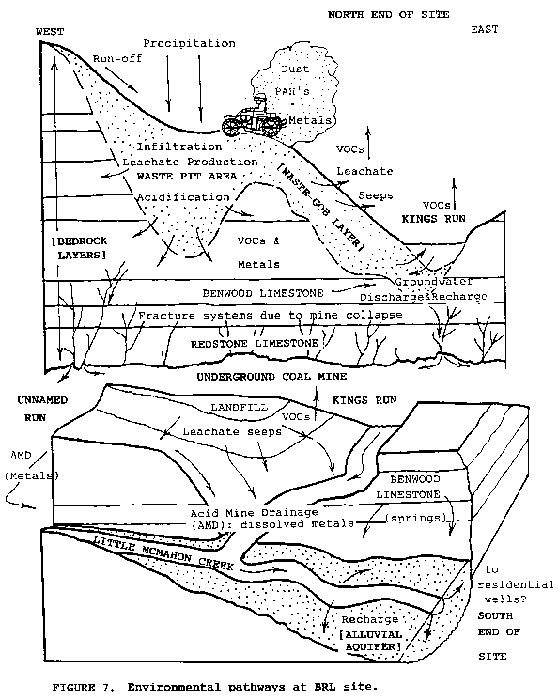

Figure 7. Environmental pathways at BRL site



APPENDIX B

ADDENDUM--GROUNDWATER AQUIFERS AT THE BRL SITE:

The subdivision of the water-bearing geologic formations presentedhere for the BRL site is a simplified version of the complex systemof aquifers identified at the site in the RI report (Versar, 1989). The following table illustrates the correspondence between thehydrogeologic units used in this Public Health Assessment and thoseidentified in the RI report.

ODH Public Health Assessment
Report
Remedial Investigation

Shallow zone aquifers
(unconsolidated mine waste and
bedrock exposed in vicinity
of the Waste Pit)
"Shallow upper zone"
(A) unconsolidated mine waste
"Deep upper zone"
(A) Waynesburg Coal
(AA) Wegee Limestone
(B) Uniontown Sandstone

"Deep upper zone"
(B) Benwood Limestone

Deep zone aquifers (bedrock
that occurs at depth [100+ ft]
below the Waste Pit)

"Deep zone"
(C) Redstone Limestone



APPENDIX C

Calculations for Chemicals that do not cause cancer:

Exposure Dose = Medium Concentration x intake rate x exposure factor
------------------------------------------------------------------------------------
Body Weight

Medium Concentration= the concentration of the chemical in water or soil.

Intake Rate = The amount of water or soil a person would drink or ingest.

Exposure Factor = The amount of time in years that a person wouldbe exposed to the specific chemical. No exposure factor is used ifthe exposure occurs over a persons lifetime.

Body Weight = The amount a person weights. Generally 70 kilogramsis used for an adult and 10-15 kilograms for a child.


Calculation of risk for those chemicals that may cause cancer:

Lifetime Excess Cancer Risk =

Annual exposure dose x slope factor x exposure factor in years

Dose is in mg/kg/day

Slope factor = The U.S.EPA cancer slope factor, mg/kg/day

Exposure factor = The amount of time in years that a person wouldbe exposed to the specific chemical.
