PETITIONED PUBLIC HEALTH ASSESSMENT

KIRBY TIRE RECYCLERS SITE
(a/k/a KIRBY TIRE COMPANY)
SYCAMORE, WYANDOT COUNTY, OHIO

XII. APPENDICES

Table 1. Contaminant Levels in Sycamore Creek Water During the August 1999 Tire Fire

Chemical	Range of Concentrations Detected (ug/l)	Ohio Human Health Criteria (ug/l)
Acenaphthylene	ND - 5200	1800
Acetophenone	ND - 630
Aniline	ND - 690
Anthracene	ND - 3700	630
Benzene	ND - 99	310
Benzo (a) pyrene	ND - 1000
Benzo (b) fluoranthene	ND - 820
Benzo (g,h,i) perylene	ND - 460
Benzo (k) fluoranthane	ND - 760
Bis (2-ethylhexyl)pthalate	ND - 380
2-Butanone	ND - 306
Cyanide	ND - 2440	48000
Chrysene	ND - 2300
Diethylphthalate	ND - 490
2,4 Dimethylphenol	ND - 740	8700
Manganese	ND - 3420	61000
Phenol	ND - 5200	2400
Pyrene	ND - 1100	15
Naphthalene	ND - 10000	1200
Strontium	ND - 4960	1400000
Toluene	ND - 48	51000
Zinc	ND - 3050	35000

Ohio Human Health Criteria are found in the Lake Erie Basin Aquatic Life and Human Health Tier I Criteria
Tier II Values and Screening Values contained and developed persuant to Chapters 3745-1 and 3745-2 of the Ohio Administrative Code. Exposure is based upon ingestion of fish and incidental ingestion of surface water during recreational activities.
* Other chemicals were detected in the surface water. This table focuses on the chemicals of most concern at the site.
** Complete list of sampling results can be found at EPA's Integrated Assessment Report, 2000.
*** Subsequent sampling shows contaminant levels in the creek have been reduced to below levels of concern

Table 2. Sycamore Creek Sediment Sampling Results (Nov-99)

Chemical	Range of Concentrations (ppb)	PRG	EMEG	RMEG	CREG
2-Butanone	ND - 32J	7.30E+06
Toluene	ND - 30J	5.90E+05		1.00E+06
Caprolactum	ND - 29000	3.10E+07		3.00E+07
Arsenic	ND - 2.1	3900	20000		500
Cadmium	ND - 2.5	1.40E+06	10000	50000
Cyanide	ND - 4.7	1.20E+07	1.00E+06

PRG = Preliminary Remediation Goal (EPA)
EMEG = Environmental Media Evaluation Guide (ATSDR)
RMEG = Reference Dose Media Evaluation Guide (ATSDR, based on EPA reference dose)
CREG = Canger Risk Evaluation Guide (ATSDR)

Table 3. Monitoring Well Sampling Results from Shallow Groundwater Aquifer (February 22, 2000 & May 8, 2000)

Chemical	Range of Concentrations (ug/l)	RMEG (ug/l)	MCL (ug/l)	RAL (ug/l)
Arsenic	6.5 - 130	3	50	50
Chromium	3.2 - 200		100
Lead	2.5 - 139			30
Manganese	120 - 4040	500		200
Nickel	7.3 - 330	200		100

RMEG = Reference Dose Media Evaluation Guide (ATSDR, based on EPA reference dose)
MCL = Maximum Contaminant Level (EPA)
RAL = Removal Action Level (EPA)

** There are currently no residents in the immediate area of the site using the shallow groundwater aquifer as their drinking water source.

** This table lists chemicals of greatest concern detected in the groundwater
** Complete list of sampling results can be found in EPA's Integrated Assessment Report, 2000.

Table 4. Air Contamination Detected During Tire Fire (Ohio EPA Canister Sampling)

Chemical	Range of Concentrations ug/m3	EMEG	CREG	OSHA - TWA	STEL
Benzene	ND - 357.35	0.0000078	0.1	0.1	5000 ppb
Toluene	ND - 322.25	400 ppb		100	56000
Ethylbenzene	ND - 83.93	1000		100	545000
Xylenes	ND - 211.94	1000 ppb		100	655000
Naphthalene	ND - 51.65	2 ppb		10	75000
Zinc	ND - 37.7			5	10000
Copper	ND - 1.2			1

EMEG = Environmental Media Evaluation Guide (ATSDR)
CREG = Cancer Risk Evaluation Guide
OSHA-TWA = Occupational Safety and Health Adminisration - 8hr Time Weighted Average
STEL - Short Term Exposure Limit (Maximum exposure for a 15-minute period)

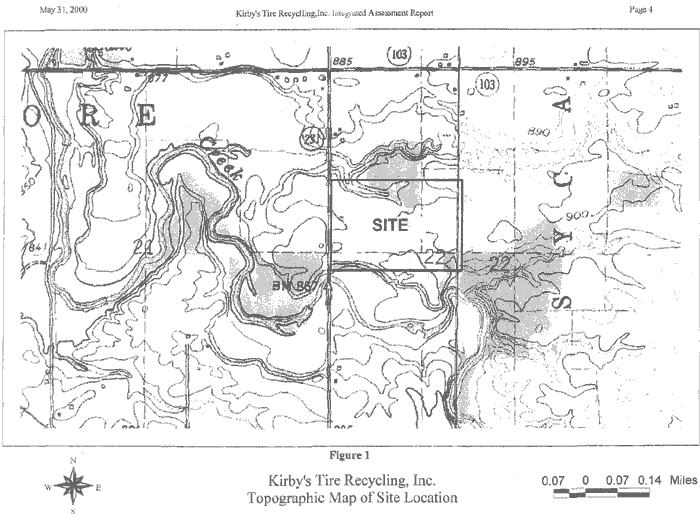

Figure 1. Topographic Map of Site Location

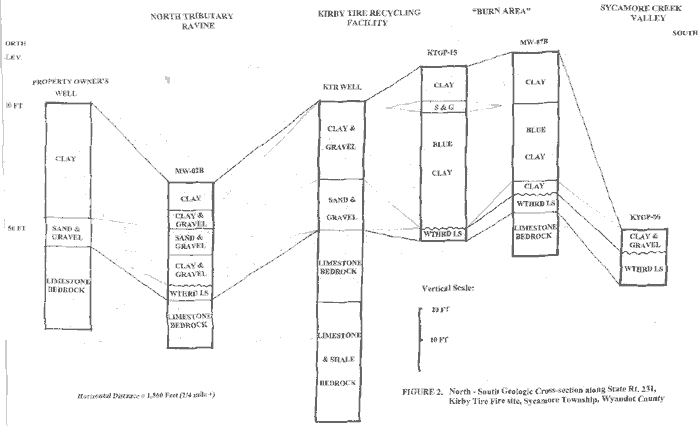

Figure 2. North - South Geologic Cross-section along State Rt. 231

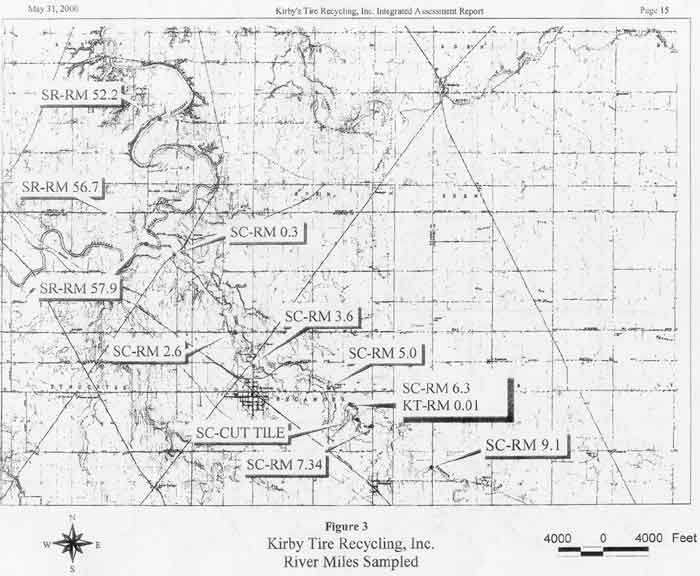

Figure 3. River Miles Sampled

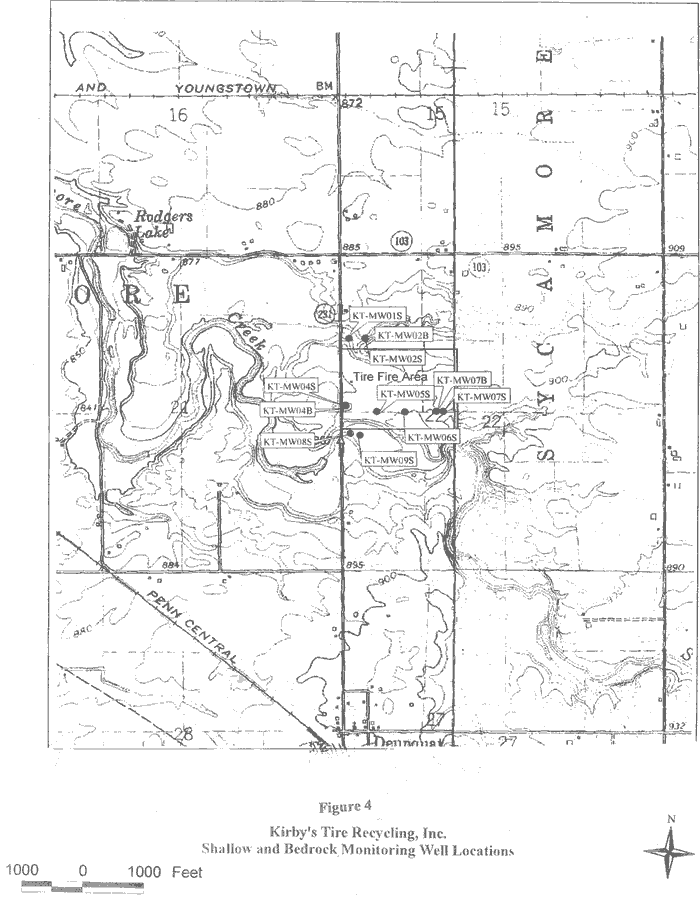

Figure 4. Shallow and Bedrock Monitoring Well Locations

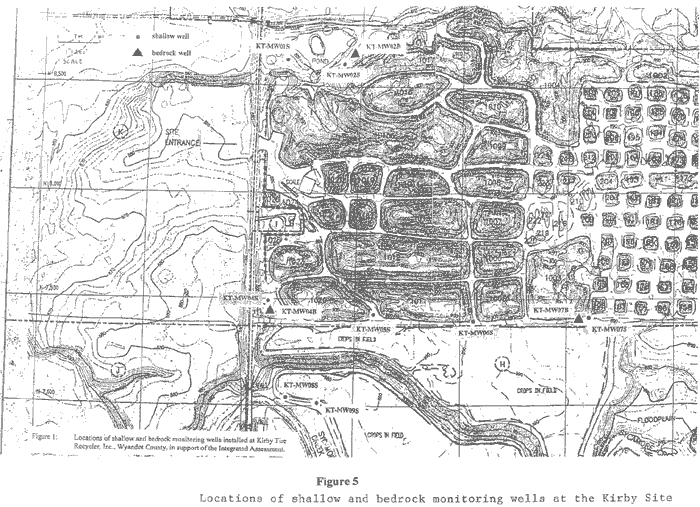

Figure 5. Locations of shallow and bedrock monitoring wells at the Kirby Site

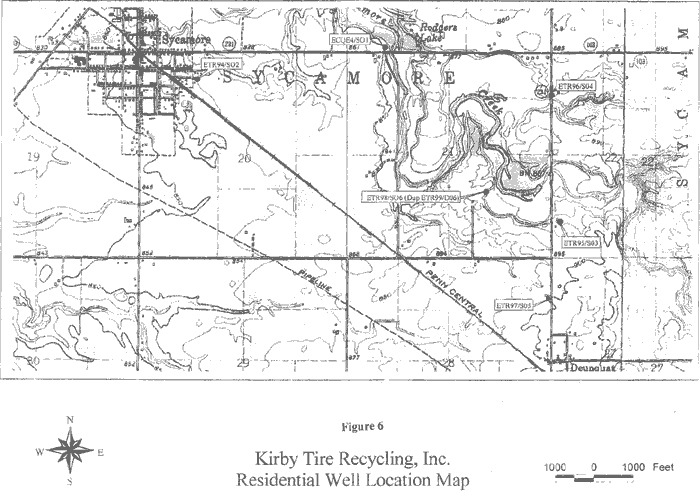

Figure 6. Residential Well Location Map

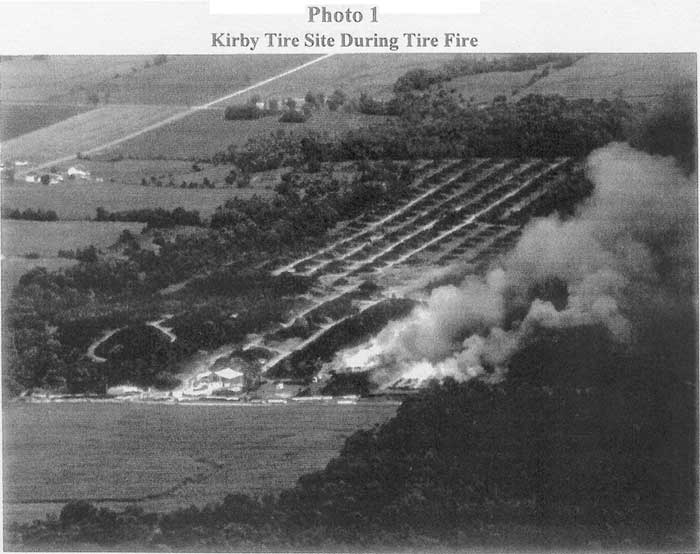

Photo 1. Kirby Tire Site During Tire Fire

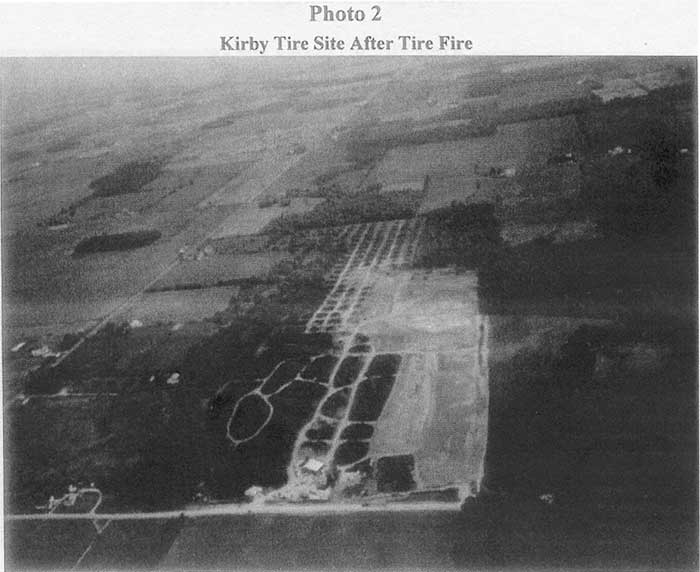

Photo 2. Kirby Tire Site After Tire Fire
