PUBLIC HEALTH ASSESSMENT

MIAMI COUNTY INCINERATOR
TROY, MIAMI COUNTY, OHIO

APPENDIX A

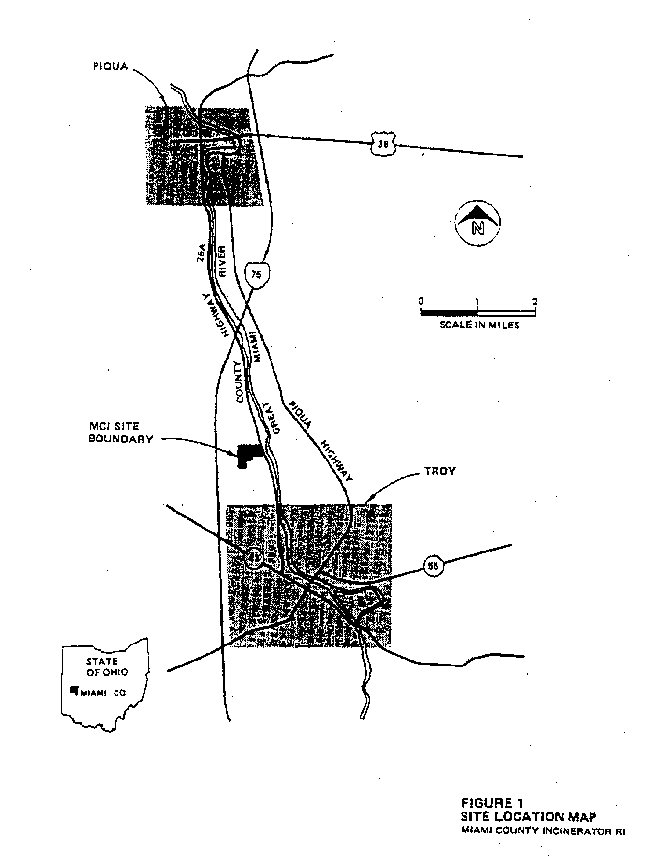

Figure 1. Site Location Map, Miami County Incinerator

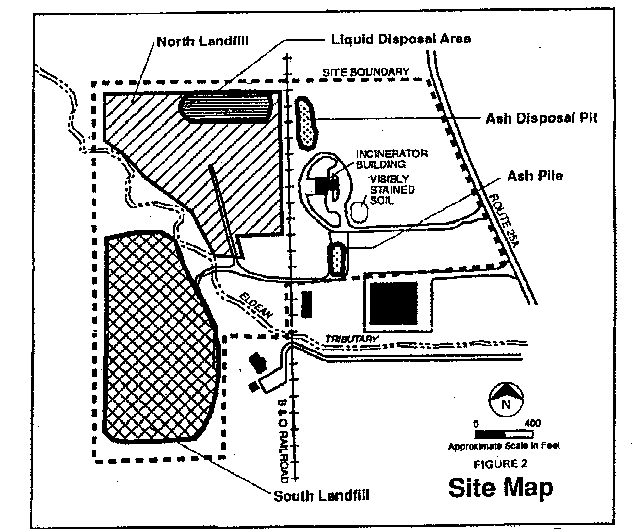

Figure 2.  Site Map

Figure 3.  Water Supply Well Locations

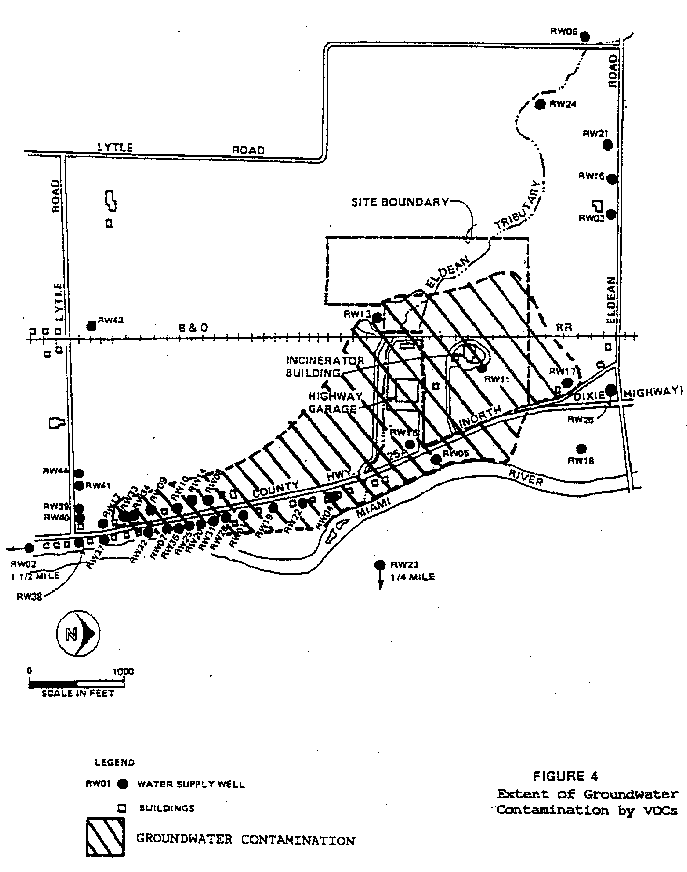

Figure 4.  Extent of Groundwater Contamination by VOCs

APPENDIX B

Calculations for Chemicals that do not cause cancer:

Noncancer Comparison Value = U.S.EPA Reference Dose x Body Weight
                            ____________________________________

                                              Intake Rate

Body Weight = The amount a person weights. Generally 70 kilograms is used for an adult and 10-15 kilograms for a child.

Intake Rate = The amount of water or soil a person would drink or eat.

Cancer Risk Guide

Cancer Risk Guide = Body Weight x Risk Factor
              ____________________________

          Intake Rate x Cancer Slope Factor


Body Weight = The amount a person weights. Generally 70 kilograms is used for an adult body weight.

Risk Factor = Either one additional cancer in one person in 10,000 people, one person in 100,000 people or one person in 1,000,000 people.

Intake Rate = The amount of water or soil a person would drink or eat.

Cancer Slope Factor = It is a U.S.EPA number which represents the cancer potential of a chemical. Each chemical has its own slope factor.

APPENDIX C

TABLE C-1
ON-SITE SUBSURFACE SOIL DATA
MIAMI COUNTY INCINERATOR
Chemical Concentration (mg/Kg) Screening Level (mg/Kg)
1,1-Dichloroethane ND-0.052 8,000-70,0001
Ethylbenzene ND-680 8,000-70,0001
Toluene ND- 3,400 16,000-140,0001
1,2-dichloroethene ND-280 700-6,0001*
1,1,1-trichloroethane ND-420 7,000-60,0001
Trichloroethene ND-1,100 6002
1,2-Dichlorobenzene ND-58 7,000- 60,0001
Hexachlorobenzene ND-24 60-6001
PCBs ND-3.6 12
4,4-DDT ND-0.0178 22
TCDD equivalent ND-0.00014 0.000052
Antimony ND-25 30-3001
Arsenic ND-167 24-2101
Barium ND-671 5,000-50,0001
Cadmium ND-49 40-3501
Chromium ND-6,410 400-3,5001
Cobalt ND-42.6 NA
Copper ND-2,000 NA
Lead ND-5,600 NA
Nickel ND-1,070 1,600-14,0001

1=Screening Level calculated by ODH
2=Cancer risk guide calculated by ODH
NA=None Available
