HEALTH CONSULTATION
NORTH SANITARY (AKA. VALLEYCREST) LANDFILL
DAYTON, MONTGOMERY COUNTY, OHIO
FIGURES AND TABLES

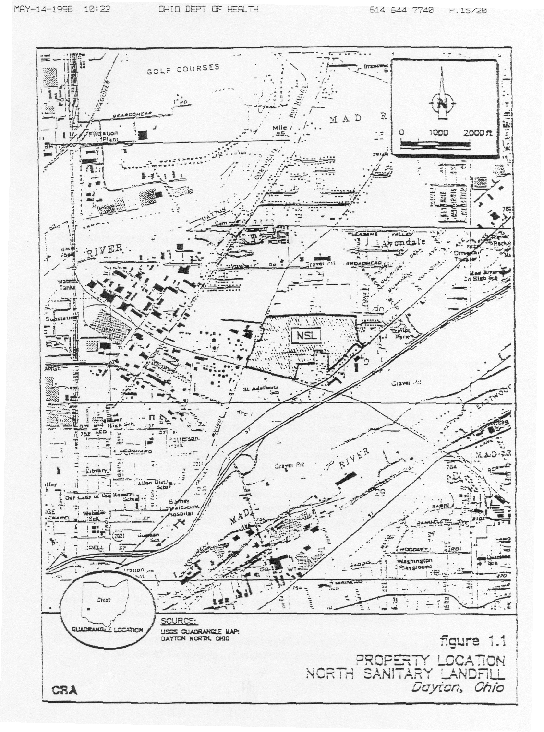

Figure 1: Property Location, North Sanitary Landfill
Figure 2:
The following figure was not available in electronic format for conversion to
HTML at the time of preparation of this document. To obtain a hard copy of the
document, please contact:
Agency for Toxic Substances and Disease Registry
Division of Health Assessment and Consultation
Attn: Chief, Program Evaluation, Records, and Information Services Branch,
E-56 1600 Clifton Road NE,
Atlanta, Georgia 30333
Figure 3:
The following figure was not available in electronic format for conversion
to HTML at the time of preparation of this document. To obtain a hard copy of
the document, please contact:
Agency for Toxic Substances and Disease Registry
Division of Health Assessment and Consultation
Attn: Chief, Program Evaluation, Records, and Information Services Branch,
E-56 1600 Clifton Road NE,
Atlanta, Georgia 30333
Figure 4:
The following figure was not available in electronic format for conversion
to HTML at the time of preparation of this document. To obtain a hard copy of
the document, please contact:
Agency for Toxic Substances and Disease Registry
Division of Health Assessment and Consultation
Attn: Chief, Program Evaluation, Records, and Information Services Branch,
E-56 1600 Clifton Road NE,
Atlanta, Georgia 30333
TABLE 1
DAILY GAS PROBE RESULTS (% methane/v), JANUARY-APRIL, 1998
|
GAS PROBE |
JANUARY |
FEBRUARY |
MARCH |
APRIL |
MEAN GAS LEVELS |
|
GP-01 |
7.5-9.6 (8.7) |
2.3-12.3 (6.4) |
4-22.7 (11.0) |
14.2-27.2 (20.2) |
11.6 |
|
TGP-30 |
NA |
NA |
46.2-75.7 (65.8) |
55.2-73.3 (65) |
65.4 |
|
TGP-31 |
NA |
NA |
0.0-11.1 (2.2) |
0.0-11.5 (2.8) |
2.5 |
|
GP-06 |
3.4-15.1 (9.3) |
1.5-22 (10.2) |
0.6-11.9 (7.9) |
3.5-10 (6.9) |
8.6 |
|
GP-08 |
NA |
3-13.3 (10.5) |
7.3-12 (9.5) |
7.1-9.9 (8.4) |
9.5 |
|
TGP-23 |
24.2-44.2 (33) |
23.6-44.8 (37) |
25.9-48.8 (37) |
27.4-48.8 (38.3) |
36.3 |
|
TGP-28 |
NA |
NA |
8.8-19 (15.9) |
14.4-18.6 (16.3) |
16.1 |
|
TGP-29 |
NA |
NA |
4.2-10.2 (7.8) |
4.2-7.2 (5.7) |
6.8 |
|
TGP-36 |
NA |
NA |
0.0-15.7 (6.1) |
2.4-14.9 (7.6) |
6.9 |
|
GP-09 |
4.3-28.4 (19) |
7.9-29 (23) |
11.7-27.8 (21) |
14.3-23.6 (20.7) |
20.9 |
|
GP-10 |
NA |
NA |
0.0-4.6 (0.6) |
0.1-5.4 (1.1) |
0.9 |
|
TGP-12 |
4.3-8.6 (6.2) |
0.0-13.1 (6.5) |
1.1-13.9 (9.3) |
0.3-14.8 (9.2) |
7.8 |
|
TGP-26 |
NA |
NA |
12.8-17.4 (15) |
13.8-16.2 (14.3) |
14.6 |
NA = Probe not available for sampling
<5% methane/v = mixture too dilute to ignite, less than LEL for methane
5% < n < 15% = mixture potential to ignite, within the explosive range
of methane
>15% methane/v = mixture too rich to ignite, greater than the UEL for methane
