PUBLIC HEALTH ASSESSMENT

WRIGHT-PATTERSON AIR FORCE BASE
FAIRBORN, GREENE COUNTY, OHIO


FIGURES

Site Map
Figure 1. Site Map

Patterson Field
Figure 2. Patterson Field

Wright Field
Figure 3. Wright Field

ATSDR's Exposure Evaluation Process

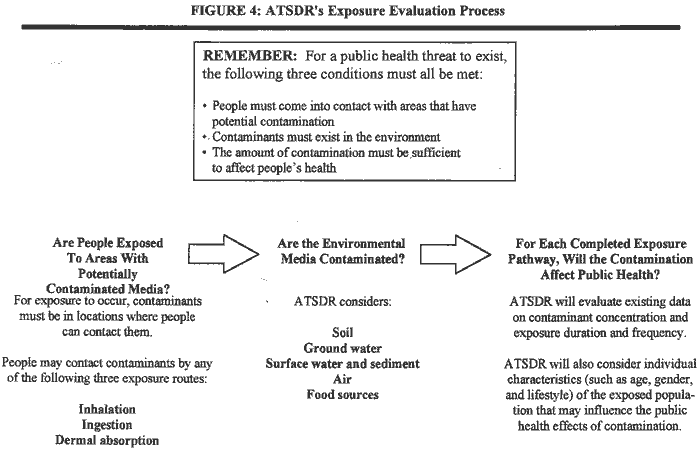

Figure 4. ATSDR's Exposure Evaluation Process


APPENDICES

APPENDIX A: COMPARISON VALUE EVALUATION METHOD

The conclusion that a contaminant exceeds the comparison value does not mean that it will cause adverse health effects. Comparison values represent media-specific contaminant concentrations that are used to select contaminants for further evaluation to determine the possibility of adverse public health effects.

Cancer Risk Evaluation Guides (CREGs)
Estimated contaminant concentrations that would be expected to cause no more than one excess cancer in a million (10-6) persons exposed over a 70-year life span. The Agency for Toxic Substances and Disease Registry's (ATSDR's) CREGs are calculated from the U. S. Environmental Protection Agency's (EPA's) cancer potency factors (CPFs).

Environmental Media Evaluation Guides (EMEGs)
EMEGs are based on ATSDR minimal risk levels (MRLs) and factors in body weight and ingestion rates. An EMEG is an estimate of daily human exposure to a chemical (in mg/kg/day) that is likely to be without noncarcinogenic health effects over a specified duration of exposure.

Maximum Contaminant Level (MCL)
The MCL is the drinking water standard established by EPA. It is the maximum permissible level of an individual contaminant in water that is delivered to a free-flowing water supply. MCLs are derived for individual contaminants based on toxicity. MCLs are considered protective of public health over a lifetime (70 years) for people consuming 2 liters of water per day.

Reference Media Evaluation Guides (RMEGs)
ATSDR derives RMEGs from EPA's oral reference doses (RfDs). The RMEG represents the concentration in water or soil at which daily human exposure is unlikely to result in adverse noncarcinogenic effects.

Soil Screening Level (SSL)
Generic SSLs were derived by EPA for nation-wide application to sites used for residential areas. SSLs are estimates of contaminant concentrations that would be expected to be without noncancer health effects over a specified duration of exposure or to cause no more than one excess cancer in a million (10-6) persons exposed over a 70-year life span.

Risk-Based Concentration (RBC)
The RBCs were developed by EPA Region III. RBCs for tap water, air, and soil were derived using EPA RfDs and cancer potency factors combined with standard exposure scenarios, such as ingestion of 2 liters of water per day, over a 70-year life span. RBCs are contaminant concentrations that are not expected to cause adverse health effects over long-term exposures.


APPENDIX B: TEF APPROACH

TCDD Toxic Equivalents (TEQs)

Dioxins and furans include over 200 compounds with various numbers of attached chlorine molecules, from 0 to 8. Compounds with the same number of chlorine molecules are referred to as isomers. The location of the chlorine molecule on the dioxin or furan compound can also vary within an isomer group. Dioxins and furans with the same number of chlorine molecules, but at different locations are referred to as congeners. The potency (or relative toxicity) of different isomers and congeners varies with structure. Isomers with four chlorine molecules include the most toxic forms, and congeners with chlorines in the 2,3,7,8 positions are the most toxic forms within each isomer group. Therefore, the most toxic form is the compound with four chlorines in the 2,3,7,8 positions (2,3,7,8-tetrachlorodibenzodioxin or 2,3,7,8-TCDD), while the related furan is only slightly less toxic. Other dioxins and furans can range from slightly less toxic to 1,000 times less toxic. In dealing with mixtures of dioxins and furans, a system has been developed to weigh concentrations of isomers and congeners with factors that relate their toxicity to that of 2,3,7,8-TCDD, generating a "TCDD equivalency factor (TEF)". These factors are then used to assess the health risks of a dioxin/furan mixture.

Throughout this public health assessment (PHA), concentrations of dioxins and furans have been presented as TCDD equivalents (TEQs). The TEQ is a weighed concentration that represents a mixture of isomers and congeners. The TEQ compensates for the differences in toxicity among isomers and congeners. The TEFs used in this evaluation are as follows:

Compound TEF (ATSDR, 1997)
2,3,7,8-Tetrachlorodibenzodioxin (TCDD) 1
2,3,7,8-Tetrachlorodibenzofuran (TCDF) 0.1
2,3,7,8-Hexachlorodibenzodioxin (HxCDD) 0.1
2,3,7,8-Hexachlorodibenzofuran (HxCDF) 0.1
2,3,7,8-Heptachlorodibenzodioxin (HpCDD) 0.01
2,3,7,8-Heptachlorodibenzofuran (HpCDF) 0.01
2,3,7,8-Octachlorodibenzodioxin (OCDD) 0.001
2,3,7,8-Octachlorodibenzofuran (OCDF) 0.001

The concentration of each isomer and congener detected in a sample is multiplied by the associated TEF and results are summed to calculated the TEQ. The TEQ can than be used to screen dioxin and furan concentrations against comparison values. The TEQ can also be used in the exposure evaluation to calculate the potential dose of dioxins and furans.


APPENDIX C: EXPOSURE EVALUATION

Estimates of Human Exposure Doses and Determination of Health Effects

Deriving Exposure Doses

The Agency for Toxic Substances and Disease Registry (ATSDR) estimated the human exposure doses from ingestion of drinking water from groundwater supplies, incidental ingestion of surface soil, incidental ingestion of surface water and sediment, and inhalation of air. Deriving exposure doses requires evaluating the concentrations of the contaminants to which people may have been exposed and how often and how long exposures to those contaminants occurred. Together, these factors help influence the individual's physiological response to chemical contaminant exposure and potential for noncancer or cancer outcomes. In the absence of exposure-specific information, ATSDR applied several conservative assumptions to define site-specific exposures as accurately as possible for people contacting contaminated media.

Evaluating Potential Health Hazards

The estimated exposure doses are used to evaluate potential noncancer and cancer effects associated with contaminants detected in site media. When evaluating noncancer effects, ATSDR first compares the estimated exposure dose to standard toxicity values, including ATSDR's minimal risk levels (MRLs) and the U.S. Environmental Protection Agency's (EPA) reference doses (RfDs), to evaluate whether adverse effects may occur. The chronic MRLs and RfDs are estimates of daily human exposure to a substance that is likely to be without appreciable risk of adverse noncancer effects over a specified duration. The chronic MRLs and RfDs are conservative values, based on the levels of exposure reported in the literature that represent no-observed-adverse-effects levels (NOAEL) or lowest-observed-adverse-effects-levels (LOAEL) for the most sensitive outcome for a given route of exposure (e.g., dermal contact, ingestion). In addition, uncertainty (safety) factors are applied to NOAELs or LOAELs to account for variation in the human population and uncertainty involved in extrapolating human health effects from animal studies. If estimated exposure doses are greater than the MRL or RfD, ATSDR reviews the toxicological literature to determine the likelihood of adverse effects.

When evaluating the potential for cancer to occur, ATSDR uses cancer potency factors (CPF) that define the relationship between exposure doses and the likelihood of an increased risk of developing cancer over a lifetime. The CPFs are developed using data from animal or human studies and often require extrapolation from high exposure doses administered in animal studies to lower exposure levels typical of human exposure to environmental contaminants. The CPF represents the upper-bound estimate of the probability of developing cancer at a defined level of exposure; therefore, they tend to be very conservative (i.e., overestimate the actual risk) in order to account for a number of uncertainties in the data used in the extrapolation.

ATSDR estimated the potential for cancer to occur using the following equation. The estimated exposure doses and CPF values for the contaminants of concern are incorporated into the equation:

Lifetime Cancer Risk = Estimated exposure dose (milligrams contaminants per kilogram body weight per day [mg/kg/day]) x CPF (mg/kg/day)-1

Although no risk of cancer is considered acceptable, because a zero cancer risk is not possible to achieve, ATSDR often uses a range of 10-4 to 10-6 estimated lifetime cancer risk (or 1 new case in 10,000 to 1,000,000 exposed persons), based on conservative assumptions about exposure, to determine whether there is a concern for cancer effects.

Estimated Exposure Dose for Media at OU1

Investigations at OU1 (Landfills 8 and 10) detected contamination in ambient air, surface soil, surface water, sediment, and private wells. Residents living in the military housing complex (Woodland Hills) that surrounds these landfills might have been exposed to contaminants in ambient air. Between the early 1970s and 1985, the landfills were used as a recreational area and people were exposed to contamination in surface soil, surface water, and sediment. Residents along National, Zink, and Kauffman Roads with private wells were exposed to contamination in their well water. The USAF has completed remedial activities to prevent current and future exposures. To determine whether past exposures to these contaminants may be related to adverse health effects, if any, ATSDR estimated exposure doses for people living in the Woodland Hills housing complex and in nearby private residences. In estimating to what extent people might be exposed to contaminants, ATSDR used "conservative" assumptions about contaminant concentrations, as well as how much and how often people were exposed to contamination. These assumptions allow ATSDR to estimate the highest possible exposure dose and determine the corresponding health effects. Although ATSDR expects that few, if any, residents were exposed to the highest contaminant concentrations, the "conservative" estimates are used to protect public health. ATSDR used the following equation and exposure assumptions to estimate exposure doses:

mathematical equation

where:

C = Maximum concentration (parts per million [ppm])
IR = Intake rate:

Ambient air: adult=15.2 cubic meters/day; child=10 cubic meters/day
Soil and sediment: adult=50 milligrams/day; child=100 milligrams/day
Surface water: adults and children=0.15 liters/day
Drinking water: adult=2.35 liters/day; child=1.3 liters/day
EF = Exposure frequency: resident=365 days/year; recreational user=130 days/year
ED = Exposure duration or the duration over which exposure occurs:

Woodland Hills resident: adult and child=5 years
off-site resident: adult=30 years; child=6 years
BW = Body weight: adult=70 kg (154 pounds); child=10 kg (22 pounds)
AT = Averaging time or the period over which cumulative exposures are averaged

Woodland Hills resident: 5 years x 365 days/year for noncancer effects and 70 years [considered a lifetime] x 365 days/year for cancer effects (This is a standard risk assessment assumption. It is not expected that any resident at Woodland Hills will spend 70 years in this housing area.)
Off-site resident: 6 or 30 years x 365 days/year for noncancer effects and 70 years x 365 days/year for cancer effects

Based on estimated exposure doses and review of toxicology literature, ATSDR concluded that exposures to contaminants in site media at OU1 are unlikely to result in adverse health effects.

Noncancer

ATSDR calculated noncancer doses assuming that people were exposed to the maximum detected concentration over the entire exposure period. ATSDR also used conservative assumptions about how often and how long people were exposed. The calculated doses were then compared to ATSDR's MRLs or EPA's RfDs. MRLs and RfDs are not available for several contaminants, including dimethyl sulfide, polyaromatic hydrocarbons (PAHs), delta-BHC, endrin ketone, and lead. The calculated doses for contaminants in private wells, ambient air, surface soil at both landfills, surface water, and sediment were all below the associated MRLs or RfDs, except for acetone in ambient air, arsenic in surface water, and arsenic in private wells.

The calculated dose for Woodland Hills residents, adults (2.1 mg/kg/day) and children (2.3 mg/kg/day), exposed to acetone in ambient air slightly exceeded the MRL of 2 mg/kg/day. MRLs are developed with uncertainty (safety) factors. These safety factors may result in a derived MRL hundreds of times less than the LOAEL observed in laboratory studies. In addition, ATSDR calculated doses based on the maximum detected concentration of acetone (236,000 micrograms per cubic meter [ug/m3]) and assumed a person was exposed to this concentration over the entire exposure period. However, acetone was detected in only 17 of the 40 ambient air samples collected. The next highest concentration of acetone was only 45,244 ug/m3. The dose was calculated using conservative assumptions about frequency and duration of site use. An actual resident is very unlikely to be in daily contact with the highest level of contamination over the entire exposure period. Actual doses are expected to be much lower than assumed by ATSDR.

The calculated dose for children (0.00038 mg/kg/day) exposed to arsenic in surface water while using the stream located between Landfills 8 and 10 for recreational purposes slightly exceeds the MRL for arsenic (0.0003 mg/kg/day). Exposure considered incidental ingestion only because dermal absorption of arsenic is negligible. In surface water, arsenic was detected in 8 of the 52 samples collected; concentrations did not exceed EPA's Maximum Contaminant Level (MCL).

The calculated dose for adults (0.0017 mg/kg/day) and children (0.0024 mg/kg/day) exposed to arsenic in private wells along National, Zink, and Kauffman Roads exceeded the arsenic MRL of 0.0003 mg/kg/day. Exposure considered incidental ingestion only because dermal absorption of arsenic is negligible. During site investigations, ten private wells along National, Zink, and Kauffman Roads were sampled. Arsenic was detected in 25 of the 31 samples collected over three sampling rounds. In one sample, the arsenic concentration (52 parts per billion [ppb]) slightly exceeded the MCL (50 ppb).

Epidemiologic investigations suggest that noncancer effects from chronic arsenic exposure may lead to skin problems, neurological effects, and gastrointestinal irritations. The lowest observed levels at which these adverse health effects have been reported range from 0.014 to 0.05 mg/kg/day (ATSDR, 1993). The estimated doses for adults and children exposed to arsenic in surface water and drinking water are at least 10 times lower than the lowest arsenic dose reported to cause health effects. In addition, ATSDR calculated doses using conservative assumptions about exposure concentration and frequency and duration of site use. An actual resident is very unlikely to be in contact with the highest level of contamination over the entire exposure period. Actual doses are expected to be much lower than assumed by ATSDR.

Cancer

Not all contaminants in the environment have the potential to cause cancer. ATSDR evaluated contaminants that could potentially cause cancer, including: six volatile organic compounds (VOCs), eight PAHs, bis(2-ethylhexyl)phthalate, five pesticides, Aroclor-1254 (a polychlorinated biphenyl [PCB]), arsenic, beryllium, cadmium, chromium, and dioxins. The derived lifetime cancers risks for exposure to contaminants in surface soil, surface water, and sediment at Landfill 10 and for Woodland Hills residents in contact with ambient air, surface soil, surface water, and sediment are below levels that are likely to result in increased instances of cancer.

ATSDR evaluated the following contaminants detected in private wells that could potentially cause cancer: bromodichloromethane, chloroform, dibromochloromethane, bis(2-ethylhexyl)phthalate, and arsenic. Except for arsenic, the derived lifetime cancer risk for exposure to contaminants are below levels that are likely to result in increased instances of cancer. ATSDR derived a lifetime cancer risk of 2 x 10-4 (or an increased likelihood of 2 in 10,000 of developing cancer) for arsenic. EPA classified arsenic as a carcinogen based on epidemiological studies. However, unlike other carcinogens, arsenic dose not cause cancer in laboratory animals when administered orally. The basis for classifying arsenic as a human carcinogen are results of a Taiwanese study in which the lowest exposure levels associated with the onset of cancer (skin) were observed in people drinking 170 to 800 ppb arsenic for a 45-year exposure period (ATSDR, 1993). Residents using private wells were exposed to a maximum detected concentration of 52 ppb arsenic. Concentrations detected in repeat sampling rounds were even lower. It is unlikely that the level of exposure to off-site residents would lead to cancer.

Estimated Exposure Dose for Contact with Drinking Water from Wright-Patterson AFB

When the U. S. Air Force (USAF) first began sampling its water supply system in the 1980s, they detected several VOCs above their MCLs. Well sampling of untreated water in 1991 detected bromodichloromethane, carbon tetrachloride, dibromochloromethane, tetrachloroethylene (PCE), and trichloroethylene (TCE) above comparison values (CVs). Sampling of water in the distribution system detected bromodichloromethane, chloroform, and dibromochloromethane above CVs. Residents in military housing and civilians working at WPAFB were and are exposed to VOCs in drinking water. In estimating to what extent people might be exposed to contaminants, ATSDR used "conservative" assumptions about contaminant concentrations, as well as how much and how often people were exposed to contamination. These assumptions allow ATSDR to estimate the highest possible exposure dose and determine the corresponding health effects. Although ATSDR expects that few residents and workers were exposed to the highest contaminant concentrations, the "conservative" estimates are used to protect public health. ATSDR used to following equation and exposure assumptions to estimate an exposure dose for contact with drinking water:

mathematical equation

where:

C = Maximum concentration (ppm)
IR = Intake rate: adult=2.35 liters/day; child=1.3 liters/day
EF = Exposure frequency: resident=365 days/year; worker=250 days/year
ED = Exposure duration or the duration over which exposure occurs: resident (adult and child)=5 years; worker=30 years
BW = Body weight: adult=70 kg (154 pounds); child=10 kg (22 pounds)
AT = Averaging time or the period over which cumulative exposures are averaged: resident=5 years x 365 days/year for noncancer effects and 70 years [considered a lifetime] x 365 days/year for cancer effects
worker=30 years x 365 days/year for noncancer effects and 70 years x 365 days/year for cancer effects

Based on estimated exposure doses and review of toxicology literature, ATSDR concluded that past, current, and potential future exposures to contaminants in the WPAFB water supply are unlikely to result in adverse health effects.

Noncancer

Exposures to the maximum detected concentration of VOCs using conservative exposure assumptions resulted in doses for residents (adults and children) and civilian workers less than the MRLs, except for vinyl chloride. Vinyl chloride was detected in supply samples collected between 1985 and 1988. The estimated doses for workers (0.000042 mg/kg/day), adult residents (0.000062 mg/kg/day), and child residents (0.000087 mg/kg/day) slightly exceeded the MRL (0.00002 mg/kg/day). Doses were estimated assuming that workers and residents were drinking the maximum detected concentration over the entire exposure period. Vinyl chloride, however, was only detected in 2 of the 522 samples collected between 1985 and 1988. Actual doses are expected to be much lower than the estimated doses. The USAF currently treats and monitors the water supply system to insure that drinking water safety is not compromised and contaminant concentrations are below MCLs.

Cancer

Each of the VOCs detected in the WPAFB water supply is considered a carcinogen. ATSDR derived lifetime cancer estimates for each contaminant based on assumed resident and worker exposures. Using conservative assumptions about frequency and duration of site use, the derived lifetime cancer risk for each contaminant was within or below the "acceptable" range of 10-4 to 10-6. An actual resident or worker is very unlikely to have been in contact with the highest level of contamination over the entire exposure period (70 years).

Estimated Exposure Dose for Contact with Surface Water and Sediment

The Mad River flows along the northwestern base boundary and receives surface water runoff from the storm water drainage system serving WPAFB. The Mad River is accessed by area residents for recreational activities, including boating, fishing, and swimming. Hebble Creek, Trout Creek, and Lily Creek flow through WPAFB and collect surface water runoff prior to discharging in the Mad River. These streams are located in operations areas of WPAFB and are unlikely to be used for recreation. One unnamed stream that discharges to Hebble Creek was evaluated previously under the OU1 exposure evaluation. In addition to the streams and river, four lakes (Bass, Gravel, East Twin, and West Twin) are located within WPAFB's boundaries and are maintained as recreation areas. The USAF annually stocks each of these lakes with fish. Access to the on-base lakes is limited to military personnel.

Investigations at WPAFB detected semivolatile organic compounds (SVOCs), alpha-BHC, and metals above CVs in surface water and pentachlorophenol, PAHs, pesticides, metals, and dioxins above CVs in sediment. Analysis of fish from the Mad River detected PCBs above CVs. To determine the potential for adverse health effects from exposure to contaminants in surface water, sediment, and fish, ATSDR estimated an exposure dose for recreational users based on conservative assumptions of site use. ATSDR used the following equation and exposure assumptions to estimate an exposure dose for contact with surface water and sediment and ingestion of fish:

mathematical equation

where:

C = Maximum concentration (ppm)
IR = Intake rate:

surface water: adult and children = 0.15 liters/day (during swimming)
sediment: adult=100 milligrams/day; child=200 milligrams/day
fish tissue: adults and children=0.017 grams/day
EF = Exposure frequency: recreational user=130 days/year; swimming=6 days/year
ED = Exposure duration or the duration over which exposure occurs: adult=30 years; child=8 years
BW = Body weight: adult=70 kg (154 pounds); child=10 kg (22 pounds)
AT = Averaging time or the period over which cumulative exposures are averaged: (8 or 30 years x 365 days/year for noncancer effects and 70 years [considered a lifetime] x 365 days/year for cancer effects)

ATSDR evaluated doses for exposure to contaminants using the maximum detected concentrations in surface water and sediment samples from the Mad River, on-base streams, and on-base lakes as military personnel may use any of these water bodies for recreation. Fish samples have only been collected from the Mad River, and ATSDR used these results to estimate doses for consumption of fish. Fish tissue samples have not been collected for the stocked fish supplied for on-base fishing. Due to heavy recreational use and the need for annual restocking, ATSDR believes that fish in Gravel, East Twin, and West Twin Lakes are unlikely to bioaccumulate significant concentrations of contaminants. Based on estimated exposure doses and site conditions, ATSDR concluded that recreational use of water bodies at and near WPAFB is unlikely to result in adverse health effects.

Noncancer

Exposure doses for the maximum detected concentrations of SVOCs, alpha-BHC, and metals, expect thallium, in surface water were below their associated MRLs for both adults and children. In sediment, exposure doses for the maximum detected concentrations of pentachlorophenol, PAHs, pesticides, and metals were below their MRLs. Exposure doses for the maximum detected concentration of PCBs in fish slightly exceeded the MRL for adults and children.

The calculated dose for an adult (0.0001 mg/kg/day) and a child (0.00026 mg/kg/day) exposed to thallium in surface water exceeds the MRL of 0.00007 mg/kg/day. MRLs are developed with uncertainty (safety) factors. These safety factors may result in a derived MRL hundreds of times less than the LOAEL observed in laboratory studies. A review of the literature indicated that the dose associated with the LOAEL in laboratory studies is 0.08 mg/kg/day, approximately 300 times greater than the dose received by recreational users (ATSDR, 1992). In addition, the dose was calculated using conservative assumptions about frequency and duration of site use. A recreational user is very unlikely to be in contact with the highest level of contamination over the entire exposure period.

The calculated dose for an adult (0.000099 mg/kg/day) and a child (0.000027 mg/kg/day) exposed to PCBs in fish tissue slightly exceeds the MRL of 0.00002 mg/kg/day. ATSDR derived the MRL for PCBs based on a study with rhesus monkeys in which the LOAEL was reported at 0.005 mg/kg/day, approximately 50 greater than the dose received by recreational users (ATSDR, 1998). ATSDR calculated doses using the maximum detected concentration found during sampling. PCBs tend to accumulate in a fish's fatty tissue and sampling analyzed whole fish samples, including this fatty tissue. The fillet, or muscular part of the fish, eaten by people may not contain as high a concentration of PCBs as detected in the whole fish sample. ATSDR also calculated dose using conservative assumptions about how often and how much fish was consumed by recreational users. A recreational user is very unlikely to be in contact with the highest level of contamination over the entire exposure period. The Ohio Environmental Protection Agency (OEPA) has placed a restriction on consumption of fish caught in the Mad River. This restriction extends up and downstream of WPAFB.

Cancer

Carcinogens detected in surface water included bis(2-ethylhexyl)phthalate, pentachlorophenol, alpha-BHC, arsenic, beryllium, and cadmium. Carcinogens detected in sediment include: five PAHs, bis(2-ethylhexyl)phthalate, pentachlorophenol, heptachlor epoxide, arsenic, beryllium, and cadmium. PCBs were the only carcinogens detected in fish tissue. ATSDR derived lifetime cancer risks for contaminants in surface water, sediment, and fish tissue were within or below the "acceptable" range.


APPENDIX D: GLOSSARY

Background Level:
A typical or average level of a chemical in the environment. Background often refers to naturally occurring or uncontaminated levels.


Carcinogen:
Any substance that may produce cancer.


CERCLA:
The Comprehensive Environmental Response, Compensation, and Liability Act of 1980, also known as Superfund. This is the legislation that created ATSDR.


Comparison Values (CVs):
Estimated contaminant concentrations in specific media that are not likely to cause adverse health effects, given a standard daily ingestion rate and standard body weight. The comparison values are calculated from the scientific literature available on exposure and health effects.


Concentration:
The amount of one substance dissolved or contained in a given amount of another. For example, sea water contains a higher concentration of salt than fresh water.


Contaminant:
Any substance or material that enters a system (the environment, human body, food, etc.) where it is not normally found.


Dermal:
Referring to the skin. Dermal absorption means absorption through the skin.


Dose:
The amount of substance to which a person is exposed. Dose often takes body weight into account.


Environmental Contamination:
The presence of hazardous substances in the environment. From the public health perspective, environmental contamination is addressed when it potentially affects the health and quality of life of people living and working near the contamination.


Exposure:
Contact with a chemical by swallowing, by breathing, or by direct contact (such as through the skin or eyes). Exposure may be short term (acute) or long term (chronic).


Hazard:
A source of risk that does not necessarily imply potential for occurrence. A hazard produces risk only if an exposure pathway exists, and if exposures create the possibility of adverse consequences.


Ingestion:
Swallowing (such as eating or drinking). Chemicals can get in or on food, drink, utensils, cigarettes, or hands where they can be ingested. After ingestion, chemicals can be absorbed into the blood and distributed throughout the body.


Inhalation:
Breathing. Exposure may occur from inhaling contaminants because they can be deposited in the lungs, taken into the blood, or both.


Media:
Soil, water, air, plants, animals, or any other parts of the environment that can contain contaminants.


National Priorities List (NPL):
The Environmental Protection Agency's (EPA) listing of sites that have undergone preliminary assessment and site inspection to determine which locations pose immediate hazard to persons living or working near the release. These sites are most in need of cleanup.


No Apparent Public Health Hazard:
Sites where human exposure to contaminated media is occurring or has occurred in the past, but the exposure is below a level of health hazard.


Plume:
An area of chemicals in a particular medium, such as air or groundwater, moving away from its source in a long band or column. A plume can be a column of smoke from a chimney or chemicals moving with groundwater.


Potentially Exposed:
The condition where valid information, usually analytical environmental data, indicates the presence of contaminant(s) of a public health concern in one or more environmental media contacting humans (i.e., air, drinking water, soil, food chain, surface water), and there is evidence that some of those persons have an identified route(s) of exposure (i.e., drinking contaminated water, breathing contaminated air, having contact with contaminated soil, or eating contaminated food).


Public Health Assessment:
The evaluation of data and information on the release of hazardous substances into the environment to assess any current or future effects on public health, develop health advisories or other recommendations, and identify studies or actions needed to evaluate and mitigate or prevent human health effects; also, the document resulting from that evaluation.


Public health hazard:
Sites that pose a public health hazard as the result of long-term exposures to hazardous substances.


Risk:
In risk assessment, the probability that something will cause injury, combined with the potential severity of that injury.


Route of exposure:
The way in which a person may contact a chemical substance. For example, drinking (ingestion) and bathing (skin contact) are two different routes of exposure to contaminants that may be found in water.


Superfund:
Another name for the Comprehensive Environmental Response, Compensation, and Liability Act of 1980 (CERCLA), which created ATSDR.


Superfund Amendments and Reauthorization Act (SARA):
The 1986 legislation that broadened ATSDR's responsibilities in the areas of public health assessments, establishment and maintenance of toxicologic databases, information dissemination, and medical education.


Volatile Organic Compounds (VOCs):
Substances containing carbon and different proportions of other elements such as hydrogen, oxygen, fluorine, chlorine, bromine, sulfur, or nitrogen; these substances easily become vapors or gases. A significant number of the VOCs are commonly used as solvents (paint thinners, lacquer thinner, degreasers, and dry cleaning fluids).

APPENDIX E: RESPONSES TO PUBLIC COMMENTS

The Agency for Toxic Substances and Disease Registry (ATSDR) received the following comments/questions during the public comment period (August 17 to September 29, 1999) for the Wright-Patterson Air Force Base (WPAFB) Public Health Assessment (PHA) (August 17, 1999). For comments that questioned the validity of statements made in the PHA, ATSDR verified or corrected the statements. The list of comments does not include editorial comments concerning such things as word spelling or sentence syntax.

  1. Comment: Page 1, paragraph 3; Page 5, paragraph 2; and Page 10, paragraph 3. Several reviewers provided comments regarding Landfills 8 and 10 at OU1. Comments focused on three main areas of concern 1) the adequacy of site sampling and soil gas characterization, 2) potential explosion hazards from methane gas, and 3) potential health hazards from other contaminants, such as benzene and vinyl chloride.
  2. Reviewers raised questions concerning the adequacy of the data and requested more information about sampling methods used to characterize soil gas at Landfills 8 and 10. One reviewer requested that ATSDR provide more information regarding the sampling regimen methodology to gather the data supporting the conclusions presented in the Summary section. For example, what measurement or analysis equipment was used and was methane specifically sampled for or was a non-specific combustible gas meter employed? ATSDR completed a Health Consultation for Landfills 8 and 10 in 1990. There was concern that no new data were available for the 1999 PHA and that past data were not adequate to draw conclusions regarding public health hazards.

    In the 1990 Health Consultation for Landfills 8 an 10, ATSDR identified a potential explosion hazard from collection of methane in housing units located close to Landfills 8 and 10. The 1990 Soil Gas Investigation stated that methane exceeding its lower explosive limit (LEL = 50,000 ppm) was recorded in outdoor soil gas well locations "immediately adjacent" to housing units, in addition to LEL exceedances near the reported disposal trenches and other soil gas wells on the landfills proper. This suggests that an inhalation exposure pathway to a potential simple asphyxiant gas, methane, was occurring to Woodland Hills residents for a period from approximately 1973 through 1990. A reviewer recommended that the wording of the sentence "In 1990, methane was detected in soil gas in the vicinity of the landfills." (page 1, paragraph 3) be changed to "From 1985 though 1990, methane gas concentrations exceeding the lower explosive limit were detected in outdoor soil gas wells located within the landfills proper and also in areas adjacent to Woodland Hills residential homes on the eastern side of Landfill 10 and on the entire border of Landfill 8 within Woodland Hills homes."

    Reviewers also noted that cracks in the housing unit foundations that may provide migration pathways for methane, as noted in the 1990 Health Consultation, may also provide a migration pathway for exposure to many contaminants, including such known or probable human carcinogens such as benzene and vinyl chloride. These reviewers suggested that data presented did not seem sufficient to support a conclusion that possible low levels of contamination from OU1 in ambient air have not posed past health hazards. This concern should be addressed in the document.

    Response: Since 1985, the U.S. Air Force (USAF) has conducted numerous investigations to characterize soil gas at and migrating from Landfills 8 and 10. To keep the PHA concise and easily accessible to the public, ATSDR has not included a detailed discussion of sampling methodologies and data quality reviews. This information can be found in the sampling summary documents (referenced at the end of Appendix E). To provide a more complete understanding of soil gas characterization activities, however, ATSDR included more information about sampling events conducted from 1985 through 1991 under the discussion of the nature and extent of contamination at OU1 in this PHA. For the 1990 Health Consultation and 1991 follow-up, ATSDR reviewed sampling data collected between 1985 and winter 1991. Additional data, which were not available for ATSDR's 1991 review, were collected in from July through December 1991 (Engineering-Science, 1992 and 1993). These sampling data underwent strict quality assurance and quality control and data validation under EPA guidelines. In drawing conclusions about potential hazards from landfill gas at Landfills 8 and 10, ATSDR relied on the ambient air and indoor air sampling data from the July through December 1991 investigations.

    ATSDR agrees that sampling results indicate that past Woodland Hills residents may have been exposed to high levels of methane. Methane is a simple asphyxiant, therefore, no long term health effects from exposure to methane are expected. Of greater concern is methane's potential to accumulate in enclosed spaces and present an explosion hazard. The USAF has conducted remedial actions (installing a gas collection system and capping the landfills) to prevent current and future concerns about inhalation exposures and explosion hazards from methane. Based on the suggested text, ATSDR modified the wording of the sentence "In 1990, methane was detected in soil gas in the vicinity of the landfills." to read "From 1985 though 1991, methane gas concentrations exceeding the lower explosive limit were detected in outdoor soil gas wells located within the landfills proper, areas adjacent to housing units on the eastern side of Landfill 10, and around the perimeter of Landfill 8 within the Woodland Hills housing complex."

    ATSDR agrees that cracks in the housing unit foundations could have provided a migration pathway for landfills gases into homes. Indoor air sampling conducted in 1991, before remedial actions were implemented, found no contaminants at concentrations above health-based comparison values (CVs). Analysis of 40 ambient air samples collected over five sampling rounds in 1991 detected several contaminants above CVs. As such, ATSDR evaluated exposures to identify any potential health hazards, as detailed in Appendix C. The 1991 data used for this evaluation were collected and validated according to EPA guidelines and were, therefore, considered acceptable. ATSDR added text to the "Summary" section of this PHA to summarize this concern and the exposure evaluation results. Text was also added to the "ATSDR Involvement" section of this PHA to highlight the concern about potential exposures to contaminants other than methane, as discussed in the 1990 Health Consultation. More information about the 1991 sampling data used to evaluate exposures was also added to the "Nature and Extent of Contamination" section of this PHA.

  3. Comment: Page 2, paragraph 2 and Page 20, paragraph 5. The Ohio Department of Health (ODH), not the Ohio Environmental Protection Agency (OEPA), issued the fish consumption advisory for the Mad River from Dayton northward to Urbana. None of the information included in the ODH advisory specifically mentions WPAFB as a possible point source of polychlorinated biphenyl (PCB) contamination. The Meal Advice Advisory is provided for white sucker (restrict consumption to one 8-ounce meal per week) and common carp (restrict consumption to one 8-ounce meal per week) based on PCB contamination levels. In Table 8, PCB concentrations in fish tissue collected in the Mad River adjacent to WPAFB were found to be at least two orders of magnitude greater than the CV.
  4. Response: The sentences referring to the fishing restriction in the Mad River (page 2, paragraph 2, sentences 4 and 5) were changed to read, "The Ohio Department of Health has issued a fish consumption advisory for the Mad River between Dayton and Urbana, Ohio, to reduce intake of contaminated fish tissue. This advisory indicates that people should eat no more than one 8-ounce meal of white sucker or common carp caught from the Mad River per week. This advisory is based on levels of PCBs found in fish tissue samples, however, no on-base sources of PCBs have been found during investigations at WPAFB." The text on pages 20 (bullet 3), 23 (bullet 5), and 29 (conclusion number 3) were also modified accordingly.

  5. Comment: Page 17, paragraph 2. This section states that the three chemicals tested in 1998 after treatment exceed CVs. It should clearly state whether this treated water was above or below MCLs.
  6. Response: The text was changed to read, "Sampling of the treated water in 1998 detected chloroform, bromodichloromethane, and dibromochloromethane at concentrations above CVs, but below EPA's MCLs."

  7. Comment: Page 30, last bullet. The recommendation for fish tissue sampling may be interpreted as being a necessity to prevent the consumption of contaminated fish. One suggestion is to replace the "believes" in the first sentence with the word "concludes".
  8. Response: The word "believes" was replaced with "concludes" as suggested.

  9. Comment: Page 30, recommended action 2. A draft Record of Decision (ROD) for the WPAFB Groundwater OU had been circulated for comment as of September 7, 1999, and is in the final stages of regulatory agency approval.
  10. Response: This recommendation was deleted because the USAF, with oversight by regulatory agencies, is in the final stages of receiving approval of the Groundwater OU ROD. The third bullet under "Ongoing and Planned Actions" (page 30) was modified as follows to reflect the status of the Groundwater OU ROD, "The USAF, with oversight by regulatory agencies, finalized the ROD September 29, 1999."

  11. Comment: Page 48, Table 1, column 4 for Spill Site 11. The groundwater OU draft ROD in September 1999 proposed a further action of in situ oxidation (most likely using potassium permanganate and peroxide compounds) to attempt to reduce groundwater concentrations of vinyl chloride and other semi-volatile organic compounds. This remedy will be conducted in multiple phases including pilot testing and incremental oxidation injection, with accompanying monitoring. No projected date of implementation has been established. This is also discussed in the table on page 56.
  12. Response: Only remedial actions associated with soil contamination are discussed under the "Corrective Activities and/or Current Status" entry on page 48 for Site Spill 11. The text under this heading was modified to read "No further action is proposed for soil contamination. Soil contamination at this site was included in the 1998 ROD for 41 No Action Sites. Groundwater remediation is addressed under the BMP."

    Remedial actions planned to address groundwater contamination at Site Spill 11 are discussed under the Basewide Monitoring Program (BMP) (page 56). The entry under "Corrective Activities and/or Current Status" for the BMP discusses the proposed long-term monitoring and in situ oxidation activities proposed at Site Spill 11.

References

Engineering-Science, Inc. 1989. Methane Migration Study, Work Plan for Landfills 8 and 10. November 1989.

Engineering-Science, Inc. 1990. Analysis of Soil Gas Survey Results for Landfill 8, the Fire Training Area Adjacent to Landfill 8, Landfill 10, and the Chemical Disposal Trenches at Wright-Patterson Air Force Base, Ohio. May 1990.

Engineering-Science, Inc. 1991. Methane Gas Migration Study Summary Report. June 1991.

Engineering-Science, Inc. 1992. Focused Remedial Investigation Report for Landfills 8 and 10 at Wright-Patterson Air Force Base, Ohio. March 15, 1992.

Engineering-Science, Inc. 1993. Off-Source Remedial Investigation Report for Landfills 8 and 10 at Wright-Patterson Air Force Base, Ohio. August 12, 1993 (Revision No. 2).
