PUBLIC HEALTH ASSESSMENT

TINKER AIR FORCE (SOLDIER CR/BUILDING 3001)
MIDWEST CITY, OKLAHOMA COUNTY, OKLAHOMA

ENVIRONMENTAL CONTAMINATION AND OTHER HAZARDS

The public health assessment identifies the contaminants of concern found on and off site anddescribes what environmental sampling has been conducted; how contaminants of concern aredistributed in different environmental media; and what other (physical or biologic) hazards are onsite.

Contaminants are selected for discussion after consideration of the following factors:

  • concentrations of contaminants on and off the site, or other evidence of release;
  • field data quality, laboratory data quality, and sample design;
  • community health concerns;
  • comparisons of on-site and off-site concentrations with comparison values for noncancer and cancer outcomes; and
  • other factors including evidence of carcinogenicity, absence of an appropriate comparisonvalue, exposure to multiple contaminants, interactive effects, fate and transport, state exposurelimits lower than ATSDR's, and health outcome data.

Any of the listed factors may support the identification of a substance as a contaminant ofconcern. The interpretation and evaluation of the factors depend on current scientific knowledge,public health policies, and professional judgment. As science and policies evolve, there may be aneed to revisit a site, to reevaluate past information, or to evaluate new information.

Health comparison values are media-specific (water, soil or air) concentrations calculated fromvarious health guidelines designed to protect public health. These values are not legallyenforceable, but are used to make decisions to include the contaminants for further public healthevaluation. The fact that a contaminant is discussed in this section does not mean that site-specific exposure to the substance will result in adverse health effects. Rather, the listed contaminants will receive additional public health evaluation in subsequent sections of this public health assessment.

The following health guidelines and comparison values may be used in the narrative or datatables of this section.

CLHA Child Longer-Term Health Advisory: Derived by EPA. It is a drinking water concentration at which adverse noncancerous health effects would not be expected in children after exposure up to seven years in duration.
CREG Cancer Risk Evaluation Guide: Derived by ATSDR from the EPA cancer slope factor(CSF). It represents a concentration in water, soil, or air at which excess cancer risk is not likely to exceed one case of cancer in a million persons exposed over a lifetime.
CSF Cancer Slope Factor: EPA's quantitative assessment to define the relationship between the chemical dose and carcinogenic effects.
EMEG Environmental Media Evaluation Guide: Derived by ATSDR from ATSDR's minimalrisk level (MRL). It is the concentration in water, soil, or air at which daily human exposure is unlikely to result in adverse noncancerous effects.
Lead Action Level Since 1991, EPA's regulatory level for lead in drinking water has been 15 ppb. This action level prevents known or anticipated adverse human health effects to the extent feasible.41
LTHA Lifetime Health Advisory: Derived by EPA. It is a drinking water concentration at which adverse noncancerous health effects would not be expected.
MAAC Maximum Acceptable Ambient Concentration: The MAAC is a state air value used as areference or indicator to trigger possible modifications to industrial (i.e., the IWTP) processes.
MCL Maximum Contaminant Level: Enforceable drinking water regulation established by EPAthat is protective of human health to the "extent feasible" over a lifetime. MCLs take intoaccount technological and economic feasibility.
MCLGMaximum Contaminant Level Goal: Non-enforceable drinking water health goalrecommended by EPA and set at a level at which no known or anticipated adverse human healtheffects are expected.
MRL Minimal Risk Level: An estimate of the daily human exposure to a contaminant that islikely to be without a significant risk of non-cancerous adverse health effects over a specifiedduration.
RfD Oral Reference Dose: EPA's estimate of a daily exposure that is likely to be without asignificant risk of non-cancerous adverse health effects over a lifetime.
RMEG Reference Dose Media Evaluation Guide: Derived by ATSDR from the EPA oralreference dose (RfD). It is the concentration in water or soil at which daily human exposure isunlikely to result in adverse noncancerous effects.

If a contaminant concentration exceeds it's health comparison value, it is designated acontaminant of concern. In addition, a contaminant is designated a contaminant of concern ifthey are classified as carcinogens or potential carcinogens by 1) the National ToxicologyProgram in the Department of Health and Human Services, 2) the EPA, or 3) the InternationalAgency for Research on Cancer. CREGs and EMEGs are the first choice for a health comparisonvalue. If a CREG or EMEG is not available, the following values (in order of preference) will bechosen for the health comparison value: the RMEG, the LTHA or CLHA (whichever is lower),the MCLG, or the MCL. However, some contaminants have no health comparison values. Thechemical-specific scientific literature is used in the selection of these contaminants ascontaminants of concern.

Contaminants exceeding health comparison values were detected at several of the IRP sites atTinker. However, we have determined that people are not coming into contact withcontamination at all of these sites. An overview of the contamination of the groundwater, soils,surface water, and other environmental media for sites which we have determined do not havecompleted exposure pathways is presented in Appendix C. Contamination detected at sites thathave been identified to have completed exposure pathways are presented in the followingdiscussion.

Groundwater

The past activities within Building 3001 have resulted in contamination of the on-basegroundwater with chlorinated solvents and heavy metals. The primary contaminants aretrichloroethylene (TCE) and chromium. Chemical tests of the valency states of the chromiumindicate that most is hexavalent chromium, the most toxic form. The groundwater beneathTinker occurs as two shallow water bearing zones overlaying a regional aquifer. The upper, non-producing portion of the regional aquifer has been divided conceptually into two zones, the uppersaturated zone (5 to 70 feet below ground surface) and the lower saturated zone (50 to 100 feetbelow ground surface).42 Below these zones at depths of 250 to 700 feet the aquifer is referredto as the producing zone. The highest contaminant concentrations are beneath Building 3001 inthe upper saturated zone; maximum concentrations of 330,000 ppb of TCE and 80,000 ppb ofchromium were detected in monitoring wells in 1988. Maximum concentrations were 30,000ppb TCE and 1700 ppb chromium in the lower saturated zone and 1000 ppb TCE and 1200 ppbchromium in the regional zone in the same year.43

Base Supply Wells

Five of the seven base water supply wells located near Building 3001 are no longer in use. Thewells currently in use are in compliance with the Safe Drinking Water Act and are not of publichealth concern. However, past exposures to metals detected in the active wells and to VOCs inthe inactive wells are a potential concern.

Tinker's base supply wells pump water from the producing zone.43 Thirty-one base wells areshown on Figure 5. Seven of those wells have been plugged: wells 6, 10, and 28 due toconstruction projects that required the wells to be physically eliminated and wells 16, 17, 18, and19 due to contamination or location near contaminant plume.

Seven base water supply wells are located (see Figure 5) in the vicinity of Building 3001 (well numbers 13-19). Wells 18 and 19 are inside Building 3001 near the area of maximumgroundwater contamination. In September - November, 1983, sampling of base supply wellsdetected VOCs significantly above health comparison values in well 18 (280 - 1642 ppb TCE). VOCs were also detected in well 19, but at much lower concentrations (ND - 5.7 ppb TCE). These wells were taken out of service that same year. During a 1984 investigation of well 18,which included pumping and testing for VOCs, TCE concentrations ranged from 1800 to 4600ppb.43 Maximum concentrations of contaminants of concern detected in well 18 and 19 during1983 and 1984 are presented in Table 2. These wells are screened to a depth greater than 200feet. The groundwater contamination does not extend this deep into the aquifer, therefore, theAir Force conducted a study to determine how the contamination reached these deep wells (well 18 and 19). A study in 1986 concluded that contaminants were entering both wells throughcorrosion holes in the upper zones and traveling downward through the casing and the annularspace between the casing and the formation.44 This cross connection of the aquifer zones waseliminated when both wells were plugged in 1986.43 TCE was detected at 2400 ppb in well 18during this investigation.

During the time wells 18 and 19 were being investigated, well 17 was inoperable and could notbe sampled. Since the well was not necessary to maintain water supply capacity and it waslocated downgradient of the contaminant plume, the base decided the well should be plugged. This was completed in November of 1988. During the plugging operation the well was sampledand analyzed for volatile and semi-volatile organic compounds. TCE was detected at aconcentration of 4 ppb. No other contaminants were detected at significant concentrations.45

Supply wells 13-16, which are connected directly to the distribution system, were sampledapproximately quarterly from September 1986 to August 1990. The parameters analyzed forincluded volatile and semi-volatile organic compounds and metals. Compounds detected thatexceeded comparison values are presented in Table 3. Methylene chloride and phthalates areincluded in the table. However, these compounds were also detected in similar concentrations(1-15 ppb) in field and laboratory quality control blanks.46

Supply well 16 was closed March 26, 1990, and was plugged in December 1990 as aprecautionary measure. This well is located where groundwater contamination is known to existin the shallow aquifer between Building 3001 and the Industrial Wastewater Treatment Plant. For the same reason, well 15 was inactivated in March 1993.9

Well 13 has not been in service since April 1994 due to maintenance.47

Well 14 is still in use and monitored in accordance with the Safe Drinking Water Act (seeAppendix D for a description of the Safe Drinking Water Act). These regulations are enforcedby the EPA.48 Analysis of water from wells 13 and 14 in 1989 and 1992 showed no presence ofVOCs. Metals (lead, arsenic, selenium) were detected above ATSDR health guidelines in thesewells in 1986-1990 (see Table 3). Some metals detected may be naturally occurring; groundwater concentrations of arsenic and selenium greater than MCLs are common in theGarber Sandstone and Wellington Formation.49 Monthly sampling which began in July 1994has detected no contaminants above HCVs or MCLs in well 14.50

Arsenic was not detected above the regulatory MCL of 50 ppb. However, arsenic is a carcinogenand, therefore, is included as a contaminant of concern. Lead was detected (68 ppb) in well 13above the MCL of 50 ppb, the value that was regulated at the time of sampling (1986). All othersamples were not above the MCL. However, in 1991 EPA developed an action level of 15 ppbfor lead in drinking water sources. The concentrations detected in 1986 (33 and 40 ppb) and1988 (68 ppb) exceeded this current action level. Therefore, although not out of compliance atthe time of sampling, the past exposures are a potential concern based on new scientificinformation. Selenium concentrations exceeded the interim MCL of 50 ppb (a value that is notlegally enforceable) in 1986, 1988, 1989, and 1990.

Table 2.

Groundwater Contaminants
Base Supply Wells 18 and 1951
ContaminantWell 18Well 19CVa
(ppb)
1983
Max (ppb)
1984
Max (ppb)
1983
Max (ppb)
1984
Max (ppb)
1,1-dichloroethane221.9NRbNRN/Ac
1,2-dichloroethane6626traceNR0.4 CREG
trichloroethylene164246005.7trace3 CREG
tetrachloroethylene4330.112.37.00.7 CREG
1,1,2-trichloroethane524.5NRNR0.6 CREG
a CV - Health comparison value
b NR - Not reported
c N/A - Comparison value is not available


Table 3.

Groundwater Contaminants in Base Supply Wells
Quarterly Sampling 1986-199052
ContaminantConcentration range (ppb)Frequency of DetectionLocation
of Maximum
Year of MaximumComparison Value (ppb)
Lead*14-683/10well 13198815 EPA action level (since 1991)
50 MCL (before 1991)
Methylene Chloride0.4 -274/14well 1319875.0 CREG
Bis-2-ethylhexylphthalate111/13well 131988 3.0 CREG
Arsenic**4-147/9well 1419880.02 CREG
Selenium0.4-1407/8well 141986 70 EMEG
* Contaminants are class B2 carcinogens per EPA IRIS database.
** Contaminants are class A carcinogens per EPA IRIS database.

Off-Site Wells

Off-site private residential wells have been sampled by the Air Force and the Oklahoma StateHealth Department (OSHD). Contaminants detected in off-site private wells near Tinker AFBthat exceed health comparison values are listed in Table 4.

    Air Force Sampling

During the 1990 Phase I remedial investigation of Soldier Creek, groundwater from eight off-base residential wells was sampled and analyzed for VOCs, semi-VOCs, and metals. Figure 3shows the off-base wells sampled by the Air Force are not concentrated in one area of concern,but are located sporadically around the base. Volatile organic compounds and metals exceedinghealth comparison values were detected northeast of Tinker in the water from one well (GO7).53 However, VOCs were not detected in two wells (G03 and G08) located immediatelynorth/northeast of the base (adjacent to the base). Barium was detected in well G08 above healthcomparison values. Contamination was not detected in the other five wells sampled.

The sampling results do not establish a direct link between contamination on base and thatdetected to the north and northeast, and published reports demonstrate conflicting conclusionsregarding off-base migration. Available data including the inconsistent distribution ofcontamination suggests that multiple sources may be impacting the areas in question. Tinker iscontinuing to investigate the area.

    State Sampling

In April 1990, Tinker officials held a public meeting to present the Groundwater RemedialAction Plan for Building 3001. During the meeting, citizens expressed concern over possiblecontamination of nearby private drinking water wells north and east of Tinker. In response tothis concern, the Oklahoma State Health Department (OSDH) initiated a program in the samemonth to sample private wells in the area.54 The samples were analyzed for the regulated andunregulated VOCs listed in Appendix E. Unregulated contaminants are those contaminants that have an established monitoring requirement by EPA but do not have an associated finalMaximum Contaminant Level Goal (MCLG), MCL, or treatment technique.55

The initial sampling by the state included 26 wells that were north and east of Tinker.54 Duringthe next year, over 100 additional wells in the area were sampled. In March 1992, the samplingwas expanded to anyone who requested sampling that lived within 0.5 miles of 29th Street andDouglas Boulevard. Sampling was actually extended beyond the 0.5 mile radius (Figure 6). This expanded sampling area accounts for the sampling of wells outside the primary area ofconcern.56 Approximately 180 private wells were sampled in the state sampling program. Areasof primary concern included the Kimsey Addition neighborhood, areas (north and east) adjacentto the base, and the Evergreen Mobile Home Park.

Figure 6 shows the locations of the private wells that were sampled by the Oklahoma StateHealth Department. The purpose of the map is to indicate the general locations of private wellsthat were sampled, not the exact street address. Private wells are shown as contaminants notdetected, contaminants detected below health guidelines, and contaminants detected above healthguidelines. Contaminants detected included: tetrachloroethylene, trichloroethylene, 1,1-dichloroethane, cis-1,2-dichloroethene, 1,1,1-trichloroethane, 1,2-dichloroethane, 1,1-dichloroethene, chlorobenzene, benzene, 1,2-dichlorobenzene, 1,4-dichlorobenzene, 1,2-dibromomethane, xylene, toluene, 2-chlorotoluene, 1,2-dichloropropane, trichlorofluoromethane,vinyl chloride, and barium. The contaminants detected above health comparison values are listedin Table 4.

    Areas North and East of Tinker

Approximately 180 private wells in the areas north and east of Tinker were sampled during thestate sampling program (Figure 6). Concentrations of TCE and PCE above health comparisonsvalues were detected in a few of these wells. The maximum concentration of PCE detected was20.1 ppb and the maximum concentration of TCE detected was 13.8 ppb.

On December 3, 1990, the Air Force began providing bottled water to residents north/northeastof Tinker who had private wells with concentrations detected above the MCL.57 The majority ofthe residences were hooked up to municipal water between September 1993 - May 1994. Allprivate wells will be sealed contingent upon the homeowners signing Conveyance and Covenantdocuments.58 These documents give permission to connect the residence to the municipal watersupply and to plug the private wells. Most homeowners have signed a Conveyance andCovenant document.59 All private wells at locations where the owner has given permissionwere sealed by October 1994. However, at least three wells have not been sealed because theowner has not granted permission.60 If letters of consent are not obtained, the state plans toinitiate a process to condemn the wells.61

Figure 6
Figure 6.

Table 4.

Groundwater Contaminants
Off-site Private Wells
ContaminantConcentration range (ppb)cFreqdCV (ppb) / Reference
1,2 Dichloroethanea0.74 - 46.04/1800.4 CREG
Tetrachloroethylenea1.06 - 20.112/1800.7 CREG
Trichloroethylenea5.2 - 13.84/1803.0 CREG
Benzenea1.4 - 21.03/1801.0 CREG
Bariumb304-12208/8b700
Child RMEG
a      State of Oklahoma Health Department data56
b      Air Force Soldier Creek Remedial Investigation (RI)53. Only 8 wells were sampled and analyzed for barium.
c      The range detected does not include "not detected" samples. It is the range of concentrations detected at the site.
d      Frequency of detections above health comparison values. Approximately 180 wells were sampled.
    Evergreen Mobile Home Park

Benzene was detected at 21.0 ppb in one of the two supply wells at the Evergreen Mobile HomePark on October 8, 1991.62 This concentration exceeds the MCL of 5 ppb. The supply wells atthe mobile home park also supplied water to the convenience store on Douglas Boulevard.62 OSDH closed the contaminated well and advised the residents to use the remaining supply wellfor non-drinking use only. The Oklahoma Corporation Commission provided the mobile homepark and the convenience store with bottled water through the EPA LUST (leaking undergroundstorage tank) Trust Fund on October 11, 1991.63 Both were supplied with municipal water inJuly 1993.64 The Oklahoma Water Resources Board concluded that the underground storagetank system located at the Tank and Tummy convenience store is the probable source of benzenein the well at the Evergreen Mobile Home Park.65

Surface Water and Sediment

Surface water and sediment samples were taken along Soldier, Crutcho, Kuhlman, and ElmCreeks (Figures 3 and 7). Soldier Creek is divided into East Soldier Creek, West Soldier Creekand Main Soldier Creek. Contaminants from the base may enter these creeks through directdischarge (as shown in outfall data), surface water runoff, storm drainage systems, andgroundwater discharge. The contaminants may migrate off base in the surface water andsediment.

Soldier Creek

No contaminants exceeding health comparison values were detected in the surface water orsediment in Main Soldier Creek. Contaminants detected in surface water and sediment of EastSoldier Creek that exceeded health comparison values included VOCs, semi-VOCs, and metals. Several metals detected in surface water of West Soldier Creek exceeded health comparisonvalues. Contaminants detected in sediment of West Soldier Creek that exceeded comparisonvalues included semi-VOCs and metals.

Forty-eight composite and grab surface water samples were collected during Phase I and II of theSoldier Creek remedial investigation (RI).66 Composite and discrete grab surface water sampleswere collected from the mid-water column during Phase I and II of the RI. The compositesurface water samples were analyzed for semi-volatile organics on the target compound list(TCL) in Phase I and II of the RI, metals and cyanide on the target analyte list (TAL) in Phase Iof the RI, and select metals (antimony, cadmium, chromium, and lead) and cyanide in Phase II ofthe RI. Special Analytical Services (SAS) were performed on samples from eight of thesampling locations including alkalinity, hardness, chemical oxygen demand (COD), totalsuspended solids (TSS), five day biochemical oxygen demand (BOD5), total organic carbon(TOC), and nitrates. The discrete grab samples were analyzed for volatile organics on the TCL.

One hundred and forty-one composite sediment samples and 137 grab sediment samples werecollected during Phase I and II of the Soldier Creek RI.67 Composite sediment samples werecollected from 0-6 and 6-12 inches during Phase I of the RI, and 0-1, 1-2, 2-3, 3-4, and 4-5 footintervals during Phase II of the RI. The composite sediment samples were analyzed for semi-volatile organics on the TCL and metals and cyanide on the TAL in Phase I of the RI; volatilesand metals (chromium, lead, antimony, and cadmium) and cyanide were analyzed during Phase IIof the RI. One location was analyzed for semi-volatile compounds during Phase II.67 Thediscrete grab sediment samples were analyzed for volatile organics on the TCL during Phase Iand II of the RI.

    Main Soldier Creek

No contaminants exceeding health comparison values were detected in the surface water orsediment in Main Soldier Creek.

    East Soldier Creek

    Surface Water

Contaminants detected in surface water of East Soldier Creek that exceeded health comparisonvalues included VOCs, semi-VOCs, and metals. Table 5 lists these contaminants, the rangedetected, frequency of detection, location of the sample with the maximum concentration, andthe respective health comparison value.

Table 5.

Concentrations in Surface Water Samples
East Soldier Creek
Phase I
ContaminantRange Detected
(ppb)a
Frequency of DetectionMaximum Conc. LocationComparison Value (ppb) / Reference
Bromodichloromethane**4.0- 6.02/13E090.6 CREG
Tetrachloroethylene1.00b - 3.03/13E09/E100.7 CREG
Arsenic*5.5c - 6.4c2/13E060.02 CREG
Chromium 11.4 - 15613/13E1050 child RMEG
Cobalt 4.2c - 11.2c10/13E10N/A
Lead** 2.0b - 6.89/13E02N/A
Manganese 11.7c - 49313/13E10200 RMEG
N/A Comparison values not available.
* Contaminants are Class A carcinogens per EPA IRIS database.
** Contaminants are Class B2 carcinogens per EPA IRIS database.
a Range detected does not include "not detected" samples. The range detected is the range of concentrations detected at the site.
b Indicates numerical value is an estimated quantity.
c The material was analyzed for, but was not detected above the level of the associated value. The associated value is either the sample quantitation limit or the sample detection limit.
    Sediment

Contaminants detected in sediment of East Soldier Creek that exceeded comparison values included VOCs, semi-VOCs, and metals. Table 6 lists these contaminants, the range detected, frequency of detection, location of the sample with the maximum concentration, and the respective health comparison value.

Table 6.

Concentrations in Sediment Soil Samples
(0-6 inches)
East Soldier Creek
ContaminantRange Detected (ppm)aFrequency of DetectionMaximum Conc. LocationCV (ppm) / Reference
Tetrachloroethylene0.002b- 83b2/13E0310 CREG
Acenaphthene0.12 -0.256/13E04N/A
Dibenzofuran0.035 -0.345/13E03N/A
Phenanthrene0.051 -6.711/13E03N/A
DI-n-butylphthalate0.027 -0.119/13E08N/A
Benz(a)anthracene*0.042 -4.811/13E03N/A
Chrysene*0.063 -5.411/13E03N/A
Benzo(b)fluoranthene*0.039 - 5.09/13E03N/A
Benzo(k)fluoranthene*0.048 - 5.38/13E03N/A
Benzo(a)pyrene*0.027 - 4.110/13E030.1 CREG
Indeno(1,2,3-cd)pyrene*0.14 - 2.17/13E03N/A
Benzo(g,h,i)perylene0.14 - 1.38/13E03/E04N/A
Beryllium* 0.26c- 0.77c11/13E120.2 CREG
Cadmium 1.30 - 32412/13E0940

child EMEG

Chromium 11.6 - 119013/13E09 300

child RMEG

Lead* 8.1 - 58613/13E09N/A
Magnesium 1490 - 2040013/13E02N/A
Manganese 118 - 100013/13E02300
child RMEG
N/A Comparison values are not available.
* Contaminants are Class B2 carcinogens per EPA IRIS database.
a Range detected does not include "not detected" samples. The range detected is the range of concentrations detected at the site.
b Indicates numerical value is an estimated quantity.
c The material was analyzed for, but was not detected above the associated value. The associated value is either the sample quantitation limit or the sample detection limit.

The IWTP is permitted to discharge treated effluent into East Soldier Creek under the NationalPollutant Discharge Elimination System (NPDES). From September 1988 to January 1994Tinker reported approximately 700 noncompliance discharges of the NPDES permit. Graphs ofthe average and maximum monthly discharge concentrations from 1988-1994 are included inAppendix I. The graphs show the relationship of the NPDES permit limit, the relevant healthstandard, and the monthly discharge concentration (average and maximum). Table 7 lists themaximum concentrations of individual chemicals reported from September 1988 to January 1994.68

Table 7.

Maximum Value of NPDES Noncompliance Discharges from September 1988 to January 1994
ParameterPermit Limit
(ppm)
Maximum Reported
Excursion (ppm)
Date
Chromium0.101.966/89
Cadmium0.020.063/88
Chromium VI0.100.5412/89
Copper0.051.001/89
Lead0.101.0012/89
Zinc0.6018.008/89
Cyanide0.0250.182/89
Phenol0.2012.0010/91
Phosphorus5.009.301/89

    West Soldier Creek

    Surface Water

Several metals detected in surface water of West Soldier Creek exceeded health comparisonvalues. Table 8 lists the metals, the range detected, the frequency of detection, location of the sample with the maximum concentration, and the respective health comparison value. The maximum concentration is detected at location W03 for all contaminants but manganese listed in Table 8. The concentrations of contaminants detected at this location are several fold greater than the concentrations detected at all other sampling locations on West Soldier Creek. Therefore, it appears this location may be a primary source(s) of contaminants to West Soldier Creek.

    Sediment

Contaminants detected in sediments of West Soldier Creek that exceeded comparison valuesincluded semi-VOCs and metals. Table 9 lists these contaminants, the range detected, thefrequency of detection, location of the sample with the maximum concentration, and therespective health comparison value. All concentrations detected during the Phase II investigationwere less than the maximum concentrations detected in Phase I.

The maximum concentrations of all contaminants but manganese were detected at locations W03and W04. This pattern of contamination coincides with the maximum surface waterconcentrations detected in West Soldier Creek (see above).

Table 8.

Concentrations in Surface Water Samples

West Soldier Creek
Phase I
ContaminantConc. Range
(ppb)
Frequency of
Detection
Maximum Conc. Location CV(ppb)
Reference
Antimony28 - 31.92/6W034 child RMEG
Cadmium56.91/6W037 child
EMEG
Chromium6.3 -6286/6W0350 child RMEG
Lead*1.1 - 3255/6W03N/A
Manganese13.4 - 3356/6W0850 child
RMEG
Nickel523 -35602/6W03200 child RMEG
Vanadium7 -675/6W0330 child int EMEG
N/A Comparison values not available.
* Contaminants are Class B2 carcinogens per EPA IRIS database.



Table 9.

Sediment Samples: West Soldier Creek (0-6 inches)
ContaminantRange Detected
(ppm)a
Frequency of DetectionMaximum Conc. LocationCV (ppm)/
Reference
Phenanthrene0.015 - 6.06/8W03N/A
Benzo(a)anthracene**0.11 - 4.24/8W03N/A
Chrysene**0.17 - 7.15/8W03N/A
Benzo(b)fluoranthene**0.15 - 9.25/8W03N/A
Benzo(k)fluoranthene**0.15 - 1.43/8W04N/A
Benzo(a)pyrene**0.18 - 4.45/8W030.1 CREG
Arsenic* 0.97 - 3.46/8W040.4 CREG
Beryllium** 0.35 - 0.937/8W010.2 CREG
Cadmium 1.0 - 93.46/8W0440 child
EMEG
Chromium 11.6 - 20208/8W04300 child
RMEG
Cobalt 4.8 - 52.17/8W03N/A
Lead** 3.2 - 2438/8W03N/A
Manganese 8.8 - 9568/8W01300 child
RMEG
Nickel 4.9 - 22708/8W031000 child
RMEG
N/A Comparison values not available.
* Contaminants are Class A carcinogens per EPA IRIS database.
** Contaminants are Class B2 carcinogens per EPA IRIS database.
a Range detected does not include "not detected" samples. The range detected is the range of concentrations detected at the site.
b Indicates numerical value is an estimated quantity.
c The material was analyzed for, but was not detected above the level of the associated value. The associated value is either the sample quantitation limit or the sample detection limit.

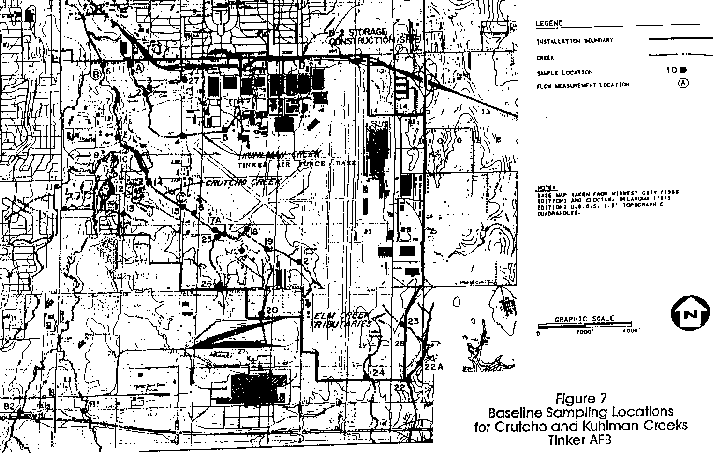

Figure 7
Figure 7.

Crutcho, Kuhlman and Elm Creeks

Contaminants detected above health comparison values in the sediments of Crutcho, Kuhlman,and Elm Creeks include inorganics, VOCs, SVOCs, and pesticides/PCBs. None of these weredetected above health comparison values in surface water samples.

Baseline sediment and surface water samples were collected July 4-8 and October 26-29, 1991,from 27 of the 29 sample locations shown in Figure 7.69 Locations 17A and 22A were notsampled as part of the baseline data collection activities. Nineteen locations are on CrutchoCreek. Six sampling locations (1-5 and 27) are on Kuhlman Creek. The remaining fourlocations (22, 22A, 23 and 24) are on the tributaries of Elm Creek. The samples were analyzedfor the parameters listed in Appendix F.

Confirmation data collection occurred in February and May 1992. In February, sediment andsurface water were sampled at 11 creek locations to better define the nature and extent ofcontaminants identified in the 1991 baseline samples.69 Surface water was re-collected fromseven of the eleven sampling locations in May to monitor seasonal variations in contaminantrelease.69

    Surface water

No concentrations of inorganics, VOCs, SVOCs, or pesticides/PCBs were detected above healthcomparison values in surface water samples from Crutcho, Kuhlman, or Elm creeks.

    Sediment

In July 1991, sediment samples were analyzed for 26 target inorganics and in February 1992,sediment samples were analyzed for 17 target inorganics. Six inorganics were detected atconcentrations above their respective health comparison values. During the 1991 samplingphase, samples were analyzed for semi-volatile organic compounds (SVOCs). The only SVOCdetected above it's health comparison value was benzo(a)pyrene. Benzo(a)pyrene was detected at350 ug/kg, exceeding the CREG of 100 ug/kg, at sampling location SDO1 on Kuhlman Creek.

In sediment samples collected in February 1992, SVOCs were present at two sampling locations. At SD01 on Kuhlman Creek, eight PAHs were detected that do not have health comparisonvalues. At SD05 on Kuhlman Creek, five PAHs and one phthalate, di-n-butylphthalate, that donot have health comparison values were detected. The pesticide 4,4-DDD was detected insample SD15 from Crutcho Creek at 18 ug/kg. Also, sample SD01 from Kuhlman Creekcontained Aroclor-1260 (a PCB) at a maximum of 160 ug/kg. All other SVOCs detected did notexceed their health comparison values.

The contaminants which exceeded their associated health comparison values from eithersampling round are listed in Table 10. The range detected, frequency of detection, location of themaximum concentration detected, and the respective health comparison value are also listed.

Table 10.

Sediment Samples: Crutcho, Kuhlman and Elm Creeks
(0-6 inches)
ContaminantRange Detected
(ppm)a
Frequency of detectionMaximum Conc. LocationCV (ppm)/
Reference
Arsenic*0.6b-22.3b34/34SDB1
(Crutcho)
0.4 CREG
Barium248b-10500b34/34SDB1
(Crutcho)
4000 child
RMEG
Beryllium** 11/34SD13
(Crutcho)
0.2 CREG
Chromium 6.7-40834/34SD15
(Crutcho)
300 child
RMEG
Manganese373b-1400b7/7SD16

(Crutcho)

300 child
RMEG
Lead** 3.7b-309b34/34SD26
(Crutcho)
N/A
4,4-DDD.018 1/10SD15
(Crutcho)
3.0
CREG
Aroclor-1260**.12-.22 2/10SD01
(Kuhlman)
N/A
N/A Comparison values not available.
* Contaminants are Class A carcinogens per EPA IRIS database.
** Contaminants are Class B2 carcinogens per EPA IRIS database.
a Range detected does not include "not detected" samples. The range detected is the range of concentrations detected at the site.
b Indicates numerical value is an estimated quantity.

Ambient Air

The Air Force conducted initial ambient air sampling at the IWTP on May 19, June 6, and June 16, 1993. Initial sampling was for hydrogen sulfide, methylene chloride, toluene, xylene,chloroform, and phenol. During the initial sampling phenol was detected in one of twelvesamples (24-hour averages) above the State of Oklahoma Maximum Acceptable AmbientConcentration (MAAC). The MAAC is used as a reference or indicator to trigger possiblemodifications to the IWTP process. Thus, the Air Force expanded the air sampling programduring the fall of 1993. In March 1994, ATSDR issued a Health Consultation based on theresults of the air sampling. The consultation is included in Appendix G.

Toxic Chemical Release Inventory Database

The Toxic Chemical Release Inventory (TRI), a database that contains information on releases oftoxic chemicals into the environment, was searched for toxic chemical releases in the MidwestCity area. The search revealed that contaminants were released into the air by ChromalloyDivision in 1987, 1988, and 1989. These contaminants were aluminum oxide, nitric acid,sodium hydroxide, and 1,1,1-trichloroethane. None of the chemicals were released to otherenvironmental media. In 1989, Solvent Manufacturing Company reported a release of toluene tothe air. No data are available prior to 1987 or after 1989.

Quality Assurance and Quality Control

In preparing this public health assessment, ATSDR relied on information provided by the AirForce and its contractors, Oklahoma State Department of Health, Oklahoma Water ResourcesBoard, and the City-County Health Department of Oklahoma County and assumed that adequatequality assurance and quality control measures were followed with regard to chain of custody,laboratory procedures, and data reporting. The validity of the analysis and conclusions drawn inthis public health assessment depend on the completeness and reliability of the referencedinformation. ATSDR found no indication the data reviewed was invalid.

Physical and Other Hazards

Crutcho Creek is posted with a sign reading "Playing In Creek Prohibited" near the on-baseschool.5 The creek channel is concrete lined in this area and the posting is an effort to preventaccidents such as those involving skate boards and bicycles.

PATHWAYS ANALYSIS

To determine whether people living or working near Tinker AFB have been, are, or will beexposed to site contaminants, ATSDR evaluates the environmental and human componentsleading to human exposure. The process by which people have been, are, or will be exposed tocontaminants is called an exposure pathway. An exposure pathway consists of five elements:

  • a source of contamination (point of original release of a contaminant, or a contaminated medium at or near point of exposure, if original source unknown);
  • contaminated environmental medium (at point of exposure; the way contaminants may be transported and transformed are considered);
  • point of exposure (location, structure, or device where people contact a contaminant);
  • route of exposure (means by which a contaminant enters the body: eating, breathing, touching); and
  • population at point of exposure.

If all five elements exist, and people have been, are, or will probably be exposed, ATSDRconsiders the exposure pathway completed. A completed exposure pathway does not necessarilyindicate a public health concern. If one (or more) of the elements is missing, but informationsuggests that it (they) could exist, ATSDR considers the pathway potential. If one or more of theelements is missing and could never exist, ATSDR eliminates the suspected pathway fromfurther consideration.

Completed Exposure Pathways

In this public health evaluation, five completed exposure pathways have been identified. Twocompleted pathways involve the groundwater: past use of contaminated base supply wells atTinker and past and possible current and future use of contaminated private wells in theneighborhoods adjacent to Tinker. Two completed pathways pertain to the surface water andsediments of Soldier, Crutcho, Kuhlman, and Elm Creeks. The fifth pathway is a result of pastemissions from the IWTP to the ambient air. A summary of the pathways are presented in Table 11.

Groundwater

Past activities within Building 3001 have resulted in contamination of the on-base groundwaterwith chlorinated solvents and heavy metals. The primary contaminants are trichloroethylene andchromium.43

Table 11.

Completed Exposure Pathways
PathwayTimeExposure Pathway Elements
SourceEnvironmental MediumPoint of ExposureRoute of ExposureExposed Population
Base supply wellsPastMultiple1GroundwaterWater tapsIngestionWorkers
Private wellsPast
Current
Future
MultipleGroundwaterWater tapsIngestion
Skin contact
Inhalation
Residents
Ambient airPastIWTP emissionsAmbient airResidences and businesses adjacent to IWTPInhalationResidents
Workers
SedimentPast
Current
Future
IWTP effluent
Base outfalls
Off-base outfalls
SedimentSoldier, Crutcho, Kuhlman, and Elm CreeksIngestion
Skin contact
Children
Workers
Surface waterPast
Current
Future
IWTP effluent
Base outfalls
Off-base outfalls
Surface waterSoldier, Crutcho, Kuhlman, and Elm CreeksIngestion
Skin contact
Children
Workers
1 Several potential sources of groundwater contamination were identified both on and off base. See discussion in text.
    Base Supply Wells

A past completed exposure pathway has been identified for base supply wells 18 and 19. VOCswere first detected in base wells 18 and 19 in 1983 (see Table 2). Exposures ceased when these wells were closed in 1984. Base personnel who used water from supply wells 18 and 19 wereexposed to the contaminants through the exposure routes of ingestion, inhalation, and dermalabsorption. ATSDR was unable to determine the concentrations people were exposed to,duration of the exposure, or population that was exposed. It is likely that the concentrations thatpeople were exposed to were less that those detected in well 18. Water is pumped into thedistribution system with holding tanks positioned along the system. Therefore, the addition ofuncontaminated water from other base supply wells would dilute the concentrations ofcontaminants in the water delivered at the tap. The maximum concentration of TCE detected inwell 18 in 1983 was 1642 ppb. Therefore, even with dilution by the uncontaminated water it islikely that people were exposed to levels above the MCL of 5 ppb. An estimate of how long basewells 18 and 19 were contaminated prior to closure in 1984 is difficult to determine. Samplingwas not required by the Safe Drinking Water Act prior to January 1988. Therefore, samplingresults are not available to determine when the wells became contaminated. The specific groupof people that used the contaminated water cannot be determined. However, water usage withinthe system is somewhat localized, water pumped into the distribution system from a supply wellis largely used by patrons within close proximity of the holding tank for that well.70

Base supply wells 15, 16, and 17 were closed as precautionary measures because the wells werein the vicinity of the groundwater contamination. Concentrations of VOCs of public healthconcern were not detected in wells 15, 16, or 17 during the time the base was using the wells as asource for the base water supply.

Base supply wells 13 and 14 are still in use. Concentrations of lead, arsenic, chromium, andselenium slightly above current ATSDR health guidelines were detected in these wells between1986-1990. Although the concentrations were slightly above ATSDR guidelines, only oneconcentration (68 ppb lead in 1988) was greater than the respective MCL, the regulatory value. Groundwater concentrations of arsenic and selenium greater than MCLs are common in theGarber Sandstone and Wellington Formation.49

The Safe Drinking Water Act requires sampling a minimum of every three years. However, toensure a safe drinking water system on base, wells 2, 7, 12, 14, and 27 are currently sampledmonthly. This will be reduced to quarterly sampling soon.

    Private wells

A past completed exposure pathway was identified for private wells north and northeast ofTinker. Contamination from Building 3001 (and its associated operable units) and the IWTPhave resulted in groundwater contamination within the base boundaries. Groundwater in theupper saturated zone situated near Building 3001 is moving off base to the northeast.54 A 1991investigation by the U.S. Army Corps of Engineers of off-base groundwater northeast of Tinkerconcluded that Tinker is not the source of the contamination detected by the OSDH in the privatewater supply wells north and northeast of the base.54 However, after reviewing the East SoldierCreek RI, OSDH contends that groundwater contaminants at Tinker appear to be migrating off-base to the north and northeast.71 Tinker is continuing to investigate the area, on- and off-base, as part of the Building 3001 NPL site to determine the nature and extent of contamination.

Several potential sources of groundwater contamination have been identified off base in the areanorth and northeast of Tinker. The Oklahoma Water Resources Board concluded that theunderground storage tank system located at the Tank and Tummy convenience store is theprobable source of benzene in the well at the Evergreen Mobile Home Park.72 Four sources of groundwater contamination have been identified by the Oklahoma Corporation Commission at the intersection of 29th Street and Douglas Boulevard. All of these releases aregasoline/petroleum products from USTs. None of the releases have been accurately quantified.73 Results of the site characterization indicate groundwater flow is generally to theeast.74 Therefore, this plume is a potential source of the contamination detected in private wells east of this intersection. Several potential sources of groundwater contamination exist in the areaincluding a paint shop, salvage yard, and a vacant lot which contains dumped materials.66

In the past, residents in the neighborhoods north and northeast of Tinker (see Figure 6) usedprivate wells for drinking water and non-drinking purposes such as watering yards and washingcars. Volatile organic compounds were detected in some of these wells by the OSDH in 1990and 1991. The people using contaminated wells for drinking water were exposed tocontaminants through the routes of ingestion, inhalation and dermal contact. The Air Forceissued bottled water to these residents in December 1990. Thus, the ingestion route of exposureceased for residents who used the bottled water. Residences in these neighborhoods wereprovided municipal water from either Midwest City or Oklahoma City between September 1993and May 1994.

As of November 1995, 12 private wells were not plugged. The owners of these wells have beenadvised to plug them. It is not known if all 12 wells are contaminated at levels that pose a publichealth hazard or if people are using the well water for potable purposes. Construction of newwells in the area northeast of Tinker is prohibited.75 However, since groundwater remediation isincomplete, the potential exist for contamination to migrate to the 12 unplugged wells if they arenear sources of groundwater contamination. Thus, current and future exposures are a potentialpublic health hazard.

Contamination was detected in the one of two supply wells at the Evergreen Mobile Home Parkon October 8, 1991. The Tank N Tummy convenience store also used drinking water from theEvergreen Mobile Home Park supply well. OSDH closed the contaminated well and advised theresidents to use the remaining supply well for non-potable (non-drinking) use only. Theconvenience store and residents of the mobile home park were provided bottled water on October11, 1991, by the Oklahoma Corporations Commission.76 Thus, mobile home park residents andconvenience store workers and customers were exposed to contaminated groundwater throughingestion, inhalation, and dermal contact prior to October 11, 1991. Since contaminants were notdetected at levels of concern in the remaining supply well, exposure at the trailer park shouldhave ceased when bottled water was issued. All possible exposure to contaminated water ceasedat this location when municipal water was supplied in July 1993.64

During sampling of off-base residential wells, VOCs (PCE and 1,2-dichloroethane) exceedinghealth comparison values were detected in the water from the Tinker Motel well. Motel guestsand residents were exposed to contaminated groundwater through ingestion, inhalation, anddermal contact. The motel was provided bottled water in 1990, thus, the ingestion route ofexposure ceased for people who drank the bottled water. However, the motel utilized well waterfor bathing and showering until it was connected to municipal water in September 1993. Thiswell is downgradient from the contaminant plume at the intersection of 29th Street and DouglasBoulevard.73,74 However, the plume boundaries have not been described and characterization of the plume is ongoing.

Surface Water and Sediments

Four surface water systems (creeks) serve as drainage ways for Tinker: Crutcho, Kuhlman,Soldier, and Elm Creeks. Children who live in neighborhoods north and northeast of Tinker areknown to play in East Soldier Creek. No information is available about the extent to whichchildren may play in Crutcho, Kuhlman, and West and Main Soldier Creeks. However, childrenhave ready access to the areas where Crutcho Creek runs through neighborhoods both on and offbase. Elm Creek flows through an undeveloped area on base and an industrialized area off base.Neither area is heavily populated, therefore, it is unlikely that children play in Elm Creek. Children who play in East Soldier Creek, and possibly the other creeks, are exposed tocontaminants present in surface waters and sediments through the routes of ingestion, inhalation,and dermal absorption.

On occasion, workers must work in and around East Soldier Creek near Building 3001 outfalls,the IWTP, and the Douglas Boulevard Bridge. Workers could be exposed to surface water andsediment contaminants via ingestion, inhalation, and dermal contact. Tinker has an industrialhygiene office that monitors worker exposures and ensures that each worker is adequatelyprotected via engineering controls and/or personal protective equipment.

Air

Contaminants released to the ambient air from the IWTP are dispersed by the wind. Prevailingwinds are in the direction of the Kimsey Addition neighborhood and the Child DevelopmentCenter. People in these areas are exposed via inhalation and dermal contact to airbornecontaminants emitted to the ambient air from the IWTP. Detailed information on this pathwaycan be found in Appendix G.

Potential Pathways

Two potential exposure pathways were identified in this public health evaluation: foodchaincontamination (garden vegetables) and exposure to surface water during an unusually elevatedNPDES permit discharge to East Soldier Creek.

Foodchain

Contamination of the foodchain is possible through bioaccumulation of contaminants fromsources such as contaminated water, sediment, and/or air. Vegetables and fruits grown in theneighborhoods north-northeast of Tinker may be potentially contaminated with chemicals thatare in the groundwater, in the sediments of the creeks, or in the ambient air. However,contamination of the foodchain in this area is unlikely.

Watering of vegetable gardens or fruit trees with contaminated private well water may provide aroute for the crops to bioaccumulate contaminants from the water. The State of OklahomaHealth Department analyzed private well water samples collected near Tinker for VOCs, but notfor inorganics (metals). However, Tinker AFB sampled eight private wells (G01 - G08) andseveral off-base monitoring well clusters during the RI/FS investigation of Soldier Creek. Thewells sampled by Tinker are identified on Figure 3.

The levels of VOCs or inorganics detected in the groundwater (both monitoring and privatewells) are not expected to result in significant bioaccumulation of the contaminants in plants. Barium is the only inorganic that was detected at a level above the health comparison value. Themaximum concentration detected was 1200 ppb. This concentration is not expected to result inbioaccumulation that would be of public health concern.

Contaminated sediment deposited in private gardens and yards as a result of flooding of creeks inthe area is another potential route for contamination of the food chain. However, flooding alongthe banks of East and West Soldier Creek is not a common occurrence.77 Therefore, significantdeposition of sediments in private gardens is not expected. In addition, contamination detectedin sediments along the creeks (Soldier, Crutcho, Kuhlman, and Elm) is not great enough forsignificant accumulation of contaminants to occur in yards and gardens as a result of infrequentflooding of the creeks. Therefore, it is unlikely that home grown fruits and vegetables arecontaminated by this route.

Contamination of plants may also occur as a result of deposition of airborne contaminants on thesurface of the crop (e.g., leaves or fruit) or by uptake of the contaminant by the plant tissues. Theconcentrations of contaminants detected in the air during the IWTP air sampling program are notexpected to result in significant contamination of home grown fruits and vegetables. However,thorough washing of home grown fruits and vegetables prior to preparation for consumption is apractical means of removing chemicals that may be deposited on the surface of the plant as aresult of gardening activities or atmospheric deposition.

Surface Water

Children playing in East Soldier Creek downstream of the IWTP could be exposed tocontaminants if they are playing in the stream when the plant discharge is not in compliance withthe NPDES permit (see Table 7). The majority of noncompliance discharges are not of healthconcern. The relationship of the health standard and the concentration discharged from 1988 to1994 are presented in chemical-specific graphs in Appendix I. Those graphs show that themajority of the discharges are less than the corresponding drinking water standard.

Although exposures of this nature would occur infrequently, in 1992 Tinker installed spill controlstructures immediately downstream of the IWTP discharge as a preventive measure. Thesestructures can be closed as soon as a release is suspected. In addition, Tinker plans to connectthe IWTP discharge to the Oklahoma City Regional Water District System by the end of 1995. The system will remain on-line as a pretreatment prior to discharge to the City system. Thisaction will eliminate non-compliance discharges from the IWTP into East Soldier Creek.


Next Section       Table of Contents



USA.gov: The U.S. Government's Official Web PortalDepartment of Health and Human Services
Agency for Toxic Substances and Disease Registry, 4770 Buford Hwy NE, Atlanta, GA 30341
Contact CDC: 800-232-4636 / TTY: 888-232-6348

A-Z Index

  1. A
  2. B
  3. C
  4. D
  5. E
  6. F
  7. G
  8. H
  9. I
  10. J
  11. K
  12. L
  13. M
  14. N
  15. O
  16. P
  17. Q
  18. R
  19. S
  20. T
  21. U
  22. V
  23. W
  24. X
  25. Y
  26. Z
  27. #
