PUBLIC HEALTH ASSESSMENT

HART CREOSOTING COMPANY
JASPER, JASPER COUNTY, TEXAS

APPENDICES

APPENDIX A.

Acronyms and Abbreviations

µg/kg	Micrograms per Kilogram
µg/L	Micrograms per Liter
ATSDR	Agency for Toxic Substances and Disease Registry
CERCLA	Comprehensive Environmental Response, Compensation and Liability Act of 1990
CREG	Carcinogenic Risk Evaluation Guide
EMEG	Environmental Media Evaluation Guide
EPA	U.S. Environmental Protection Agency
ESI	Expanded Site Inspection
HAC	Health Assessment Comparison Value
HOD	Health Outcome Data
HRS	Hazard Ranking System
kg	Kilogram
LOAEL	Lowest Observable Adverse Effects Level
LTHA	Lifetime Health Advisory
MCL	Maximum Contaminant Level
MCLG	Maximum Contaminant Level Goal
mg/kg	Milligrams per Kilogram
MRL	Minimal Risk Level
NOAEL	No Observable Adverse Effects Level
NPL	National Priorities List
PAHs	Polycyclic Aromatic Hydrocarbons
PHA	Public Health Assessment
ppm	Parts per Million
QA/QC	Quality Assurance/Quality Control
RCRA	Resource Conservation and Recovery Act
RfD	Reference Dose
RI/FS	Remedial Investigation and Feasibility Study
RMEG	Reference Dose Media Evaluation Guide
SARA	1986 Superfund Amendments and Reauthorization Act
Semi-VOCs	Semi-Volatile Organic Compounds
TDH	Texas Department of Health
TDWR	Texas Department of Water Resources
TNRCC	Texas Natural Resource Conservation Commission
TWC	Texas Water Commission
VOCs	Volatile Organic Compounds

APPENDIX B - Figures

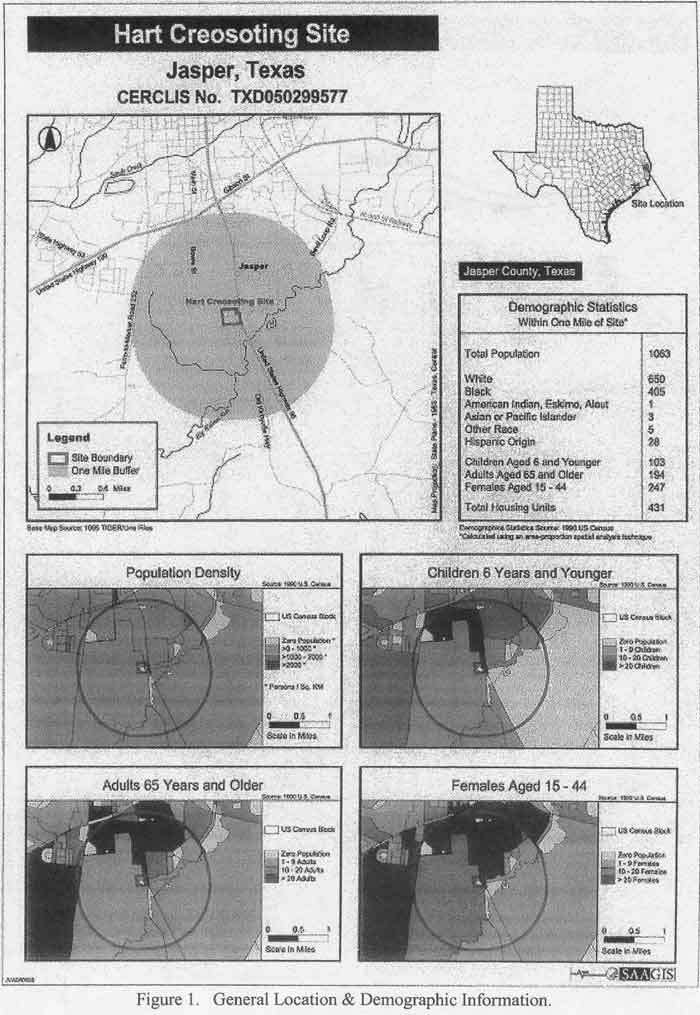

Figure 1. General Location and Demographic Information

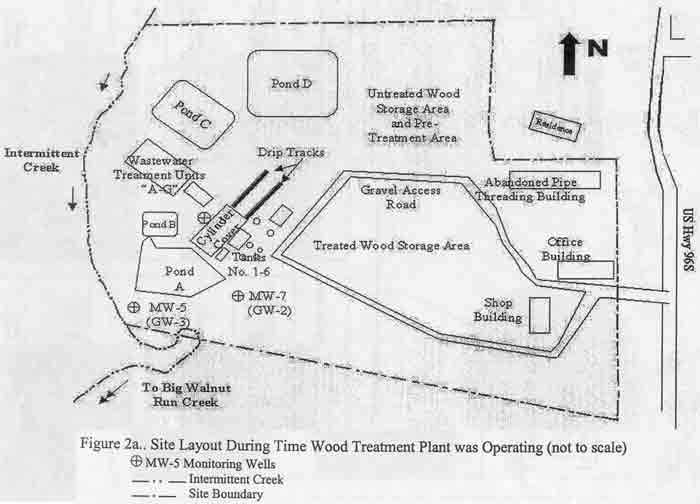

Figure 2a. Site Layout During Time Wood Treatment Plant was Operating

Figure 2b. Existing Site Layout in 1998

Figure 3. July 1998 Sediment Sampling Locations

APPENDIX C - Tables

Table 2.

Hart Creosoting Company NPL Site Sediment Analyses (n=8), (February 1993)

Constituent	Background		B-2	B-3	B-4	B-5	A-6	A-7	HAC Value
	A-2	B-6
Semi-Volatile Organic Compounds (mg/kg)
Acenaphthylene Benzo(a)anthracene Carbazole Chrysene 2,4-Dimethylphenol Fluoranthene Indeno(1,2,3-cd)pyrene Naphthalene Phenanthrene	- - - - - - - <0.50 <0.50	- - 1.18 - - 0.74 - <0.25 1.13	- 223 BDL 235 - -1,540 -55.1 570 2,200	- 63.1 -485 - - 339 - 77.1 622	- 23.4 230 - - 110 - BDL 180	- 1950 11,800 1,570 BDL 10,500 - 985 17,000	<50 - - 51 - 250 - 160 470	- - <50 - - 92 - <50 160	BDL na B2 na B2 BDL na 80/2000/30000 RMEG B2 40/1000/10000 iEMEG na

ND: Not detected, na: Not applicable
A2 Upstream approximately 30 yards upstream on dirt road
B-6 Upstream of facility
B-2 Approximately 1/3 mile downstream from facility
B-3 Downstream tributary near creek
B-4 Tributary close to facility
B-5 Pond A sediment bank
A-7 Tributary to Walnut Creek behind Pond A
A-6 Duplicate of A-7

Table 3.

Hart Creosoting Company NPL Site Sediment Samples Collected by WESTON from the 1994 ESI [2]

Constituent	Background SED-2B	SED-1	SED-3	SED-4	SED-5	HAC Value	Exceeds HAC?
Volatile Organic Compounds (mg/kg)
Toluene Ethylbenzene Xylene (Total)	BDL BDL  BDL	0.120J BDL 2,500	0.023  0.055  0.100	0.011J 0.040  0.120	0.120 1.400  3.200	40/1000/10000intEMEG 200/5000/70000RMEG 400/10000/100000intEMEG	No No No
Semi-Volatile Organic Compounds (mg/kg)
Acenaphthylene Dibenzofuran Fluorene Phenanthrene Fluoranthene Pyrene	BDL BDL BDL BDL BDL BDL	1,000D 660D 760D 1,900D 1,100D 850D	19 12 17 51 32 22	220D 130D 160D 450D 300D 250D	260D 170D 200D 560D 340D 240D	none available none available 80/2000/30000RMEG none available 80/200/30000RMEG 60/2000/20000RMEG	Not applicable Not applicable Yes, pica child Not applicable Yes, pica child Yes, pica child

D - indicates that the constituent was determined in an analysis at a secondary dilution factor
J - indicates that the analyte was positively identified, but the numerical value is an estimate[2]
SED-2B - approximately 0.5 stream mile north of Hart in the intermittent creek
SED-1 - intermittent creek approximately 30 feet south of Pond A
SED-3 - approximately 150 feet southwest of Pond A in the intermittent creek
SED-4 - approximately 0.25 stream mile south of Hart
SED-5 - approximately 1.0 stream mile from Hart

Table 4.

Hart Creosoting Company NPL Site Big Walnut Run Creek Sediment Samples (n=8), (July 29, 1998)

Constituent	Background SE-07	SE-08	SE-01	SE-02	SE-03	SE-04	SE-05	SE-06	HAC Value (mg/kg)
Semi-Volatile Organic Compounds (mg/kg)
Acenaphthene Anthracene Benzo(a)anthracene Benzo(a)pyrene Benzo(b)fluoranthene Benzo(k)fluoranthene Chrysene Fluoranthene Fluorene Phenanthrene Pyrene	ND ND ND ND ND ND ND ND ND ND ND	ND ND ND ND ND ND ND ND ND ND ND	ND ND ND ND 1.240 ND 3.130 6.550 ND 4.400 4.700	ND ND ND 1.280 1.740 ND 4.260 7.300 ND 4.820 5.860	ND ND ND ND ND ND 1.710 2.420 ND 1.090 2.010	ND ND ND ND ND ND ND 0.521 ND ND 0.365	ND ND ND ND ND ND ND 0.679 ND 0.348 0.492	ND ND ND ND ND ND ND 0.769 ND 0.242 0.545	None detected, NA None detected, NA None detected, NA 0.1 CREG B2 B2 None detected, NA B2 80/2000/30000 RMEG None detected, NA None available 60/2000/20000 RMEG

ND - Not detected at Sample Quantitation Limit
NA - Not applicable
Samples are grab samples collected from sediments between ~0-24"
SE-07 1,100 feet upstream of PPE (SE-01)
SE-08 500 feet upstream of SE-07
SE-01 Probable Point of Exposure (PPE) in Big Walnut Run Creek
SE-02 At PPE (SE-01)
SE-03 500 feet downstream of SE-02
SE-04 300 feet downstream of SE-03
SE-05 2,200 feet downstream of PPE
SE-06 Duplicate of SE-05

Table 5.

Hart Creosoting Company NPL Site Groundwater Samples (from Weston ESI February 1993) [2]

Constituent	Background Sample GW-5 Residential well * (57.8 feet BGS)	On-site process water well (A-1)**	On-site monitoring well MW-7 (GW-2) (80.16 feet BGS)	On-site monitoring well MW-5 (GW-3)	Health Based Comparison Value (µg/L)
Volatile Organic Compounds (µg/L) Toluene Ethylbenzene Xylenes (total) Semi-volatile Organic Compounds (µg/L) 4-Methylphenol (=p-Cresol) Naphthalene 2-Methylnaphthalene Acenaphthene Fluorene Phenanthrene Fluoranthene Pyrene	5U 5U 5U 6U 6U 2U 2U 2U 2U 2U 2U	ND ND ND ND ND ND ND ND 50 37 ND	214 51 75 110 3600D 1500D 990D 590 1200D 440 280	10U 10U 10U 10U 25 11U 15U 7U 7U 3U 3U	200/700 intEMEG; 1000 MCL 700 LTHA & MCL 2000/7000 int EMEG; 10000 MCL C 20 LTHA; 200/700 int EMEG None available 600/2000 RMEG 400/1000 RMEG None available 400/1000 RMEG 300/1000 RMEG

* Snelson residential well approximately 1.0 mile south of site on US Hwy 96
U- analyzed for but not detected
D-analyzed at secondary dilution factor
**Sample A-1 is the on-site process water well sampled by TNRCC 2/4/93

Table 6.

Hart Creosoting Company NPL Site Surface Water Analyses (n=4) (TNRCC February 1993)

Constituent	Background A-3	A-8	A-9	B-1	HAC Value
Volatile Organic Compounds (µg/L)
None detected	ND	ND	ND	ND	na
Semi-Volatile Organic Compounds (µg/L)
Fluoranthene Phenanthrene Naphthalene 2,4-Dimethylphenol Phenol	None detected	24 50 53 22 20	ND 34 46 20 ND	None detected	400 RMEGChild 600 RMEGChild 20 LTHA 0.3 CREG 4,000 LTHA

ND: Not detected, na: Not applicable; LTHA: Lifetime Health Advisory for drinking water (EPA).
A-3 Upstream of facility, approximately 30 yards upstream of dirt road leaving facility
A-8 Tributary to Big Walnut Run Creek behind Pond A
A-9 Tributary to Big Walnut Run Creek behind Pond A
B-1 Approximately 1/3 mile downstream from facility

Table 7.

Hart Creosoting Company TNRCC Surface Water Sampling Data January 1995

Constituent	Sample 1 - collected from initial runoff on the west side of the former process area (µg/L)	Sample 2 - collected from the point of entry into the intermittent stream on the west side of the surface impoundment in the former process area (µg/L)	Health Based Comparison Value (µg/L)	Exceeds HAC?
Acenaphthene Acenaphthylene Anthracene Benzo[b]fluoranthene Benzo[a]anthracene Benzo[a]pyrene Benzo[g,h,i]perylene Benzo[k]fluoranthene Chrysene Dibenz[a,h]anthracene Fluorene Fluoranthene Indeno[1,2,3-cd]pyrene Naphthalene Phenanthrene Pyrene	<5.0 <5.0 <5.0 7.5 5.7 <5.0 <5.0 <5.0 10.3 <5.0 <5.0 89.5 <5.0 <5.0 <5.0 44.2	8.6 <5.0 <5.0 <5.0 <5.0 <5.0 <5.0 <5.0 5.5 <5.0 <5.0 43.3 <5.0 <5.0 <5.0 21.7	600/2000 RMEG none available 3000/10000RMEG 0 MCLG* 0 MCLG* 0.005CREG;B2;0.2MCL;0MCLG none available 0 MCLG* 0 MCLG* 0 MCLG* Proposed 400/1000 RMEG 400/1000 RMEG 0 MCLG* C; 20 LTHA none available 300/1000 RMEG	No ND ND Yes Yes ND ND ND Yes ND ND No ND ND ND No

* B2 (No HAC values available)

Table 8.

Hart Creosoting Company NPL Site Soil Samples (n=2) Collected February 1993 [10]

Constituent	A-4	A-5	HAC Value
Semi-Volatile Organic Compounds (mg/kg)
Benzo(a)anthracene Benzo(b)fluoranthene Chrysene Fluoranthene Naphthalene Phenanthrene	840 570 800 4,150 980 6,000	970 310 1,100 5,000 960 8,200	B2 B2 B2 80/2000/30000 40/1000/10000 None available

ND: Not detected, na: Not applicable
A-5 Stream bank behind Pond A (apparent seepage point)
A-4 Spill area adjacent to tanks (spill material covered up by fill dirt)

Table 9.

Hart Creosoting Company NPL Site ESI Surface Soil Sampling Analyses Samples Collected from Wood Treatment/Processing Area by Weston in Spring 1994 [1]

Constituent	Background SB-10B	SB-5	SB-6	SB-7	SB-9	SB-12	HAC Value
Volatile Organic Compounds (mg/kg)
None detected (BTEX*)	ND	ND	ND	ND	ND	ND	Not applicable
Semi-Volatile Organic Compounds (mg/kg)
Acenaphthene Anthracene Bis(2-ethylhexyl)phthalate Benzo(a)anthracene Benzo(b)fluoranthene Benzo(k)fluoranthene Benzo(g,h,i)perylene Benzo(a)pyrene Carbazole Chrysene Dibenzo(a,h)anthracene Dibenzofuran Fluoranthene Fluorene Indeno(1,2,3-c,d) pyrene Naphthalene 2-Methylnaphthalene Phenanthrene Pyrene	ND ND 0.370 ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND	ND 0.310J ND 0.250J 1.10 1.20 0.29J 0.34J 0.220J 0.62 ND ND 0.54 ND 0.52 ND ND ND 0.70	0.210J 3.300 ND 0.980 2.80 1.90 0.58 1.20 1.50 2.20 0.280J ND 2.00 0.370J 1.1 ND ND 0.990 1.80	20.00 32.00 ND 46.00 32.00 22.00 5.80J 17.00 ND 54.00 ND ND 18.00 35.00 10.00J ND ND 94.00E 130.00E	ND ND ND 18.00 29.00 22.00 6.60J 16.00 ND 28.00 ND ND 67.00 ND 12.00 ND ND ND 73.00	66.0 600.00E 4.70J 62.00 29.00 28.00 4.80J 21.00 410.00E 86.00E ND 100.00E 250.00E 220.00E 9.10J 18.00 51.00 370.00E 160.00E	100/3000/40000RMEG 600/20000/200000RMEG 50 CREG B2** na B2 na B2 na B2 na 0.1 CREG B2 na na B2 na B2 na 80/2000/30000RMEG 80/2000/30000RMEG B2 40/100/1000iEMEG na na 60/2000/20000RMEG
Pesticides/PCBs (mg/kg)
alpha-BHC beta-BHC delta-BHC gamma-BHC (lindane) Heptachlor Aldrin Dieldrin 4,4'-DDE Endrin Endosulfan II 4,4'-DDD 4,4'-DDT Methoxychlor Endrin ketone alpha-Chlordane gamma-Chlordane Toxaphene Arochlor 1016 Arochlor 1221 Arochlor 1232 Arochlor 1242 Arochlor 1248 Arochlor 1254 Arochlor 1260	Not known	ND ND ND ND ND ND ND ND ND ND ND 0.0029J ND 0.0046P ND ND 0.360Y ND 0.160Y ND ND ND 0.080Y 0.080Y	not analyzed	not analyzed	not analyzed	ND 0.0046Y ND 0.002Y 0.0025Y 0.0065Y ND 0.072Y 0.014Y 0.010Y ND ND 0.160Y 0.120 0.0022Y ND 1.10Y 0.210Y 0.340Y 0.310Y 0.210Y 0.310Y 0.370Y 0.370Y	0.1 CREG B2 20/500/7000iEMEG 0.4 CREG C 1/30/400iEMEG 0.4 CREG B2 0.02/0.5/7iEMEG 0.2 CREG B2 1/30/400RMEG 0.04 CREG B2 0.06/2/20chrEMEG 0.04 CREG B2 0.1/3/40chrEMEG 2 CREG B2 0.6/20/200 chrEMEG 4/100/1000 chrEMEG 3 CREG B2 2 CREG B2 1/30/400 intEMEG 10/300/4000 RMEG 0.6/20/200 chr EMEG (endrin) 0.5 CREG B2 0.1/3/40 RMEG 0.5 CREG B2 0.1/3/40 RMEG 0.6 CREG B2 2/50/700 int EMEG 0.4 CREG 0.1/4/50 RMEG 0.4 B2 CREG 0.4 B2 CREG 0.4 B2 CREG 0.4 B2 CREG 0.4 B2 CREG0.04/1/10 chrEMEG 0.4 B2 CREG

*BTEX - Benzene Toluene Ethylbenzene and Xylene gasoline constituents analyzed for.
**B2 - Considered to be a probable human carcinogen (inadequate human and sufficient animal studies)
ND - Not Detected; NA - Not Applicable
J - Estimated concentration
E - Estimated concentration due to concentration exceeding upper range of the instrument.
Y - Estimated concentration due to matrix interferences.
