PUBLIC HEALTH ASSESSMENT

STARR PROPERTY
ENFIELD, HARTFORD COUNTY, CONNECTICUT




APPENDICES

APPENDIX A

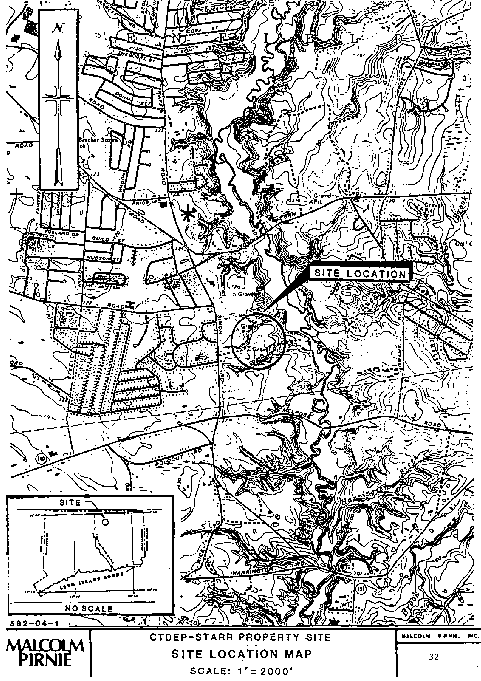

Figure 1. Site Location Map


APPENDIX B

The following section was not available in electronic format for conversion to HTML at the time of preparation of this document. To obtain a hard copy of the document, please contact:

Agency for Toxic Substances and Disease Registry
Division of Health Assessment and Consultation
Attn: Chief, Program Evaluation, Records, and Information Services Branch,
E-56
1600 Clifton Road NE, Atlanta, Georgia 30333


APPENDIX C

The following section was not available in electronic format for conversion to HTML at the time of preparation of this document. To obtain a hard copy of the document, please contact:

Agency for Toxic Substances and Disease Registry
Division of Health Assessment and Consultation
Attn: Chief, Program Evaluation, Records, and Information Services Branch,
E-56
1600 Clifton Road NE, Atlanta, Georgia 30333


APPENDIX D

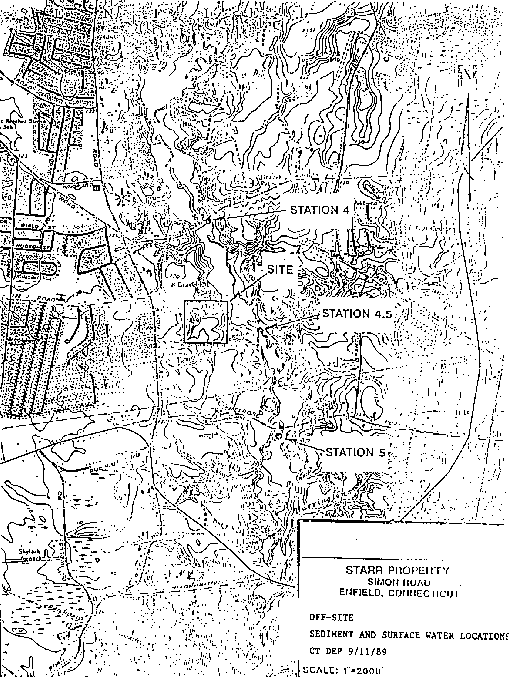

Off-Site Sediment and Surface Water Locations

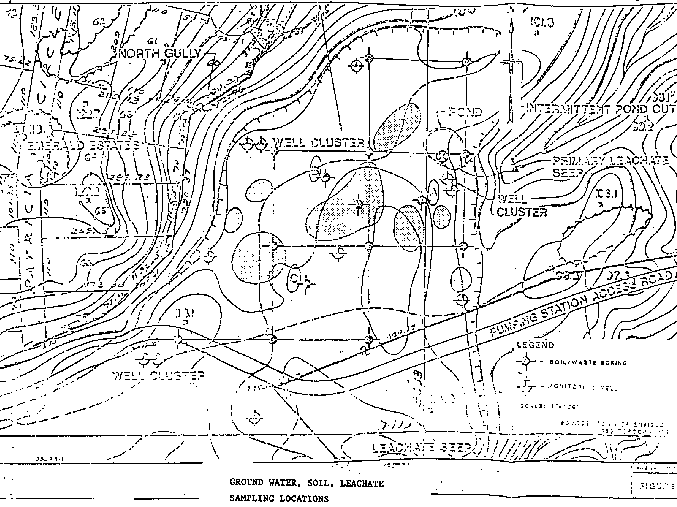

Ground Water, Soil, Leachate Sampling Locations

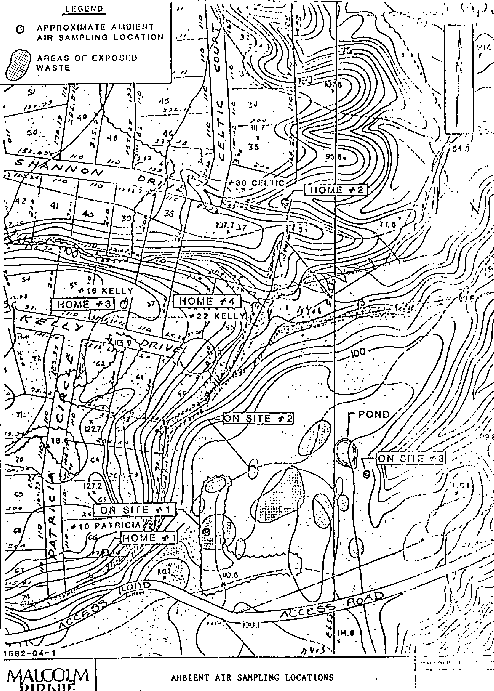

Ambient Air Sampling Locations


Ambient Air Sampling Locations

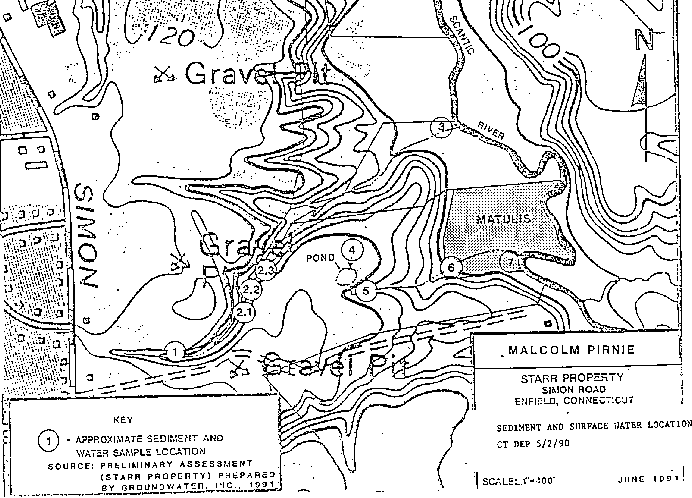

Sediment and Surface Water Locations


Soil Sampling Locations


APPENDIX E

The following data tables include the following acronyms:

* CREG =Cancer Risk Evaluation Guide
* EMEG =Environmental Media Evaluation Guide
* MCL =Maximum Contaminant Level
* Rfd =Reference Dose
* LTHA =Lifetime Health Advisory

Comparison values for health assessments are contaminant concentrations in specific media that areused to select contaminants for further evaluation. These values include Environmental MediaEvaluation Guides (EMEGs), Cancer Risk Evaluation Guides (CREGs), and other relevantguidelines. CREGs are calculated from EPA's cancer potency factors. Maximum ContaminantLevels (MCLs) represent drinking water contaminant concentration that EPA deems protective ofpublic health (considering the availability and economics of water treatment technology) over alifetime (70 years) at an exposure rate of 2 liters of water per day. EPA's Reference Dose (Rfd) isan estimate of the daily exposure to a contaminant that probably won't cause adverse health effects. Because the contaminants are listed by concentration in a media, RMEGs are included in the tableswhich represent a concentration in a media calculated from the Reference Dose.



Table 1.

Concentrations of Contaminants Identified for Further Evaluation Surface Soil 0-2 inch depths
CONTAMINANTCONCENTRATION RANGE
PPM		COMPARISON
VALUE
naphthaleneND-2700none
2 methylnaphthaleneND-90none
acenaphtheneND-7240,000 RMEG
dibenzofuranND-130none
fluoreneND-2130,000 RMEG
anthraceneND-450200,000 RMEG
pyreneND-27020,000 RMEG
benzo(a)anthraceneND-84none
chryseneND-74none
benzo(a)pyreneND-530.1 CREG
leadND-1200none
arsenic0.8-3.50.4 CREG
cyanide (total)180-640none

*PPM-parts per million
*ND-not detected



Table 2.

Concentration of Contaminants Identified for Further Evaluation Subsurface Soil Deeper than 2 inches
CONTAMINANTCONCENTRATION RANGE
PPM		COMPARISON
VALUE
arsenic0.8-860.4 CREG
lead3.2-483none
cyanide (total)ND-582none
cyanide (amenable)ND-50210,000 CREG

*PPM-parts per million
*ND-not detected




Table 3.

Concentrations of Contaminants Identified for Further Evaluation Groundwater Monitoring Wells
CONTAMINANTCONCENTRATION RANGE
PPB		COMPARISON
VALUE
arsenicND-310.02 CREG
leadND-5050 MCL
cadmiumND-405MCL
mercuryND-72 MCL
cyanide (total)ND-230none
cyanide (amenable)ND-90200 MCL

*PPB- parts per billion
*ND-not detected




Table 4.

Concentrations of Contaminants Identified for Further Evaluation Leachate
CONTAMINANTCONCENTRATION RANGE
PPB		COMPARISON
VALUE
benzeneND-431 CREG
naphthaleneND-7020LTHA
cyanide (total)40-500none
cyanide (amenable)ND-500200 MCL

*PPB-parts per billion
*ND-not detected




Table 5.

Concentration of Contaminants Identified for Further Evaluation Sediment
CONTAMINANTCONCENTRATION RANGE
PPM		COMPARISON
VALUE
cyanide (total)0.04-270none
cyanide (amenable)ND-24010,000 RMEG

*PPM-parts per million
*ND-not detected




Table 6.

Concentration of Contaminants Identified for Further Evaluation Surface Water
CONTAMINANTCONCENTRATION RANGE
PPB		COMPARISON
VALUE
naphthaleneND-5720 LTHA
cyanide (total)ND-1400none
cyanide (amenable)ND-1100200 MCL

*PPB-parts per billion
*ND-not detected



Table 7.

Concentration of Contaminants Identified for Further Evaluation Ambient Air
CONTAMINANTCONCENTRATION RANGE
PPB*		COMPARISON
VALUE
benzene ND-70.03 CREG
trichloroethyleneND-68none

*PPB-parts per billion
*ND-not detected



Table 8.

Concentration of Contaminants Identified for Further Evaluation Sediment
CONTAMINANTCONCENTRATION RANGE
PPM*		COMPARISON
VALUE
arsenic1.4-6.80.4 CREG
cyanide (total)ND-10none
cyanide (amenable)ND-7.710,000 RMEG

*PPM-parts per million
*ND-not detected




Table 9.

Concentration of Contaminants Identified for Further Evaluation Surface Water Off-Site
CONTAMINANTCONCENTRATION RANGE
PPB		COMPARISON
VALUE
cyanide (total)ND-210none
cyanide (amenable)ND-30200 MCL

*PPB-parts per billion
*ND-not detected




Table 10.

Concentration of Contaminants Identified for Further Evaluation Ambient Air Off-Site
CONTAMINANTCONCENTRATION RANGE
PPB*		COMPARISON
VALUE
benzeneND-0.50.03 CREG
tetrachloroethyleneND-5.50.29 CREG

*PPB-parts per billion
*ND-not detected
