PUBLIC HEALTH ASSESSMENT

SHARON STEEL CORPORATION (FAIRMONT COKE WORKS)
FAIRMONT, MARION COUNTY, WEST VIRGINIA


APPENDIX A -- SITE MAP

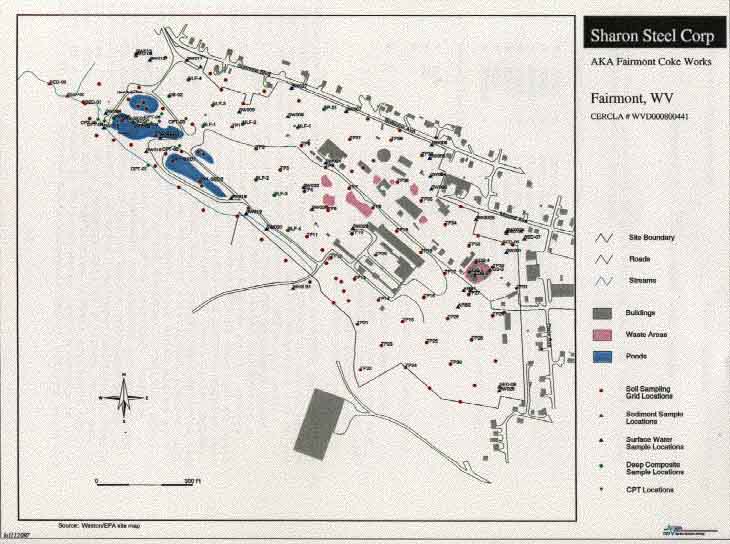

Figure 1. Site Map



APPENDIX B -- CONTAMINANT DATA TABLES

The data tables presented in this section include the following abbreviations and/or acronyms:

Comparison Values (CVs)

  1. CREG
  2. EMEG
  3. RMEG
  4. LTHA
  5. MCLG
  6. MCL
  7. PMCLG
=
=
=
=
=
=
=
Cancer Risk Evaluation Guide
Environmental Media Evaluation Guide
Reference Dose Media Evaluation Guide
Lifetime Health Advisory
Maximum Contaminant Level Goal
Maximum Contaminant Level
Proposed Maximum Contaminant Level Goal


Data Clarifiers

  • ppb
  • ND
  • J
  • M
  • =
    =
    =
    =
    parts per billion
    not detected
    associated numerical value is an estimated quantity
    compound was qualitatively identified; however, numerical value is less than the contract-required quantitation limit or less than the EPA limit of quantitation and, therefore, is an estimated value

    EMEGs are media-specific values developed by ATSDR for use in selecting environmental contaminants of potential health concern. EMEGs are calculated using noncancer health endpoints and do not consider potential carcinogenic effects. RMEGs are media-specific values developed by ATSDR from EPA Reference Doses (RfDs). RfDs are EPA's estimates of the daily exposure to a contaminant that is unlikely to cause adverse health effects. CREGs are estimated contaminant concentrations expected to cause no more than one excess cancer in a million persons exposed over a lifetime (70 years). Maximum Contaminant Level Goals (MCLGs) are EPA-developed drinking water health goals. EPA believes that MCLGs represent levels that no known or anticipated adverse effect on the health of persons should occur which allows an adequate margin of safety. Proposed Maximum Contaminant Level Goals (PMCLGs) are MCLGs that are being proposed. Maximum Contaminant Levels (MCLs) represent contaminant concentrations that EPA deems protective of public health (considering the availability and economics of water treatment technology) over a lifetime (70 years) at an exposure rate of 2 liters water per day. EPA's Lifetime Health Advisories (LTHAs) represent the level of a contaminant in drinking water (with a margin of safety) at which adverse noncarcinogenic health effects would not be anticipated during a lifetime (70 years) exposure. While MCLs are regulatory concentrations, PMCLGs, MCLGs, and LTHAs are not.



    Table 1.

    Surface Soil, On Site1
    ContaminantConcentration Range (ppm)#Detects/
    #Samples
    Comparison ValueReference/
    Year
    pica/child/adult (ppm)Source
    Oxidation Pond 1
    Benzo[b]fluoranthene0.059 - 12/3NA

    NA
    Weston, 1994
    Indeno[1,2,3-cd]pyrene0.027 - 0.842/3NANAWeston, 1994
    Oxidation Pond 2
    Benzo[a]anthracene0.014 - 0.12/2NANAWeston, 1994
    Benzo[b]fluoranthene0.026 - 0.132/2NANAWeston, 1994
    Chrysene0.016 - 0.112/2NANAWeston, 1994
    North Landfill
    Benzo[b]fluoranthene811/2NANAWeston, 1994
    Benzo[k]fluoranthene611/2NANAWeston, 1994
    Chrysene0.052 - 1202/2NANAWeston, 1994
    Fluoranthene0.05 - 2402/280/2,000/30,000RMEGWeston, 1994
    Indeno[1,2,3-cd]pyrene541/2NANAWeston, 1994
    Naphthalene781/240/1,000/10,000EMEG (Intermediate)Weston, 1994
    South Landfill
    Benzo[a]pyrene0.341/10.1CREGWeston, 1994
    Benzo[b]fluoranthene0.491/1NANAWeston, 1994
    Indeno[1,2,3-cd]pyrene0.221/1NANAWeston, 1994
    Sludge Pit 1/Sludge Pond 1
    Benzo[a]anthracene0.1 - 0.132/2NANAWeston, 1994
    Benzo[b]fluoranthene0.11 - 0.112/2NANAWeston, 1994
    Breeze Pile
    Benzo[a]anthracene141/1NANAWeston, 1994
    Benzo[b]fluoranthene131/1NANAWeston, 1994
    Benzo[k]fluoranthene6.31/1NANAWeston, 1994
    Chrysene161/1NANAWeston, 1994
    Dibenzo[a,h]anthracene3.51/1NANAWeston, 1994
    Indeno[1,2,3-cd]pyrene8.41/1NANAWeston, 1994
    On-site Soils North of Central Plant Building
    Benzo[a]anthracene0.023 - 2.73/3NANAWeston, 1994
    Benzo[a]`0.019 - 33/30.1CREGWeston, 1994
    Benzo[b]fluoranthene2.4 - 3.82/3NANAWeston, 1994
    Benzo[k]fluoranthene0.039 - 2.53/3NANAWeston, 1994
    Chrysene0.024 - 33/3NANAWeston, 1994
    Indeno[1,2,3-cd]pyrene1.1 - 1.42/3NANAWeston, 1994
    On-site Soils South of Central Plant
    Benzo[a]anthracene0.21 - 103/4NANAWeston, 1994
    Benzo[a]pyrene0.012 - 7.14/40.1CREGWeston, 1994
    Benzo[b]fluoranthene0.032 - 8.74/4NANAWeston, 1994
    Benzo[k]fluoranthene0.18 - 7.23/4NANAWeston, 1994
    Chrysene0.028 - 8.74/4NANAWeston, 1994
    Dibenzo[a,h]anthracene0.026 - 1.33/4NANAWeston, 1994
    Indeno[1,2,3-cd]pyrene0.083 - 3.13/4NANAWeston, 1994
    On-site Soils East of Central Plant Building
    Benzo[a]anthracene0.087 - 0.24/4NANAWeston, 1994
    Chrysene0.11 - 13/4NANAWeston, 1994
    Naphthalene0.14 - 1604/440/1,000/10,000EMEG (Intermediate)Weston, 1994
    On-site Soils West of Central Plant Building
    Benzo[a]anthracene0.025 - 12014/17NANAWeston, 1994
    Benzo[a]pyrene0.02 - 9214/170.1CREGWeston, 1994
    Benzo[b]fluoranthene0.037 - 1,00014/17NANAWeston, 1994
    Benzo[k]fluoranthene0.014 - 7514/17NANAWeston, 1994
    Chrysene0.033 - 11014/17NANAWeston, 1994
    Dibenzo[a,h]anthracene0.028 - 1610/17NANAWeston, 1994
    Fluoranthene0.008 - 22016/1780/2,000/30,000RMEGWeston, 1994
    Indeno[1,2,3-cd]pyrene0.058 - 5411/16NANAWeston, 1994
    Pyrene0.035 - 20015/1860/2,000/20,000RMEGWeston, 1994







    Table 2.

    Subsurface Soil, On site and Off Site
    Contaminant Concentration Range (ppm) #Detects/
    #Samples
    Comparison ValueReference/
    Year
    pica/child/adult (ppm) Source
    Oxidation Pond 1
    Benzo[a]pyrene0.044 - 0.93/50.1CREGWeston, 1994
    Benzo[g,h,i]perylene0.16 - 0.743/5NANAWeston, 1994
    Chrysene0.018 - 0.834/5NANAWeston, 1994
    Phenanthrene0.035 - 1.63/5NANAWeston, 1994
    Oxidation Pond 2
    Benzo[a]anthracene0.014 - 0.13/4NANAWeston, 1994
    Chrysene0.016 - 0.113/4NANAWeston, 1994
    Aluminum4,060 - 14,1004/4NANAWeston, 1994
    Arsenic1.2 - 6.64/40.5
    0.6/20/200
    CREG
    EMEG (Chronic)
    Weston, 1994
    North Landfill
    Acenaphthylene0.73 - 7.72/7NANAWeston, 1994
    Benzo[a]anthracene0.022 - 615/7NANAWeston, 1994
    Benzo[a]pyrene0.031 - 613/70.1CREGWeston, 1994
    Benzo[b]fluoranthene0.024 - 564/7NANAWeston, 1994
    Benzo[k]fluoranthene0.02 - 564/7NANAWeston, 1994
    Chrysene0.022 - 615/7NANAWeston, 1994
    Fluoranthene0.045 - 1105/780/2,000/30,000RMEGWeston, 1994
    Indeno[1,2,3-cd]pyrene0.36 - 334/7NANAWeston, 1994
    Phenanthrene0.024 - 406/7NANAWeston, 1994
    Pyrene0.029 - 1305/760/2,000/20,000EMEGWeston, 1994
    Aluminum0.1 - 9,75011/11NANAWeston, 1994
    Antimony0.0061 - 6.13/110.8/20/300CREGWeston, 1994
    South Landfill
    Benzene0.004 - 985/1020CREGWeston, 1994
    Toluene0.03 - 1004/1040/1,000/10,000EMEG (Intermediate)Weston, 1994
    Acenaphthylene0.023 - 598/11NANAWeston, 1994
    Benzo[a]anthracene0.13 - 67010/11NANAWeston, 1994
    Benzo[a]pyrene0.079 - 16010/110.1CREGWeston, 1994
    Benzo[b]fluoranthene0.14 - 16010/11NANAWeston, 1994
    Benzo[g,h,i]perylene0.071 - 848/11NANAWeston, 1994
    Benzo[k]fluoranthene0.059 - 18010/11NANAWeston, 1994
    Carbazole0.071 - 2108/11NANAWeston, 1994
    Chrysene0.13 - 32010/11NANAWeston, 1994
    Dibenzo[a,h]anthracene0.054 - 318/11NANAWeston, 1994
    Dibenzofuran0.052 - 949/11NANAWeston, 1994
    2,4-Dimethylphenol0.04 - 772/1040/1,000/10,000RMEGWeston, 1994
    Fluoranthene0.32 - 77010/1180/2,000/30,000RMEGWeston, 1994
    Fluorene0.049 - 1209/1180/2,000/30,000RMEGWeston, 1994
    Indeno[1,2,3-cd]pyrene0.085 - 869/11NANAWeston, 1994
    2-Methylnaphthalene0.02 - 3309/11NANAWeston, 1994
    2-Methylphenol0.02 - 222/10NANAWeston, 1994
    Naphthalene0.43 - 18,0009/1040/1,000/10,000EMEG (Intermediate)Weston, 1994
    Phenanthrene0.3 - 73010/11NANAWeston, 1994
    Pyrene0.23 - 69010/1160/2,000/20,000EMEGWeston, 1994
    Benzo[a]pyrene0.026 - 3.23/90.1CREGWeston, 1994
    2-Methylnaphthalene0.058 - 726/8NANAWeston, 1994
    Naphthalene1.2 - 4507/940/1,000/10,000EMEG (Intermediate)Weston, 1994
    Aluminum1.6 - 14,00013/13NANAWeston, 1994
    Arsenic0.001 - 42.713/130.5
    0.6/20/200
    CREG
    EMEG (Chronic)
    Weston, 1994
    Barium0.015 - 10913/13100/4,000/50,000RMEGWeston, 1994
    Beryllium0.00031 - 1.26/130.2CREGWeston, 1994
    Cadmium0.0028 - 124/131/40/500EMEG (Chronic)Weston, 1994
    Chromium0.0036 - 13.213/1310/300/4,000RMEGWeston, 1994
    Lead0.0054 - 1,89013/13NANAWeston, 1994
    Sludge Pit 1/Sludge Pond 1
    Acenaphthylene0.008 - 364/9NANAWeston, 1994
    Benzo[a]anthracene0.044 - 616/9NANAWeston, 1994
    Benzo[a]pyrene0.039 - 426/90.1CREGWeston, 1994
    Benzo[b]fluoranthene0.056 - 576/9NANAWeston, 1994
    Benzo[g,h,i]perylene0.03- 236/9NANAWeston, 1994
    Benzo[k]fluoranthene0.025 - 186/9NANAWeston, 1994
    Chrysene0.051 - 476/9NANAWeston, 1994
    Dibenzo[a,h]anthracene0.013 - 124/9NANAWeston, 1994
    Dibenzofuran0.94 - 463/9NANAWeston, 1994
    Indeno[1,2,3-cd]pyrene0.034 - 256/9NANAWeston, 1994
    2-Methylnaphthalene0.014 - 323/9NANAWeston, 1994
    Phenanthrene0.032 - 515/9NANAWeston, 1994
    Aluminum6.7 - 11,50012/12NANAWeston, 1994
    Arsenic0.001 - 6.212/120.5
    0.6/20/200
    CREG
    EMEG (Chronic)
    Weston, 1994
    Sludge Pit 2/Sludge Pond 2
    Acenaphthylene7.71/3NANAWeston, 1994
    Benzo[a]anthracene15 - 1102/3NANAWeston, 1994
    Benzo[a]pyrene14 - 672/30.1CREGWeston, 1994
    Benzo[b]fluoranthene231/3NANAWeston, 1994
    Benzo[g,h,i]perylene12 - 212/3NANAWeston, 1994
    Benzo[k]fluoranthene5.8 - 702/3NANAWeston, 1994
    Chrysene16 - 702/3NANAWeston, 1994
    Dibenzo[a,h]anthracene4.5 - 122/3NANAWeston, 1994
    Dibenzofuran401/3NANAWeston, 1994
    Fluoranthene23 - 1702/380/2,000/30,000RMEGWeston, 1994
    Indeno[1,2,3-cd]pyrene11 - 282/3NANAWeston, 1994
    2-Methylnaphthalene151/3NANAWeston, 1994
    Phenanthrene7.7 - 1202/3NANAWeston, 1994
    Pyrene19 - 1602/360/2,000/20,000EMEGWeston, 1994
    Aluminum1.4 - 3,8006/6NANAWeston, 1994
    Arsenic0.0022 - 3.96/60.5
    0.6/20/200
    CREG
    EMEG (Chronic)
    Weston, 1994
    Chromium0.0065 - 126/610/300/4,000RMEGWeston, 1994
    Lead0.015 - 356/6NANAWeston, 1994
    Breeze Pile
    Acenaphthylene6 - 512/4NANAWeston, 1994
    Benzo[a]anthracene14 - 992/4NANAWeston, 1994
    Benzo[a]pyrene11 - 862/40.1CREGWeston, 1994
    Benzo[b]fluoranthene13 - 812/4NANAWeston, 1994
    Benzo[g,h,i]perylene9.2 - 542/4NANAWeston, 1994
    Benzo[k]fluoranthene6.3 - 612/4NANAWeston, 1994
    Chrysene16 - 1202/4NANAWeston, 1994
    Dibenzofuran5.2 - 572/4NANAWeston, 1994
    Fluoranthene0.47 - 2404/480/2,000/30,000RMEGWeston, 1994
    Indeno[1,2,3-cd]pyrene8.4 - 542/4NANAWeston, 1994
    Naphthalene0.89 - 783/440/1,000/10,000EMEG (Intermediate)Weston, 1994
    Phenanthrene0.56 - 2704/4NANAWeston, 1994
    Pyrene0.43 - 1703/460/2,000/20,000EMEGWeston, 1994
    Aluminum670 - 11,0004/4NANAWeston, 1994
    Lead16 - 484/4NANAWeston, 1994
    On-Site Soils North of Central Plant Building
    Acenaphthylene0.055 - 5010/23NANAWeston, 1994
    Benzo[a]anthracene0.007 - 16015/23NANAWeston, 1994
    Benzo[a]pyrene0.019 - 13014/230.1CREGWeston, 1994
    Benzo[b]fluoranthene0.12 - 11013/23NANAWeston, 1994
    Benzo[g,h,i]perylene0.15 - 5512/24NANAWeston, 1994
    Benzo[k]fluoranthene0.039 - 12014/23NANAWeston, 1994
    Chrysene0.006 - 13015/23NANAWeston, 1994
    Dibenzo[a,h]anthracene0.04 - 2310/23NANAWeston, 1994
    Dibenzofuran0.005 - 5712/23NANAWeston, 1994
    Fluoranthene0.034 - 46014/2380/2,000/30,000RMEGWeston, 1994
    Indeno[1,2,3-cd]pyrene0.15 - 6212/22NANAWeston, 1994
    2-Methylnaphthalene0.008 - 9713/23NANAWeston, 1994
    Naphthalene0.014 - 70017/2340/1,000/10,000EMEG (Intermediate)Weston, 1994
    Phenanthrene0.014 - 28016/23NANAWeston, 1994
    Pyrene0.027 - 33014/2360/2,000/20,000EMEGWeston, 1994
    Aldrin0.00051 - 0.246/160.04

    0.06/2/20
    CREG
    EMEG (Chronic)
    Weston, 1994
    Dieldrin0.0017 - 0.0634/160.04

    0.1/3/40
    CREG
    EMEG (Chronic)
    Weston, 1994
    Aluminum1,700 - 34,00020/20NANAWeston, 1994
    Arsenic3.4 - 2220/200.5

    0.6/20/200
    CREG
    EMEG (Chronic)
    Weston, 1994
    Barium26.5 - 42020/20100/4,000/50,000RMEGWeston, 1994
    Beryllium0.25 - 4.516/200.2CREGWeston, 1994
    Chromium6.1 - 13420/2010/300/4,000RMEGWeston, 1994
    Cyanide0.76 - 36011/2040/1,000/10,000RMEGWeston, 1994
    Lead10.4 - 26120/20NANAWeston, 1994
    On-site Soils South of Central Plant Building
    Acenaphthylene0.01 - 55/7NANAWeston, 1994
    Benzo[a]anthracene0.21 - 255/7NANAWeston, 1994
    Benzo[a]pyrene 0.012 - 216/70.1CREGWeston, 1994
    Benzo[b]fluoranthene0.26 - 215/7NANAWeston, 1994
    Benzo[g,h,i]perylene0.056 - 8.75/7NANAWeston, 1994
    Benzo[k]fluoranthene0.18 - 195/7NANAWeston, 1994
    Carbazole0.024 - 3.25/7NANAWeston, 1994
    Chrysene0.028 - 236/7NANAWeston, 1994
    Dibenzo[a,h]anthracene0.026 - 4.25/7NANAWeston, 1994
    Dibenzofuran0.028 - 3.96/7NANAWeston, 1994
    Indeno[1,2,3-cd]pyrene0.083 - 115/7NANAWeston, 1994
    2-Methylnaphthalene0.11 - 6.86/7NANAWeston, 1994
    Phenanthrene0.051 - 376/7NANAWeston, 1994
    Aluminum440 - 15,0008/8NANAWeston, 1994
    Antimony5.7 - 6.42/80.8/20/300CREGWeston, 1994
    Arsenic3.3 - 368/80.5

    0.6/20/200
    CREG
    EMEG (Chronic)
    Weston, 1994
    Cyanide0.74 - 1305/840/1,000/10,000RMEGWeston, 1994
    Lead20.6 - 1,0108/8NANAWeston, 1994
    On-site Soils East of Central Plant Building
    Benzo[a]anthracene0.087 - 7.29/17NANAWeston, 1994
    Benzo[a]pyrene0.068 - 711/170.1CREGWeston, 1994
    Benzo[b]fluoranthene0.041 - 2011/17NANAWeston, 1994
    Benzo[g,h,i]perylene0.054 - 3.69/17NANAWeston, 1994
    Benzo[k]fluoranthene0.042 - 9.98/17NANAWeston, 1994
    Chrysene0.01 - 1111/17NANAWeston, 1994
    Dibenzofuran0.005 - 5.113/17NANAWeston, 1994
    Indeno[1,2,3-cd]pyrene0.063 - 59/17NANAWeston, 1994
    2-Methylnaphthalene0.009 - 3113/17NANAWeston, 1994
    4-Methylphenol0.08 - 1.22/17NANAWeston, 1994
    Naphthalene0.029 - 16015/1740/1,000/10,000EMEG (Intermediate)Weston, 1994
    Phenanthrene0.011 - 9.213/17NANAWeston, 1994
    Aluminum4,610 - 21,50017/17NANAWeston, 1994
    Antimony3.4 - 3.82/170.8/20/300CREGWeston, 1994
    Lead8.8 - 3,82017/17NANAWeston, 1994
    On-site Soils West of Central Plant Building
    Acenaphthylene0.018 - 399/21NANAWeston, 1994
    Benzo[a]anthracene0.025 - 12017/21NANAWeston, 1994
    Benzo[a]pyrene0.02 - 9217/210.1CREGWeston, 1994
    Benzo[b]fluoranthene0.066 - 10016/21NANAWeston, 1994
    Benzo[g,h,i]perylene0.04 - 2114/21NANAWeston, 1994
    Benzo[k]fluoranthene0.014 - 7516/21NANAWeston, 1994
    Carbazole0.012 - 2510/21NANAWeston, 1994
    Chrysene0.033 - 11016/21NANAWeston, 1994
    Dibenzo[a,h]anthracene0.028 - 1610/21NANAWeston, 1994
    Dibenzofuran0.015 - 3111/21NANAWeston, 1994
    Fluoranthene0.025 - 22018/2180/2,000/30,000RMEGWeston, 1994
    Indeno[1,2,3-cd]pyrene0.035 - 5415/21NANAWeston, 1994
    2-Methylnaphthalene0.005 - 1115/21NANAWeston, 1994
    Phenanthrene0.03 - 20017/21NANAWeston, 1994
    Pyrene0.035 - 20017/2160/2,000/20,000EMEGWeston, 1994
    Aluminum2,680 - 16,90022/22NANAWeston, 1994
    Antimony3.5 - 3.62/220.8/20/300CREGWeston, 1994
    Off-site Subsurface Soil
    Benzo[a]pyrene0.751/10.1CREGWeston, 1994
    Benzo[b]fluoranthene1.21/1NANAWeston, 1994
    Aluminum9,7501/1NANAWeston, 1994
    Lead43.41/1NANAWeston, 1994





    Table 3.

    Surface Water, On and Off Site
    Contaminant Concentration Range (ppb)#Detects/ #SamplesComparison ValueReference/Year
    pica/child/adult (ppb)Source
    North Landfill
    Aluminum, total87,3001/1NANAW.Virginia, 1996
    Manganese, total25,2001/1NANAW.Virginia,1996
    South Landfill
    Chromium, total1,6401/1100LTHAW.Virginia, 1993
    Outfall (NPDES-001)
    Benzene28 - 9252/21CREGW. Virginia, 1996
    Aluminum, total960 - 24,8002/2NANAW.Virginia, 1996
    Cadmium, total10 - 132/27/20EMEG (Chronic)W.Virginia, 1996
    Iron, total77,200 - 94,0003/3NANAW.Virginia,1996
    Unnamed Tributary into which NPDES-001 Discharges
    Benzene91/11CREGW.Virginia, 1996
    Aluminum, total62001/1NANAW. Virginia, 1996
    Iron, total223001/1NANAW. Virginia, 1996
    West Channel
    Aluminum1,500 - 4,5004/4NANAWeston, 1994
    Manganese190 - 5904/4NANAWeston, 1994
    On-site Surface Water
    Benzene28 - 16,0009/161CREGW.Virginia, 1996
    Toluene10 - 3,9005/13200/700EMEG (Intermediate)Weston,1994
    Xylenes(total)19 - 2,3004/122,000/7,000EMEG (Intermediate)Weston, 1994
    Dibenzofuran101/1NANAWeston,1994
    2-Methylnaphthalene171/10NANAWeston, 1994
    2-Methylphenol10 - 545/13NANAWeston, 1994
    4-Methylphenol13 - 854/13NANAWeston, 1994
    Naphthalene14 - 3108/1620LTHAWeston, 1994
    Phenanthrene10 - 261/11NANAW. Virginia, 1996
    Aluminum180 - 91,00033/33NANAWeston, 1994
    Beryllium6 - 224/140.008CREGWeston, 1994
    Lead4901/115EPA Action LevelWeston, 1994
    Off-site Surface Water
    Naphthalene351/120LTHAWeston, 1994
    Phenanthrene261/1NANAW.Virginia, 1996





    Table 4.

    Residential Surface Soil
    Contaminant Concentration Range (ppm)# Detects /# SamplesComparison ValueReference/Year
    pica/child/adult
    (ppm)
    Source
    Semi-Volatile Organic Compounds
    Benzo[a]anthracene0.095 - 6.83 / 3NANAWeston, 1994
    Benzo[b]fluoranthene0.11 - 123 / 3NANAWeston, 1994
    Benzo[g,h,i]perylene0.06 - 2.83 / 3NANAWeston, 1994
    Benzo[k]fluoranthene0.049 - 1.93 / 3NANAWeston, 1994
    Chrysene0.12 - 6.23 / 3NANAWeston, 1994
    Pesticides
    Aldrin3.81 / 30.04

    0.06/2/20
    CREG
    EMEG (Chronic)
    Weston, 1994
    4,4'-DDE0.0171 / 32CREGWeston, 1994
    Inorganics
    Aluminum8,360 - 12,6003 / 3NANAWeston, 1994
    Beryllium0.33 - 0.613 / 30.1CREGWeston, 1994
    Cyanide0.511 / 340/1,000/10,000RMEGWeston, 1994
    Lead28.6 - 74.73 / 3NANAWeston, 1994
    Manganese256 - 5273 / 3NANAWeston, 1994





    Table 5.

    Sediments On Site and Off Site
    Contaminant Concentration Range (ppm)#Detects/#SamplesComparison ValueReference/Year
    pica/child/adult(ppm)Source
    Oxidation Pond 1
    Benzo[a]anthracene311/1NANAWeston, 1994
    Benzo[a]pyrene321/10.1CREGWeston, 1994
    Benzo[b]fluoranthene291/1NANAWeston, 1994
    Benzo[g,h,i]perylene231/1NANAWeston, 1994
    Benzo[k]fluoranthene291/1NANAWeston, 1994
    Chrysene321/1NANAWeston, 1994
    Indeno[1,2,3-cd]pyrene211/1NANAWeston, 1994
    Phenanthrene421/1NANAWeston, 1994
    Aluminum4.3 - 4,6004/4NANAWeston, 1994
    Chromium0.029 - 414/410/300/4,000RMEGWeston, 1994
    Lead0.0076 - 7.74/4NANAWeston, 1994
    Oxidation Pond 2
    BTEX (TOTAL)132.91/2NANAWeston, 1994
    Aluminum4.1 - 7,1004/4NANAWeston, 1994
    Chromium0.023 - 294/410/300/4,000RMEGWeston, 1994
    Lead0.01 - 264/4NANAWeston, 1994
    On-site Sediments - West Channel
    Benzo[a]anthracene0.28 - 5.93/3NANAWeston, 1994
    Benzo[a]pyrene0.39 - 3.52/30.1CREGWeston, 1994
    Benzo[b]fluoranthene0.26 - 5.73/3NANAWeston, 1994
    Benzo[k]fluoranthene0.089 - 1.43/3NANAWeston, 1994
    Chrysene0.28 - 5.33/3NANAWeston, 1994
    Dibenzofuran0.17 - 1.83/3NANAWeston, 1994
    Indeno[1,2,3-cd]pyrene0.13 - 2.53/3NANAWeston, 1994
    Phenanthrene0.73 - 8.63/3NANAWeston, 1994
    Aluminum2,640 - 3,6403/3NANAWeston, 1994
    Chromium13.8 - 23.43/310/300/4,000RMEGWeston, 1994
    Cobalt1.8 - 3.23/3NANAWeston, 1994
    Lead7.3 - 14.83/3NANAWeston, 1994
    Vanadium28.1 - 75.23/36/200/2,000EMEG (Intermediate)Weston, 1994
    On-site Sediments South of Central Plant Building
    Benzo[a]pyrene0.31/10.1CREGWeston, 1994
    Aluminum9,6701/1NANAWeston, 1994
    Cobalt28.21/1NANAWeston, 1994
    Lead46.41/1NANAWeston, 1994
    Magnesium1,1801/1NANAWeston, 1994
    Manganese9571/1NANAWeston, 1994
    Nickel51.11/140/1,000/10,000RMEGWeston, 1994
    On-site Sediments East of Central Plant Building
    Benzo[a]pyrene0.231/10.1CREGWeston, 1994
    2-Methylnaphthalene2.21/1NANAWeston, 1994
    Phenanthrene0.911/1NANAWeston, 1994
    Aluminum1,8101/1NANAWeston, 1994
    Lead40.61/1NANAWeston, 1994
    Silver15.31/110/300/4,000RMEGWeston, 1994
    Vanadium28.91/16/200/2,000EMEG (Intermediate)Weston, 1994
    On-site Sediments West of Central Plant Building
    Benzo[a]anthracene7.41/1NANAWeston, 1994
    Benzo[a]pyrene4.11/10.1CREGWeston, 1994
    Benzo[b]fluoranthene7.41/1NANAWeston, 1994
    Benzo[g,h,i]perylene2.81/1NANAWeston, 1994
    Benzo[k]fluoranthene2.91/1NANAWeston, 1994
    Chrysene8.21/1NANAWeston, 1994
    Indeno[1,2,3-cd]pyrene3.61/1NANAWeston, 1994
    Phenanthrene8.21/1NANAWeston, 1994
    Lead31.61/1NANAWeston, 1994
    Off-site Sediments
    Benzo[a]anthracene0.38 - 4.62/2NANAWeston, 1994
    Benzo[a]pyrene0.38 - 4.62/20.1CREGWeston, 1994
    Benzo[b]fluoranthene0.44 - 5.22/2NANAWeston, 1994
    Benzo[g,h,i]perylene0.32 - 4.32/2NANAWeston, 1994
    Benzo[k]fluoranthene0.13 - 2.52/2NANAWeston, 1994
    Chrysene0.4 - 4.12/2NANAWeston, 1994
    Dibenzo[a,h]anthracene1.41/2NANAWeston, 1994
    Indeno[1,2,3-cd] pyrene0.34 - 4.92/2NANAWeston, 1994
    Phenanthrene0.5 - 3.42/2NANAWeston, 1994
    Aluminum5,170 - 9,7202/2NANAWeston, 1994
    Antimony5.21/20.8/20/300RMEGWeston, 1994
    Arsenic11.5 - 13.42/20.50.6/20/200CREGEMEG (Chronic)Weston, 1994
    Cadmium0.65 - 1.92/21/40/500EMEG (Chronic)Weston, 1994
    Chromium12 - 1132/210/300/4,000RMEGWeston, 1994
    Lead81 - 1322/2NANAWeston, 1994
    Manganese603 - 1,5102/2NANAWeston, 1994



    Table 6.

    Tar/Soil Mixture, On Site and Off Site
    Contaminant Concentration Range (ppm)Comparison Value#Detects/#SamplesReference/Year
    pica/child/adult
    (ppm)
    Source
    On-siteTar/Soil Mixture
    Xylenes(total)71 - 310400/10,000/100,000EMEG (Intermediate)2/3Weston, 1994
    BTEX (TOTAL)191 - 1,984NA1NA12/2Weston, 1994
    Acenaphthylene*21,700 - 9,606NANA3/4W.Virginia,1993
    Acenaphthene*2500 - 21,035100/3,000/40,000EMEG (Intermediate)2/4W.Virginia,1993
    Anthracene*210,000 - 49,741600/20,000/200,000RMEG2/4W.Virginia,1993
    Benzo[a]anthracene25,200 - 53,504NANA2/4W. Virginia,1993
    Benzo[a]pyrene1,300 - 4,0000.1 CREG2/4Weston, 1994
    Benzo[b]fluoranthene1,900 - 3,000NANA2/4Weston, 1994
    Benzo[g,h,i] perylene1,500NANA1/3Weston, 1994
    Benzo[k]fluoranthene950 - 3,500NANA2/4Weston, 1994
    Dibenzofuran1,600 - 6,300NANA2/3Weston, 1994
    Fluoranthene211 - 38,73080/2,000/30,000RMEG3/4W. Virginia, 1993
    Fluorene21,800 - 160,80180/2,000/30,000RMEG3/4W. Virginia, 1993
    Indeno [1,2,3-cd] pyrene21,400 - 1,700NANA2/4W.Virginia,1993
    2-Methylnaphthalene2,600NANA1/3Weston, 1994
    4-Methylphenol170 - 370NANA2/3Weston, 1994
    Naphthalene*12,00040/1,000/10,000EMEG (Intermediate)1/4W.Virginia, 1993
    Phenanthrene*227,000 - 49,741NANA2/4W.Virginia,1993
    Pyrene11,000 - 53,50460/2,000/20,000RMEG2/3Weston, 1994
    Aldrin0.0760.04

    0.06/2/20
    CREG
    EMEG (Chronic)
    1/1Weston, 1994
    4,4'-DDT0.152CREG1/1Weston, 1994
    Beryllium0.27 - 0.810.2

    10/300/4,000
    CREG

    RMEG
    2/2Weston, 1994
    Chromium13 - 57.810/300/4,000RMEG2/2Weston, 1994
    Lead150 - 161NANA2/2Weston, 1994
    Off-site Tar/Soil Mixture
    Phenanthrene1.01 NANA1/1Weston, 1994





    Table 7.

    Completed Exposure Pathways
    PATHWAY NAME EXPOSURE PATHWAY ELEMENTS TIME
    Source Medium Point of
    Exposure
    Route of
    Exposure
    Exposed
    Population
    Surface soilPlant operations and waste treatment and disposalSoilon site Ingestion
    Skin Contact
    Former WorkersPast

    Tar/surface soilPlant operations and waste treatment and disposalTar/soil mixtureon siteIngestion
    Skin contact
    Former workersPast
    Surface soilPlant operations and waste treatment and disposalSurface soilResidential yards off siteIngestion

    Skin contact
    ResidentsPast
    Future





    Table 8.

    Potential Exposure Pathways
    PATHWAY
    NAME
    EXPOSURE PATHWAY ELEMENTS TIME
    Source Medium Point of
    Exposure
    Route of
    Exposure
    Exposed
    Population
    Subsurface
    soil
    Plant operations and waste treatment and disposal SoilOn siteIngestion
    Skin contact
    Inhalation
    Former
    workers
    Utility
    workers
    Past
    Future
    SedimentsPlant operations and waste treatment and disposalsedimentsOn siteIngestion
    Skin contact
    Former
    workers
    Past
    Future
    Surface
    water
    Plant operations and waste disposal and treatmentSurface
    water
    On site and
    off site
    Ingestion
    Skin contact
    former workers
    Utility workers
    Past
    Future





    Table 9.

    Estimated Populations for Completed and Potential Exposure Pathways
    Estimated Exposed and Potentially Exposed Populations Contaminants and Media:
    Description Number PAHs PAHs PAHs PAHs
    Former workersunknownSurface soil around the plantSurface soil in landfill areasTar/soil mixture in loading areasTar/soil mixture in tar pit and light oil area
    Residents200Surface soil


    Former workersunknownSubsurface soilSedimentsSurface water
    Future residents (when land use changes)unknownSubsurface soil might become surface soil


    Utility, maintenance and construction workers (excavation, etc.)unknownSubsurface soilSedimentsSurface water


    Table of Contents



    USA.gov: The U.S. Government's Official Web PortalDepartment of Health and Human Services
    Agency for Toxic Substances and Disease Registry, 4770 Buford Hwy NE, Atlanta, GA 30341
    Contact CDC: 800-232-4636 / TTY: 888-232-6348

    A-Z Index

    1. A
    2. B
    3. C
    4. D
    5. E
    6. F
    7. G
    8. H
    9. I
    10. J
    11. K
    12. L
    13. M
    14. N
    15. O
    16. P
    17. Q
    18. R
    19. S
    20. T
    21. U
    22. V
    23. W
    24. X
    25. Y
    26. Z
    27. #
