PUBLIC HEALTH ASSESSMENT

BRESLUBE-PENN INC., SUPERFUND SITE
MOON TOWNSHIP, ALLEGHENY COUNTY, PENNSYLVANIA


APPENDIX A. Figures


Figure 1. Site Location Map

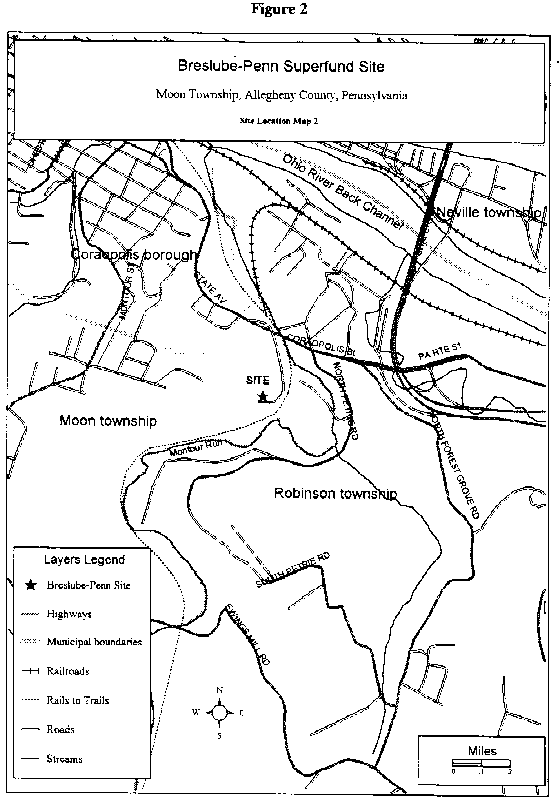

Figure 2. Site Location Map 2

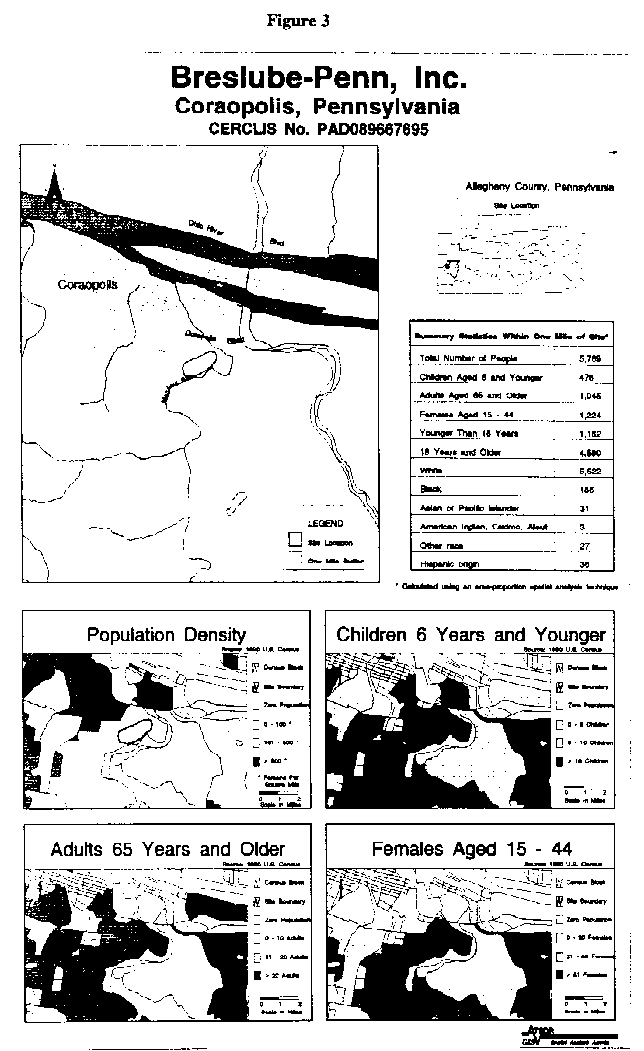

Figure 3. Summary Statistics

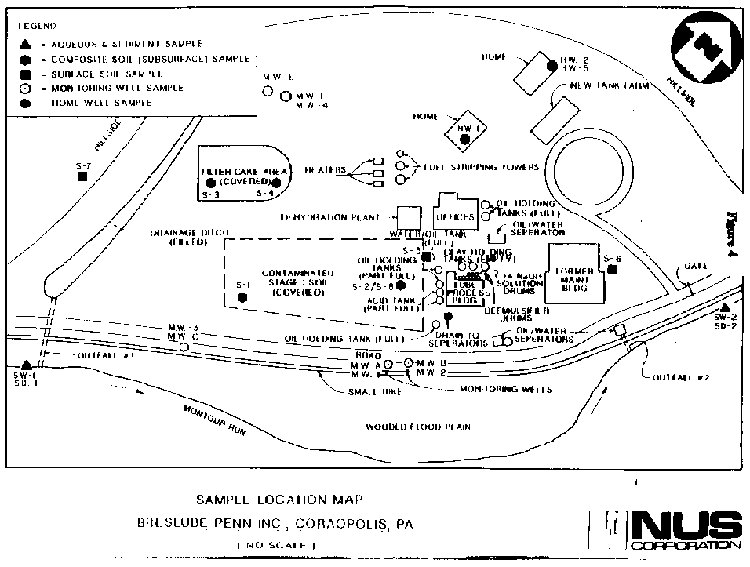

Figure 4. Sample Location Map

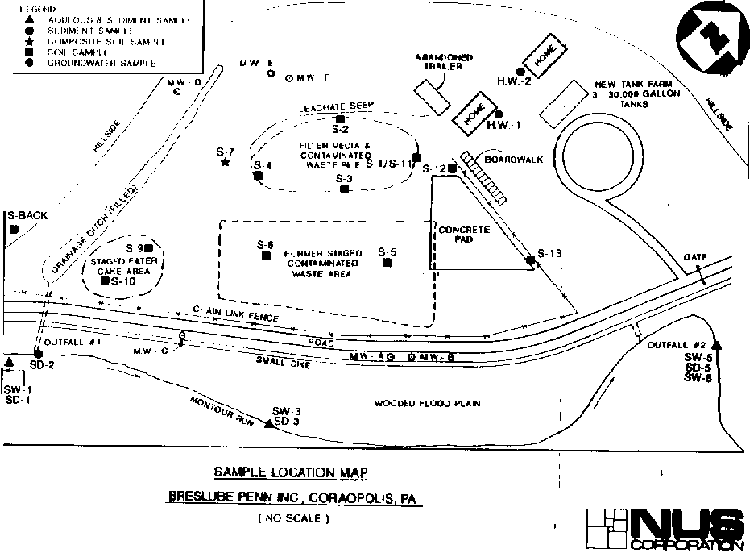

Figure 5. Sample Location Map


Figure 6. Residential Well Locations



APPENDIX B. Tables

Table 1 - Sediment, 10/27/88 (1)

Sample ID Contaminant Concentration mg/kg Comparison Value
mg/kg Source
SD-1 Aroclor 1260 13 0.09 CREG
SD-1 B[a]P 0.1 0.1 CREG
SD-1 arsenic 9.7 0.5 CREG
SD-1 beryllium 2.4 0.2 CREG
SD-2 arsenic 4.3 0.5 CREG
SD-2 beryllium 1.7 0.2 CREG

mg/kg - Milligrams Per Kilogram
CREG - Cancer Risk Evaluation Guide

Table 2 - Surface Water, 10/27/88 (1)

Sample ID Contaminant Concentration µg/L Comparison Value
µg/L Source
SW-1 n-nitroso-di-n-propylamine 54 0.005 CREG
SW-1 1,2,4-trichlorobenzene 40 1 CLHA
SW-1 2,4-dinitrotoluene 41 3 CLHA
SW-1 manganese 143 50 Child RMEG
SW-2 manganese 130 50 Child RMEG

µg/L - Micrograms Per Liter
CLHA - Child Longer Term Health Advisory
CREG - Cancer Risk Evaluation Guide
RMEG - Reference Dose Media Evaluation Guide

Table 3 - Groundwater, 10/27/88 (1)

Sample ID Contaminant Concentration µg/L Comparison Value
µg/L Source
MW-1 VC 2 0.2 Child EMEG, C
MW-1 1,1-DCE 2 0.06 CREG
MW-1 TCE 9 3 CREG
MW-1 benzene 12 1 CREG
MW-1 toluene 45 20 CLHA
MW-1 ethylbenzene 21 10 CLHA
MW-1 styrene 99 20 CLHA
MW-1 1,2,4-Trichlorobenzene 41 1 CLHA
MW-1 pentachlorophenol 18 0.3 CREG
MW-1 DEHP 370 3 CREG
MW-1 Aroclor 1254 120 0.2 Child RMEG
MW-1 methylene chloride 20 5 CREG
MW-1 arsenic 6.7 0.02 CREG
MW-1 barium 5,260 700 Child RMEG
MW-1 beryllium 34.5 0.008 CREG
MW-1 chromium 926 2 CLHA
MW-1 copper 1,640 1,300 Action Level
MW-1 lead 999 15 Action Level
MW-1 manganese 48,500 50 Child RMEG
MW-1 nickel 1,180 5 CLHA
MW-1 vanadium 1,240 30 Child EMEG
MW-1 zinc 3,180 30 CLHA
MW-2 benzene 12 1 CREG
MW-2 2,4-Dichlorophenol 46 20 LTHA
MW-2 2,4,6-Trichlorophenol 130 3 CREG
MW-2 Aroclor 1254 6 0.2 Child RMEG
MW-2 arsenic 10.4 0.02 CREG
MW-2 barium 1,050 700 Child RMEG
MW-2 beryllium 8.0 0.008 CREG
MW-2 chromium 180 2 CLHA
MW-2 lead 150 15 Action Level
MW-2 manganese 9,450 50 Child RMEG
MW-2 nickel 220 5 CLHA
MW-2 vanadium 227 30 Child EMEG, I
MW-2 zinc 548 30 CLHA
MW-2 cyanide 14.3 2 CLHA
MW-3 VC 5 0.2 Child EMEG, C
MW-3 1,1-DCE 4 0.06 CREG
MW-3 1,2-DCA 18 5 MCL
MW-3 TCE 23 3 CREG
MW-3 benzene 110 1 CREG
MW-3 DEHP 4 3 CREG
MW-3 arsenic 14.4 0.02 CREG
MW-3 barium 1,310 700 Child RMEG
MW-3 beryllium 12.6 0.008 CREG
MW-3 cadmium 6.0 5 Child RMEG
MW-3 chromium 211 2 CLHA
MW-3 lead 248 15 Action Level
MW-3 manganese 14,900 50 Child RMEG
MW-3 nickel 246 5 CLHA
MW-3 (filtered) thallium 14.1 0.4 LTHA
MW-3 vanadium 274 30 Child EMEG, I
MW-3 zinc 639 30 CLHA
MW-4 arsenic 2.9 0.02 CREG
MW-4 beryllium 1.9 0.008 CREG
MW-4 chromium 38.5 2 CLHA
MW-4 lead 19.3 15 Action Level
MW-4 manganese 5,730 50 Child RMEG
MW-4 nickel 51.8 5 CLHA
MW-4 vanadium 44.6 30 Child EMEG, I
MW-4 zinc 139 30 CLHA
HW-1 1,1-DCE 1 0.06 CREG
HW-1 zinc 136 30 CLHA
HW-2 manganese 3,650 50 Child RMEG
HW-2 zinc 3,340 30 CLHA
HW-3 manganese 785 50 Child RMEG
HW-3 zinc 46.3 30 CLHA
HW-4 DEHP 3 3 CREG

µg/L - Micrograms Per Liter
Action Level - EPA Action Level
Child EMEG, C - Child Chronic Term Environmental Media Evaluation Guide
Child EMEG, I - Child Intermediate Term Environmental Media Evaluation Guide
CLHA - Child Longer Term Health Advisory
CREG - Cancer Risk Evaluation Guide
LTHA - Lifetime Health Advisory
MCL - Maximum Contaminant Level
RMEG - Reference Dose Media Evaluation Guide

Table 4 - Sediment, 4/10/91 (2)

Sample ID Contaminant Concentration mg/kg Comparison Value
mg/kg Source
SD-1 B[a]P 0.58 0.1 CREG
SD-2 B[a]P 0.27 0.1 CREG
SD-3 B[a]P 1.2 0.1 CREG
SD-5 B[a]P 0.14 0.1 CREG

mg/kg - Milligrams Per Kilogram
CREG - Cancer Risk Evaluation Guide

Table 5 - Groundwater, 4/10/91 (2)

Sample ID Contaminant Concentration µg/L Comparison Value
µg/L Source
HW-1 chromium 5.3 2 CLHA
HW-1 nickel 16.3 5 CLHA
HW-1 zinc 71.6 30 CLHA
HW-2 manganese 94.8 50 Child RMEG
HW-2 nickel 18.0 5 CLHA
HW-2 zinc 2,960 30 CLHA

µg/L - Micrograms Per Liter
CLHA - Child Longer Term Health Advisory
RMEG - Reference Dose Media Evaluation Guide

Table 6 - Surface Water, 4/10/91 (2)

Sample ID Contaminant Concentration µg/L Comparison Value
µg/L Source
SW-1 arsenic 3.9 0.2 CREG
SW-1 beryllium 1 0.008 CREG
SW-1 chromium 10.1 2 CLHA
SW-1 manganese 863 50 Child RMEG
SW-1 nickel 40 5 CLHA
SW-1 zinc 185 30 CLHA
SW-3 arsenic 5.1 0.2 CREG
SW-3 beryllium 1 0.008 CREG
SW-3 chromium 12.2 2 CLHA
SW-3 lead 15.8 15 EPA Action Level
SW-3 manganese 989 50 Child RMEG
SW-3 nickel 26.9 5 CLHA
SW-3 zinc 147 30 CLHA
SW-5/6 arsenic 7.1 0.2 CREG
SW-5/6 beryllium 1.5 0.008 CREG
SW-5/6 chromium 19.6 2 CLHA
SW-5/6 lead 19 15 EPA Action
SW-5/6 manganese 1,110 50 Child RMEG
SW-5/6 nickel 65.6 5 CLHA
SW-5/6 zinc 188 30 CLHA

µg/L - Micrograms Per Liter
CLHA - Child Longer Term Health Advisory
CREG - Cancer Risk Evaluation Guide
RMEG - Reference Dose Media Evaluation Guide

Table 7 - Potential Exposure Pathway Table - OFF SITE

Pathway
Name:
Source Medium Exposure
Point
Exposure
Route
Receptor Population Time of
Exposure
Exposure Activities Estimated Number
Exposed
Chemicals
Sediment Not Known Sediment Montour Run Ingestion
Skin Contact
People who wade in Montour Run Past Swimming
Fishing
Not Known PCBs
Surface
water
Not Known Surface water Montour Run Ingestion People who swim in Montour Run Past
Present
Future
Swimming Not Known Lead

Table 8 - Total Population Estimates Table

Pathway Name Unknown Estimated Pop.
in Pathway
Range
Minimum
Range
Maximum
a. Potential Pathways On-site
None

b. Potential Pathways Off-site X
None 20
c. Total Potential On and Off-site X
None 20
d. Completed Pathways On-site
None

e. Completed Pathways Off-site
None

f. Total Completed On and Off-site
None

g. Potential and Completed Pathways On-site
None

h. Potential and Completed Pathways Off-site X
None 20
i. Total Potential and Completed On and Off-site X
None 20
