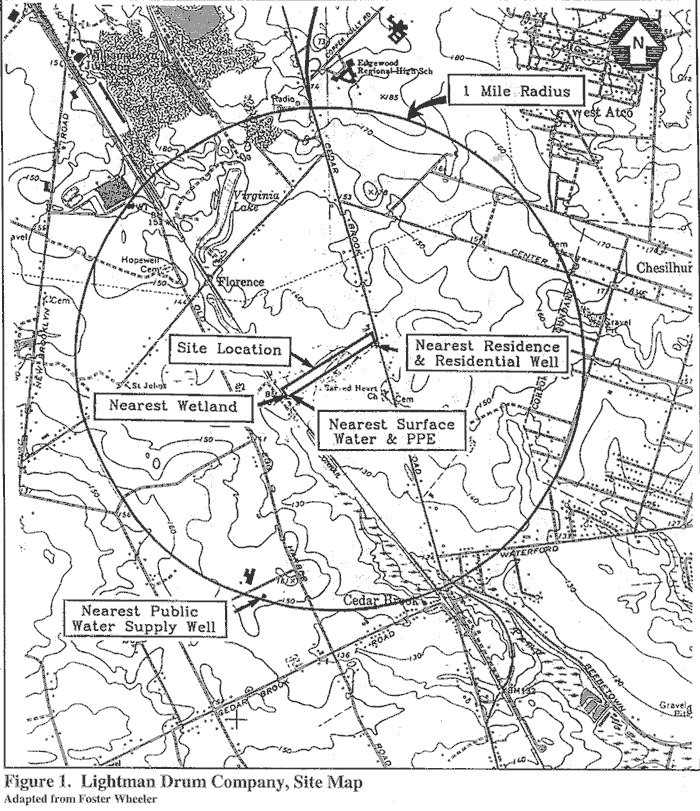

Site Map
Figure 1. Site Map

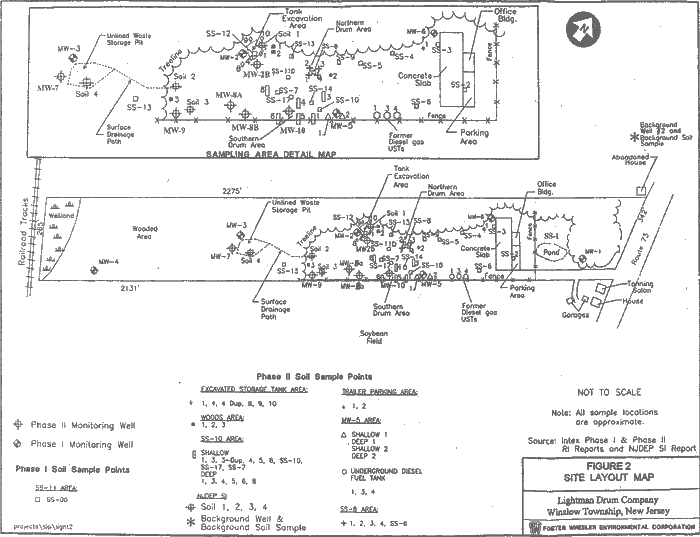

Site Layout Map
Figure 2. Site Layout Map

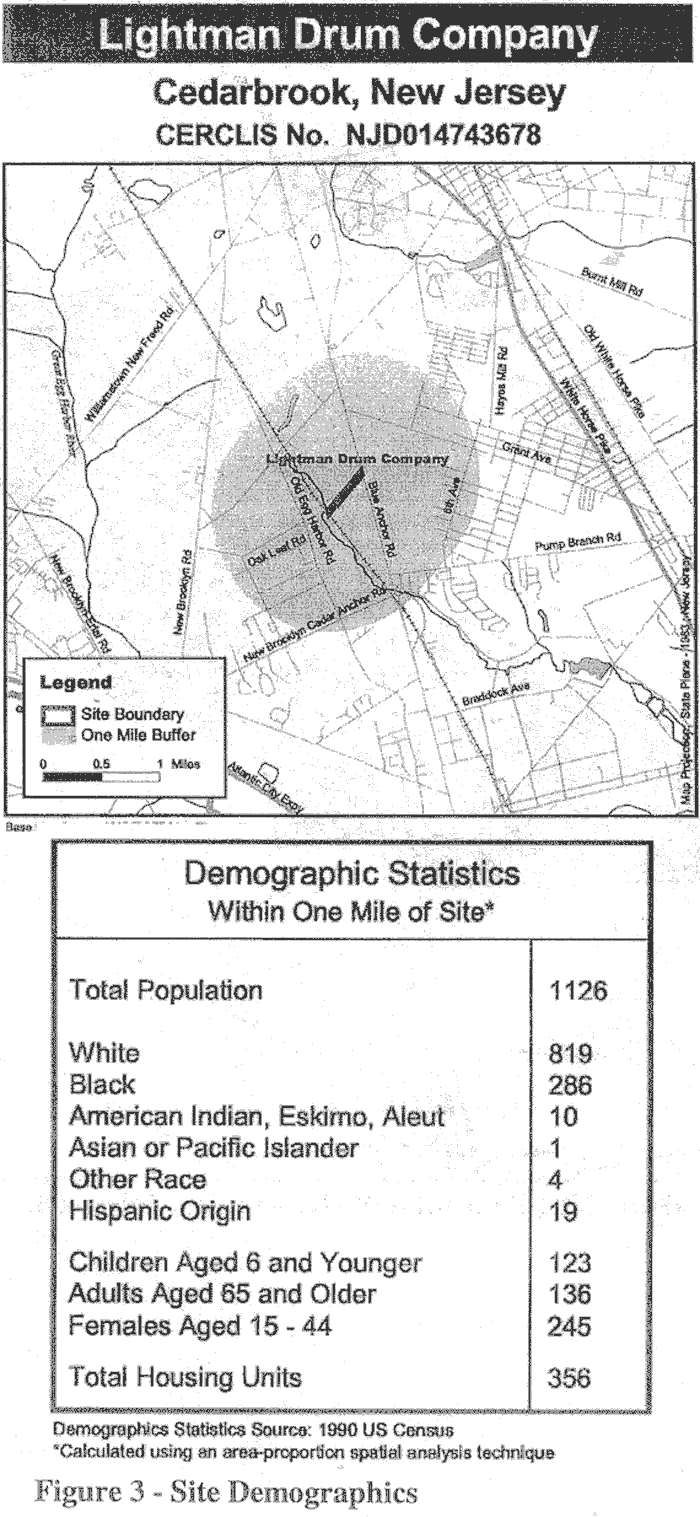

Site Demographics
Figure 3. Site Demographics

Residential Well Sampling, July 2000
Figure 4. Residential Well Sampling, July 2000


Table 1. Maximum Concentrations of Selected Contaminants Detected in On-Site Soils at Levels Approaching or Exceeding Comparison Values, Lightman Drum Company Site, October 1990.

Volatile Organic Compounds Maximum (mg/kg) Comparison Values(mg/kg)* Soil Depth (ft)
Ethylbenzene 1,210 5,000 RMEG child 8-17
Tetrachloroethylene 83.1 500 RMEG child 8-17
Toluene 221 1000 EMEG child 8-17
Trichloroethylene 73 54 (NJ non-residential soil clean-up criteria) 8-17
Xylenes (total) 8,190 10,000 EMEG child 8-17
Semi-volatile Organic Compounds
Bis (2-Ethylhexyl) Phthalate 18 50 CREG 0.5-2
1,2-Diphenylhydrazine 1.94 0.9 CREG 8-17
Antimony 10 20 RMEG child 0.5-2
Arsenic 14 0.5 CREG 0.5-2
Cadmium 8.5 10 EMEG child 0.5-2
Silver 70 300 RMEG child 0.5-2
Beta-BHC 0.083 - 0.5-2
Gamma chlordane 1.23 30 EMEG child 0.5-2

* Comparison Values: ATSDR Soil Comparison Values, unless otherwise noted
EMEG: Environmental Media Evaluation Guide
CREG: Cancer Risk Evaluation Guide
RMEG: Reference Dose Media Evaluation Guide

Table 2. Maximum Concentration of Selected Contaminants Detected in On-Site Monitoring Wells at Levels Above Drinking Water Standards, Lightman Drum Company Site, October 1990.

Volatile Organic Compounds Maximum (µg/l) Comp. Value (NJ MCL**) (µg/l)
Methylene Chloride 1,400 3
Acetone 1,020 -
1,2-trans-dichloroethylene 390 100
1,1,1-trichloroethane 454 30
Trichloroethylene 4,900 1
Tetrachloroethylene 2,010 1
Chlorobenzene 219 50
1,2-dichloroethane 302 2
Benzene 10,100 1
Toluene 3,160 1,000
Ethylbenzene 4,800 700
m-xylene 19,000 1,000
o,p-xylenes 22,500 1,000
Cadmium 17 5
Chromium 1,110 100
Iron 77,500 300+
Manganese 340 50+

** New Jersey Maximum Contaminant Levels
+ Secondary drinking water standards (primarily aesthetic)

Table 3. Concentrations of Selected VOCs and Semi VOCs Detected in Five On-Site Monitoring Wells, Lightman Drum Site, Collected November 5, 1999.

Sample # MW 3 MW 9 MW 10 MW 5 MW 2 Maximum MCL* (NJ)
Volatile Organic Compounds (µg/l)
Acetone 38 ND 19 ND ND 38 -
1,1-Dichloroethylene ND ND 8 ND ND 8 2
Chloroform ND ND 4 2 ND 4 -
1,1,1-Trichloroethane 6 ND 110 2 190 190 30
Trichloroethylene 54 ND 2,300 37 3,500 3,500 1
1,1,2-Trichloroethane ND ND 6 ND ND 6 3
Benzene ND ND 120 ND ND 120 1
Tetrachloroethylene 110 ND 1,500 130 2,800 2,800 1
Toluene 3 ND 400 ND 920 920 1,000
Chlorobenzene 6 ND 43 ND 87 87 50
Ehylbenzene ND ND 410 ND 3,900 3,900 700
Xylene (total) 6 ND 2,900 ND 43,000 43,000 1,000
cis-1,2-Dichloroethylene 270 ND 890 ND 590 890 70
Semi-volatile Organic Compounds (µg/l)
Phenol ND ND 5 ND 5 5 -
1,3-Dichlorobenzene ND ND 4 ND 13 13 600
1,4-Dichlorobenzene 3 ND 8 ND 44 44 75
1,2-Dichlorobenzene ND ND 6 ND 28 28 600
2-Methylphenol ND ND 5 ND 12 12 -
4-Methylphenol ND ND 14 ND 20 20 -
2,4-Dimethylphenol ND ND 10 ND 150 150 -
1,2,4-Trichlorobenzene 4 ND 13 ND 110 110 9
Naphthalene ND ND ND ND 4 4 300
2-Methylnaphthalene ND ND ND ND 1 1 -

* New Jersey Maximum Contaminant Levels
- MCL not available
ND: Not detected

Table 4. Compounds detected from monitoring well samples exceeding New Jersey Maximum Concentration Levels (NJ MCL) at the Lightman Drum Site (USEPA, July 2000).

Compounds Maximum Concentration Levels (µg/L) and Well Number New Jersey Maximum Contaminant Level (µg/L)
Benzene 1800 (MW-08A) 0.2
cis-1,2-Dichloroethene 2400 (MW-02) 10
Trichloroethene 2500 (MW-02) 1
Tetrachloroethene 3700 (MW-02) 0.4
Toluene 1400J (MW-02) 1000
Ethylbenzene 4600 (MW-02) 700
Xylenes (total) 60000 (MW-02) 40
bis(2-Chloroethyl)ether 130 (MW-02) 0.03
2,4-Dimethylphenol 250 (MW-02) 100
bis(2-Ethylhexyl)phthalate 5 (MW-08A and MW-08B) 3
Aluminum 3340J (MW-09) 200
Beryllium 0.37J (MW-09 and MW-10) 0.008
Cadmium 37.1 (MW-03) 4
Manganese 270J (MW-02) 50
Thallium 5.3J (MW-02) 0.5
J = estimated value.


How a chemical enters a person's blood after the chemical has been swallowed, has come into contact with the skin, or has been breathed in.

Acute Exposure:
Contact with a chemical that happens once or only for a limited period of time. ATSDR defines acute exposures as those that might last up to 14 days.

Additive Effect:
A response to a chemical mixture, or combination of substances, that might be expected if the known effects of individual chemicals, seen at specific doses, were added together.

Adverse Health Effect:
A change in body function or the structures of cells that can lead to disease or health problems.

Antagonistic Effect:
A response to a mixture of chemicals or combination of substances that is less than might be expected if the known effects of individual chemicals, seen at specific doses, were added together.

The Agency for Toxic Substances and Disease Registry. ATSDR is a federal health agency in Atlanta, Georgia that deals with hazardous substance and waste site issues. ATSDR gives people information about harmful chemicals in their environment and tells people how to protect themselves from coming into contact with chemicals.

Background Level:
An average or expected amount of a chemical in a specific environment. Or, amounts of chemicals that occur naturally in a specific environment.

Used in public health, things that humans would eat - including animals, fish and plants.

See Community Assistance Panel.

A group of diseases which occur when cells in the body become abnormal and grow, or multiply, out of control

Any substance shown to cause tumors or cancer in experimental studies.

See Comprehensive Environmental Response, Compensation, and Liability Act.

Chronic Exposure:
A contact with a substance or chemical that happens over a long period of time. ATSDR considers exposures of more than one year to be chronic.

Completed Exposure Pathway:
See Exposure Pathway.

Community Assistance Panel (CAP):
A group of people from the community and health and environmental agencies who work together on issues and problems at hazardous waste sites.

Comparison Value (CVs):
Concentrations or the amount of substances in air, water, food, and soil that are unlikely, upon exposure, to cause adverse health effects. Comparison values are used by health assessors to select which substances and environmental media (air, water, food and soil) need additional evaluation while health concerns or effects are investigated.

Comprehensive Environmental Response, Compensation, and Liability Act (CERCLA):
CERCLA was put into place in 1980. It is also known as Superfund. This act concerns releases of hazardous substances into the environment, and the cleanup of these substances and hazardous waste sites. ATSDR was created by this act and is responsible for looking into the health issues related to hazardous waste sites.

A belief or worry that chemicals in the environment might cause harm to people.

How much or the amount of a substance present in a certain amount of soil, water, air, or food.

See Environmental Contaminant.

Delayed Health Effect:
A disease or injury that happens as a result of exposures that may have occurred far in the past.

Dermal Contact:
A chemical getting onto your skin. (see Route of Exposure).

The amount of a substance to which a person may be exposed, usually on a daily basis. Dose is often explained as "amount of substance(s) per body weight per day".

Dose / Response:
The relationship between the amount of exposure (dose) and the change in body function or health that result.

The amount of time (days, months, years) that a person is exposed to a chemical.

Environmental Contaminant:
A substance (chemical) that gets into a system (person, animal, or the environment) in amounts higher than that found in Background Level, or what would be expected.

Environmental Media:
Usually refers to the air, water, and soil in which chemical of interest are found. Sometimes refers to the plants and animals that are eaten by humans. Environmental Media is the second part of an Exposure Pathway.

U.S. Environmental Protection Agency (EPA):
The federal agency that develops and enforces environmental laws to protect the environment and the public's health.

The study of the different factors that determine how often, in how many people, and in which people will disease occur.

Coming into contact with a chemical substance.(For the three ways people can come in contact with substances, see Route of Exposure.)

Exposure Assessment:
The process of finding the ways people come in contact with chemicals, how often and how long they come in contact with chemicals, and the amounts of chemicals with which they come in contact.

Exposure Pathway:
A description of the way that a chemical moves from its source (where it began) to where and how people can come into contact with (or get exposed to) the chemical.

ATSDR defines an exposure pathway as having 5 parts:
  1. Source of Contamination,

  2. Environmental Media and Transport Mechanism,

  3. Point of Exposure,

  4. Route of Exposure; and,

  5. Receptor Population.

When all 5 parts of an exposure pathway are present, it is called a Completed Exposure Pathway. Each of these 5 terms is defined in this Glossary.

How often a person is exposed to a chemical over time; for example, every day, once a week, twice a month.

Hazardous Waste:
Substances that have been released or thrown away into the environment and, under certain conditions, could be harmful to people who come into contact with them.

Health Effect:
ATSDR deals only with Adverse Health Effects (see definition in this Glossary).

Indeterminate Public Health Hazard:
The category is used in Public Health Assessment documents for sites where important information is lacking (missing or has not yet been gathered) about site-related chemical exposures.

Swallowing something, as in eating or drinking. It is a way a chemical can enter your body (See Route of Exposure).

Breathing. It is a way a chemical can enter your body (See Route of Exposure).

Lowest Observed Adverse Effect Level. The lowest dose of a chemical in a study, or group of studies, that has caused harmful health effects in people or animals.

See Cancer.

Minimal Risk Level. An estimate of daily human exposure - by a specified route and length of time -- to a dose of chemical that is likely to be without a measurable risk of adverse, noncancerous effects. An MRL should not be used as a predictor of adverse health effects.

The National Priorities List. (Which is part of Superfund.) A list kept by the U.S. Environmental Protection Agency (EPA) of the most serious, uncontrolled or abandoned hazardous waste sites in the country. An NPL site needs to be cleaned up or is being looked at to see if people can be exposed to chemicals from the site.

No Observed Adverse Effect Level. The highest dose of a chemical in a study, or group of studies, that did not cause harmful health effects in people or animals.

No Apparent Public Health Hazard:
The category is used in ATSDR's Public Health Assessment documents for sites where exposure to site-related chemicals may have occurred in the past or is still occurring but the exposures are not at levels expected to cause adverse health effects.

No Public Health Hazard:
The category is used in ATSDR's Public Health Assessment documents for sites where there is evidence of an absence of exposure to site-related chemicals.

Public Health Assessment. A report or document that looks at chemicals at a hazardous waste site and tells if people could be harmed from coming into contact with those chemicals. The PHA also tells if possible further public health actions are needed.

A line or column of air or water containing chemicals moving from the source to areas further away. A plume can be a column or clouds of smoke from a chimney or contaminated underground water sources or contaminated surface water (such as lakes, ponds and streams).

Point of Exposure:
The place where someone can come into contact with a contaminated environmental medium (air, water, food or soil). For examples:
the area of a playground that has contaminated dirt, a contaminated spring used for drinking water, the location where fruits or vegetables are grown in contaminated soil, or the backyard area where someone might breathe contaminated air.

A group of people living in a certain area; or the number of people in a certain area.

Potentially Responsible Party. A company, government or person that is responsible for causing the pollution at a hazardous waste site. PRP's are expected to help pay for the clean up of a site.

Public Health Assessment(s):
See PHA.

Public Health Hazard:
The category is used in PHAs for sites that have certain physical features or evidence of chronic, site-related chemical exposure that could result in adverse health effects.

Public Health Hazard Criteria:
PHA categories given to a site which tell whether people could be harmed by conditions present at the site. Each are defined in the Glossary. The categories are:
  1. Urgent Public Health Hazard

  2. Public Health Hazard

  3. Indeterminate Public Health Hazard

  4. No Apparent Public Health Hazard

  5. No Public Health Hazard

Receptor Population:
People who live or work in the path of one or more chemicals, and who could come into contact with them (See Exposure Pathway).

Reference Dose (RfD):
An estimate, with safety factors (see safety factor) built in, of the daily, life-time exposure of human populations to a possible hazard that is not likely to cause harm to the person.

Route of Exposure:
The way a chemical can get into a person's body. There are three exposure routes:
- breathing (also called inhalation),
- eating or drinking (also called ingestion), and
- or getting something on the skin (also called dermal contact).

Safety Factor:
Also called Uncertainty Factor. When scientists don't have enough information to decide if an exposure will cause harm to people, they use "safety factors" and formulas in place of the information that is not known. These factors and formulas can help determine the amount of a chemical that is not likely to cause harm to people.

The Superfund Amendments and Reauthorization Act in 1986 amended CERCLA and expanded the health-related responsibilities of ATSDR. CERCLA and SARA direct ATSDR to look into the health effects from chemical exposures at hazardous waste sites.

Sample Size:
The number of people that are needed for a health study.

A small number of people chosen from a larger population (See Population).

Source (of Contamination):
The place where a chemical comes from, such as a landfill, pond, creek, incinerator, tank, or drum. Contaminant source is the first part of an Exposure Pathway.

Special Populations:
People who may be more sensitive to chemical exposures because of certain factors such as age, a disease they already have, occupation, sex, or certain behaviors (like cigarette smoking). Children, pregnant women, and older people are often considered special populations.

A branch of the math process of collecting, looking at, and summarizing data or information.

Superfund Site:
See NPL.

A way to collect information or data from a group of people (population). Surveys can be done by phone, mail, or in person. ATSDR cannot do surveys of more than nine people without approval from the U.S. Department of Health and Human Services.

Synergistic effect:
A health effect from an exposure to more than one chemical, where one of the chemicals worsens the effect of another chemical. The combined effect of the chemicals acting together are greater than the effects of the chemicals acting by themselves.

Harmful. Any substance or chemical can be toxic at a certain dose (amount). The dose is what determines the potential harm of a chemical and whether it would cause someone to get sick.

The study of the harmful effects of chemicals on humans or animals.

Abnormal growth of tissue or cells that have formed a lump or mass.

Uncertainty Factor:
See Safety Factor.

Urgent Public Health Hazard:
This category is used in ATSDR's Public Health Assessment documents for sites that have certain physical features or evidence of short-term (less than 1 year), site-related chemical exposure that could result in adverse health effects and require quick intervention to stop people from being exposed.
