III. EVALUATION OF ENVIRONMENTAL CONTAMINATION AND POTENTIAL EXPOSURE PATHWAYS

III.A. Introduction

In 2001, ATSDR scientists conducted a review and analysis of the Phase I and Phase II screening evaluation of TDOH's Oak Ridge Health Studies to identify contaminants that require further public health evaluation. In the Phase I and Phase II screening evaluation, the TDOH conducted extensive reviews of available information and conducted qualitative and quantitative analyses of past (1944–1990) releases and off-site exposures to hazardous substances from the entire ORR. On the basis of ATSDR's review and analysis of Phase I and Phase II screening evaluations, ATSDR scientists determined that past releases of uranium, mercury, iodine 131, fluorides, radionuclides from White Oak Creek, and PCBs require further public health evaluations. The public health assessment is the primary public health process ATSDR is using to further evaluate these contaminants. The public health assessment process will:

  1. Identify populations off the site who may have been exposed to hazardous substances at levels of health concern.


  2. Determine the public health implications of the exposure.


  3. Address the health concerns of people in the community.


  4. Recommend follow-up public health actions or studies to address the exposure.

ATSDR scientists are conducting public health assessments on the following releases: Y-12 releases of uranium, Y-12 releases of mercury, X-10 release of iodine 131, X-10 release of radionuclides from White Oak Creek, K-25 releases of uranium and fluoride, and PCBs released from all three facilities. Public health assessments will also be conducted on other issues of concern, such as the Toxic Substances Control Act (TSCA) incinerator and off-site groundwater. ATSDR is also screening current (1990 to 2003) environmental data to determine whether additional chemicals will require further evaluation.

This public health assessment on the Y-12 uranium releases evaluates and analyzes the information, data, and findings of previous studies and investigations of releases of uranium from the Y-12 plant and assesses the health implications of past and current uranium exposures to residents living near the ORR, specifically the residents of the reference community (that is, Scarboro).

III.A.1. Exposure Evaluation

What is meant by exposure?

An exposure pathway has five elements: (1) a source of contamination, (2) an environmental media, (3) a point of exposure, (4) a route of human exposure, and (5) a receptor population. The source is the place where the chemical or radioactive material was released. The environmental media (such as, groundwater, soil, surface water, or air) transport the contaminants. The point of exposure is the place where persons come into contact with the contaminated media. The route of exposure (for example, ingestion, inhalation, or dermal contact) is the way the contaminant enters the body. The people actually exposed are the receptor population.ATSDR's public health assessments are driven by exposure or contact. Contaminants (chemicals or radioactive materials) released into the environment have the potential to cause harmful health effects. Nevertheless, a release does not always result in exposure. People can only be exposed to a chemical contaminant if they come into contact with that contaminant. If no one comes into contact with a contaminant, then no exposure occurs, and thus no health effects could occur. Often the general public does not have access to the source area of contamination or areas where contaminants are moving through the environment. This lack of access to these areas becomes important in determining whether people could come into contact with the contaminants. In the case of radiological contamination, however, exposure can occur without direct contact because of the emission of radiation, which is a form of energy.

The route of a contaminant's movement is the pathway. ATSDR identifies and evaluates exposure pathways by considering how people might come into contact with a contaminant. An exposure pathway could involve air, surface water, groundwater, soil, dust, or even plants and animals. Exposure can occur by breathing, eating, drinking, or by skin contact with a substance containing the chemical contaminant. Exposure to radiation can occur by being near the radioactive material.

How does ATSDR determine which exposure situations to evaluate?

ATSDR scientists evaluate specific conditions of the site to determine whether people are being exposed to site-related contaminants. When evaluating exposure pathways, ATSDR identifies whether exposure to contaminated media (soil, water, air, waste, or biota) is occurring through ingestion, dermal (skin) contact, or inhalation.

A comparison value is used by ATSDR to screen chemicals that require additional evaluation.If exposure is possible, ATSDR scientists then consider whether environmental contamination is present at levels that might affect public health. ATSDR evaluates environmental contamination using available environmental sampling data and, in some cases, modeling studies. ATSDR selects contaminants for further evaluation by comparing environmental contaminant concentrations against health-based comparison values. Comparison values are developed by ATSDR from available scientific literature concerning exposure and health effects. Comparison values are derived for each of the media and reflect an estimated contaminant concentration that is not expected to cause harmful health effects for a given contaminant, assuming a standard daily contact rate (for example, the amount of water or soil consumed or the amount of air breathed) and representative body weight.

Comparison values are not thresholds for harmful health effects. ATSDR comparison values represent contaminant concentrations that are many times lower than levels at which no effects were observed in studies on experimental animals or in human epidemiologic studies. If contaminant concentrations are above comparison values, ATSDR further analyzes exposure variables (such as site-specific exposure, duration, and frequency) for health effects, including the toxicology of the contaminant, other epidemiology studies, and the weight of evidence. Figure 7 illustrates ATSDR's chemical screening process.

More information about the ATSDR evaluation process can be found in ATSDR's Public Health Assessment Guidance Manual at http://www.atsdr.cdc.gov/HAC/HAGM/ or by contacting ATSDR at 1-888-42-ATSDR. An interactive program that provides an overview of the public health assessment process ATSDR uses to evaluate whether people will be harmed by hazardous materials is available at: http://www.atsdr.cdc.gov/training/public-health-assessment-overview/html/index.html.

If someone is exposed, will they get sick?

Exposure does not always result in harmful health effects. The type and severity of health effects that occur in an individual as the result of contact with a contaminant depend on the exposure concentration (how much), the frequency (how often) and duration of exposure (how long), the route or pathway of exposure (breathing, eating, drinking, or skin contact), and the multiplicity of exposure (combination of contaminants). Once exposure occurs, characteristics such as age, sex, nutritional status, genetics, lifestyle, and health status of the exposed individual influence how that individual absorbs, distributes, metabolizes, and excretes the contaminant. Taken together, these factors and characteristics determine the health effects that can occur as a result of exposure to a contaminant in the environment.

ATSDR Chemical Screening Process

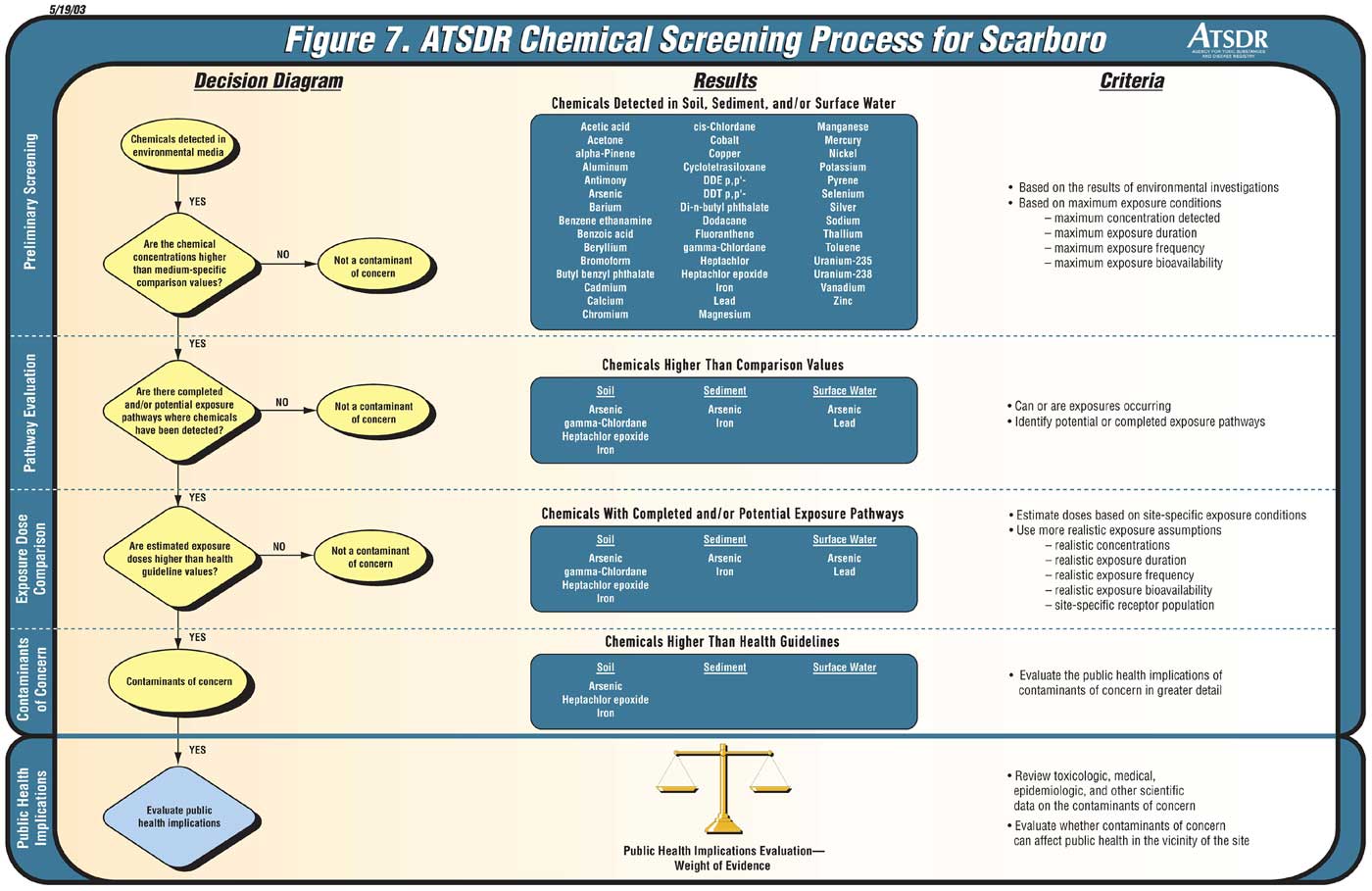

Figure 7. ATSDR Chemical Screening Process

III.A.2. Evaluating Exposures

To evaluate exposures to the reference population, Scarboro, ATSDR evaluated available past and current data to determine whether uranium concentrations were above natural background levels and/or ATSDR's comparison values. In the case of radiation doses, ATSDR calculated the doses based on site-specific data obtained from various environmental investigations and exposure factor sources. ATSDR also reviewed relevant toxicologic and epidemiologic data to obtain information about the toxicity of uranium (discussed in Appendix C). Both the chemical and radioactive properties of uranium can be harmful, and therefore they are evaluated separately.

It is important to remember that exposure to a certain contaminant does not always result in harmful health effects. The type and severity of health effects expected to occur depend on the exposure concentration, the toxicity of the contaminant, the frequency and duration of exposure, and the multiplicity of exposures.

III.A.2.a. Comparing Environmental Data to ATSDR's Comparison Values

ATSDR uses the term 'conservative' to refer to values that are protective of public health in essentially all situations. Values that are overestimated are considered to be conservative.Comparison values are derived using conservative exposure assumptions and health-based doses. Comparison values reflect concentrations that are much lower than those that have been observed to cause adverse health effects. Thus, comparison values are protective of public health in essentially all exposure situations. As a result, concentrations detected at or below ATSDR's comparison values are not considered to warrant health concern. While concentrations at or below the relevant comparison value can reasonably be considered safe, it does not automatically follow that any environmental concentration exceeding a comparison value would be expected to produce adverse health effects. It cannot be emphasized strongly enough that comparison values are not thresholds of toxicity. The likelihood that adverse health outcomes will actually occur depends on site-specific conditions, individual lifestyle, and genetic factors that affect the route, magnitude, and duration of actual exposure; an environmental concentration alone will not cause an adverse health outcome.

When evaluating chemical effects of uranium exposure, ATSDR scientists used comparison values that are specific to each environmental media. The comparison values used are shown in Table 2.

Table 2. Comparison Values for Uranium
Media Comparison Value Source
Air 0.3 µg/m3 Chronic EMEG for highly soluble uranium salts
Surface water 20 µg/L Intermediate child EMEG for highly soluble uranium salts
Soil 100 mg/kg Intermediate child EMEG for highly soluble uranium salts
Fish 4.1 mg/kg RBC for soluble uranium salts

µg/m3: microgram per cubic meter
µg/L: microgram per liter
mg/kg: milligram per kilogram

ATSDR's environmental media evaluation guides (EMEGs) are nonenforceable, health-based comparison values developed for screening environmental contamination for further evaluation. EPA's risk-based concentration (RBC) is a health-based comparison value developed to screen sites not yet on the NPL, respond rapidly to citizens' inquiries, and spot-check formal baseline risk assessments.

III.A.2.b. Comparing Estimated Doses to ATSDR's Minimal Risk Level and Other Comparison Values

Deriving exposure doses

A toxicologic dose is the amount of chemical a person is exposed to over time. The radiation dose is the amount of energy from radiation that is actually absorbed by the body.Exposure doses are expressed in milligrams per kilogram per day (mg/kg/day). When estimating exposure doses, health assessors evaluate chemical concentrations to which people could have been exposed, together with the length of time and the frequency of exposure. Collectively, these factors influence an individual's physiological response to chemical exposure and potential outcomes. Where possible, ATSDR used site-specific information regarding the frequency and duration of exposures. When site-specific information was not available, ATSDR employed several conservative exposure assumptions to estimate exposures.

The following general equation was used to calculate chemical exposure doses:

Estimated Exposure Dose equals C times IR times EF times ED divided by BW times AT

where:

C: Concentration of uranium
IR: Intake Rate
EF: Exposure Frequency, or number of exposure events per year of exposure
ED: Exposure Duration, or the duration over which exposure occurs
BW: Body Weight
AT: Averaging Time, or the period over which cumulative exposures are averaged

The following general equation was used for estimating the committed effective dose or the committed equivalent dose (organ) resulting from internal radiation exposure:

Estimated dose = C × IR × EF × DCF

where:

C: Concentration of uranium (expressed as picocuries per unit mass)
IR: Intake Rate (mass per time period)
EF: Exposure Frequency, or number of exposure events per year of exposure
DCF: Dose Conversion Factor, dose coefficient as published by the International Commission on Radiological Protection (ICRP). The DCF takes into account a standard body weight of 70 kg.

Minimal Risk Level

Using the general equations given above, ATSDR derived toxicologic doses that residents living near the site may have received. As a first step, ATSDR compared these estimated site-specific doses against ATSDR's minimal risk levels (MRLs). MRLs are based on noncancer health effects only and are not based on a consideration of cancer effects. MRLs are derived when reliable and sufficient data exist to identify the target organs of effect or the most sensitive health effects for a specific duration for a given route of exposure. Proposed MRLs undergo a rigorous review process: Health Effects/MRL workgroup reviews within ATSDR's Division of Toxicology; expert panel of external peer reviews; and agency-wide MRL workgroup reviews, with participation from other federal agencies, including EPA; and are then submitted for public comment.

An MRL is an estimate of the daily human exposure to a hazardous substance that is likely to be without appreciable risk of adverse noncancer health effects over a specified duration of exposure. These substance-specific estimates, which are intended to serve as screening levels, are used by ATSDR health assessors to identify contaminants and potential health effects that are not expected to cause adverse health effects. It is important to note that MRLs are not intended to define cleanup or action levels. MRLs are intended only to serve as a screening tool to help public health professionals decide where to look more closely.

MRLs are derived for hazardous substances using the no-observed-adverse-effect level (NOAEL)/uncertainty factor approach. They are below levels that might cause adverse health effects in the people most sensitive to such effects. Most MRLs contain a degree of uncertainty because of the lack of precise toxicologic information on the people who might be most sensitive (for example, infants, the elderly, or persons who are nutritionally or immunologically compromised) to the effects of hazardous substances. Consistent with the public health principle of prevention, ATSDR uses a conservative (that is, protective) approach to address this uncertainty.

MRLs are generally based on the most sensitive end point considered to be of relevance to humans. Serious health effects (such as birth defects or irreparable damage to the liver or kidneys) are not used as a basis for establishing MRLs. Estimated doses that are less than these values are not considered to be of health concern. However, exposure to levels above the MRL does not automatically mean that adverse health effects will occur. To maximize human health protection, MRLs have built-in uncertainty or safety factors, making these values considerably lower than levels at which health effects have been observed. The result is that even if a dose is higher than the MRL, it does not necessarily follow that harmful health effects will occur. Rather, it is an indication that ATSDR should further examine the harmful effect levels reported in the scientific literature and more fully review exposure potential.

Table 3 shows the MRLs developed for uranium. Figures 8 and 9 compare the chemical doses and concentrations, respectively, for ingestion and inhalation of uranium. Figure 10 shows ATSDR's process of determining radiological doses. More detailed information is available in two ATSDR publications: the Toxicological Profile for Uranium (ATSDR 1999a) and the Toxicological Profile for Ionizing Radiation (ATSDR 1999b). Additional information about the toxicologic implications of uranium exposure is provided in Appendix C.

The committed effective dose equivalent (CEDE) is the radiation dose accumulated over a 70-year exposure and assuming the entire 70-year dose is received in the first year following intake of a radioactive substance. By definition, the CEDE is the sum of the products of the weighting factors applicable to each of the body organs or tissues that are irradiated and the committed dose equivalent to the organs or tissues. The CEDE is used in radiation safety because it implicitly includes the relative carcinogenic sensitivity of the various tissues.Other Comparison Values

When evaluating the carcinogenic effects of radiation from uranium exposure, ATSDR scientists use the dose of 5,000 millirem (mrem) over 70 years as the radiogenic cancer comparison value. This value is a committed effective dose equivalent (CEDE) calculated from the intake of uranium, with the assumption that the entire dose (a 70-year dose, in this case)3 is received in the first year following the intake. Doses below this value are not expected to result in adverse health effects. ATSDR derived this value after reviewing the peer-reviewed literature and other documents developed to review the health effects of ionizing radiation (see Appendix D for more information about ATSDR's derivation of the radiogenic cancer comparison value of 5,000 mrem over 70 years).

III.A.2.c. Comparing Estimated Doses to Health Effects Levels

If the MRLs or radiogenic cancer comparison value are exceeded, ATSDR examines the health effects levels discussed in the scientific literature and more fully reviews exposure potential. ATSDR reviews available human studies as well as experimental animal studies. This information is used to describe the disease-causing potential of a particular chemical and to compare site-specific dose estimates with doses shown in applicable studies to result in illness (known as the margin of exposure). This process enables ATSDR to weight the available evidence in light of uncertainties and offer perspective on the plausibility of harmful health outcomes under site-specific conditions.

Table 3. ATSDR's Minimal Risk Levels (MRLs) for Uranium
Route Duration Form MRL Value Dose Endpoint Source
Inhalation Intermediate Soluble 0.0004 mg/m3 LOAEL; Minimal microscopic lesions in the renal tubules in half the dogs examined were observed at doses of 0.15 mg/m3. Rothstein 1949a
Inhalation Intermediate Insoluble 0.008 mg/m3 NOAEL; No adverse health effects were observed in dogs exposed to doses of 1.1 mg/m3. Rothstein 1949b
Inhalation Chronic Soluble 0.0003 mg/m3 NOAEL; No adverse health effects were observed in dogs exposed to doses of 0.05 mg/m3. Stokinger et al. 1953
Oral Intermediate   0.002 mg/kg/day LOAEL; Renal toxicity was observed in rabbits exposed to doses of 0.05 mg/kg/day. Gilman et al. 1998b
External Radiation Acute Ionizing Radiation 400 mrem NOAEL; The difference of 0.3 IQ point in intelligence test scores between separated and unseparated identical twins is considered the NOAEL. Burt 1966
External Radiation Chronic Ionizing Radiation 100 mrem/year NOAEL; The annual dose of 360 mrem/year has not been associated with adverse health effects in humans or animals. BEIR V 1990

Sources: ATSDR 1999a, 1999b

Acute duration is defined as less than or equal to 14 days.
Intermediate duration is defined as 15 to 364 days.
Chronic duration is defined as exposures exceeding 365 days.
The no-observed-adverse-effect level (NOAEL) is the highest dose of a chemical in a study, or group of studies, that did not cause harmful health effects in people or animals.
The lowest-observed-adverse-effect level (LOAEL) is the lowest dose of a chemical in a study, or group of studies, that has caused harmful health effects in people or animals.
The MRL level for intermediate-duration oral exposure is also protective for chronic-duration oral exposure. This is because the renal effects of uranium exposure are more dependent on the dose than on the duration of the exposure.
The rabbit is the mammalian species most sensitive to uranium toxicity and is likely to be even more sensitive than humans.
mg/m3: milligram per cubic meter
mg/kg/day: milligram per kilogram per day
mrem: millirem
mrem/year: millirem per year

Comparison of Uranium Chemical Doses (Ingestion)

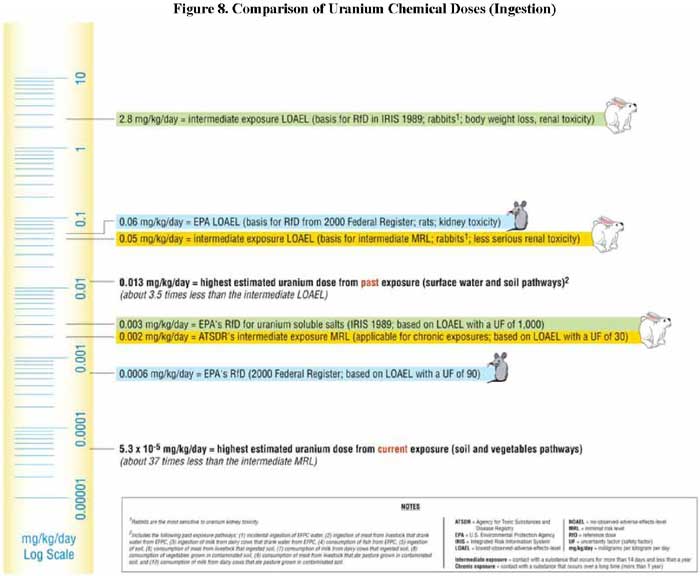

Figure 8. Comparison of Uranium Chemical Doses (Ingestion)

Comparison of Uranium Chemical Doses (Inhalation)

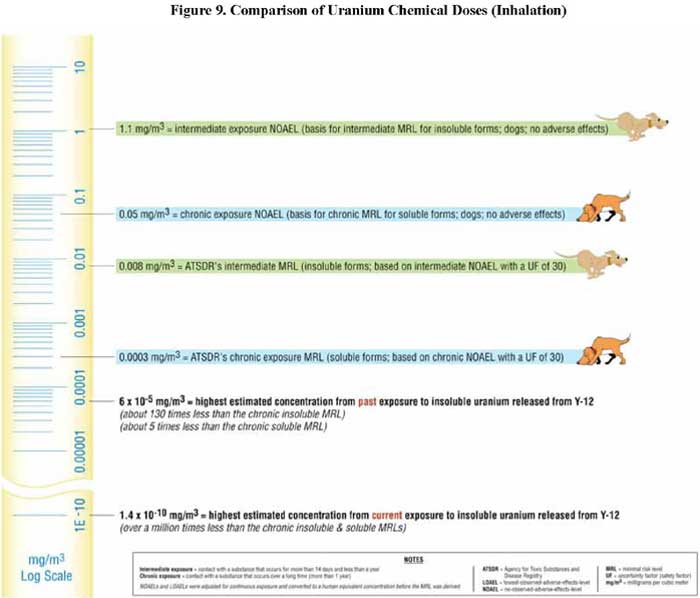

Figure 9. Comparison of Uranium Chemical Doses (Inhalation)

ATSDR Health-Based Determination of Radiological Doses

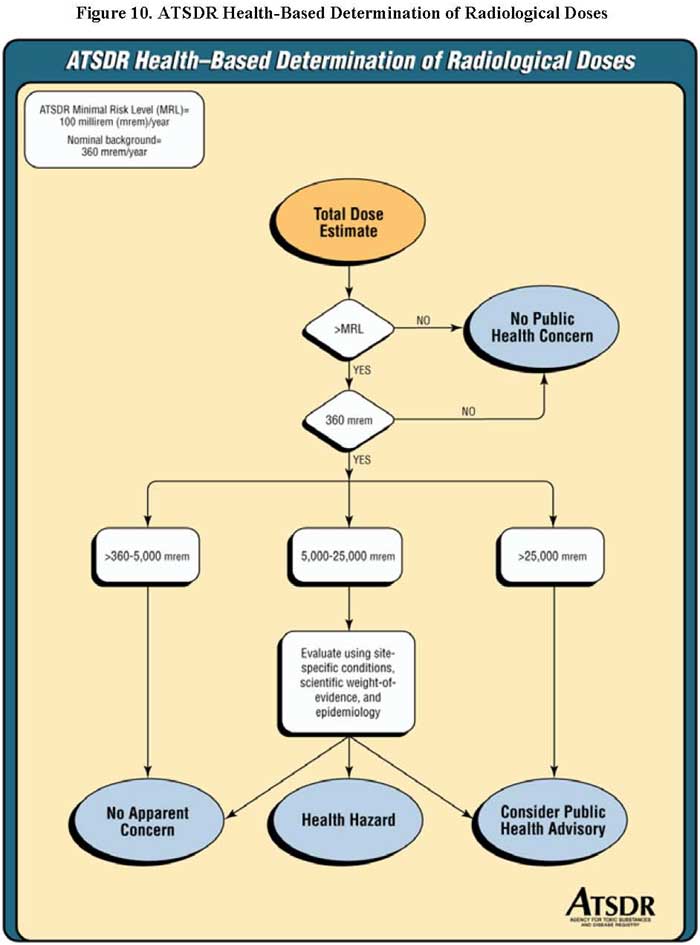

Figure 10. ATSDR Health-Based Determination of Radiological Doses


III.B. Public Health Evaluation

ATSDR evaluated past and current exposure to uranium released from the Y?12 plant and found that the levels of uranium to which people were exposed were too low to be a health hazard for both radiation and chemical health effects.

III.B.1. Past Exposure (1944-1995)

The meteorological data indicates that the predominate wind directions at the Y-12 plant are southwest and northeast, generally up and down Bear Creek valley, between Pine Ridge and Chestnut Ridge with limited winds crossing over the ridges. Most of the uranium would deposit up and down the Bear Creek valley and Union valley. However, no one lives in these valleys. The city of Oak Ridge is the only established community where residents resided during the years of uranium releases that could have been impacted by Y-12 uranium releases. The Scarboro community located within the city of Oak Ridge was selected as a reference location to estimate concentrations of uranium in the air, surface water, and soil in an off-site area where residents resided during years of past Y-12 plant uranium releases.

Furthermore, the Task 6 team identified Scarboro as the reference location using air dispersion modeling, specifically EPA's Industrial Source Complex Short Term (ISCST3) dispersion model, Version 96113 (USEPA 1995 as cited in ChemRisk 1999). Ground-level uranium air concentrations were estimated for a 40 by 47 kilometer grid to quantitatively relate past Y-12 plant uranium release rates to resulting average airborne uranium concentrations at locations surrounding the reservation. Using this method, the Task 6 team was able to identify off-site locations with the highest estimated uranium air concentrations. The Task 6 report stated that "while other potentially exposed communities were considered in the selection process, the reference locations [Scarboro] represent residents who lived closest to the ORR facilities and would have received the highest exposures from past uranium releases...Scarboro is the most suitable for screening both a maximally and typically exposed individual" (ChemRisk 1999). Scarboro represents an established community adjacent to the Y-12 plant with the highest estimated uranium air concentrations.

Therefore, in this evaluation, conclusions regarding exposure of Scarboro residents to uranium are also applicable to residents living in the city of Oak Ridge.

ATSDR evaluated both the radiation and chemical aspects of past uranium exposure. Neither the total radiation dose,4 nor the chemical ingestion and inhalation doses from exposure to uranium released from the Y-12 plant in the past would cause harmful health effects for people living near ORR, including those in the Scarboro community.

III.B.1.a. Past Radiation Effects

ATSDR evaluated whether off-site exposure to past levels of uranium released from the Y?12 plant would cause harmful radiation effects in communities near the Y-12 plant, especially the reference location (the Scarboro community), which is considered the area that would have received the highest off-site exposures. The total past radiation dose (155 mrem, discussed in the next paragraph) the reference population received from Y-12 uranium is well below levels of health concern and is not expected to have caused any adverse health effects in the past. Therefore, the past releases of uranium from the Y-12 plant are not a health hazard for people living near the Y-12 plant.

ATSDR used the screening results from the Task 6 report to evaluate past uranium releases to the environment from the Y-12 plant and past uranium exposures to residents living near the Y-12 plant. During the development of the Task 6 report, uranium radiation doses from the air, surface water, and soil pathways were estimated for the reference location, Scarboro, using a 52-year exposure scenario (Figure 11 shows the exposure pathways evaluated).

To evaluate potential radiation health effects to the population in Scarboro, ATSDR adjusted the Task 6 committed effective dose equivalents (CEDEs) to be equivalent to a 70-year exposure (see Table 4).5 The total past uranium radiation dose received by the reference population, the Scarboro community, from multiple routes of internal and external exposure pathways is a CEDE of 155 millirem (mrem) over 70 years. This total past radiation dose is well below (32 times less than) the ATSDR radiogenic cancer comparison value of a CEDE of 5,000 mrem over 70 years (see Figure 12). ATSDR derived this radiogenic cancer comparison value after reviewing the peer-reviewed literature and other documents developed to review the health effects of ionizing radiation (Appendix D provides more information about ATSDR's derivation of the radiogenic cancer comparison value of 5,000 mrem over 70 years). This radiogenic cancer comparison value assumes that from the intake of uranium, the entire radiation dose (a 70-year dose, in this case) is received in the first year following the intake. Doses below this value are not expected to result in adverse health effects. Therefore, ATSDR does not expect carcinogenic health effects (cancer) to have occurred from past radiation doses received from past Y-12 uranium releases.

To evaluate noncancer health effect from the total past uranium radiation dose (CEDE of 155 mrem over 70 years) received by the Scarboro community, an approximation can be made to compare the CEDE of 155 mrem, which is based on 70 years of exposure, to the ATSDR chronic exposure MRL for ionizing radiation (100 mrem/year), which is based on one year of exposure. The CEDE of 155 mrem over 70 years could be divided by 70 years to approximate a value of 2.2 mrem as the radiation dose in the first year which is well below (45 times less than) the 100 mrem/year ATSDR chronic exposure MRL for ionizing radiation (see Figure 12). The ATSDR MRLs are based on noncancer health effects only and are not based on a consideration of cancer effects. The ATSDR MRL of 100 mrem/year for chronic ionizing radiation exposure is derived by dividing the average annual effective dose to the U.S. population (360 mrem/year) by a safety factor of 3 to account for human variability (ATSDR 199b). The average U.S. annual effective dose of 360 mrem/year is obtained mainly from naturally occurring radioactive material, medical uses of radiation, and radiation from consumer products (see Figure 12) (BEIR V 1990 as cited in ATSDR 1999b). This average annual background effective dose of 360 mrem/year has not been associated with adverse health effects in humans or animals (ATSDR 1999b). ATSDR believes the chronic ionizing radiation MRL of 100 mrem/year is below levels that might cause adverse health effects in persons most sensitive to such effects; therefore, ATSDR does not expect noncancer health effects to have occurred from radiation doses received from past Y-12 uranium releases.

Table 4. Total Past Uranium Radiation Dose to the Scarboro Community
Exposure Pathway Isotope Committed Effective Dose Equivalents (CEDE) in mrem over 70 years Total CEDE for Each Exposure Pathway in mrem over 70 years
Sum of doses from the air pathway U 234/235 34 40
U 238 6
Sum of doses from the surface water (EFPC) pathway U 234/235 27 49
U 238 22
Sum of doses from the soil pathway U 234/235 38 66
U 238 28
Total across all media U 234/235 99 155
U 238 56

Source: ChemRisk 1999

The Task 6 level II CEDEs were converted from Sievert (Sv) to mrem by multiplying by 105. In addition, the values were multiplied by 1.35 (i.e., 70 years/52 years) for comparison with the ATSDR radiogenic cancer comparison value, which is based on a 70-year exposure.

Exposure Pathways Evaluated

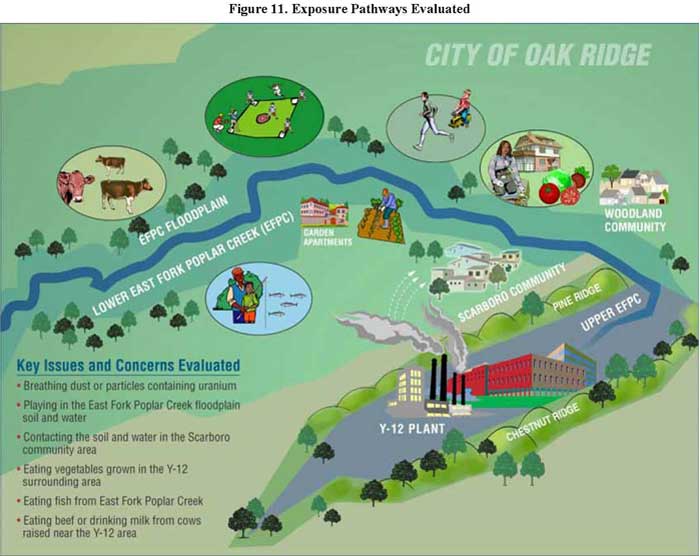

Figure 11. Exposure Pathways Evaluated

Comparison of Radiation Doses

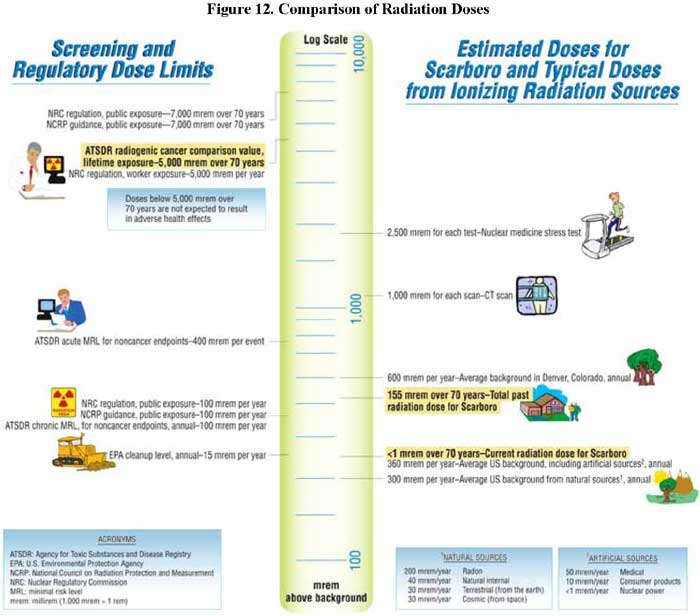

Figure 12. Comparison of Radiation Doses

Additionally, it should be noted that several levels of conservatism were built into the Task 6 evaluation of past exposures. The Task 6 values that ATSDR relied on to evaluate past exposures came from a screening evaluation that routinely and appropriately used conservative and protective assumptions and approaches, which led to an overestimation of concentrations and doses. Even using these overestimated concentrations and doses, persons in the reference community, Scarboro, were exposed to levels of uranium that are not expected to cause health effects. Following is a list of conservative aspects in this evaluation.

  1. The majority of the total uranium radiation dose (54% of the total U 234/235 dose and 78% of the total U 238 dose) is attributed to frequently eating fish from the EFPC and eating vegetables grown in contaminated soil over several years. If a person did not regularly eat fish from the creek or homegrown vegetables over a prolonged period of time (which is very probable), then that person's uranium dose would likely have been substantially lower than the estimated doses reported in this public health assessment.


  2. The Task 6 report noted that late in the project it was ascertained that the Y-12 uranium releases for some of the years used to develop the empirical c/Q (c is chi) value may have been understated due to omission of some unmonitored release estimates. This would cause the empirical c/Q values to be overestimated and in turn would cause the air concentrations to be overestimated.


  3. According to ATSDR's regression analysis, the method that the Task 6 team used to estimate historical uranium air concentrations overestimated uranium 234/235 concentrations by as much as a factor of 5. Consequently, airborne uranium 234/235 doses based on this method were most likely overestimated. A detailed discussion of linear regression evaluation by ATSDR is provided in Appendix E.


  4. In evaluating the soil exposure pathway, the Task 6 team used EFPC floodplain soil data to calculate doses. Actual measured uranium concentrations in Scarboro soil are much lower than the uranium concentrations in the floodplain soil. Consequently, the uranium doses that were estimated for the residents were overestimated because of the use of the higher EFPC floodplain uranium concentrations. The estimated doses would be much lower if they were based on actual measured concentrations in Scarboro.

This conservatism and overestimation, used in the Task 6 evaluation, resulted in overestimation of radiation doses from uranium that the reference population, Scarboro, was exposed to in the past; however, even those overestimated doses were below levels of health concern. Therefore, residents living near the Y-12 plant would not be expected to have any adverse health effects from past exposure to uranium. Each past exposure pathway is evaluated separately in the following sections.

Past Air Exposure Pathway

The Task 6 team independently evaluated past Y-12 airborne uranium releases and generated release estimates much higher than those previously reported by DOE (see Figure 13 and Table 5). They attributed the difference to DOE's use of incomplete sets of effluent monitoring data and release documents, along with their use of release estimates based on effluent monitoring data not adequately corrected to account for sampling biases (ChemRisk 1999). It is ATSDR's understanding that DOE and the community have not disputed the release estimates generated by the Task 6 team. Please see Section 2.0 in the Task 6 report for more details about how the airborne uranium release estimates were determined.

Annual Airborne Uranium Release Estimates for the Y-12 Plant

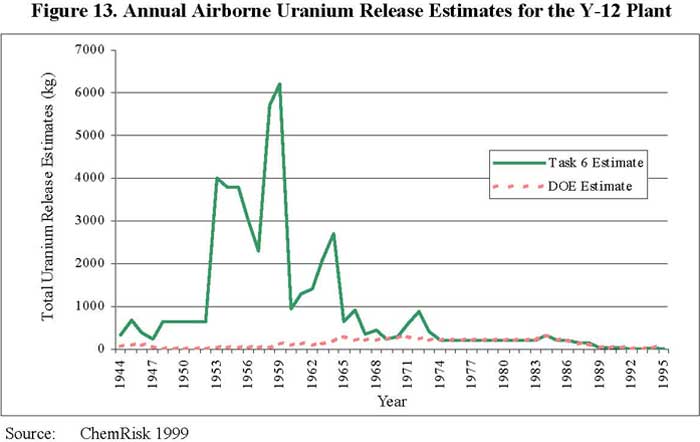

Figure 13. Annual Airborne Uranium Release Estimates for the Y-12 Plant

Table 5. Annual Airborne Uranium Release Estimates for the Y-12 Plant (1944-1995)
Year Task 6 Estimate (kg) DOE Estimate (kg) Year Task 6 Estimate (kg) DOE Estimate (kg)
1944 310 55 1970 300 259
1945 670 102 1971 580 290
1946 390 102 1972 870 222
1947 250 55 1973 410 206
1948 650 0 1974 210 207
1949 650 0 1975 210 209
1950 650 0 1976 210 207
1951 650 0 1977 210 206
1952 650 0 1978 210 205
1953 4,000 30 1979 210 206
1954 3,800 32 1980 220 218
1955 3,800 32 1981 210 207
1956 3,000 43 1982 210 207
1957 2,300 41 1983 210 208
1958 5,700 41 1984 330 329
1959 6,200 120 1985 210 210
1960 930 99 1986 210 211
1961 1,300 109 1987 150 116
1962 1,400 100 1988 150 116
1963 2,100 103 1989 44* 44
1964 2,700 170 1990 21* 21
1965 640 281 1991 21* 21
1966 920 212 1992 7* 7
1967 340 212 1993 3* 3
1968 440 211 1994 24* 24
1969 250 223 1995 2* 2
      Total 50,000 6,535

Source: ChemRisk 1999

* Values for 1989 to 1995 were based on releases reported by DOE. Release estimates for these years were not independently reconstructed during the dose reconstruction.

Using Task 6's newly generated annual airborne uranium release estimates for the Y-12 plant from 1944 to 1995 and the measured air radioactivity concentrations from DOE air monitoring station 46, located in the reference location of Scarboro, from 1986–1995 (DOE began monitoring station 46 in 1986), the Task 6 team used an empirical c/Q (c is chi) approach to estimate average annual air radioactivity concentrations in Scarboro from the 1944 to 1995 Y-12 plant uranium releases (see Figure 14 and Table 6). The empirical c/Q is the ratio of measured air radioactivity concentration (air monitoring station 46 data) to release rate (Task 6 annual airborne uranium release estimates). Please see Section 3.0 in the Task 6 report for more details about how the uranium air concentrations were estimated.

The Task 6 team used these average annual U 234/235 and U 238 air radioactivity concentrations based on the empirical c/Q method to calculated past uranium CEDEs to the Scarboro community via the air exposure pathways. These past uranium CEDEs for each air exposure pathway in Scarboro were summed to calculate the past U 234/235 CEDE of 34 mrem and the past U 238 CEDE of 6 mrem from the air pathway (see Table 4). The total uranium CEDE from the air exposure pathway in Scarboro, after being adjusted to reflect a 70-year exposure, is 40 mrem.

The Task 6 report noted that late in the project it was ascertained that the Y-12 uranium releases for some of the years used to develop the empirical c/Q value may have been understated (ChemRisk 1999). This would cause the empirical c/Q values to also be overestimated and in turn would cause the estimated average air radioactivity concentrations in Scarboro to be overestimated (ChemRisk 1999).

Task 6 Estimated Average Annual Air Radioactivity Concentrations in Scarboro from Y-12 Uranium Releases

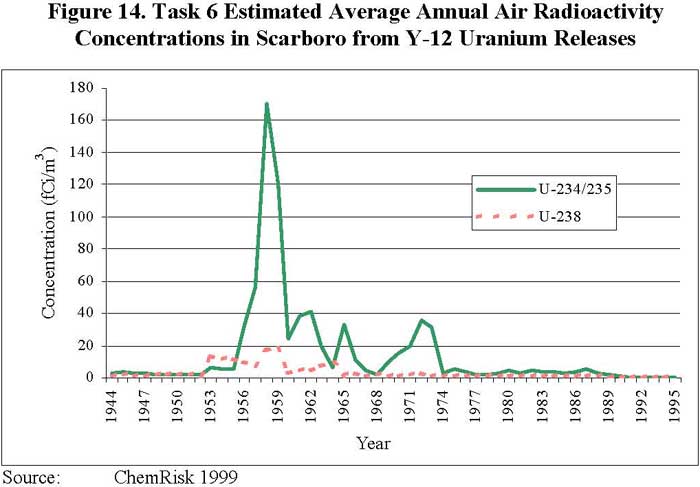

Figure 14. Task 6 Estimated Average Annual Air Radioactivity Concentrations in Scarboro from Y-12 Uranium Releases

Table 6. Task 6 Estimated Average Annual Air Radioactivity Concentrations in Scarboro from Y-12 Uranium Releases (1944-1995)
Year U 234/235 (fCi/m3) U 238 (fCi/m3) Year U 234/235 (fCi/m3) U 238 (fCi/m3)
1944 2.4 1.1 1970 15 0.91
1945 4.0 2.2 1971 20 1.8
1946 3.0 1.3 1972 36 2.7
1947 2.5 0.81 1973 31 1.2
1948 1.6 2.1 1974 2.7 0.67
1949 1.6 2.1 1975 5.0 0.67
1950 1.6 2.1 1976 3.2 0.67
1951 1.6 2.1 1977 1.6 0.67
1952 1.6 2.1 1978 1.7 0.67
1953 6.5 13 1979 2.3 0.67
1954 5.6 12 1980 4.6 0.71
1955 5.7 12 1981 2.8 0.67
1956 31 10 1982 4.7 0.66
1957 56 7.8 1983 4.0 0.67
1958 170 17 1984 3.4 1.1
1959 120 19 1985 2.7 0.68
1960 24 3.0 1986 3.4 0.69
1961 38 4.2 1987 5.7 0.48
1962 41 4.5 1988 2.9 0.47
1963 20 6.8 1989 1.4 0.024
1964 6.5 8.8 1990 0.77 0.014
1965 33 2.0 1991 0.38 0.063
1966 11 3.0 1992 0.36 0.022
1967 1.9 1.1 1993 0.29 0.0093
1968 2.2 1.4 1994 0.31 0.078
1969 9.4 0.77 1995 0.17 0.0055

Source: ChemRisk 1999

fCi/m3 is femtocuries per cubic meter. 1 femtocurie equals 1 × 10-15 curies.
Concentrations were estimated using the empirical
c/Q approach.
All values are rounded to two significant figures.

ATSDR evaluated the Task 6 methodology for estimating annual average air radioactivity concentrations in Scarboro from Y-12 uranium releases relative to measured uranium air radioactivity concentrations at the DOE air monitoring station 46 in Scarboro from 1986 to 1995. According to ATSDR's evaluation, the Task 6 empirical c/Q estimation of the average U 234/235 air radioactivity concentrations consistently overestimated the concentrations in Scarboro from 1986 to 1995 (see Figure 15). In addition, estimated average U 238 air radioactivity concentrations using the Task 6 empirical c/Q method overestimated or slightly underestimated measured U 238 air radioactivity concentrations (see Figure 16). A detailed discussion of linear regression evaluation by ATSDR is provided in Appendix E.

Consequently, the estimated average U 234/235 and U 238 air radioactivity concentrations at Scarboro from 1945 to 1995 Y-12 uranium releases (see Table 6) are most likely overestimated because these concentrations are based on the Task 6 empirical c/Q value. In addition, the Task 6 team used these likely overestimated average U 234/235 and U 238 air radioactivity concentrations based on the empirical c/Q method to calculated past uranium CEDEs to the Scarboro community via the air exposure pathways (see Table 7 for a list of air exposure pathways considered by the Task 6 team). As shown in Table 7, the majority of the estimated total radiation dose via the air pathway in Scarboro from Y-12 uranium releases is attributed to inhalation of airborne particles.

Comparison of Average U 234/235 Air Radioactivity Concentrations in Scarboro - Measured vs. Estimated

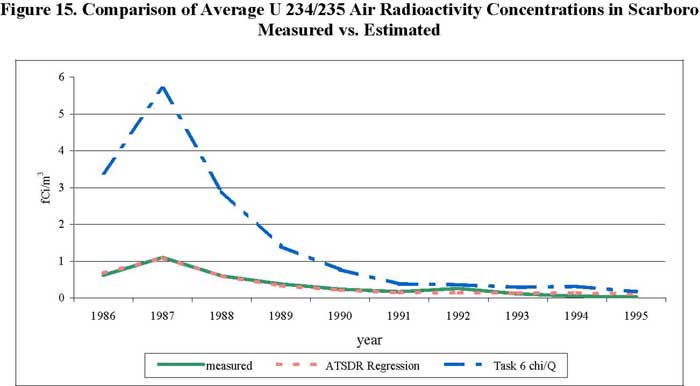

Figure 15. Comparison of Average U 234/235 Air Radioactivity Concentrations in Scarboro - Measured vs. Estimated

Comparison of Average U 238 Air Radioactivity Concentrations In Scarboro - Measured vs. Estimated

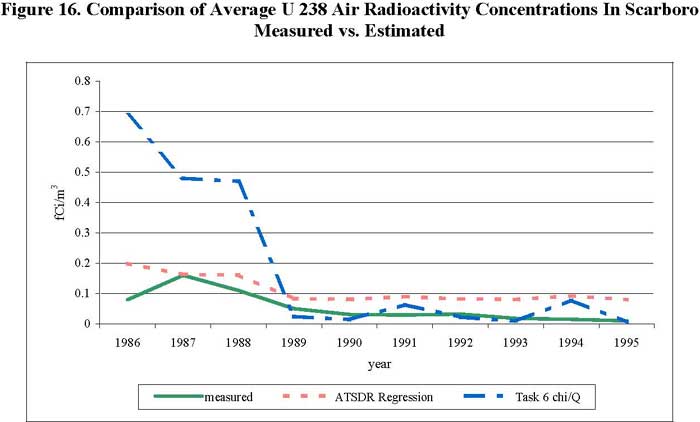

Figure 16. Comparison of Average U 238 Air Radioactivity Concentrations In Scarboro - Measured vs. Estimated

Table 7. Air Pathways Considered by the Task 6 Team
Exposure Pathway to Humans % Pathway Contributes to Total Radiation Dose
U 234/235 U 238
Inhalation of airborne particles 30% 10%
Direct contact with air containing uranium particulates <1% <1%
Ingestion of meat from livestock that inhaled airborne particles <1% <1%
Ingestion of milk from dairy cows that inhaled airborne particles <1% <1%
Consumption of vegetables contaminated with deposited particles 4% <1%
Consumption of meat from livestock that ate pasture contaminated with deposited particles <1% <1%
Consumption of milk from dairy cows that ate pasture contaminated with deposited particles <1% <1%

Source: ChemRisk 1999

To calculate an estimated uranium radiation dose, the Task 6 team used the latest dose coefficients recommended by the ICRP (ChemRisk 1999). Dose coefficients are a combination of factors that may contain uncertainty with respect to physiological parameters. In the case of uranium, the physiological parameters related to dose assessment are well known. Therefore, the uncertainties in the assessment of uranium doses are more precise than other radionuclides. Please see Appendix F for additional information about the ICRP's dose coefficients (for examples, see Harrison et al. 2001; Leggett 2001).

Past Surface Water Exposure Pathway

The closest surface water body to the reference location, Scarboro, is EFPC, which originates from within the Y-12 plant boundary, flows through the city of Oak Ridge, and confluences with Poplar Creek (ChemRisk 1999). EFPC passes about 0.4 miles to the northeast of the populated area of Scarboro at its closest point (ChemRisk 1999). EFPC represents the most credible source of surface water exposure for Scarboro residents (ChemRisk 1999). Public access to the creek exists after it leaves the reservation. However, the creek appears to be too shallow for swimming, although some areas are suitable for wading and fishing.

To calculate annual average uranium radioactivity concentrations in EFPC from 1944 to 1995, the Task 6 team divided the annual waterborne uranium release estimates from the Y-12 plant by the EFPC annual flow rate (see Figure 17 and Table 8). Please see Section 3.3 in the Task 6 report for more details about how the uranium surface water concentrations were determined.

Average Annual Uranium Concentrations in EFPC Surface Water

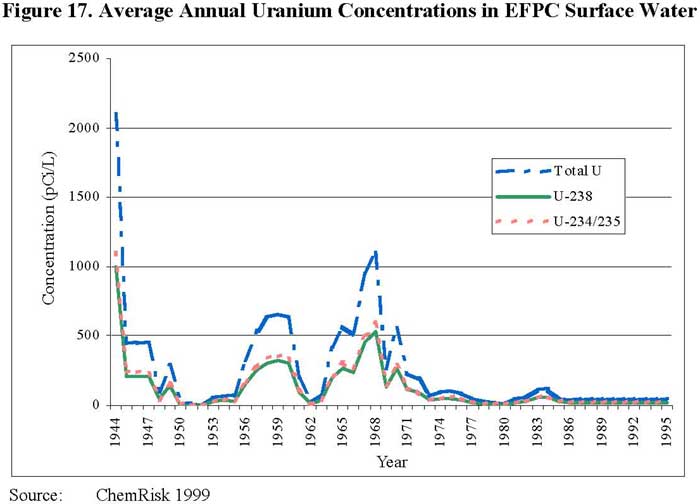

Figure 17. Average Annual Uranium Concentrations in EFPC Surface Water

The Task 6 team then calculated estimated CEDEs via the EFPC surface water exposure pathways. The total past uranium CEDE from EFPC surface water exposure pathways, after being adjusted to reflect a 70-year exposure6 , is 49 mrem (see Table 4). As shown in Table 9, the majority of the exposure to uranium is attributed to frequently eating fish from EFPC (24% of the total U 234/235 dose and 35% of the total U 238 dose). It is ATSDR's understanding that EFPC is not a very productive fishing location and very few people actually eat fish from the creek. If a person did not frequently eat EFPC fish over a prolonged period of time, the person's uranium radioactivity dose from the surface water pathway would be expected to be substantially lower than the estimated radioactivity doses reported in this public health assessment.

As with the air pathway, to calculate an estimated uranium radiation dose for the surface water pathway, the Task 6 team used the dose coefficients recommended by the ICRP (ChemRisk 1999). Please see Appendix F for additional information about the ICRP's dose coefficients (for examples, see Harrison et al. 2001; Leggett 2001).

Table 8. Average Annual Uranium Concentrations in East Fork Poplar Creek Surface Water (1944-1995)
Year Total Uranium (pCi/L) U 238 (pCi/L) U 234/235 (pCi/L) Uranium (mg/L) Year Total Uranium (pCi/L) U 238 (pCi/L) U 234/235 (pCi/L) Uranium (mg/L)
1944 2,100 1,000 1,100 3.0 1970 560 270 290 0.79
1945 450 210 240 0.63 1971 230 110 120 0.32
1946 450 210 240 0.63 1972 190 92 100 0.27
1947 450 210 240 0.63 1973 71 34 37 0.099
1948 99 47 52 0.14 1974 99 47 52 0.14
1949 290 140 150 0.41 1975 104 50 55 0.15
1950 9.1 4.3 4.8 0.013 1976 87 42 46 0.12
1951 6.2 2.9 3.3 0.0088 1977 48 23 25 0.067
1952 0.0070 0.0033 0.0037 0.000010 1978 26 12 14 0.036
1953 61 29 32 0.085 1979 23 11 12 0.033
1954 71 34 37 0.099 1980 9.9 4.7 5.2 0.014
1955 68 32 36 0.095 1981 44 21 23 0.062
1956 320 150 170 0.45 1982 54 25 28 0.075
1957 540 260 280 0.76 1983 110 54 60 0.16
1958 640 300 340 0.89 1984 110 54 60 0.16
1959 660 320 350 0.93 1985 50 24 26 0.070
1960 640 300 340 0.90 1986 42 20 22 0.058
1961 200 93 100 0.27 1987 42 20 22 0.058
1962 14.8 7.0 7.8 0.021 1988 42 20 22 0.058
1963 80 38 42 0.11 1989 42 20 22 0.058
1964 420 200 220 0.59 1990 42 20 22 0.058
1965 570 270 300 0.79 1991 42 20 22 0.058
1966 510 240 270 0.71 1992 42* 20* 22* 0.058*
1967 970 460 510 1.4 1993 42* 20* 22* 0.058*
1968 1,100 530 590 1.6 1994 42* 20* 22* 0.058*
1969 270 130 140 0.38 1995 42* 20* 22* 0.058*
EFPC Average Concentrations (1944-1995) 121 134 0.36

Source: ChemRisk 1999

*Assumed same concentration as 1991.
All values are rounded to two significant figures.


Table 9. Surface Water Pathways Considered by the Task 6 Team
Exposure Pathway to Humans % Pathway Contributes to Total Radiation Dose
U 234/235 U 238
Incidental ingestion of EFPC water <1% <1%
Ingestion of meat from livestock that drank water from EFPC <1% <1%
Ingestion of milk from dairy cows that drank water from EFPC 2% 3%
Consumption of fish from EFPC 24% 35%
Immersion in EFPC water <1% <1%

Source: ChemRisk 1999

Past Soil Exposure Pathway

At the beginning of the Task 6 dose reconstruction, uranium soil data from the reference location, Scarboro, were not available. In its place, uranium soil data from the EFPC floodplain were used as a surrogate for past uranium radioactivity concentrations in Scarboro soil (ChemRisk 1999). The Task 6 team used the average soil concentrations of U 234/235 and U 238 collected from EFPC floodplain between the Y-12 boundary and EFPC MILE 8.8 to estimate past uranium radioactivity doses via the soil pathways in Scarboro. Please see Section 3.4 in the Task 6 report for more details about how uranium concentrations in soil were determined.

The Task 6 report noted that the use of uranium concentrations in EFPC floodplain soil to represent uranium concentrations in Scarboro soil, which is outside of the floodplain, probably introduced conservatism (ChemRisk 1999). The Task 6 report also noted that the uranium concentrations in EFPC floodplain soil, which were available at that time, were not sufficient to support a defensible analysis of average or typical exposure to members of the Scarboro community during the years from the community's inception to the present (ChemRisk 1999).

The Task 6 team estimated past uranium radiation doses by using uranium radioactivity concentrations in EFPC floodplain soil to calculate estimated CEDEs via the soil exposure pathways to residents of Scarboro. The total past uranium CEDE from the soil pathway, after being adjusted to reflect a 70-year exposure7, is 66 mrem (see Table 4). As shown in Table 10, the majority of the past uranium radiation dose (30% of the total U 234/235 dose and 43% of the total U 238 dose) for the soil pathways is attributed to frequently eating vegetables grown in contaminated floodplain soil over a prolonged period of time. If a person did not frequently eat homegrown vegetables over a prolonged period of time, the person's uranium dose from the soil pathway would have been substantially lower than the estimated doses reported in this public health assessment.

Table 10. Soil Pathways Considered by the Task 6 Team
Exposure Pathway to Humans % Pathway Contributes to Total Radiation Dose
U 234/235 U 238
Inhalation of resuspended dust 2% 3%
Ingestion of soil <1% 1%
Consumption of meat from livestock that ingested soil <1% <1%
Consumption of milk from dairy cows that ingested soil <1% 1%
Consumption of vegetables grown in contaminated soil 30% 43%
Consumption of meat from livestock that ate pasture grown in contaminated soil <1% <1%
Consumption of milk from dairy cows that ate pasture grown in contaminated soil <1% 1%
External exposure to contaminated soil 3% <1%

Source: ChemRisk 1999

Toward the end of the Task 6 project (in May 1998), 40 soil samples from the Scarboro community were collected by the Environmental Sciences Institute at FAMU (FAMU 1998). In 2001, EPA collected six additional soil samples from the Scarboro community to validate the 1998 FAMU results (EPA 2003). An independent review by Auxier & Associates (Prichard 1998) of the Task 6 report and the report generated by FAMU noted that aerial deposition of uranium was the primary source of uranium contamination in Scarboro soil, rather than the transportation of EFPC floodplain soils for use as fill. It was concluded that the radioactivity concentrations of uranium within the Task 6 report (based on EFPC floodplain soil samples) are inconsistent with the radioactivity concentrations of uranium observed in Scarboro soils and that the Task 6 assumptions are unlikely to accurately represent past uranium radioactivity concentrations in Scarboro soil (Prichard 1998). Additionally, technical reviews of the Auxier report, the Task 6 report, and the report generated by FAMU noted that the use of actual Scarboro soil data is preferable to the reliance on floodplain soil data. However, the reviewers cautioned using the FAMU data to estimate past exposure without additional research into the environmental distribution of uranium in the area8. Appendix G contains a summary of the technical reviewers' comments.

Based on the FAMU and EPA uranium soil data, the actual uranium radioactivity concentrations in Scarboro soil were much lower than the uranium radioactivity concentrations from the EFPC floodplain soil that the Task 6 team used as a surrogate. As shown in Figure 18 and Table 11, the actual uranium radioactivity concentrations in Scarboro soil are approximately 8 to 22 times less than the EFPC floodplain soil concentrations. Consequently, if the uranium radioactivity concentrations from Scarboro soil were used to estimate the past uranium radioactivity doses instead of the EFPC floodplain soil, the total past uranium CEDE of 66 mrem for the soil exposure pathway (see Table 4) would have been significantly lower.

As with the air and surface water pathways, to calculate an estimated uranium radiation dose for the soil exposure pathway, the Task 6 team used the dose coefficients recommended by the ICRP (ChemRisk 1999). Please see Appendix F for additional information about the ICRP's dose coefficients.

Comparison of the Average Uranium Radioactivity Concentrations - EFPC Floodplain Soil vs. Scarboro Soil

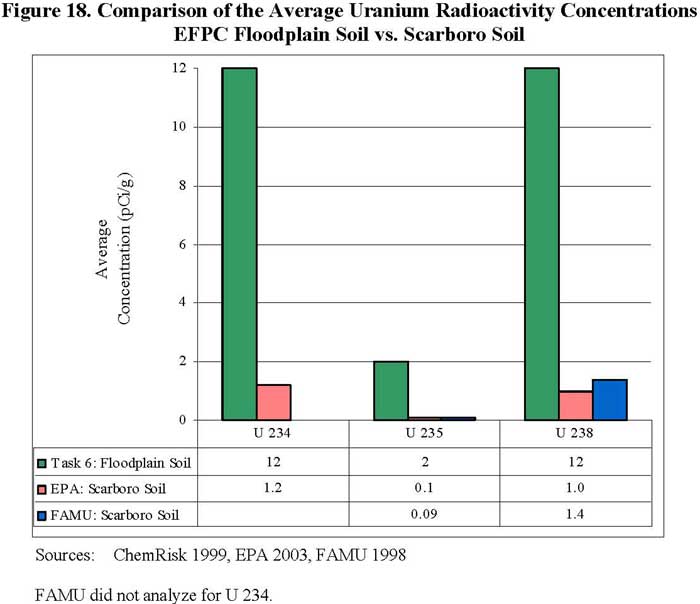

Figure 18. Comparison of the Average Uranium Radioactivity Concentrations - EFPC Floodplain Soil vs. Scarboro Soil

Table 11. Comparison of Average Uranium Radioactivity Concentrations
EFPC Floodplain Soil vs. Scarboro Soil
  Average U 234 Concentration (pCi/g) Average U 235 Concentration (pCi/g) Average U 238 Concentration (pCi/g)
Task 6: Floodplain Soil 12 2 12
EPA: Scarboro Soil 1.2 0.1 1.0
FAMU: Scarboro Soil not available 0.09 1.4
How much lower are the soil radioactivity concentrations in Scarboro than the EFPC floodplain? Task 6 vs. EPA 10 times 20 times 12 times
Task 6 vs. FAMU not available 22 times 8.6 times

Sources: ChemRisk 1999, EPA 2003, FAMU 1998


3 In this case, the entire dose is the dose a person would receive over 70 years of exposure. ATSDR chose a 70-year period of exposure to be protective of public health.
4 The total radiation dose for past exposures is the sum of both internal and external exposures to the air, surface water, and soil pathways.
5 The committed effective dose equivalents (CEDEs) from the Task 6 Level II screening evaluation were converted from Sievert (Sv) to mrem by multiplying by 105. These CEDE values were then multiplied by 1.35 (70 years/52 years) for comparison with the ATSDR radiogenic cancer comparison value, which is based on a 70-year exposure.
6 The total past uranium CEDEs for the EFPC surface water pathway from the Task 6 report were multiplied by 1.35 (70 years/52 years) for comparison with ATSDR's comparison values.
7 The total past uranium CEDEs for the EFPC floodplain soil pathway from the Task 6 report were multiplied by 1.35 (70 years/52 years) for comparison with ATSDR's comparison values.
8 The mobility of uranium in soil and its vertical transport (leaching) to groundwater depend on the form of uranium and the properties of the soil, as well as the amount of water available (ATSDR 1999a). The sorption of uranium in most soils is such that it may not leach readily from soil to groundwater; the migration is typically quite local (ATSDR 1999a). In addition, the predominant chemical form of uranium released into the air from the Y-12 plant was highly insoluble uranium oxide (ChemRisk 1999). Leaching is not expected to be a major loss mechanism for insoluble materials, which bind tightly to soil particles (Prichard 1998).

Next Section     Table of Contents






Agency for Toxic Substances and Disease Registry, 1825 Century Blvd, Atlanta, GA 30345
Contact CDC: 800-232-4636 / TTY: 888-232-6348

USA.gov: The U.S. Government's Official Web Portal
